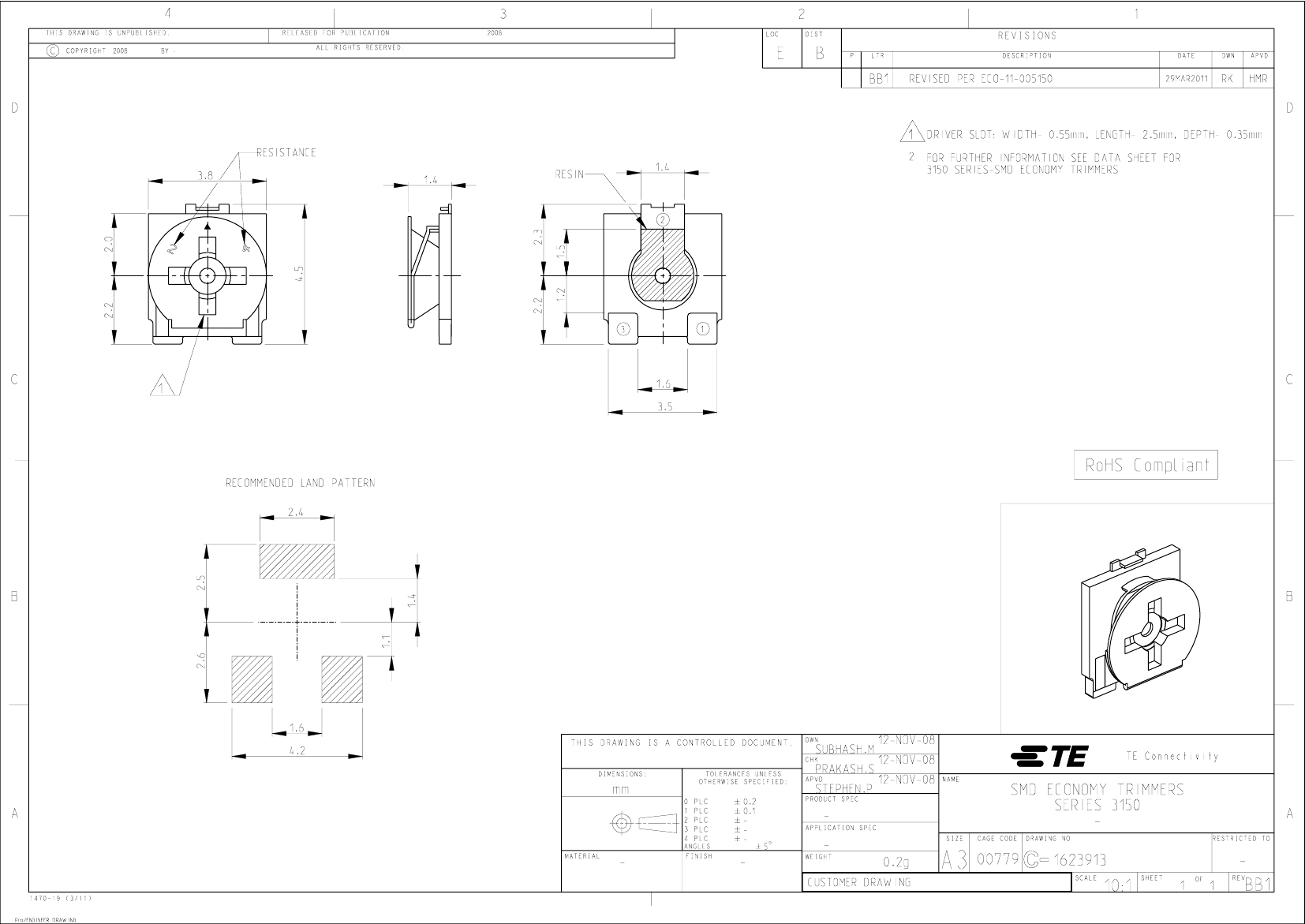

Trimmer, Cermet, 0.2W, 500000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| package instruction | SMT, 1815 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 16 weeks 6 days |
| Actuator direction | VERTICAL |
| Actuator type | SCREW |
| structure | Trimmer |
| Installation features | SURFACE MOUNT |
| Number of terminals | 3 |
| number of turns | 1 |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Package height | 1.4 mm |
| Package length | 4.5 mm |
| Package shape | RECTANGULAR PACKAGE |
| Package form | SMT |
| Package width | 3.8 mm |
| method of packing | TR |
| Rated power dissipation(P) | 0.2 W |
| resistance | 500000 Ω |
| resistance law | LINEAR |
| Resistor type | TRIMMER |
| rotation angle | 260 deg |
| size code | 1815 |
| surface mount | YES |
| technology | CERMET |
| Temperature Coefficient | -250,250 ppm/°C |
| Terminal shape | WRAPAROUND |
| Tolerance | 25% |
| Operating Voltage | 50 V |
| 3150W504P | 3150W101P | 3150W103P | 3150W104P | 3150W202P | 3150W203P | 3150W204P | 3150W501P | |
|---|---|---|---|---|---|---|---|---|
| Description | Trimmer, Cermet, 0.2W, 500000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 100ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 10000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 100000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 2000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 20000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 200000ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT | Trimmer, Cermet, 0.2W, 500ohm, 50V, 25% +/-Tol, -250,250ppm/Cel, 1 Turn(s), 1815, ROHS COMPLIANT |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| package instruction | SMT, 1815 | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Actuator direction | VERTICAL | VERTICAL | VERTICAL | VERTICAL | VERTICAL | VERTICAL | VERTICAL | VERTICAL |
| Actuator type | SCREW | SCREW | SCREW | SCREW | SCREW | SCREW | SCREW | SCREW |
| structure | Trimmer | Trimmer | Trimmer | Trimmer | Trimmer | Trimmer | Trimmer | Trimmer |
| Installation features | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| number of turns | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 100 °C | 100 °C | 100 °C | 100 °C | 100 °C | 100 °C | 100 °C | 100 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package height | 1.4 mm | 1.4 mm | 1.4 mm | 1.4 mm | 1.4 mm | 1.4 mm | 1.4 mm | 1.4 mm |
| Package length | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm | 4.5 mm |
| Package shape | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE |
| Package form | SMT | SMT | SMT | SMT | SMT | SMT | SMT | SMT |
| Package width | 3.8 mm | 3.8 mm | 3.8 mm | 3.8 mm | 3.8 mm | 3.8 mm | 3.8 mm | 3.8 mm |
| method of packing | TR | TR | TR | TR | TR | TR | TR | TR |
| Rated power dissipation(P) | 0.2 W | 0.2 W | 0.2 W | 0.2 W | 0.2 W | 0.2 W | 0.2 W | 0.2 W |
| resistance | 500000 Ω | 100 Ω | 10000 Ω | 100000 Ω | 2000 Ω | 20000 Ω | 200000 Ω | 500 Ω |
| resistance law | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR |
| Resistor type | TRIMMER | TRIMMER | TRIMMER | TRIMMER | TRIMMER | TRIMMER | TRIMMER | TRIMMER |
| rotation angle | 260 deg | 260 deg | 260 deg | 260 deg | 260 deg | 260 deg | 260 deg | 260 deg |
| size code | 1815 | 1815 | 1815 | 1815 | 1815 | 1815 | 1815 | 1815 |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CERMET | CERMET | CERMET | CERMET | CERMET | CERMET | CERMET | CERMET |
| Temperature Coefficient | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C | -250,250 ppm/°C |
| Terminal shape | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND |
| Tolerance | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Operating Voltage | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
