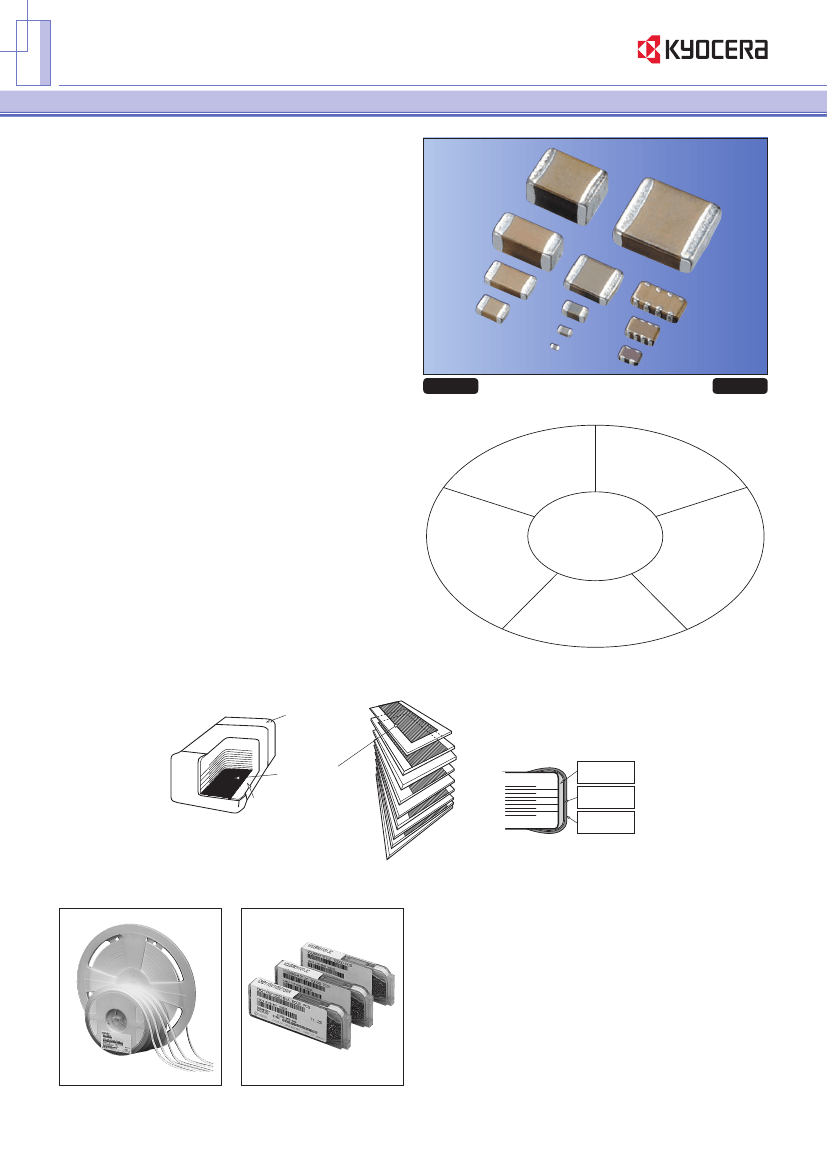

Multilayer Ceramic Chip Capacitors
Kyocera’s series of Multilayer Ceramic Chip Capacitors
are designed to meet a wide variety of needs. We offer
a complete range of products for both general and
specialized applications, including general−purpose CM
series, high−voltage CF series, low profile CT series, DM
series for automotive uses, and CA series for arrays.
Features
We have factories worldwide in order to supply our global customer
bases quickly and efficiently and to maintain our reputation as one of
the highest−volume producers in the industry.
•
All our products are highly reliable due to their monolithic structure of
high−purity and superfine uniform ceramics and their integral internal
electrodes.
•
By combining superior manufacturing technology and materials
with high dielectric constants, we produce extremely compact
components with exceptional specifications.
•
Our stringent quality control in every phase of production from
material procurement to shipping ensures consistent manufacturing
and super quality.
•
Kyocera components are available in a wide choice of dimensions,
temperature characteristics, rated voltages, and terminations to meet
specific configurational requirements.
•
Pb Free
RoHS Compliant
series
General
CM
series
Arrays
CA
series
Low Profile
CT
Multilayer
Ceramic Chip
Capacitors
series
High-Voltage
series
Automotive
DM
CF
Structure
External Termination
Electrodes
Nickel Barrier Termination Products
Internal Electrodes
(Pd, Pd/ Ag or Ni)
Dielectric Ceramic Layer
Ag or Cu or
CuNi
Ni Plating
Sn Plating
Temperature compensation: Titanate family
Zirconate family
High dielectric constant:
Barium Titanate family
Tape and Reel
Bulk Cassette
Please contact your local AVX, Kyocera sales office or distributor for
specifications not covered in this catalog.
Our products are continually being improved. As a result, the
capacitance range of each series is subject to change without notice.
Please contact an sales representative to confirm compatibility with
your application.
Multilayer Ceramic Chip Capacitors
Dimensions
L
W
T
P
P to P
P
External
Electrode
Dimensions
Tape & Reel
Size
03
05
105
21
316
32
42
43
52
55
•
EIA CODE
0201
0402
0603
0805
1206
1210
1808
1812
2208
2220
JIS CODE
0603
1005
1608
2012
3216
3225
4520
4532
5720
5750
Dimensions (mm)
L
0.6±0.03
1.0±0.05
1.6±0.10
2.0±0.10
3.2±0.20
3.2±0.20
4.5±0.20
4.5±0.30
5.7±0.40
5.7±0.40
W
0.3±0.03
0.5±0.05
0.8±0.10
1.25±0.10
1.60±0.15
2.50±0.20
2.00±0.20
3.20±0.20
2.00±0.20
5.00±0.40
T max.
0.33
0.55
0.90
1.35
1.75
2.70
2.20
3.00
2.20
2.70
P min.
0.13
0.15
0.20
0.20
0.30
0.30
0.15
0.30
0.15
0.30
P max.
0.23
0.35
0.60
0.75
0.85
1.00
0.85
1.10
0.85
1.40
P to P min.
0.20
0.30
0.50
0.70
1.40
1.40
2.60
2.00
4.20
2.50
T (Thickness) depends on capacitance value.
Standard thickness is shown on the appropriate product pages.
•
CA series (please refer applicable page)
•
As for the size of the product specified individually, please contact us.
Bulk Cassette
Size
05
105
21
EIA CODE
0402
0603
0805
JIS CODE
1005
1608
2012
L
1.0±0.05
1.6±0.07
2.0±0.1
W
0.5±0.05
0.8±0.07
1.25±0.1
T
0.5±0.05
0.8±0.07
1.25±0.1
P
min.
0.15
0.20
0.20
max.
0.35
0.60
0.75
P to P
min.
0.30
0.50
0.70
Note) Regarding support for Bulk cases, please contact us for further information.
Multilayer Ceramic Chip Capacitors
Ordering Information
KYOCERA PART NUMBER:
SERIES CODE
CM
CF
CT
DM
=
=
=
=
General Purpose
High Voltage
Low Profile
Automotive
CA
=
Capacitor Arrays
CM
21
X7R
104
K
50
A
T
□□□
SIZE CODE
SIZE
03
=
05
=
105
=
F12
=
EIA (JIS)
0201 (0603)
0402 (1005)
0603 (1608)
0508 (1220)/ 4cap
SIZE
21
=
316
=
32
=
42
=
43
=
EIA (JIS)
0805 (2012)
1206 (3216)
1210 (3225)
1808 (4520)
1812 (4532)
SIZE
52
=
55
=
D11
=
D12
=
EIA (JIS)
2208 (5720)
2220 (5750)
0405 (1012)/ 2cap
0508 (1220)/ 2cap
DIELECTRIC CODE
CODE EIA CODE
CG
=
C0G (NPO)
X7S
=
X7S (Option)
X5R
=
X5R
X6S
=
X6S (Option)
X7R
=
X7R
Y5V
=
Y5V
Negative temperature coefficient dielectric types are available on request.
CAPACITANCE CODE
Capacitance expressed in pF. 2 significant digits plus
number of zeros.
For Values
<
10pF, Letter R denotes decimal point,
1.5pF
eg.
100000pF
=
104
=
1R5
0.5pF
0.1mF
=
104
=
R50
4700pF
=
472
100mF
=
107
TOLERANCE CODE
A
= ±0.05pF
(option)
B
= ±0.1pF
(option)
C
= ±0.25pF
D
= ±0.5pF
F
= ±1pF
G
= ±2%
(option)
J
= ±5%
K
= ±10%
M
= ±20%
Z
= −20
to
+80%
VOLTAGE CODE
04
06
10
16
25
35
50
=
=
=
=
=
=
=
4VDC
6.3VDC
10VDC
16VDC
25VDC
35VDC
50VDC
100
250
400
630
=
=
=
=
100VDC
250VDC
400VDC
630VDC
1000
2000
3000
4000
=
=
=
=
1000VDC
2000VDC
3000VDC
4000VDC
TERMINATION CODE
A
=
Nickel Barrier
PACKAGING CODE
B
=
Bulk
C
=
Bulk Cassette (option)
T
=
7" Reel Taping & 4mm Cavity pitch
L
=
13" Reel Taping & 4mm Cavity pitch
H
=
7" Reel Taping & 2mm Cavity pitch
N
=
13" Reel Taping & 2mm Cavity pitch
OPTION
Thickness max. value is indicated in CT series
EX. 125
→
1.25mm max.
095
→
0.95mm max.
Multilayer Ceramic Chip Capacitors
Temperature Characteristics and Tolerance
High Dielectric Constant
EIA Dielectric
X5R
X7R
*
X7S
*
X6S
Y5V
*
option
Temperature Range
−55
to 85°C
−55
to 125°C
−55
to 125°C
−55
to 105°C
−30
to 85°C
DC
max.
±15%
±22%
−82
to
+22%
Temperature Compensation Type
Dielectric
Value (pF)
0.5 to 2.7
3.0 to 3.9
4.0 to 9.0
≥10
C0G (NPO)
0 ppm/ °C
CK
CJ
CH
CG
UD (N750)
−750
ppm/ °C
UK
UJ
UJ
UJ
SL
+350
to
−1000ppm/
°C
SL
SL
SL
SL
K
= ±250ppm/ °C,
J
= ±120ppm/ °C,
H
= ±60ppm/ °C,
G
= ±30ppm/ °C
e.g. CG
=
0±30ppm/
°C
Note: All parts of C0G will be marked as “CG” but will conform to the above table.
Available Tolerances
Dielectric materials, capacitance values and tolerances are
available in the following combinations only:
EIA Dielectric
Tolerance
C=±0.25pF
D=±0.50pF
F=±1pF
COG
*
3
A=±0.05pF
B=±0.1pF
*
3
G=±2%
J=±5%
K=±10%
*
3
X6S
*
3
X7S
X5R
X7R
*
2
K=±10%
M=±20%
Z=−20% to
+80%
<0.5pF
≤5pF
≥10pF
E12 Series
E6 Series
E3 Series
* <10pF
1
E Standard Number
E3
E6
1.0
1.0
1.5
E12
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
E24 (Option)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
1.1
1.3
1.6
2.0
2.4
3.0
3.6
4.3
5.1
6.2
7.5
9.1
Capacitance
2.2
2.2
3.3
4.7
4.7
6.8
Y5V
Note:
*1
Nominal values below 10pF are available in the standard values of 0.5pF, 1.0pF, 1.5pF,
2.0pF, 3.0pF, 4.0pF, 5.0pF, 6.0pF, 7.0pF, 8.0pF, 9.0pF
*2
J
= ±5%
for X7R (X5R) is available on request.
*3
option
