Features
■
Accepts POTS lines & coaxial protector
■
Manufactured from high-impact resistant,
■
Subscriber lockable with Telco override
■
Convenient ground attachment
■
ultraviolet-desensitized, flame retardant
plastic
■
Optional sealed switching jacks with
Insulation Displacement Connectors
(IDC)
Listed per UL 497 (File: E53117)
7004C Series - Network Interface Device
Bourns
®

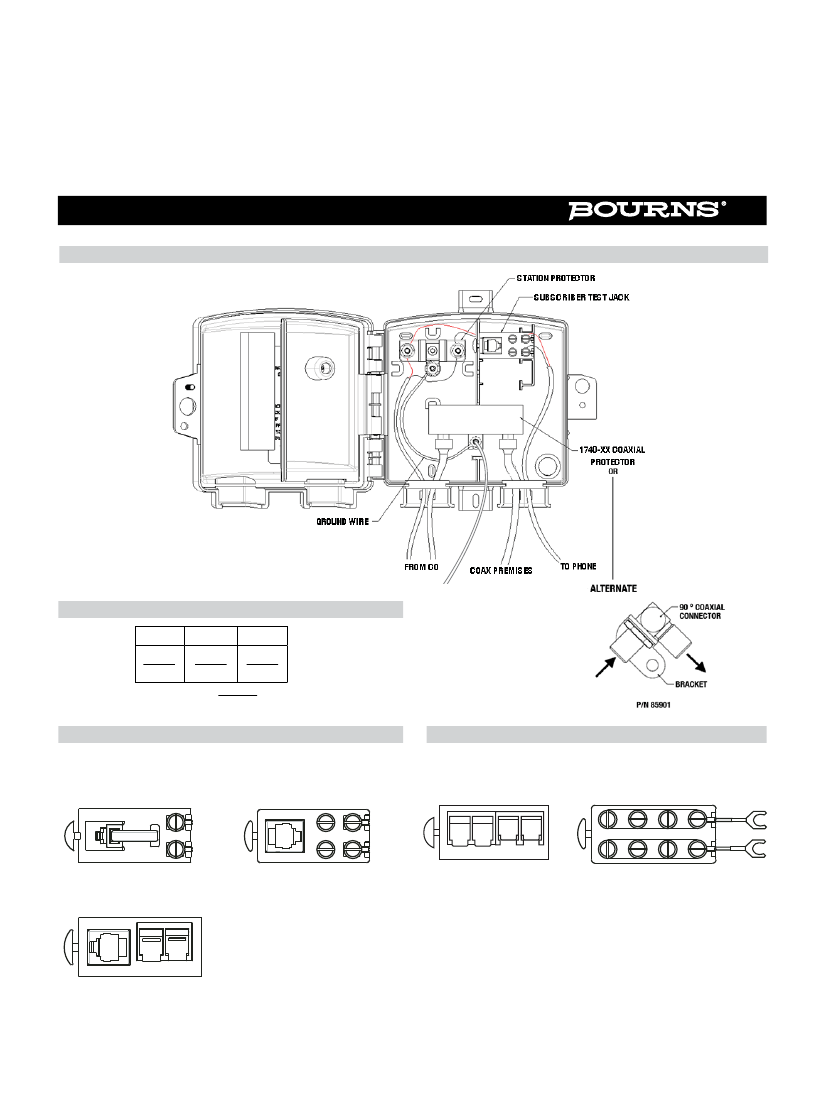

Model 7004C NID provides a secure and weather resistant enclosure for Telco service for residential or commercial
installations. The 7004C supplies station protection and test access points and can be configured for a maximum of two POTS lines
and one 1740-xx coax protector. The 7004C features convenient cable knockouts and generous working space for wire
management.
How To Order
7004C - 0X - X X - XX
Model Number Designator
Number of Twisted Pairs
0 = None
1 = One
2 = Two
Station Protector Options
D
1
= 455HS-MSP (2377-45-HS) Voice/Data/DSL (UL,cUL)
U
3
= 455HS-MSP (2377-45-HS-IDC) Voice/DSL/Data (UL,cUL)
Z
1
= 455HS-BC* (2377-45-BC) Balance-Sensitive DSL (UL, cUL)
W
3
= 455HS-BC* (2377-45-BC-IDC) Balance-Sensitive DSL (UL, cUL)
V
3
= 455-MSP-TBU (2377-45-HS-TBU) MSP w/TBU
®
Protector (UL, cUL)
Q
3
= 455BC-MSP-TBU* (2377-45-BC-TBU) Balance-Sensitive MSP w/TBU
®
Protector (UL, cUL)
E
2
= 155HS-MSP (2378-35-HS) Voice/DSL/Data (UL, cUL)
Y
2
= 155HS-BC* (2378-35-BC) Balance-Sensitive DSL (UL, cUL)
G = 155G (2378-35-G) Balanced GDT, No Back-Up-Gap (UL, cUL)
K = 356G (2377-35-G) Balanced GDT, No Back-Up-Gap (UL, cUL)
R
3
= 356G (2377-35-G-IDC) Balanced GDT, No Back-Up-Gap (UL, cUL)
T
O
= Tii355M
= No Station Protectors (Not available with DSL configurations)
*For DSL systems requiring capacitive balance within 1 pF.
Note 1 = Digi.Guard - 356 size, RUS Maximum Duty.
Note 2 = Digi.Guard II - 125 size, RUS Heavy Duty.
Note 3 = Insulation Displacement Connectors (IDC)
Special Options
H = Security Screw in security plate
S = Sealed Switching Jack w/IDC (85122-T-IDC)
F = Sealed Switching Jack 4-Post (85122-T4)
B = Expansion Bridge w/Binding Posts (85122-B)
Coax Protector Options
15 = 1740-15 (150 V±20 % DC Breakdown @ 100 V/Sec)
23 = 1740-23 (230 V±20 % DC Breakdown @ 100 V/Sec)
35 = 1740-35 (350 V±20 % DC Breakdown @ 100 V/Sec)
To add lines, use station protector +
85122
Standard Jack
85122-T4
Sealed Switching Jack, 4-post
85122-T-IDC
Sealed Switching Jack w/IDC
I =
O =
N=
Expansion Bridge w/IDC (85122-IDC)
No options (standard 85122 jack)
90 ° F-connector (85901)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
