Introduction
The XLR connector series is probably together with the Speakon
series Neutrik's most known product range and has due to the
simple but striking concept been one of the most important keys
to our great success.
We introduced the first XLR version more than 25 years ago,
meanwhile it became the worldwide accepted standard.
XLR connectors are widely used in various applications of the
professional audio world. Whether as microphone connector, on
lighting applications or any kind of sound equipment, the XLR is
all over the entertainment industry.
®
Keyfeatures are:
- Reliable and robust
- Easy to assemble, simple to use
- Excellent cable protection and retention
- Colour coding
- Available in 3 to 7 pole
The reason for the outstanding success of the series is in accom-
pany with these features a constant and peerless quality.
Q
u a l i
t y
T h
i
n
k
i n
g
8
X L R
C a b l e
C o n n e c t o r s

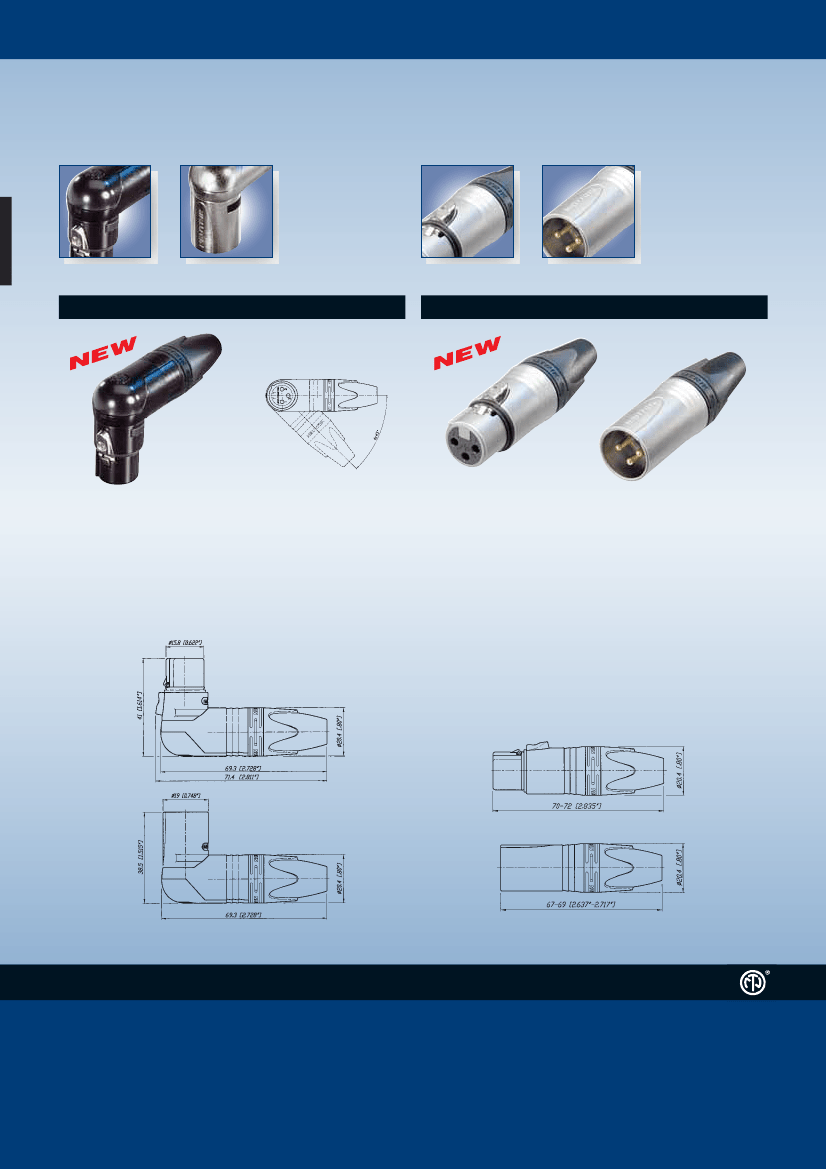

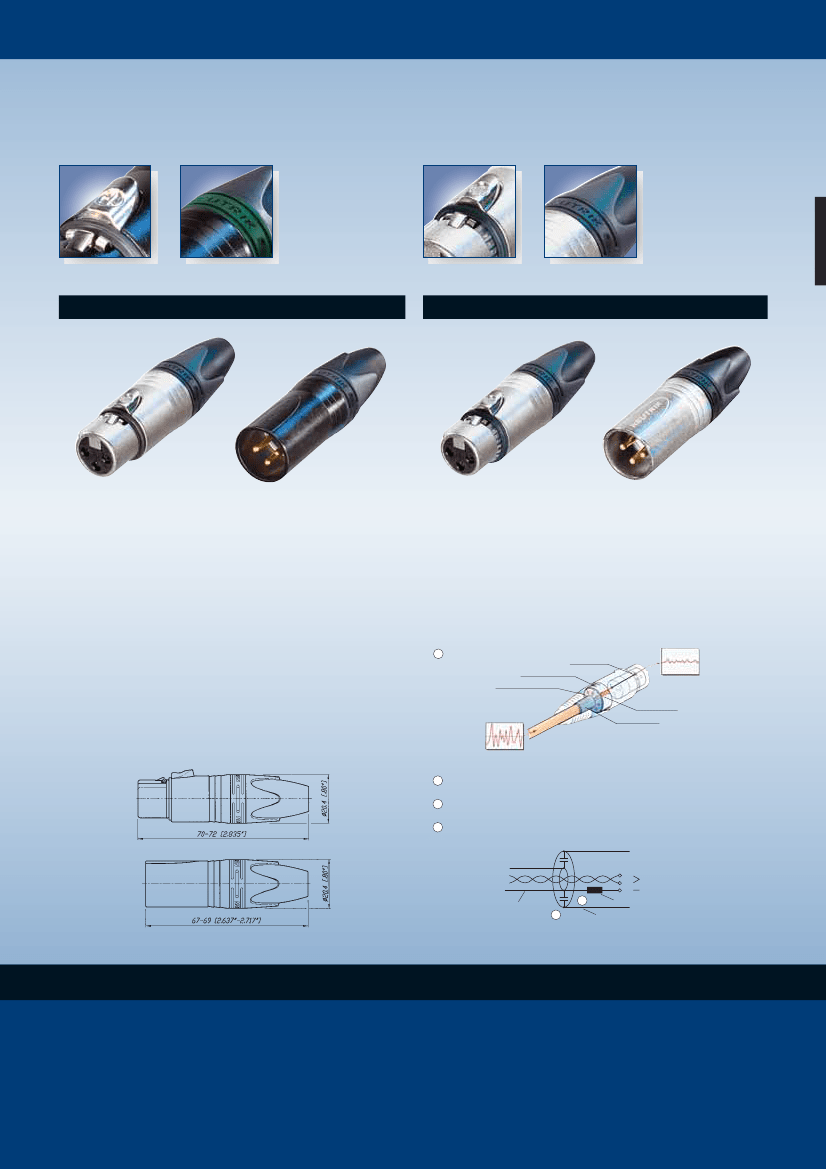

XX Series
EMC-XLR Series
NC3FXX
NC3MXX-B
NC3FXX-EMC
NC3MXX-EMC
●
●
●
●
The next generation of the worldwide accepted standard
Unique cage type female contact - increases conductivity
Female contact with “solder stop” for ease soldering
Male connector without locking “window” - more stringent
housing, increases durability
●
●
●
3-pole male / female XLR cable connector with integrated
capacitive shield to shell connection to avoid RF-interference
and LF-noise
360° shield contact on female connector ensures best
possible shielding and chassis contact
Patent pending
1
●
Improved chuck type strain relief - increases retention force
and makes assembly easier and faster
Contact #1
Connector shell
Annular capacitor
Inductance
Cable shield
●
New ground contact - excellent contact integrity between
chassis and cable connector
Customized branding using translucent ring
Sleek and ergonomic design - valuable and handy
NC*FXX
1
●
●
Design guarantees a continuous RF-shield connection but avoids ground
loops (no LF-shield connection)
2
Circular capacitor enables low-inductive shield connection to connector
housing
3
Cable shield - PIN 1 connection includes EMI suppression bead (blocks
high frequencies)
NC*MXX
3
2
1
cable shield
signal contacts
ground contacts
3
2
ferrite bead
connector shell
* ... 3 - 7 contacts
-
