SMBJ100C-M3/52 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ100C-M3/52

SMBJ100C-M3/52: DescriptionTrans Voltage Suppressor Diode, 600W, 100V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size88KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SMBJ100C-M3/52 Overview

Trans Voltage Suppressor Diode, 600W, 100V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

SMBJ100C-M3/52 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AA
package instruction	R-PDSO-J2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	136 V
Minimum breakdown voltage	111 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-J2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	J BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

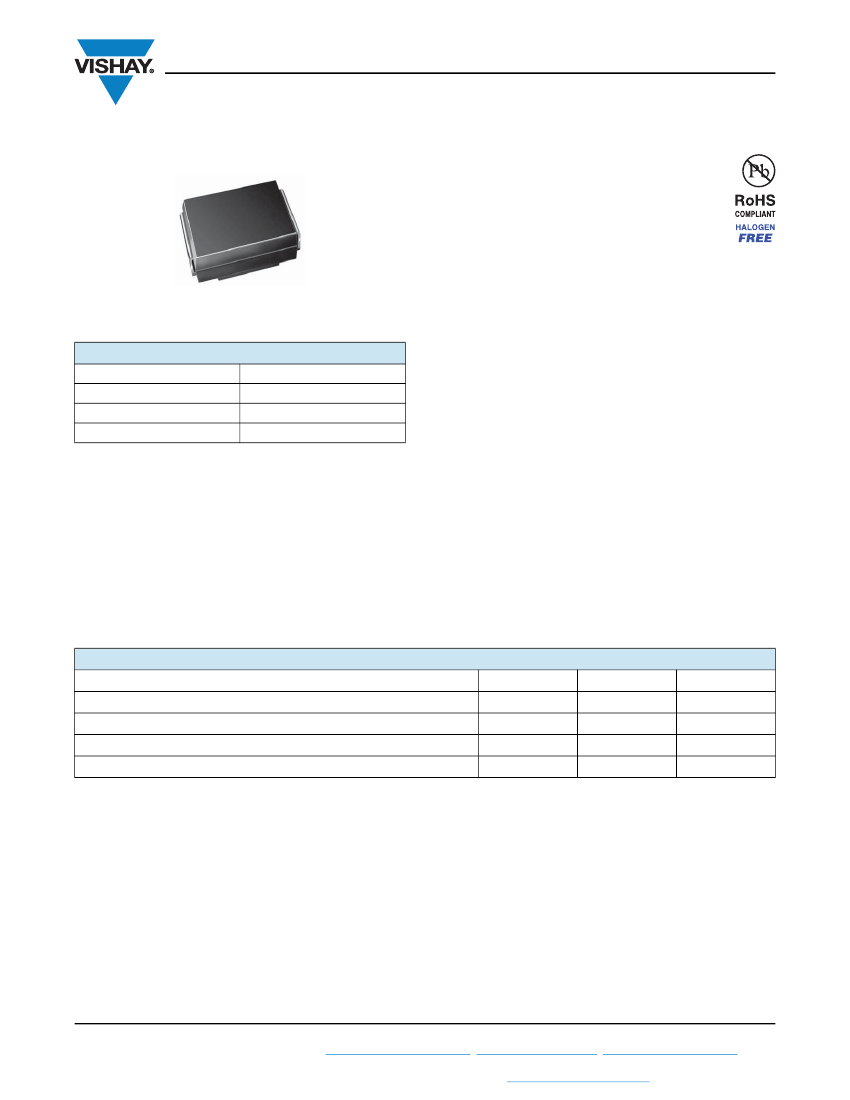

SMBJ5.0A thru SMBJ188CA

www.vishay.com

Vishay General Semiconductor

Surface Mount T

RANS

ORB®

Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 600 W peak pulse power capability with a 10/1000 μs

waveform, repetitive rate (duty cycle): 0.01 %

• Excellent clamping capability

DO-214AA (SMB J-Bend)

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

PRIMARY CHARACTERISTICS

PPM

FSM

(uni-directional only)

max.

5.0 V to 188 V

600 W

100 A

150 °C

MECHANICAL DATA

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, and telecommunication.

Case:

DO-214AA (SMBJ)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test

per

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional use C or CA suffix (e.g. SMBJ10CA).

Electrical characteristics apply in both directions.

Polarity:

For uni-directional types the band denotes

cathode end, no marking on bi-directional types

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 μs waveform (fig. 1)

Peak pulse current with a 10/1000 μs waveform

Peak forward surge current 8.3 ms single half sine-wave uni-directional only

Operating junction and storage temperature range

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2

(2)

Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pads to each terminal

SYMBOL

PPM (1)(2)

PPM (1)

FSM (2)

, T

STG

VALUE

600

See next table

100

- 55 to + 150

UNIT

°C

Revision: 20-Dec-11

Document Number: 89284

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
