TS81210E datasheet, PDF - EEWORLD Datasheet

TS81210E: DescriptionSample and Hold Circuit, 1 Func, Track, 0.0176us Acquisition Time, BICMOS, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size238KB，10 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

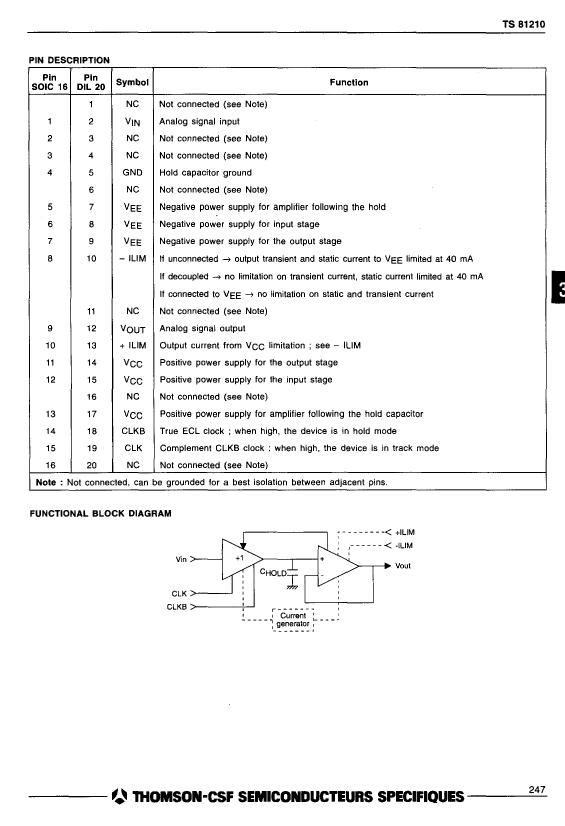

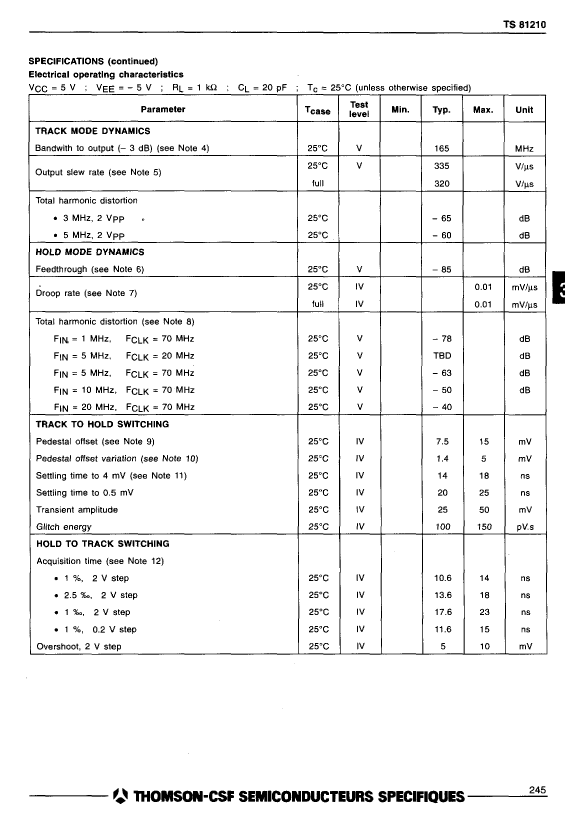

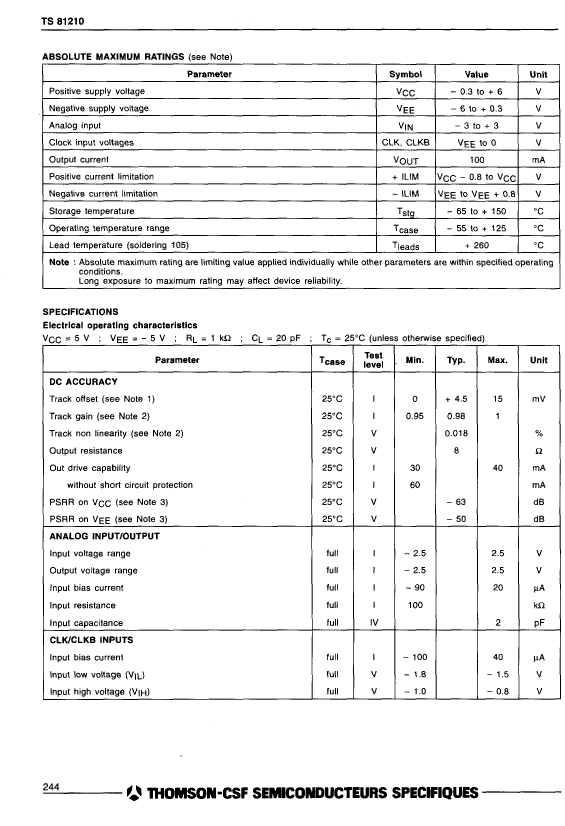

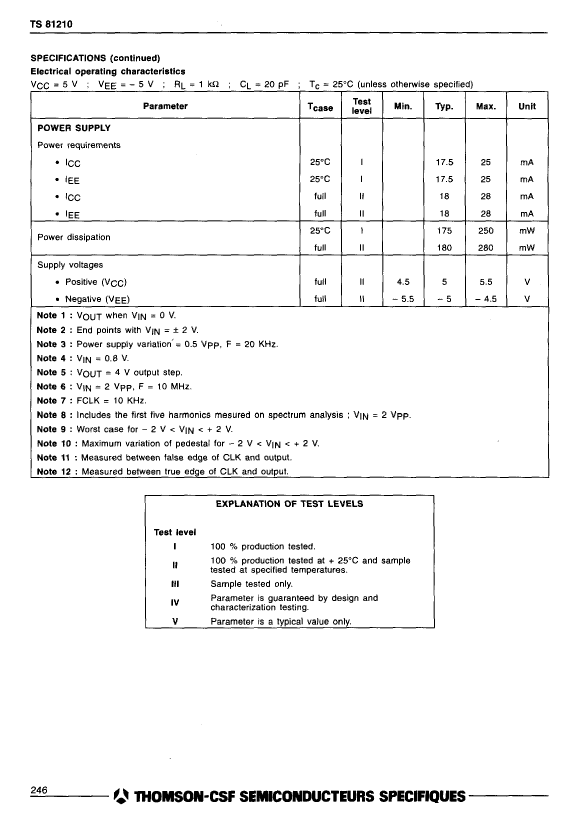

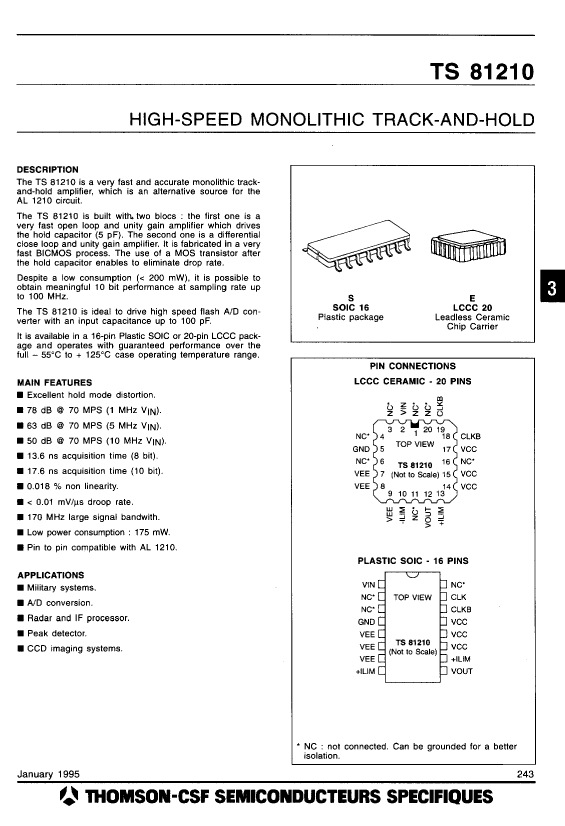

TS81210E Overview

Sample and Hold Circuit, 1 Func, Track, 0.0176us Acquisition Time, BICMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum acquisition time	0.023 µs
Nominal acquisition time	0.0176 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	2.5 V
Minimum analog input voltage	-2.5 V
maximum rate of descent	10 V/s
JESD-30 code	S-CQCC-N20
length	8.89 mm
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Maximum seat height	1.91 mm
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm

	TS81210E	TS81210S
Description	Sample and Hold Circuit, 1 Func, Track, 0.0176us Acquisition Time, BICMOS, CQCC20, CERAMIC, LCC-20	Sample and Hold Circuit, 1 Func, Track, 0.0176us Acquisition Time, BICMOS, PDSO16, PLASTIC, SOIC-16
Maker	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	QLCC	SOIC
package instruction	QCCN,	SOP,
Contacts	20	16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum acquisition time	0.023 µs	0.023 µs
Nominal acquisition time	0.0176 µs	0.0176 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	2.5 V	2.5 V
Minimum analog input voltage	-2.5 V	-2.5 V
maximum rate of descent	10 V/s	10 V/s
JESD-30 code	S-CQCC-N20	R-PDSO-G16
length	8.89 mm	10.3 mm
Negative supply voltage upper limit	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V
Number of functions	1	1
Number of terminals	20	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	QCCN	SOP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK
Maximum seat height	1.91 mm	2.65 mm
Supply voltage upper limit	6 V	6 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
width	8.89 mm	7.5 mm
