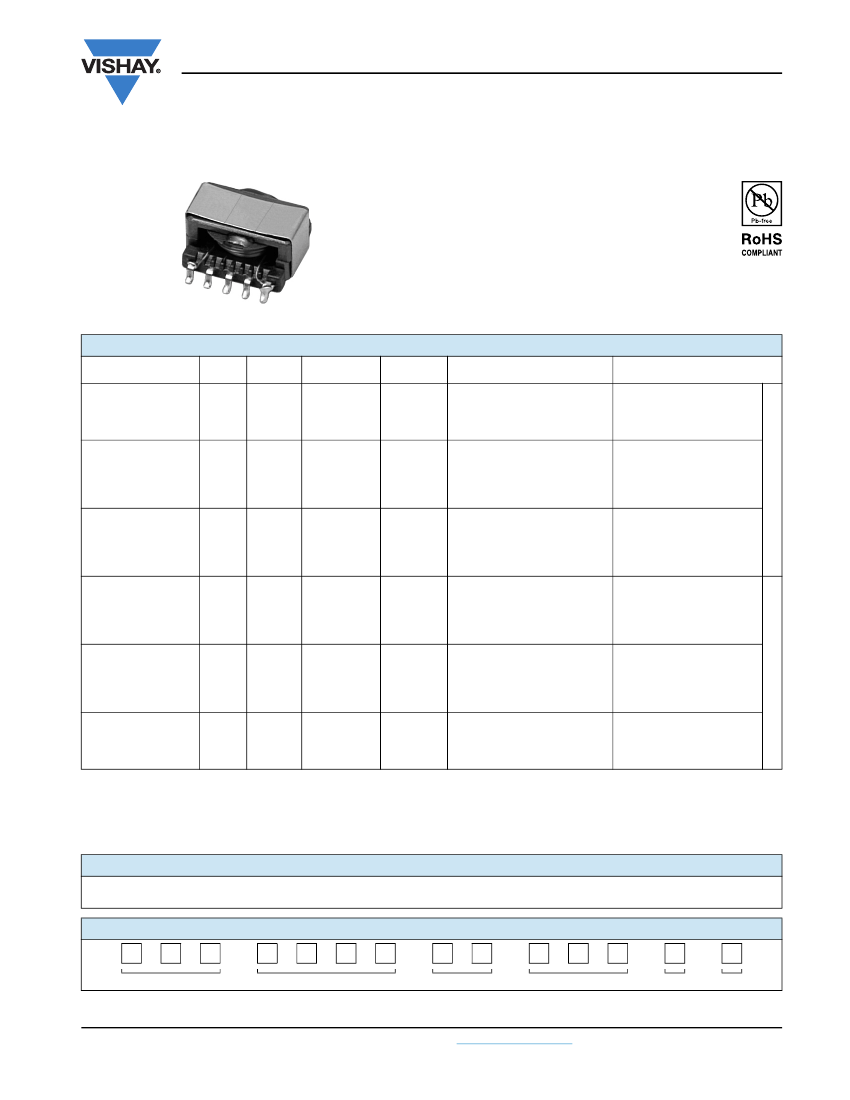

LPE-5047
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
FEATURES
• Compliant to RoHS directive 2002/95/EC
ELECTRICAL SPECIFICATIONS
(multiple winds are connected in parallel)
Inductance Range:
10 μH to 68 000 μH, measured
at 0.10 V
RMS
at 10 kHz without DC current, using an
HP 4263A or HP 4284A impedance analyzer
DC Resistance Range:
0.03
Ω
to 24.1
Ω,
measured at
+ 25 °C ± 5 °C
Rated Current Range:
2.29 A to 0.07 A
Dielectric Withstanding Voltage:
500 V
RMS
, 60 Hz, 5 s
STANDARD ELECTRICAL SPECIFICATIONS
IND.
IND.
SCHEMATIC DCR MAX. MAX. RATED DC CURRENT
SATURATING CURRENT
MODEL
(μH)
TOL.
LETTER
(Ω)
(A)
(1)
(A)
(2)
LPE5047ER151NU
150
± 30 %
A
0.20
0.79
N/A
LPE5047ER221NU
220
± 30 %
A
0.24
0.72
N/A
LPE5047ER331NU
330
± 30 %
A
0.29
0.65
N/A
LPE5047ER471NU
470
± 30 %
A
0.35
0.59
N/A
LPE5047ER681NU
680
± 30 %
A
0.42
0.54
N/A
LPE5047ER102NU
1000
± 30 %
A
0.51
0.49
N/A
LPE5047ER152NU
1500
± 30 %
A
0.63
0.44
N/A
LPE5047ER222NU
2200
± 30 %
A
0.76
0.40
N/A
LPE5047ER332NU
3300
± 30 %
A
1.00
0.35
N/A
LPE5047ER472NU
4700
± 30 %
A
2.24
0.24
N/A
LPE5047ER682NU
6800
± 30 %
A
2.70
0.21
N/A
LPE5047ER103NU
10 000 ± 30 %
A
3.27
0.19
N/A
LPE5047ER153NU
15 000 ± 30 %
A
6.26
0.14
N/A
LPE5047ER223NU
22 000 ± 30 %
A
7.58
0.13
N/A
LPE5047ER333NU
33 000 ± 30 %
A
9.50
0.11
N/A
LPE5047ER473NU
47 000 ± 30 %
A
18.5
0.08
N/A
LPE5047ER683NU
68 000 ± 30 %
A
24.1
0.07
N/A
LPE5047ER100MG
10
± 20 %
B
0.03
2.29
2.690
LPE5047ER150MG
15
± 20 %
B
0.04
2.07
2.230
LPE5047ER220MG
22
± 20 %
B
0.05
1.68
1.860
LPE5047ER330MG
33
± 20 %
C
0.09
1.35
1.540
LPE5047ER470MG
47
± 20 %
D
0.13
1.11
1.300
LPE5047ER680MG
68
± 20 %
D
0.15
1.01
1.085
LPE5047ER101MG
100
± 20 %
D
0.24
0.81
0.900
LPE5047ER151MG
150
± 20 %
D
0.37
0.65
0.740
LPE5047ER221MG
220
± 20 %
E
0.55
0.53
0.610
LPE5047ER331MG
330
± 20 %
E
0.85
0.43
0.500
LPE5047ER471MG
470
± 20 %
E
1.29
0.35
0.420
LPE5047ER681MG
680
± 20 %
E
1.96
0.28
0.350
LPE5047ER102MG
1000
± 20 %
E
2.38
0.26
0.290
LPE5047ER152MG
1500
± 20 %
E
3.66
0.21
0.240
LPE5047ER222MG
2200
± 20 %
E
5.47
0.17
0.195
LPE5047ER332MG
3300
± 20 %
E
8.48
0.14
0.160
LPE5047ER472MG
4700
± 20 %
E
13.2
0.11
0.135
Notes
(1)
DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C ambient.
(2)
DC current that will typically reduce the initial inductance by 20 %.
•
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and
line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter inductance tolerance with better temperature stability than ungapped
models. Beneficial in dc-to-dc converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.
DESCRIPTION
LPE
5047
MODEL SIZE
1000 μH
INDUCTANCE VALUE
± 30 %
INDUCTANCE TOLERANCE
A
CORE
ER
PACKAGE CODE
e2
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
5
0
SIZE
4
7
E
R
1
0
2
N
TOL.
U
CORE
PRODUCT FAMILY
PACKAGE CODE
INDUCTANCE VALUE
Note
• Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).
Document Number: 34065
Revision: 10-Oct-08
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
GAPPED MODELS (B)
UNGAPPED MODELS (A)
LPE-5047
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available

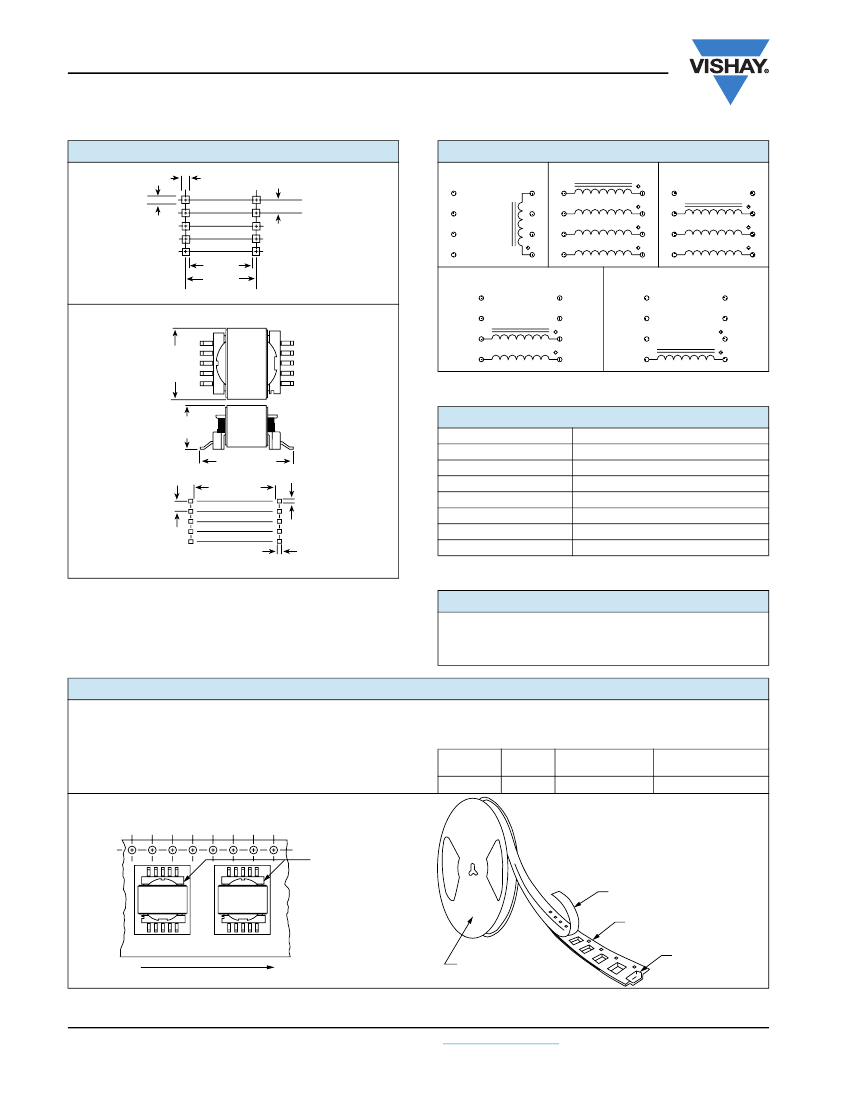

SCHEMATIC
(top view)
Schematic
A
5
4
3
2
1
5
6
7
8
DIMENSIONS
in inches [millimeters]
Pad Layout
0.045 [1.14] Pad Dimensions
Typical, 10 places
0.079 [2.01]
0.045
[1.14]
0.382
[9.70]
0.427
[10.85]
Reference Only
Typical
4 places
6
7
8
Schematic
B
4
3
2
1
5
6
7
8
Schematic
C
4
3
2
1
Schematic
D
5
6
4
3
2
1
5
6
7
8
Schematic
E
4
3
2
1
Dimensional Outline
6
0.472
[11.99]
Max.
10
5
7
8
1
Note
• Schematic A is for ungapped LPE series
0.248 [6.30]
Max.
0.525 [13.34]
Max.
0.079
[2.01]
Typ.
0.437
[11.10]
ENVIRONMENTAL PERFORMANCE
TEST
CONDITIONS
Thermal Cycling
Withstands - 55 °C to + 125 °C
Operating Temperature
- 55 °C to + 125 °C
(1)
High Humidity
85 %
Soldering Heat
Tested to + 230 °C
Mechanical Shock
Per MIL-STD-202, method 213 (100G)
Vibration
Per MIL-STD-202, method 204 (20G)
Solderability
Per industry standards
Note
(1)
Must be checked in end use application
0.028 [0.71]
0.028 [0.71]
Foot Print Diagram
Notes
• Pad layout guidelines per MIL-STD-275E (printed wiring for
electronic equipment).
• Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005" [± 0.12 mm].
• The underside of these components contains metal and thus
should not come in contact with active circuit traces.
PART MARKING
- Vishay Dale
- Date code
- Marking code (suffix of model #)
- Pin 1 indicator
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 g ± 30 g
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic
Placement”.
TAPE
COMPONENT
UNITS PER 13"
MODEL
WIDTH
PITCH
REEL
LPE-5047
24 mm
16 mm
600
Tape and Reel Orientation
Pin 1 Indicator
Cover Tape
Carrier Tape
Embossed Cavity
Label Area
USER DIRECTION OF FEED
Note
• Top view shown with cover tape removed
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34065
Revision: 10-Oct-08
