BDY11 datasheet, PDF - EEWORLD Datasheet

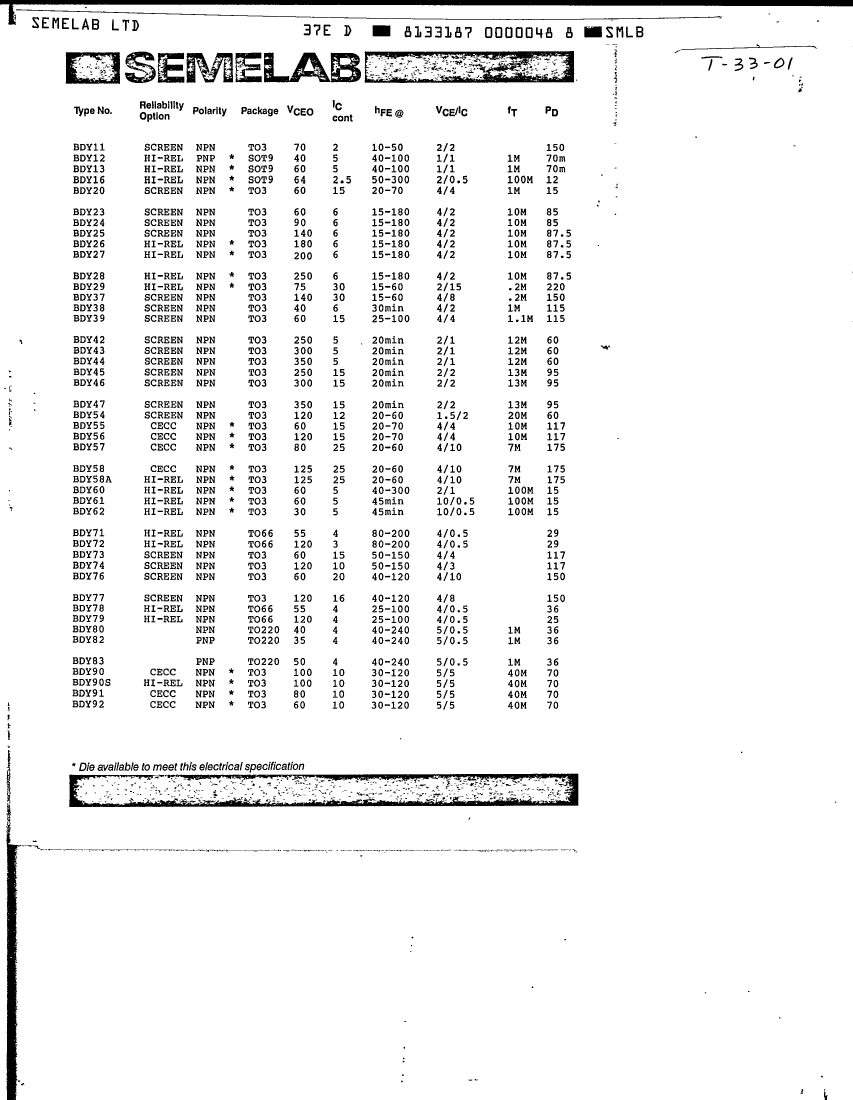

BDY11: Description2A, 70V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size47KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

BDY11 Overview

2A, 70V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	70 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON

	BDY11	BDY16	BDY13	BDY12	BDY80
Description	2A, 70V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN	2.5A, 64V, NPN, Si, POWER TRANSISTOR	5000mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR	5000mA, 40V, PNP, Si, SMALL SIGNAL TRANSISTOR	TRANSISTOR,BJT,NPN,40V V(BR)CEO,4A I(C),TO-220
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	2 A	2.5 A	5 A	5 A	4 A
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	Single
Minimum DC current gain (hFE)	10	50	40	40	40
Polarity/channel type	NPN	NPN	NPN	PNP	NPN
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible
Maker	SEMELAB	-	SEMELAB	SEMELAB	SEMELAB
Collector-emitter maximum voltage	70 V	64 V	60 V	40 V	-
Number of components	1	1	1	1	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Transistor component materials	SILICON	SILICON	SILICON	SILICON	-
Nominal transition frequency (fT)	-	100 MHz	1 MHz	1 MHz	1 MHz
