ZXCM209MF

Description
1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3
CategoryPower/power management    The power supply circuit
File Size328KB，8 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

ZXCM209MF Overview

1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3

ZXCM209MF Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDiodes Incorporated
package instructionTSOP, TO-236
Reach Compliance Codeunknown
ECCN codeEAR99
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeR-PDSO-G3
JESD-609 codee0
length2.86 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP
Encapsulate equivalent codeTO-236
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)235
power supply5 V
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply current (Isup)0.005 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)1 V
Nominal supply voltage (Vsup)1.2 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Threshold voltage nominal+4.38V
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.3 mm

ZXCM209MF Preview

ZXCM209
ZXCM210
VERY LOW POWER MICROPROCESSOR RESET DEVICES
DESCRIPTION
The ZXCM209/210 are three terminal supervisory
circuits used to monitor the power supplies in
microprocessor and digital systems. They provide a
high performance economical solution when used
with 5V, 3V or lower powered circuits. Reset
thresholds suitable for operation with a variety of
supply voltages are available.
These devices provide a reset signal whenever the
supply voltage falls below a preset threshold, keeping
it asserted for a minimum delay period of 140ms after
the supply has risen above the reset level. The
ZXCM209 has an active-low RESET output (which is
guaranteed to be in the correct state for supplies down
to 1V), while the ZXCM210 has an active-high RESET
output.
The reset comparator has in built hysteresis to prevent
erratic operation and is designed to ignore supply
transients. Low supply current (typically 2µA) makes
the ZXCM209/210 devices ideal for use in portable
equipment. They are available in a 3-pin SOT23
surface mount package with an industry standard
pinout.
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
Enhanced alternative to MAX809/810 and similar
parts
Precision monitoring of 5V, 3.3V, 3V power
supply voltages
1% threshold tolerance
2µA typical supply current
140ms minimum power on reset pulse width
Alternative minimum pulse widths available,
contact your local sales office for availability
RESET LOW Output (ZXCM209)
RESET HIGH Output (ZXCM210)
Power supply transient immunity
No latch up
No external components
3-Pin SOT23 package
APPLICATIONS
•
•
•
•
•
•
•
•
Computer systems
Controllers
Instrumentation
Microprocessor power monitoring
Microcontroller power monitoring
Power supplies
Portable/Battery-powered equipment
Automotive
APPLICATION CIRCUIT
v
cc
v
cc
ZXCM
Reset
Output
v
cc
Micro
Reset
Input
Gnd
Gnd
ISSUE 3 - FEBRUARY 2001
1
ZXCM209
ZXCM210
ABSOLUTE MAXIMUM RATINGS
Terminal Voltage with respect to G
ND
V
CC
RESET, RESET
Input Current, V
CC
Output Current
Rate of Rise, V
CC
Continuous Power Dissipation
Operating Temperature Range
Storage Temperature Range
-0.3V to 7.0V
-0.3V to (V
CC
+ 0.3V)
20mA
20mA
250V/µs
500mW
-55°C to +125°C
-65°C to +150°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
TEST CONDITIONS (unless otherwise stated) V
CC
SYMBOL
PARAMETER
= full range, T = -55°C to +125°C
A
CONDITIONS
LIMITS
MIN
TYP
MAX
5.5
5.5
2
5
4.68
4.42
4.04
3.11
2.96
2.66
5
50
30
140
560
UNITS
V
R
I
CC
V
TH
V
CC
Range
Supply Current
Reset Threshold
T
A
=0° to 70°C
T
A
=-55° to 125°C
Suffix L; T
A
=25°C
Suffix M; T
A
=25°C
Suffix J; T
A
=25°C
Suffix T; T
A
=25°C
Suffix S; T
A
=25°C
Suffix R; T
A
=25°C
1.0
1.2
V
V
µA
V
V
V
V
V
V
%
%
ppm/°C
µs
ms
4.58
4.34
3.96
3.05
2.90
2.60
4.63
4.38
4.00
3.08
2.93
2.63
1
V
THT
∆V
TH
/°C
V
D
V
TO
Reset Threshold
Tolerance
Reset Threshold Temp.
Coefficient
V
CC
to Reset Delay
Reset Active Timeout
Period
T
A
=25°C
T
A
=-55° to 125°C
ISSUE 3 - FEBUARY 2001
2
ZXCM209
ZXCM210
ELECTRICAL CHARACTERISTICS ZXCM209
TEST CONDITIONS (unless otherwise stated)
V = full range, T = -55°C to +125°C
CC
A
SYMBOL
PARAMETER
CONDITIONS
LIMITS
MIN
TYP
MAX
0.3
0.3
0.4
0.8V
cc
UNITS
V
OL
Reset Output Voltage
Low
V
CC
>1V, I
OL
=100µA (0 to 85°C)
V
CC
>1.2V, I
OL
=200µA
V
TH
>V
CC
>2.5V, I
OL
=2.7mA
V
CC
>V
TH
max, I
OH
=1mA
V
V
V
V
V
OH
Reset Output Voltage
High
ELECTRICAL CHARACTERISTICS ZXCM210
TEST CONDITIONS (unless otherwise stated)
V = full range, T = -55°C to +125°C
CC
A
SYMBOL
PARAMETER
CONDITIONS
LIMITS
MIN
TYP
MAX
0.3
0.4
0.8V
cc
0.8V
cc
UNITS
V
OL
V
OH
Reset Output Voltage
Low
Reset Output Voltage
High
V
CC
>V
TH
max, I
OL
=2mA
V
CC
>V
TH
max, I
OL
=2.7mA
V
CC
>1.5V, I
OH
=150µA
V
CC
>V
TH
>2.5V, I
OH
=1mA
V
V
V
V
Note: Device testing is performed at T
A
=25°C. Device thermal performance is guaranteed by design
TYPICAL CHARACTERISTICS
ISSUE 3 - FEBRUARY 2001
3
ZXCM209
ZXCM210

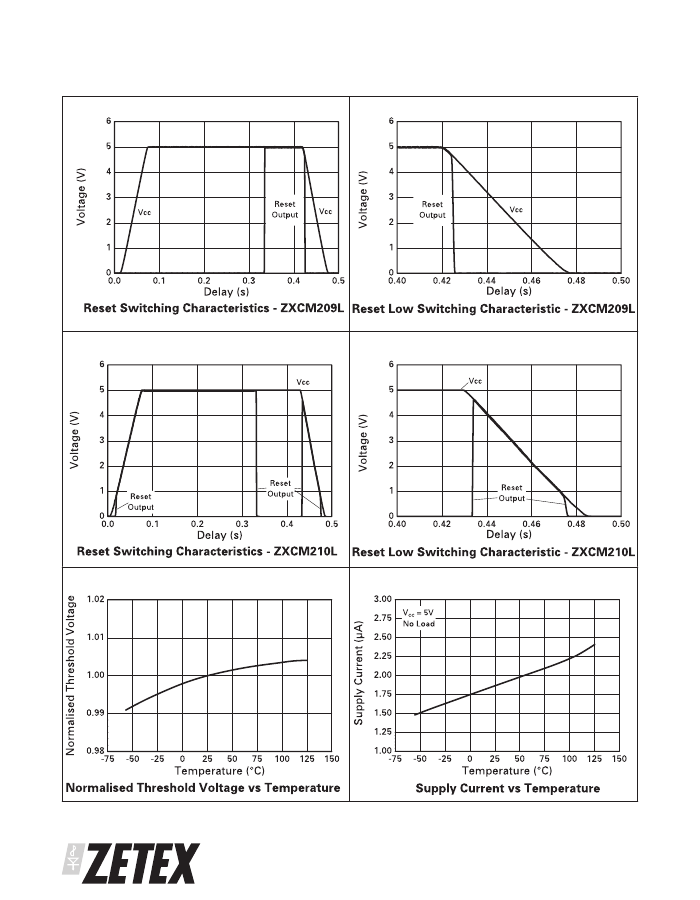

TYPICAL CHARACTERISTICS
ISSUE 3 - FEBUARY 2001
4
ZXCM209
ZXCM210
APPLICATIONS INFORMATION
Negative going V
CC
transients
The ZXCM209/210 are, to a good degree, immune to
short duration negative going supply transients. Under
certain circumstances very brief transients are allowed
without inappropriate false triggering of the reset
circuit. The response to supply transients is shown in the
Noise Immunity graph in the typical characteristics. The
graph indicates the typical allowable transient duration
for a specified threshold overdrive such that a reset
pulse is not generated. Addition of a bypass capacitor,
e.g. 0.1µF, as close as possible to the V
CC
pin will provide
extra transient immunity.
Reset valid down to very low supply voltages
With V
CC
between 0V and 1V the output of the
ZXCM209/210 may be in an undefined state. In many
s y st e ms t h i s is in c o n seq u e n t i al as t h e
microprocessor, and other circuits, will be inoperative
with supplies this low. In applications where this is
important, the addition of an external resistor ensures
that the reset output remains valid for V
CC
< 1V. The
resistor value is non critical: a value of 100kΩ is
recommended. For the ZXCM209 the resistor should
be applied between reset output and ground: for the
ZXCM210 between reset output and V
CC
. Figure 1
shows the connection diagram for the ZXCM devices
in these configurations.
v
cc
v
cc
ZXCM209
Reset
Output
v
cc
v
cc
Micro
Reset
Input
v
cc
ZXCM210
Reset
Output
100k
v
cc
Micro
Reset
Input
Gnd
100k
Gnd
Gnd
Gnd
Figure 1
Circuit for operation of ZXCM with reset valid down to very low supply voltage.
ISSUE 3 - FEBRUARY 2001
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZXCM209MF Related Products

ZXCM209MF ZXCM209LF ZXCM209JF ZXCM209RF ZXCM209SF ZXCM210LF
Description 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, SMT-3 Power Supply Support Circuit, Fixed, 1 Channel, PDSO3, SOT-23, SMT-3
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
package instruction TSOP, TO-236 TSOP, TO-236 TSOP, TO-236 TSOP, TO-236 TSOP, TO-236 TSOP,
Reach Compliance Code unknown unknown unknown unknown unknown unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Adjustable threshold NO NO NO NO NO NO
Analog Integrated Circuits - Other Types POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
JESD-609 code e0 e0 e0 e0 e0 e3
length 2.86 mm 2.86 mm 2.86 mm 2.86 mm 2.86 mm 2.86 mm
Humidity sensitivity level 1 1 1 1 1 1
Number of channels 1 1 1 1 1 1
Number of functions 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSOP TSOP TSOP TSOP TSOP TSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius) 235 235 235 235 235 260
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm 1.1 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 1 V 1 V 1 V 1 V 1 V 1 V
Nominal supply voltage (Vsup) 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V
surface mount YES YES YES YES YES YES
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) MATTE TIN
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.95 mm 0.95 mm 0.95 mm 0.95 mm 0.95 mm 0.95 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 40
width 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible -
Encapsulate equivalent code TO-236 TO-236 TO-236 TO-236 TO-236 -
power supply 5 V 5 V 5 V 3 V 3 V -
Maximum supply current (Isup) 0.005 mA 0.005 mA 0.005 mA 0.005 mA 0.005 mA -
technology CMOS CMOS CMOS CMOS CMOS -
Threshold voltage nominal +4.38V +4.63V +4V +2.63V +2.93V -

Recommended Resources

30W power amplifier circuit

LJ2 series transistor proximity switch principle circuit diagram

Rongsheng RTP18-A tea set disinfection cabinet circuit diagram

1KW, 20kHZ, 500V-40V, 25A voltage converter

Circuit for charging batteries through solar energy

Computer motherboard circuit diagram 815 3_11

[My relationship with TI] +Ti CC2530
In my junior year, we studied Embedded Linux and implemented a simple network control. We thought it would be good if we could control things at close range. Then we needed to learn about wireless sen...
昱枫 TI Technology Forum
[Xianji HPM6750EVKMINI Review] 4# HPM6750 Dual-core Experience
[i=s]This post was last edited by Knight on the Sun on 2022-7-27 11:23[/i]HPM6750 integrates two RISC-V processors. The two processors have the same configuration, but are divided into master and slav...
太阳上的骑士 Domestic Chip Exchange
Constant current source
I have a 0-10 D/A module. I want to use the voltage value of the D/A output to change the current value of the op amp cross-current output. The requirement is to output 0-300μA current, using lm358p, ...
lv499970142 Power technology
Questions about your future plans to work on embedded systems (100 points)
I am a sophomore majoring in electronic information engineering. I am very interested in embedded systems and plan to study for a master's degree in this field in the future. But now I am facing a con...
tsz Embedded System
Development Trend of DC/DC Converter with UOUT=1V
Development Trend of DC/DC Converter with U OUT = 1VIn order to achieve higher speed and better performance with lower power consumption, semiconductor devices are moving towards 1V operating voltage,...
zbz0529 Analog electronics
FLUCK17B circuit diagram and calibration method
[color=#ff0000]Circuit diagram[/color][color=#ff0000]Calibration method[/color]...
qq849682862 Integrated technical exchanges
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. SIT8208AI-23-18E-74.250000T
  2. 1200RGH1501A3KB
  3. RJMG1J31271011R
  4. AGM2412B-FC-YBH
  5. Y0902920R000D9B
  6. ICL8018AMXJD/883C
  7. CC81-M8TH8B620KSPW
  8. VJ1808Y272KLBAJ5G
  9. 5KP100C_B0_00001
  10. BZD27C28PT/R7
  11. A2541WRA-18P-C574D107E343
  12. SWPA5040S8R2MT

Popular Articles

  1. What are the advantages and disadvantages of ternary polymer lithium batteries?
  2. Smart glasses are reducing technology, and the turning point may be approaching
  3. AMS OSRAM's first show in China: how to achieve the second century of acceleration
  4. Renesas Electronics targets the evolving small form factor applications in next-generation electrical and electronic architectures
  5. Big data challenges are coming: the battle for yield among chip design companies
  6. The originator of foldable screen mobile phone now has a "discounted" price: FlexPai 1st generation can be bought for more than 2,000 yuan
  7. Honor Magic V detailed parameters and renderings: Snapdragon 8 + punch-hole internal screen + 50MP triple main camera
  8. Tektronix oscilloscope current measurement MDO4054C
  9. Apple iPhone 14 may enter OEM trial production stage
  10. A brief discussion on arbitrary waveform generator and channel merging function

Technical ResourceMore

  1. [High-frequency circuit related information].Radio.Frequency.Transistors
  2. Research on a Boost Current Mode Control PWM Switching Power Supply Controller
  3. Detailed explanation of automobile air conditioning system
  4. Radio Magazine, Issue 11, 1998.pdf
  5. MATLAB Case 22 LVQ Neural Network Prediction - Face Orientation Recognition.rar
  6. Open source Verilog simulation tool: Icarus
  7. Huawei C language programming specifications
  8. Altium Designer schematic library diode.SCHLIB
  9. Design of two-degree-of-freedom (2DOF) steering control for automated guided vehicles
  10. Altium Designer Schematic Library Memory.SchLib

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 751  953  2738  1540  1803  16  20  56  31  37
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
