SMTPowerInductors-DO5022H Series
We now offer an improved version of
this series:
DO5010H.
It is electrically equivalent, has a smaller footprint and
comes in more inductance values. We will, however,
continue to produce the DO5022H indefinitely.

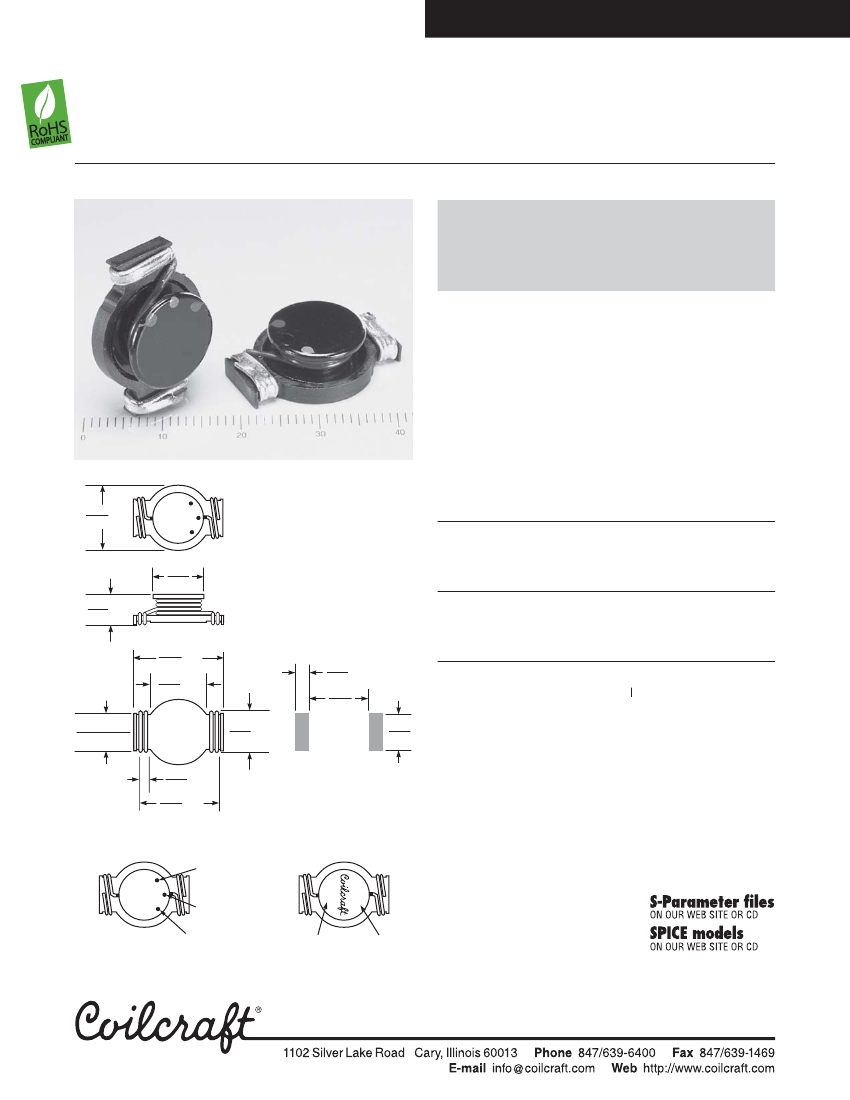

This family of inductors was designed for high current,
low-voltage DC-DC converter applications, especially the
latest generation of 3.3 V microprocessors. Current ratings up
to 15 A rms and saturation currents up to 30 A are available.
These parts are only 8,0 mm high and have exceptionally low
DC resistance thanks to the use of heavier gauge wire. The
DO5022H Series has been optimized for reliable surface
mounting with a large flat top and self-leaded design. In
addition to the standard parts shown, custom values are
available.
1
0.640
max
16,26
Part
Number
1
DO5022H-781ML_
DO5022H-152ML_
DO5022H-222ML_
DO5022H-332ML_
DO5022H-392ML_
DO5022H-472ML_
DO5022H-602ML_
DO5022H-782ML_
DO5022H-103ML_
DO5022H-153ML_
0.125
3,18
0.565
14,35
0.413
max
10,5
0.340
8,64
1
Inductance
2
(µH ±20%)
0.78
1.5
2.2
3.3
3.9
4.7
6.0
7.8
10
15
DCR
max
(m )
2.6
4.0
6.1
8.6
10
14
17
18
26
32
2
SRF
3
typ
2
Isat
4
(MHz) (A)
156
100
75
60
55
40
35
35
28
20
30
25
20
17
15
13
12
11
10
8
2
Irms
5
(A)
15
15
12
10
9.0
8.4
7.5
7.5
6.0
4.4
0.500
12,7
0.315
max
8,00
0.880
max
22,35
0.561
min
14,25
1. When ordering, please specify
packaging
code:
DO5022H-153MLD
0.340 ±0.010
8,64 ±0,25
0.125
max
3,18
0.815 max
20,70
Recommended
Land Pattern
Part Marking
1st
significant
digit
2nd
significant
digit
Multiplier
(or)
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed
plastic tape.
B
= Less than full reel. In tape, but not machine
ready. To have a leader and trailer added ($25
charge), use code letter D instead.

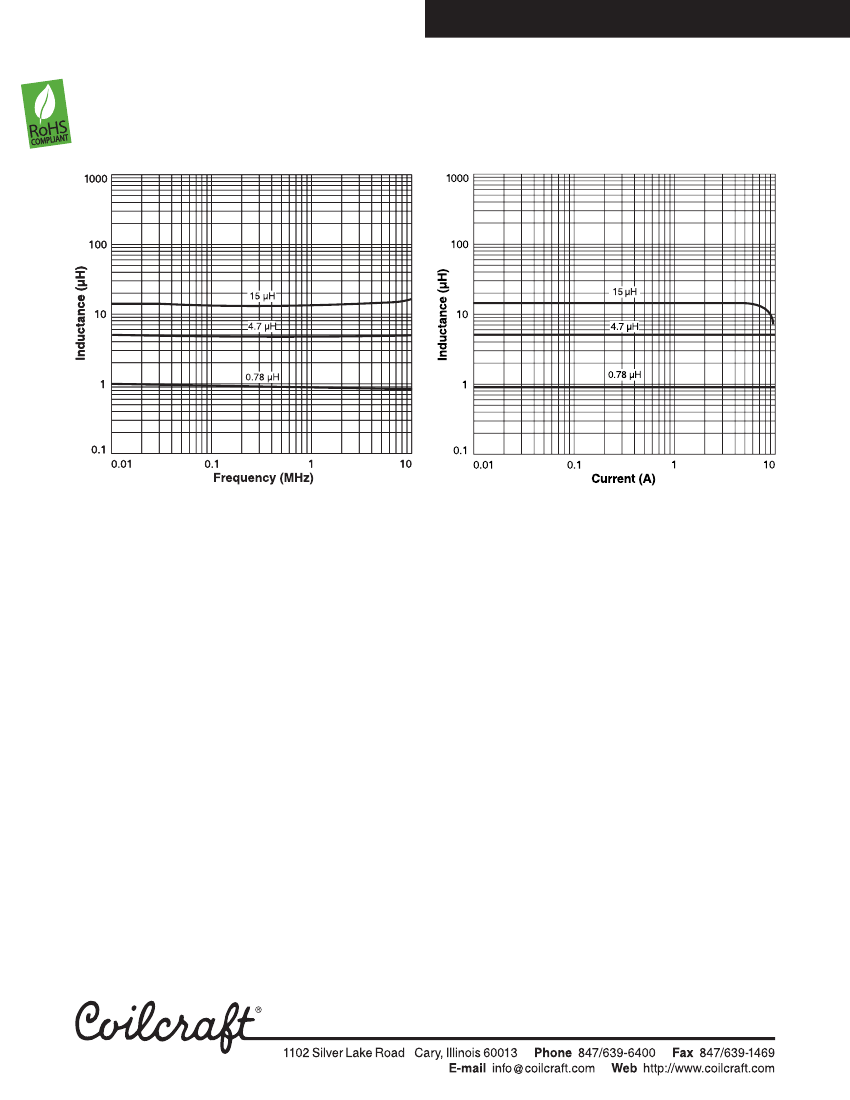

2. Inductance tested at 100 kHz, 0.1 Vrms.
3. SRF measured using Agilent/HP8753D network analyzer.
4. DC current at which the inductance drops 10% (typ) from its
value without current.
5. Average current for a 40°C rise above 25°C ambient.
6. Operating temperature range -40°C to +85°C.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”before
soldering.
XXX
Dash number
Internal code
Parts/reel: 13″ 250 Tape width: 44 mm
For packaging data see Tape and Reel Specifications section.
X
Specifications subject to change without notice.
Please check our website for latest information. Document 181-1
Revised 07/28/09
© Coilcraft, Inc. 2009
