WS27C64L-20DMB: DescriptionUVPROM, 8KX8, 200ns, CMOS, CDIP28,; Categorystorage storage; File Size233KB，5 Pages; ManufacturerWaferscale Integration Inc.

Download Datasheet Parametric Compare View All

WS27C64L-20DMB Overview

UVPROM, 8KX8, 200ns, CMOS, CDIP28,

WS27C64L-20DMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Waferscale Integration Inc.
Reach Compliance Code	unknown
Maximum access time	200 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	UVPROM
memory width	8
Number of terminals	28
word count	8192 words
character code	8000
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programming voltage	12.75 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.0001 A
Maximum slew rate	0.05 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

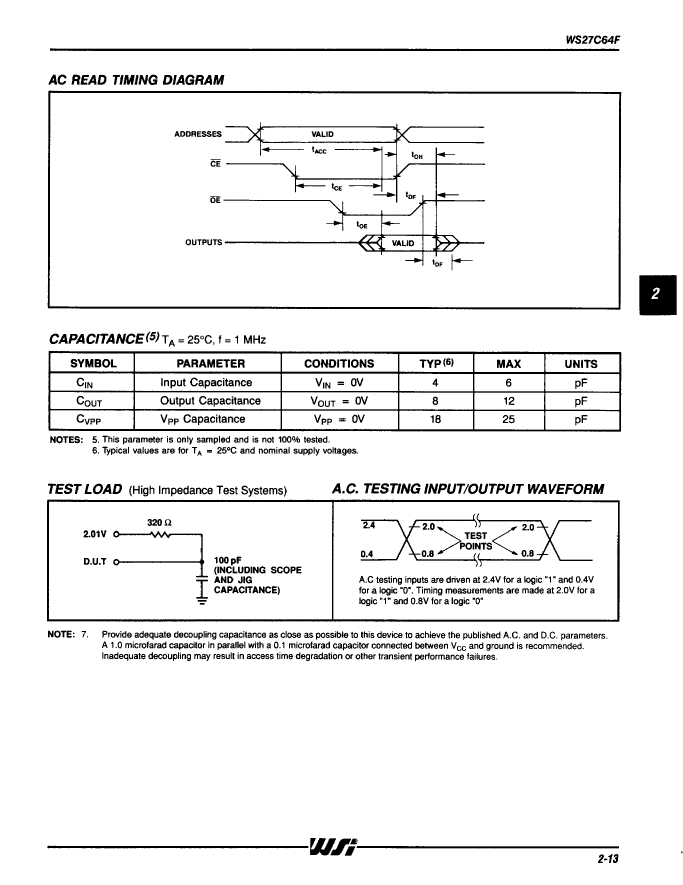

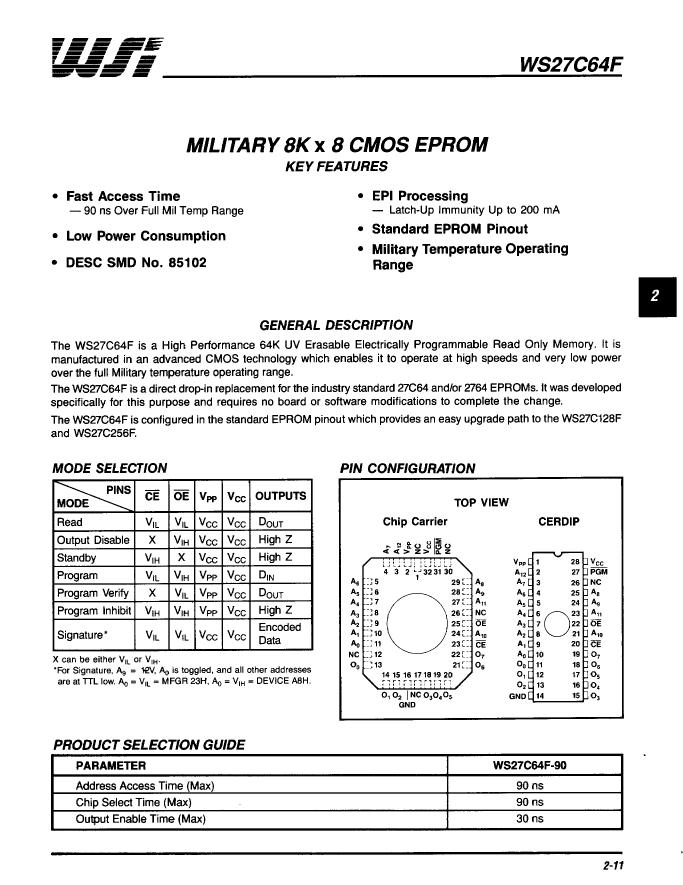

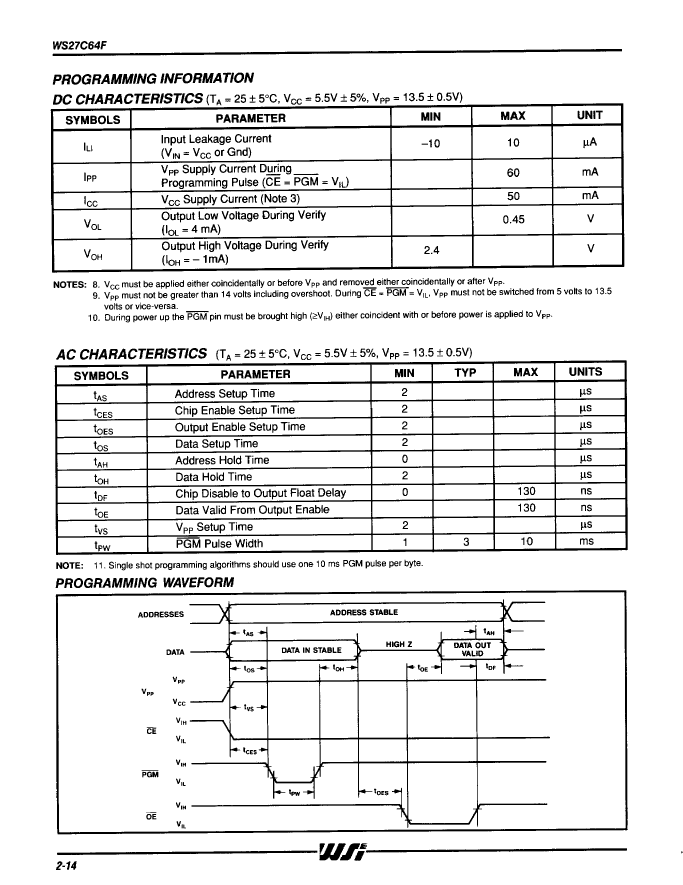

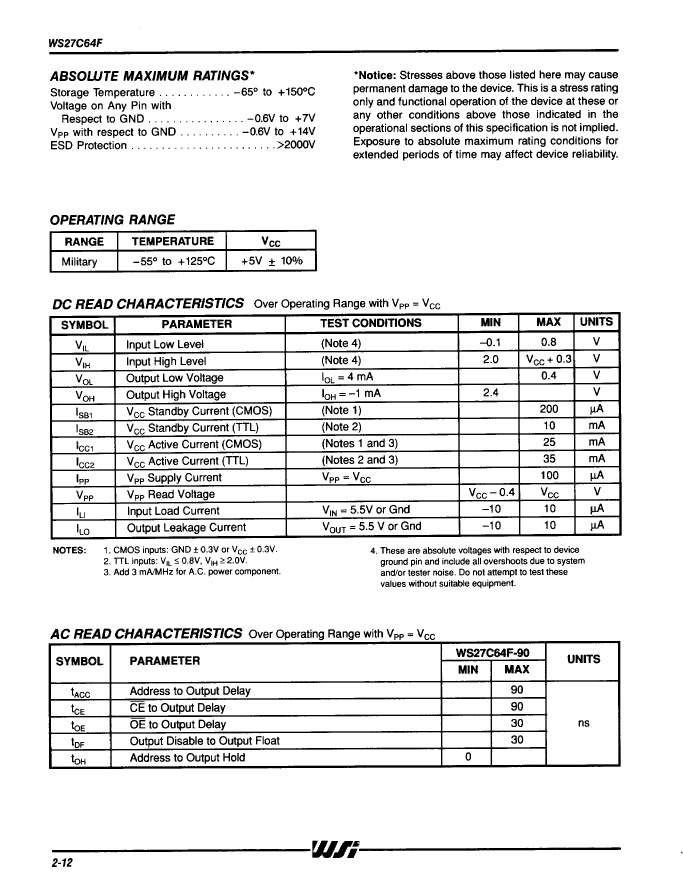

Preview

Download Datasheet

View All

WS27C64L-20DMB Related Products

	WS27C64L-20DMB	WS27C64L-15DMB	WS27C64L-12DMB
Description	UVPROM, 8KX8, 200ns, CMOS, CDIP28,	UVPROM, 8KX8, 150ns, CMOS, CDIP28,	UVPROM, 8KX8, 120ns, CMOS, CDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Waferscale Integration Inc.	Waferscale Integration Inc.	Waferscale Integration Inc.
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	200 ns	150 ns	120 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit
Memory IC Type	UVPROM	UVPROM	UVPROM
memory width	8	8	8
Number of terminals	28	28	28
word count	8192 words	8192 words	8192 words
character code	8000	8000	8000
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Programming voltage	12.75 V	12.75 V	12.75 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum standby current	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
