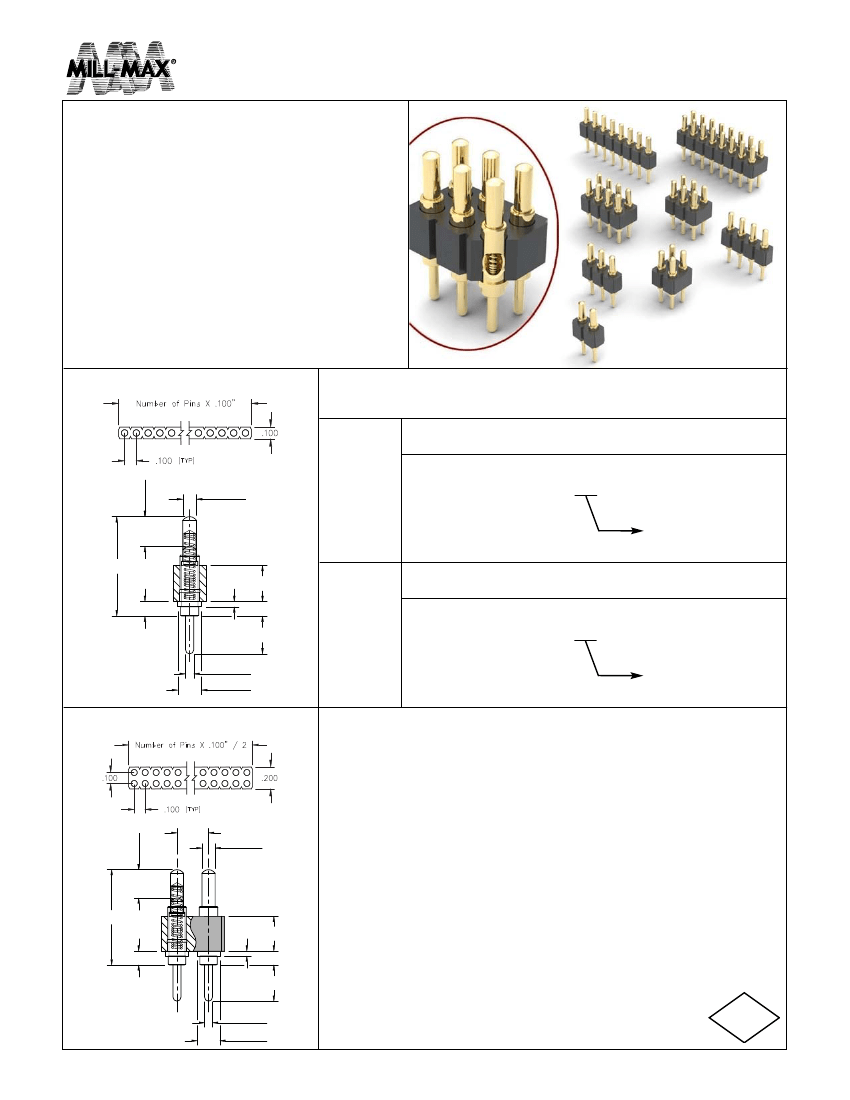

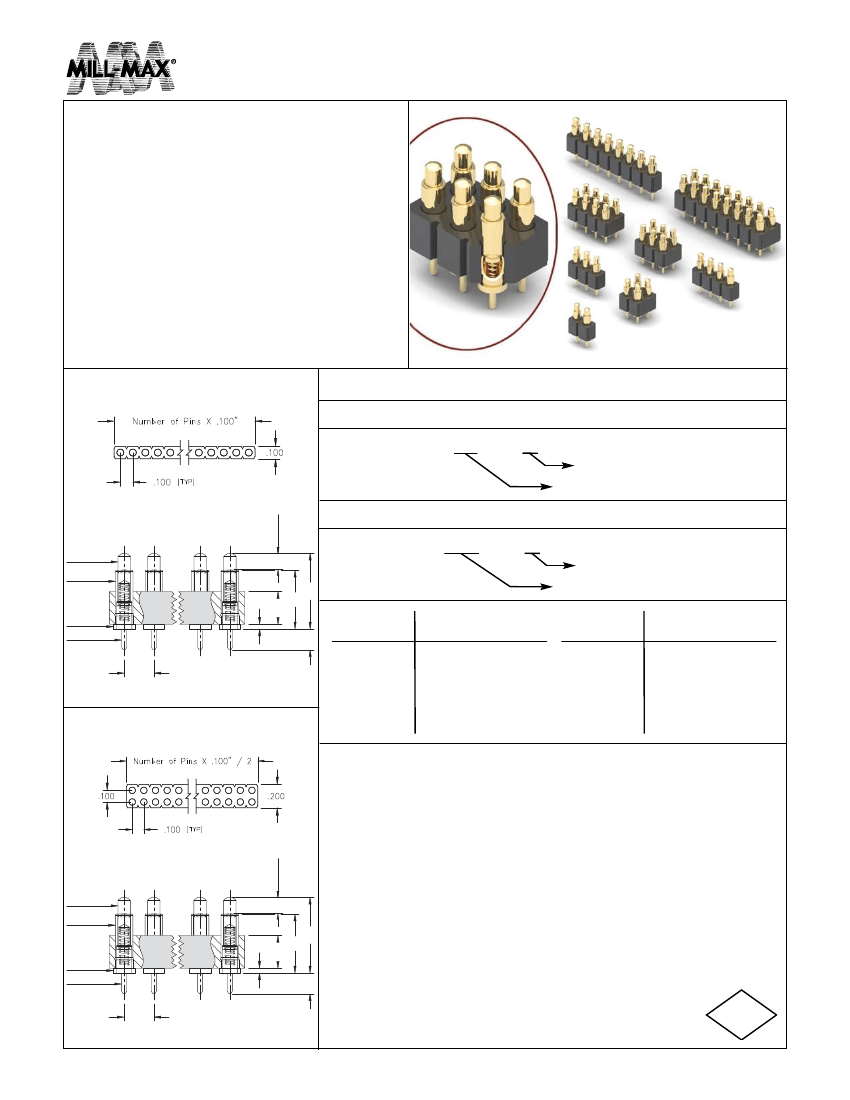

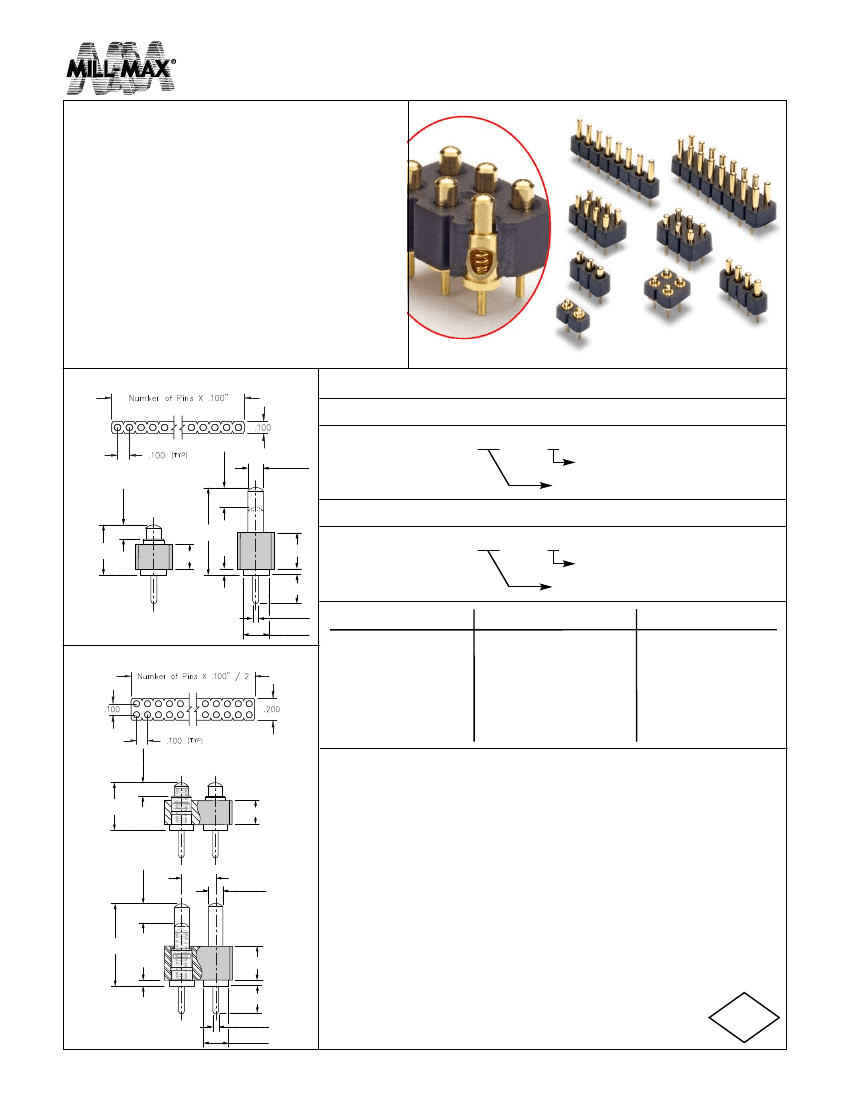

SPRING-LOADED CONNECTORS
Through Hole Mount
Single and Double Row Strips
•
Modular contacts for use on .100” grid, available in
five heights from .137” to .236”, supplied in single
and double row contact strips.
•
Precision-machined piston / base and gold plated
components assure a 1,000,000 min. cycle life.
•
Pistons have a long stroke relative to the low pro-
file of the assembly.
•
Low resistance, high current contacts are rated at
2 amps continuous, 3 amps peak.
•
High temperature thermoplastic insulators are suit-
able for surface mount processes.
•
821 & 823 series contact strips are designed for
manual placement into Ø.022±.003” plated-thru-
holes in the circuit board prior to hand, wave or
reflow soldering.
Series 821, 823
SINGLE ROW Series 821
Ordering Information
Single Row Series 821
821-22-0XX-10-00X101
Specify contact style
0-4
Specify # of contacts
02-64
Double Row Series 823
823-22-0XX-10-00X101
Specify contact style
0-4
Specify # of contacts
04-72
CONTACT STYLE
0
1
2
3
4
INITIAL HEIGHT
A
.137
.177
.197
.217
.236
MAX. STROKE
B
.039
.045
.055
.055
.055
Stroke
.042 DIA.
Stroke
B
A
.071
.110
B
A
.016
.069
.017 DIA.
.072 DIA.
Style 0 only
DOUBLE ROW Series 823
Stroke
Technical Specifications
.071
B
A
Style 0 only
Stroke
.100
.042 DIA.
B
A
.110
.016
.069
.017 DIA.
.072 DIA.
Materials:
Contact piston & Base: Machined copper alloy plated 20µ” gold
over 100µ” nickel
Spring: Beryllium copper plated 10µ” gold
Insulator: High temp. thermoplastic rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: 1,000,000 cycles min.
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mΩ max.
Insulation resistance: 10,000MΩ min.
Dielectric strength: 700Vrms min.
RoHS
2002/95/EC
Capacitance: 1pF max.
w w w. m i l l - m a x . c o m
10
516-922-6000
SPRING-LOADED CONNECTORS
Through Hole Mount
Single and Double Row Strips
•
Modular contacts for use on .100” grid, available in
a height of .302”, supplied in single and double row
contact strips.
•
Precision-machined piston / base and gold plated
components assure a 1,000,000 min. cycle life.
•
Pistons have a .045 mid stroke & .090 max stroke.
•
Low resistance, high current contacts are rated at
2 amps continuous, 3 amps peak.
•
High temperature thermoplastic insulators are suit-
able for surface mount processes.
•
825 & 827 series contact strips are designed for
manual placement into Ø .030±.003” plated-thru-
holes in the circuit board prior to hand, wave or
reflow soldering.
Series 825, 827
SINGLE ROW Series 825
Ordering Information
Single Row Series 825
Stroke
.042 DIA.
Fig. 1
825-22-0XX-10-001101
Specify # of contacts
02-64
.090
.302
.016
.044
.115
.110
Double Row Series 827
Fig. 2
827-22-0XX-10-001101
Specify # of contacts
Technical Specifications
04-72
.025 DIA.
.072 DIA.
DOUBLE ROW Series 827
Materials:
Contact piston & Base: Machined copper alloy plated 20µ” gold
over 100µ” nickel
Spring: Beryllium copper plated 10µ” gold
Insulator: High temp. thermoplastic rated UL94 V-0
Stroke
.100
.042 DIA.
.090
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: 1,000,000 cycles min.
.110
.302
.016
.044
.115
.025 DIA.
.072 DIA.
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mΩ max.
Insulation resistance: 10,000MΩ min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
2002/95/EC
RoHS
w w w. m i l l - m a x . c o m
11
516-922-6000
SPRING-LOADED CONNECTORS
Through Hole Mount
Single and Double Row Strips
•
Modular contacts for use on .100” grid, available in
ten heights from .255” to .430”, supplied in single
and double row contact strips.
•
Precision-machined piston / base and gold plated
components assure a 1,000,000 min. cycle life.
•
Pistons have a .0275 mid stroke & .055 max
stroke.
•
Low resistance, high current contacts are rated at
2 amps continuous, 3 amps peak.
•
High temperature thermoplastic insulators are suit-
able for surface mount processes.
•
816 & 818 series contact strips are designed for
manual placement into Ø .023±.003” plated-thru-
holes in the circuit board prior to intrusive reflow
soldering.
Series 816...00X101
818...00X101
Single Row Series 816...00X101
Ordering Information
Single Row Series 816...00X101
816-22-0XX-10-00X101
Specify # of contacts
Specify contact style
0-9
02-64
Stroke
Double Row Series 818...00X101
818-22-0XX-10-00X101
A
.042
DIA.
.059
DIA.
.016
.072
DIA.
.017 DIA.
.055
.110
.198
Specify # of contacts
CONTACT
STYLE
0
1
2
3
4
INITIAL HEIGHT
Specify contact style
0-9
04-72
CONTACT
STYLE
5
6
7
8
9
INITIAL HEIGHT
.069
A
.255
.275
.295
.315
.335
A
.350
.370
.390
.410
.430
.100
(TYP)
Double Row Series 818...00X101
Technical Specifications
Materials:
Contact piston & Base: Machined copper alloy plated 20µ” gold
over 100µ” nickel
Spring: Beryllium copper plated 10µ” gold
Insulator: High temp. thermoplastic rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: 1,000,000 cycles min.
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mΩ max.
Insulation resistance: 10,000MΩ min.
Dielectric strength: 700Vrms min.
RoHS
2002/95/EC
Capacitance: 1pF max.
.042
DIA.
.059
DIA.
.016
.072
DIA.
.017 DIA.
.055
Stroke
.110
.198
A
.069
.100
(TYP)
w w w. m i l l - m a x . c o m
12
516-922-6000
