PI74FCT163240CAX datasheet, PDF

Datasheet> All Categories > logic> logic> PI74FCT163240CAX

PI74FCT163240CAX: DescriptionBus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48; Categorylogic logic; File Size153KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74FCT163240CAX Overview

Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48

PI74FCT163240CAX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
series	FCT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	12.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.16 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

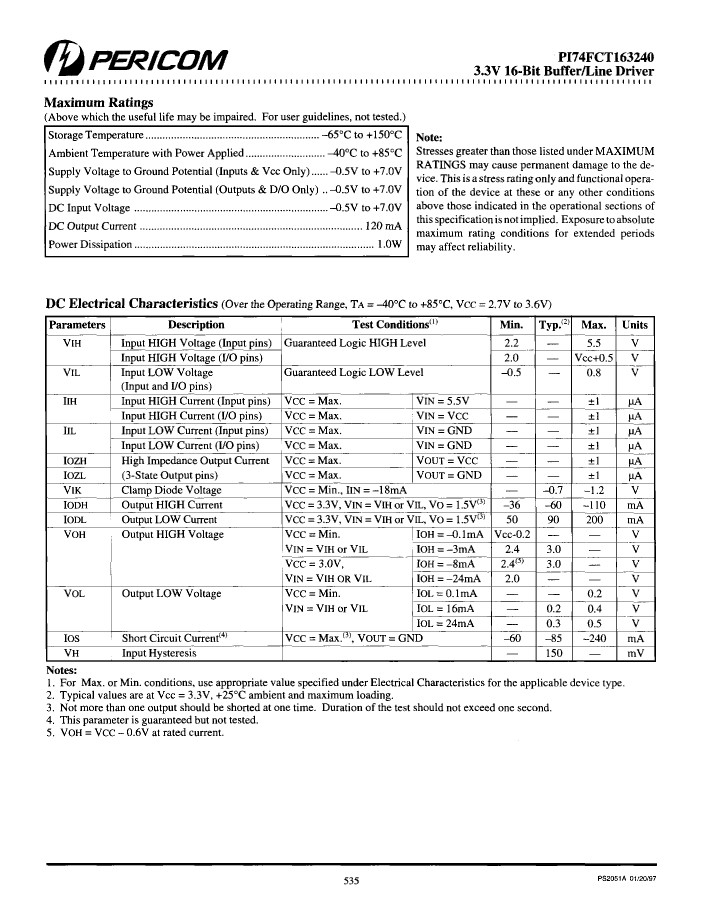

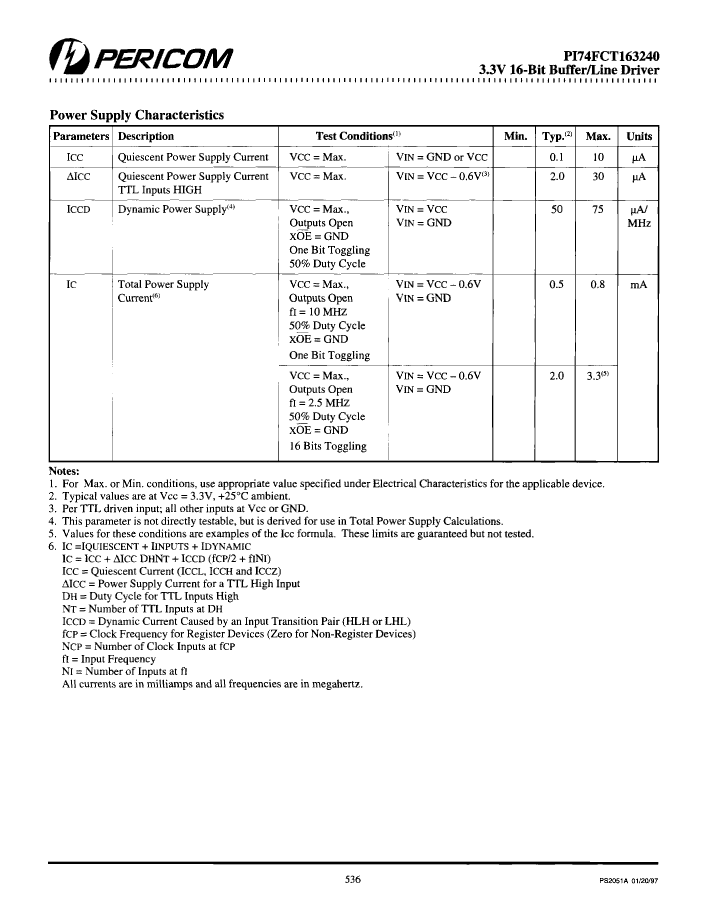

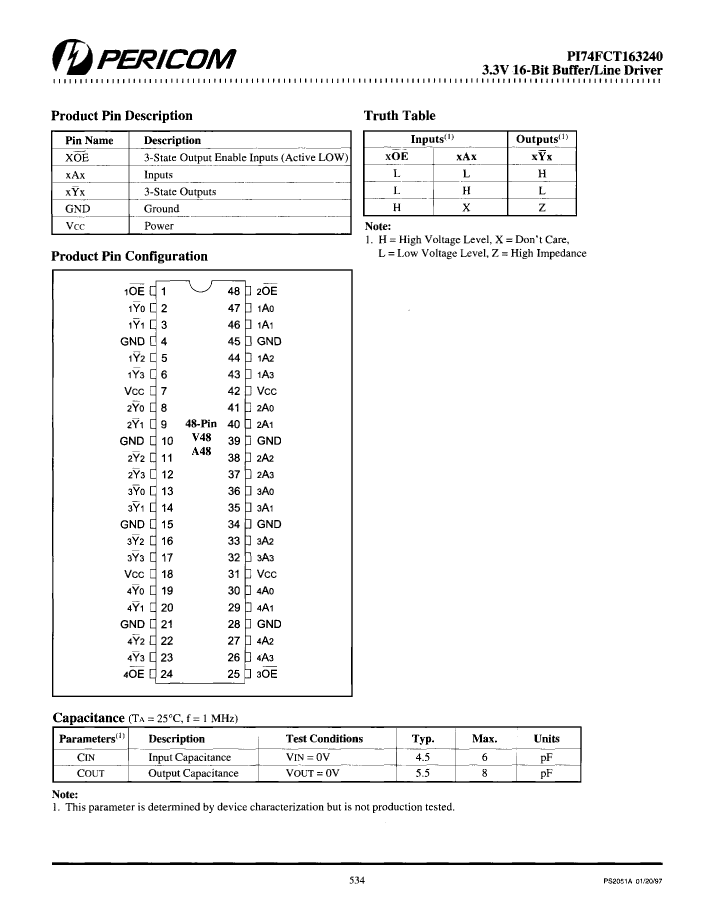

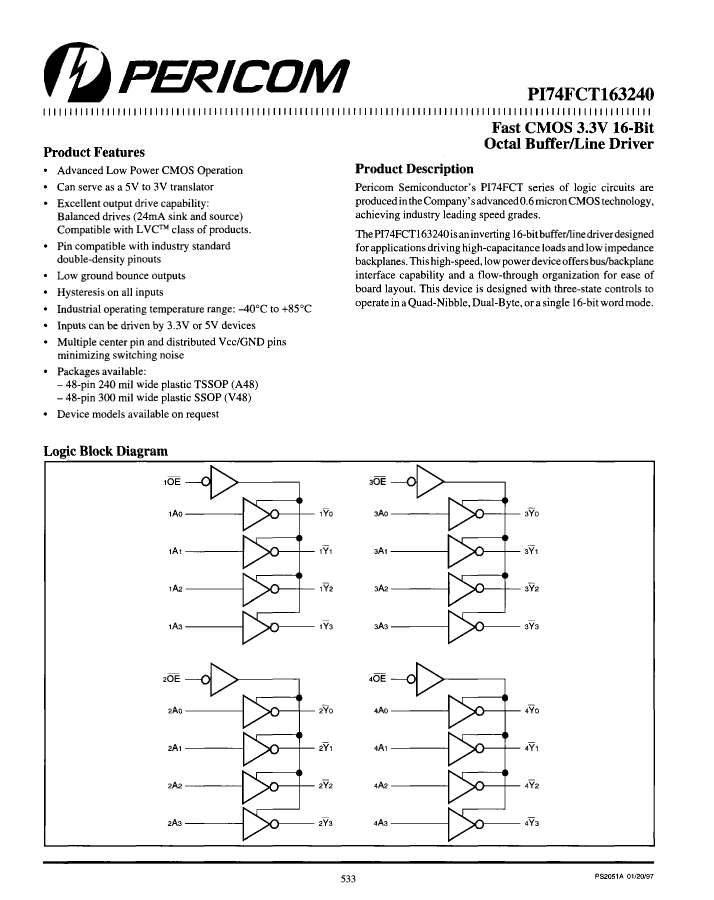

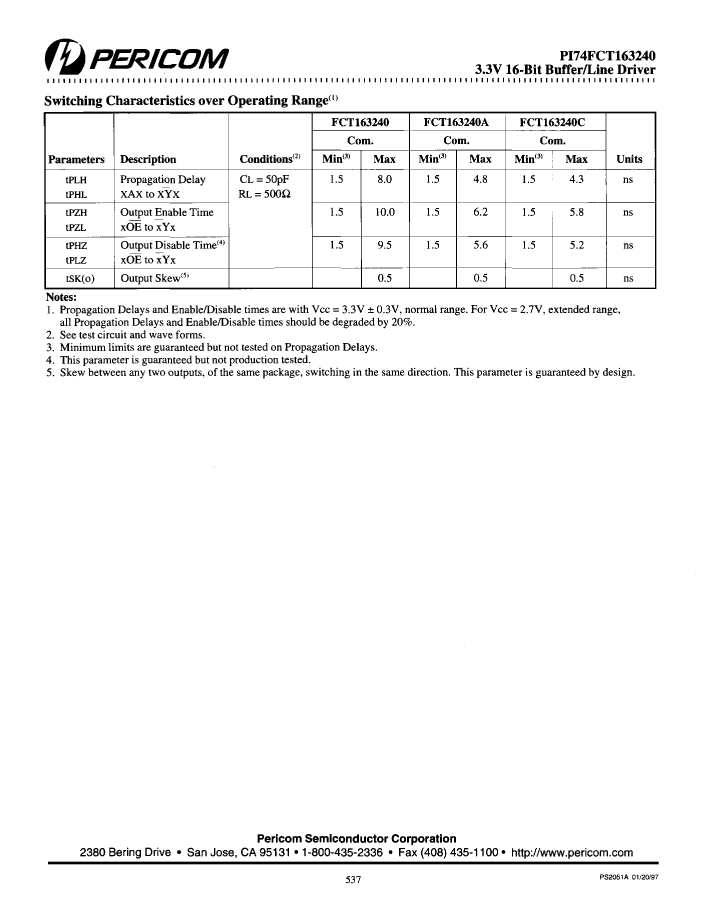

Preview

Download Datasheet

View All

PI74FCT163240CAX Related Products

	PI74FCT163240CAX	PI74FCT163240AA	PI74FCT163240AAX	PI74FCT163240CA	PI74FCT163240AX	PI74FCT163240AVX	PI74FCT163240CVX	PI74FCT163240VX
Description	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, Inverted Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP
package instruction	TSSOP,	TSSOP, TSSOP48,.3,20	TSSOP,	TSSOP, TSSOP48,.3,20	TSSOP,	SSOP,	SSOP,	SSOP,
Contacts	48	48	48	48	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	15.875 mm	15.875 mm	15.875 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4	4
Number of functions	4	4	4	4	4	4	4	4
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	5.16 ns	5.76 ns	5.76 ns	5.16 ns	9.6 ns	5.76 ns	5.16 ns	9.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	2.794 mm	2.794 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	7.5 mm	7.5 mm	7.5 mm
