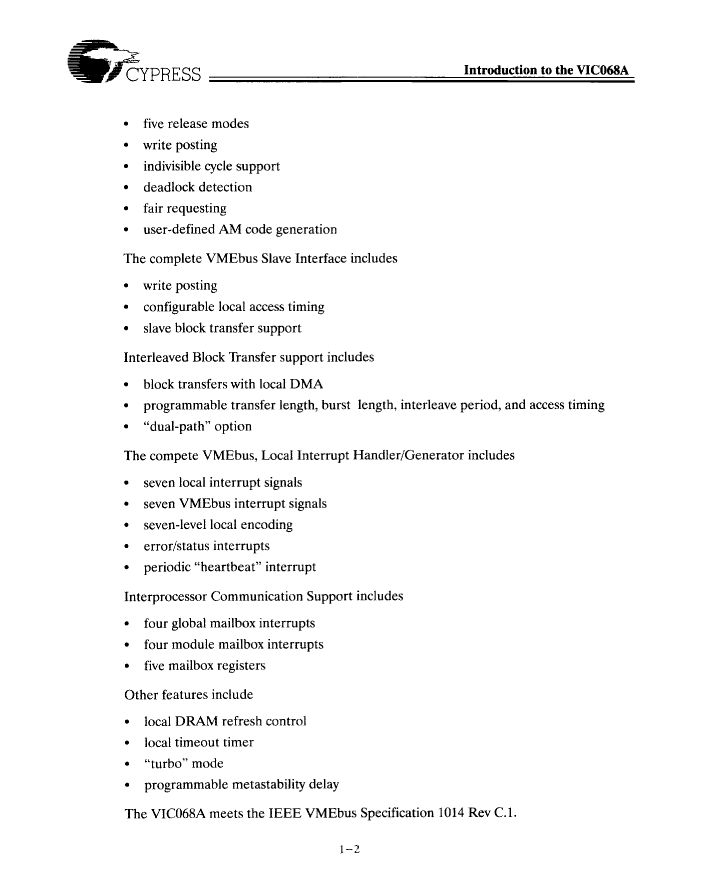

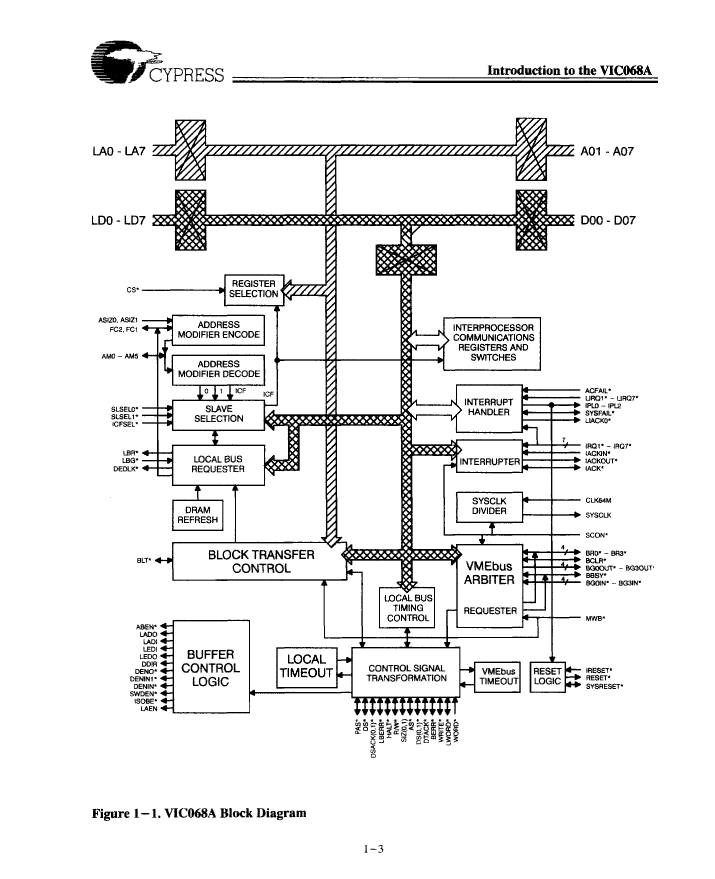

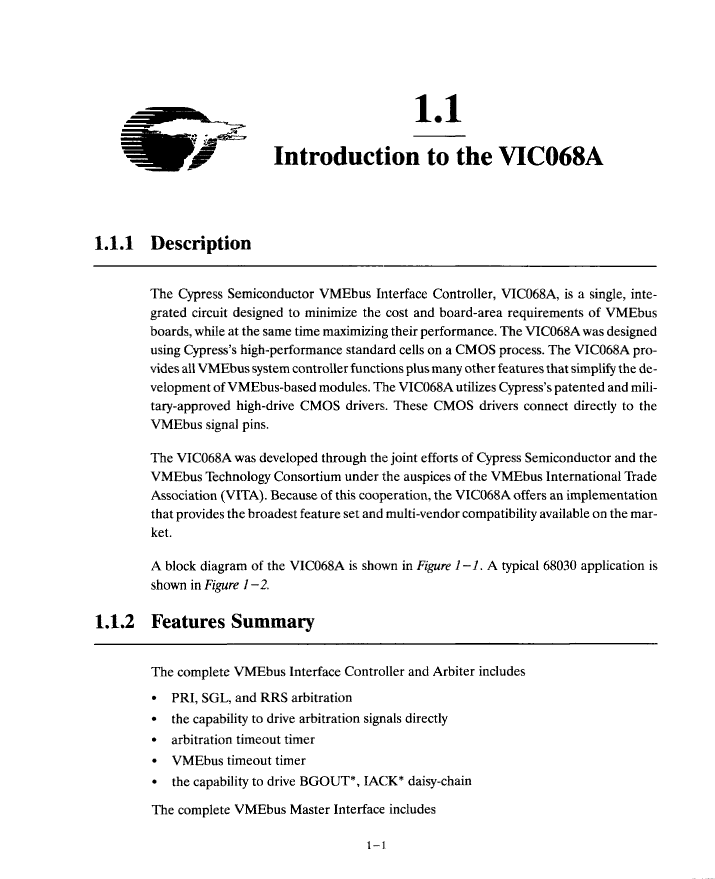

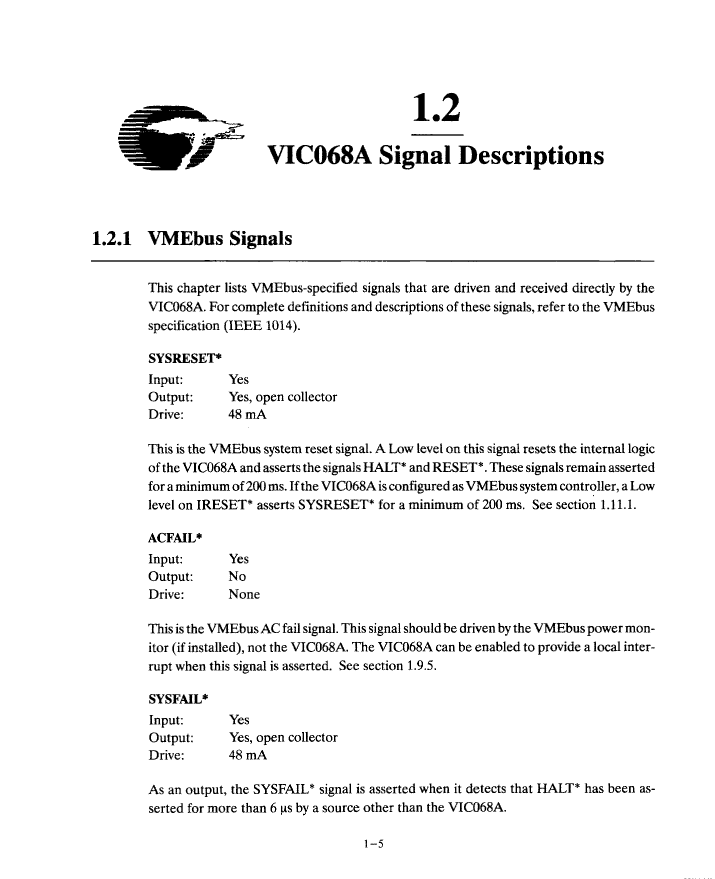

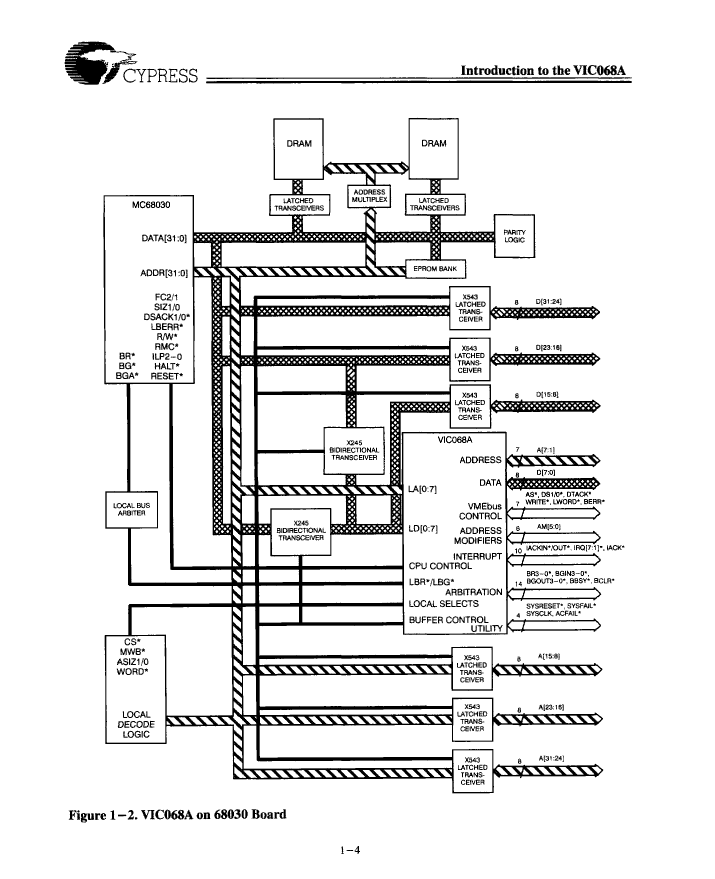

VME BUS CONTROLLER, PQFP144, TQFP-144
| Parameter Name | Attribute value |
| Maker | Cypress Semiconductor |
| Parts packaging code | QFP |
| package instruction | LFQFP, |
| Contacts | 144 |
| Reach Compliance Code | unknown |
| Address bus width | 8 |
| Bus compatibility | 68030 |
| Drive interface standards | IEEE 1014 |
| External data bus width | 8 |
| JESD-30 code | S-PQFP-G144 |
| length | 20 mm |
| Number of terminals | 144 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LFQFP |
| Package shape | SQUARE |
| Package form | FLATPACK, LOW PROFILE, FINE PITCH |
| Certification status | Not Qualified |
| Maximum seat height | 1.6 mm |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.5 mm |
| Terminal location | QUAD |
| width | 20 mm |
| uPs/uCs/peripheral integrated circuit type | BUS CONTROLLER, VME |
| VIC068AAC | VIC068ABC | VIC068AGC | VIC068AGMB | VIC068AGI | |
|---|---|---|---|---|---|
| Description | VME BUS CONTROLLER, PQFP144, TQFP-144 | VME BUS CONTROLLER, PPGA145, CAVITY-UP, PLASTIC, PGA-145 | VME BUS CONTROLLER, CPGA145, CAVITY-UP, PGA-145 | VME BUS CONTROLLER, CPGA145, CAVITY-UP, PGA-145 | VME BUS CONTROLLER, CPGA145, CAVITY-UP, PGA-145 |
| Maker | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor |
| Parts packaging code | QFP | PGA | PGA | PGA | PGA |
| package instruction | LFQFP, | PGA, | CAVITY-UP, PGA-145 | PGA, | PGA, |
| Contacts | 144 | 145 | 145 | 145 | 145 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Address bus width | 8 | 8 | 8 | 8 | 8 |
| Bus compatibility | 68030 | 68030 | 68030 | 68030 | 68030 |
| Drive interface standards | IEEE 1014 | IEEE 1014 | IEEE 1014 | IEEE 1014 | IEEE 1014 |
| External data bus width | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | S-PQFP-G144 | S-PPGA-P145 | S-CPGA-P145 | S-CPGA-P145 | S-CPGA-P145 |
| length | 20 mm | 38.8366 mm | 40.0685 mm | 40.0685 mm | 40.0685 mm |
| Number of terminals | 144 | 145 | 145 | 145 | 145 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 125 °C | 85 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | LFQFP | PGA | PGA | PGA | PGA |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK, LOW PROFILE, FINE PITCH | GRID ARRAY | GRID ARRAY | GRID ARRAY | GRID ARRAY |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.6 mm | 5.7912 mm | 5.207 mm | 5.207 mm | 5.207 mm |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY | INDUSTRIAL |
| Terminal form | GULL WING | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal pitch | 0.5 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | PERPENDICULAR | PERPENDICULAR | PERPENDICULAR | PERPENDICULAR |
| width | 20 mm | 38.8366 mm | 40.0685 mm | 40.0685 mm | 40.0685 mm |
| uPs/uCs/peripheral integrated circuit type | BUS CONTROLLER, VME | BUS CONTROLLER, VME | BUS CONTROLLER, VME | BUS CONTROLLER, VME | BUS CONTROLLER, VME |
