CDRH105RNP-121NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH105RNP-121NB

CDRH105RNP-121NB: DescriptionGeneral Purpose Inductor, 120uH, 30%, 1 Element, Ferrite-Core, SMD, 4039, ROHS COMPLIANT; CategoryPassive components inductor; File Size137KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH105RNP-121NB Overview

General Purpose Inductor, 120uH, 30%, 1 Element, Ferrite-Core, SMD, 4039, ROHS COMPLIANT

CDRH105RNP-121NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	4039
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	4039
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.303 Ω
Nominal inductance(L)	120 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH105R
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	4.8 mm
Package length	10.2 mm
Package form	SMT
Package width	10 mm
method of packing	Box
Maximum rated current	1.18 A
series	CDRH105R
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

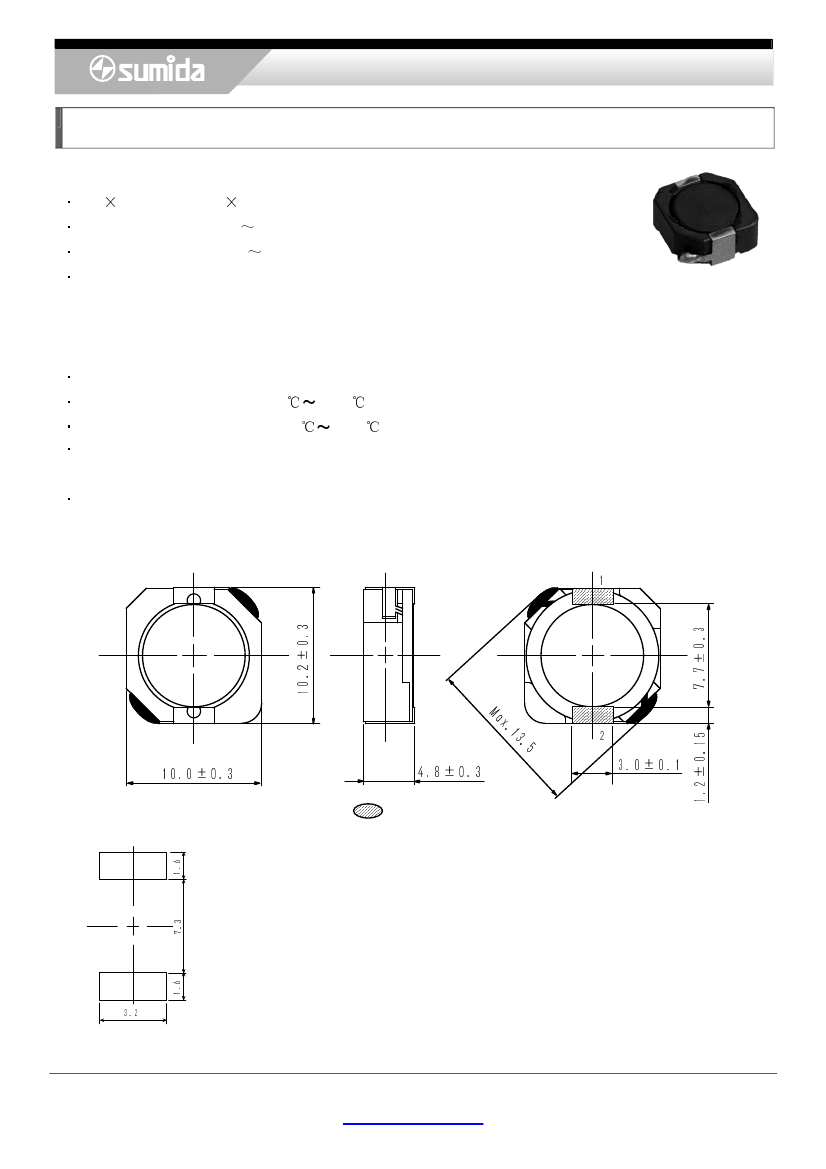

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH105R

◆

Product Description

10.5 10.3mm Max.(L W ), 5.1mm Max. Height.

Rated current range: 0.42 9.5A.

In addition to the standard versions of inductors shown here,

custom inductors are available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+100 (Including coil’s self temperature rise).

Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC converter

inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

◆

Land Pattern (mm)

Electrode

◆

Specification

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1.0±0.3

3.0±8.4

℃ ½℃

Storage temperature range: -40

Inductance range: 0.8µH

3.0±0.01

2. 3

・

1.0mH.

+100 .

1/2
