TC4042BF

Description
IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch
Categorylogic    logic
File Size106KB,4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

TC4042BF Overview

IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch

TC4042BF Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerToshiba Semiconductor
Parts packaging codeSOIC
package instructionSOP,
Contacts16
Reach Compliance Codeunknown
Other featuresPROGRAMMABLE TRIGGER TYPE
series4000/14000/40000
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length10.3 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeD LATCH
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output polarityCOMPLEMENTARY
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)440 ns
Certification statusNot Qualified
Maximum seat height1.9 mm
Maximum supply voltage (Vsup)18 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typeHIGH LEVEL
width5.3 mm

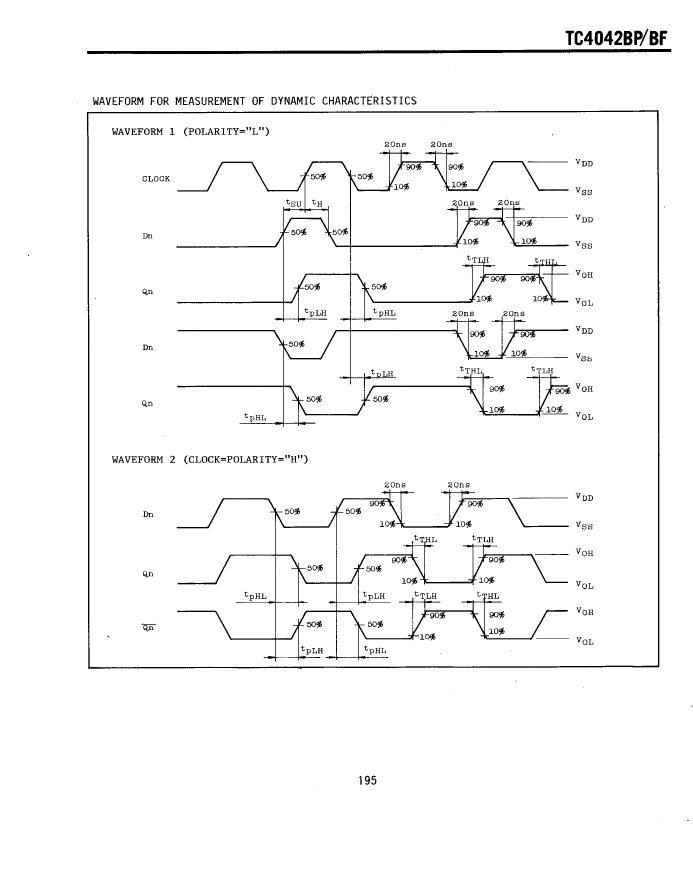

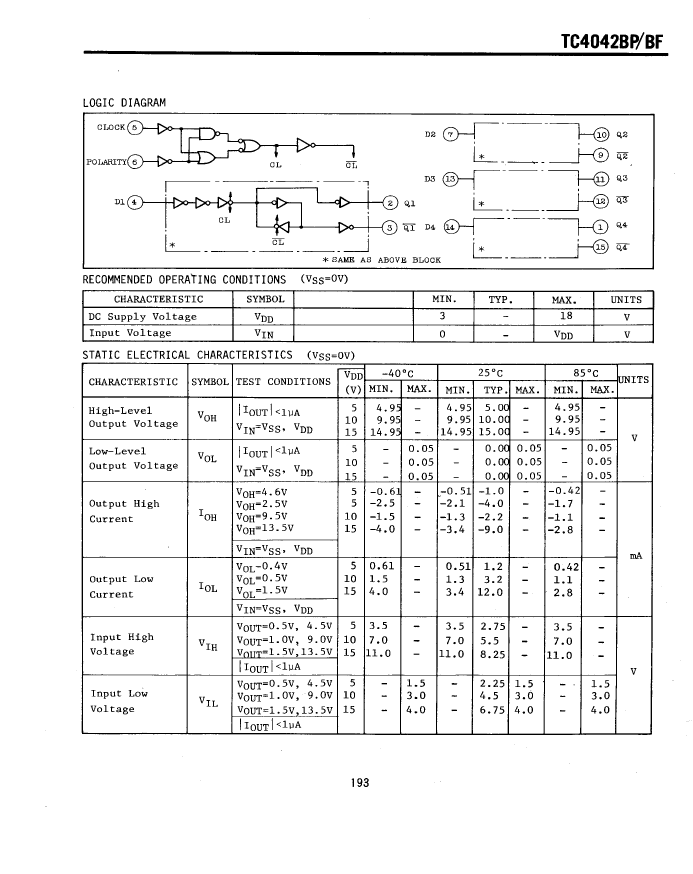

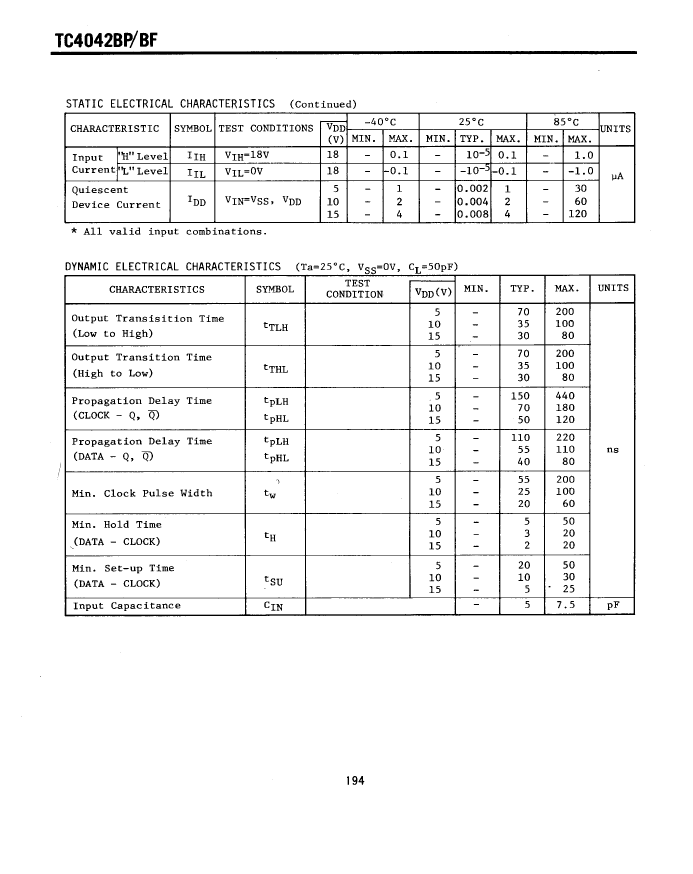

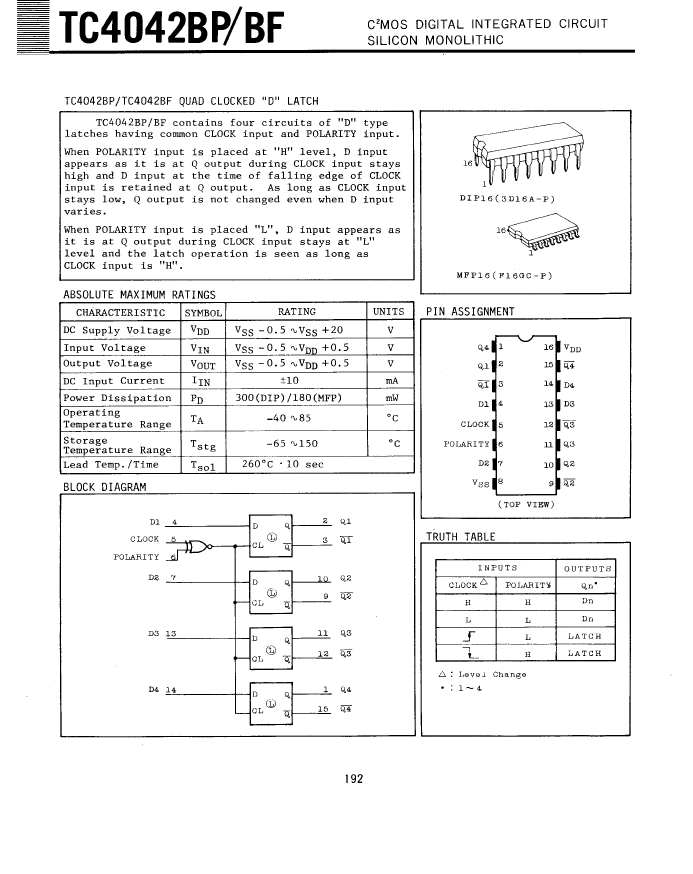

TC4042BF Preview

This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer

TC4042BF Related Products

TC4042BF TC4042BP
Description IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, DIP-16, FF/Latch
Is it Rohs certified? incompatible incompatible
Maker Toshiba Semiconductor Toshiba Semiconductor
Parts packaging code SOIC DIP
package instruction SOP, DIP,
Contacts 16 16
Reach Compliance Code unknown unknown
Other features PROGRAMMABLE TRIGGER TYPE PROGRAMMABLE TRIGGER TYPE
series 4000/14000/40000 4000/14000/40000
JESD-30 code R-PDSO-G16 R-PDIP-T16
JESD-609 code e0 e0
length 10.3 mm 19.25 mm
Load capacitance (CL) 50 pF 50 pF
Logic integrated circuit type D LATCH D LATCH
Number of digits 4 4
Number of functions 1 1
Number of terminals 16 16
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output polarity COMPLEMENTARY COMPLEMENTARY
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP DIP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED 240
propagation delay (tpd) 440 ns 440 ns
Certification status Not Qualified Not Qualified
Maximum seat height 1.9 mm 4.45 mm
Maximum supply voltage (Vsup) 18 V 18 V
Minimum supply voltage (Vsup) 3 V 3 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES NO
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Trigger type HIGH LEVEL HIGH LEVEL
width 5.3 mm 7.62 mm
