56-F011-110-JP Overview

Micro D Series Filtered Connectors

Preview

Download Datasheet

View All

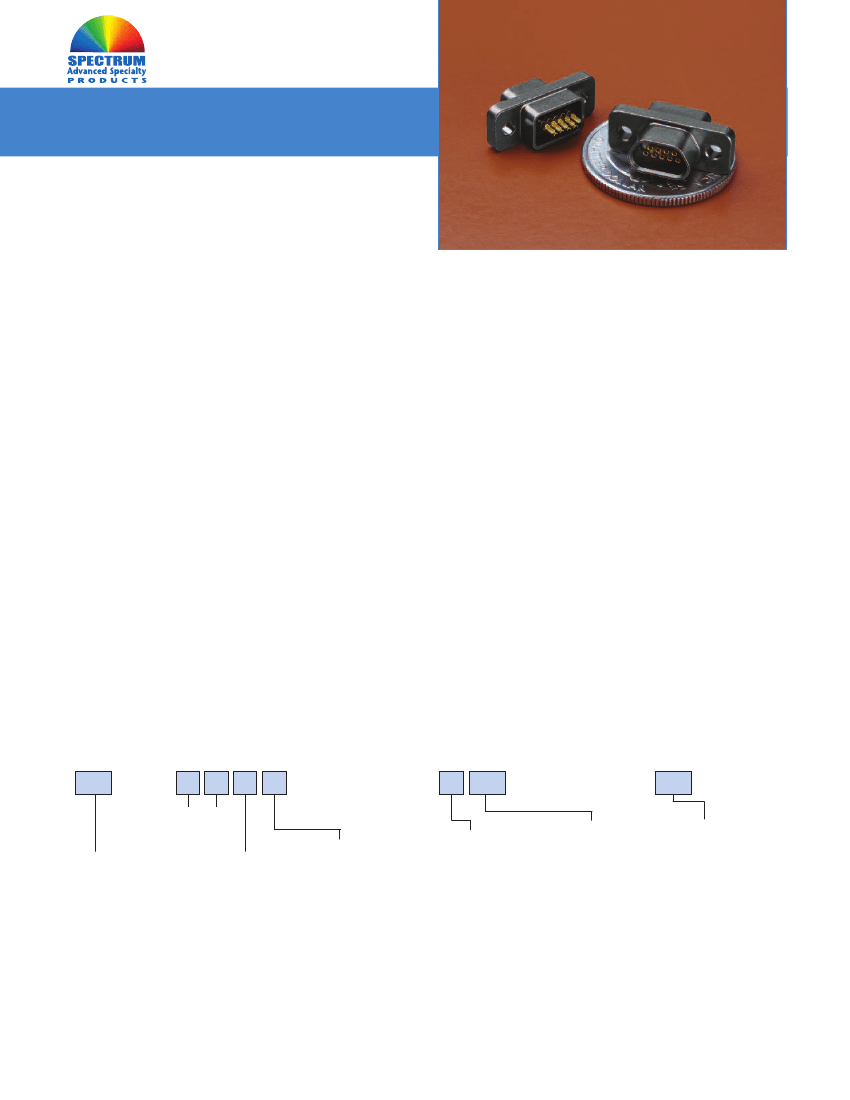

Micro D Series

Filtered Connectors

For designs that require even smaller connector

packages, Spectrum has designed a line of filtered Micro

D-Subminiature connectors. This line of connectors

offers a range of reliable filtering options, including

capacitive and ESD versions, and several sizes and

termination options. Spectrum has a Micro D-sub

connector to satisfy your smallest space constraints.

Mechanical Specifications

Shell

. . . . . . . . . . . . . . . Aluminum, electroless nickel

. . . . . . . . . . . . . . . . . . .

plated 500 µ in (12.7 µm) minimum

Insulator

. . . . . . . . . . . . High temperature plastic,

. . . . . . . . . . . . . . . . . . .

flammability UL94V-0

Contacts

. . . . . . . . . . . . Copper alloy, gold plated 50 µ in

. . . . . . . . . . . . . . . . . . .

(1.27 µm) minimum

Potting

. . . . . . . . . . . . . Flammability UL94V-0

Interfacial Seal

. . . . . . . . Silicon

Features

Light weight

Compact size

Environmentally sealed contact area when mated

Corrosion resistant

Durable (500 cycles min.)

Superior electrical performance

RoHS compliant

Electrical Specifications

Operating Voltage

. . . . . 100 VDC

Dielectric

Withstanding Voltage

. . . 300 VDC

Current Rating.

. . . . . . . 3 Amps

Insulation Resistance

. . . 5G ohms @ 100 VDC

Ordering Information

Example:

56-F011-110-JP

F 0 1 1

Micro D

RoHS

Compliant

This part number represents a micro D-sub connector with a shell size of 15

and a pin to solder cup configuration. All lines are filtered with same capaci-

tance value, which is 100 pF COB. The connector includes an optional #2-56

jack post.

1 10

Line Filtering

1 -

All positions same

2 -

Select load

Capacitance

Value/Type

High Performance

01 -

100 pF FT

02 -

470 pF FT

03 -

820 pF FT

04 -

1500 pF FT

05 -

4700 pF FT

Standard

Performance

10 -

100 pF COB

11 -

470 pF COB

12 -

820 pF COB

13 -

1500 pF COB

14 -

4700 pF COB

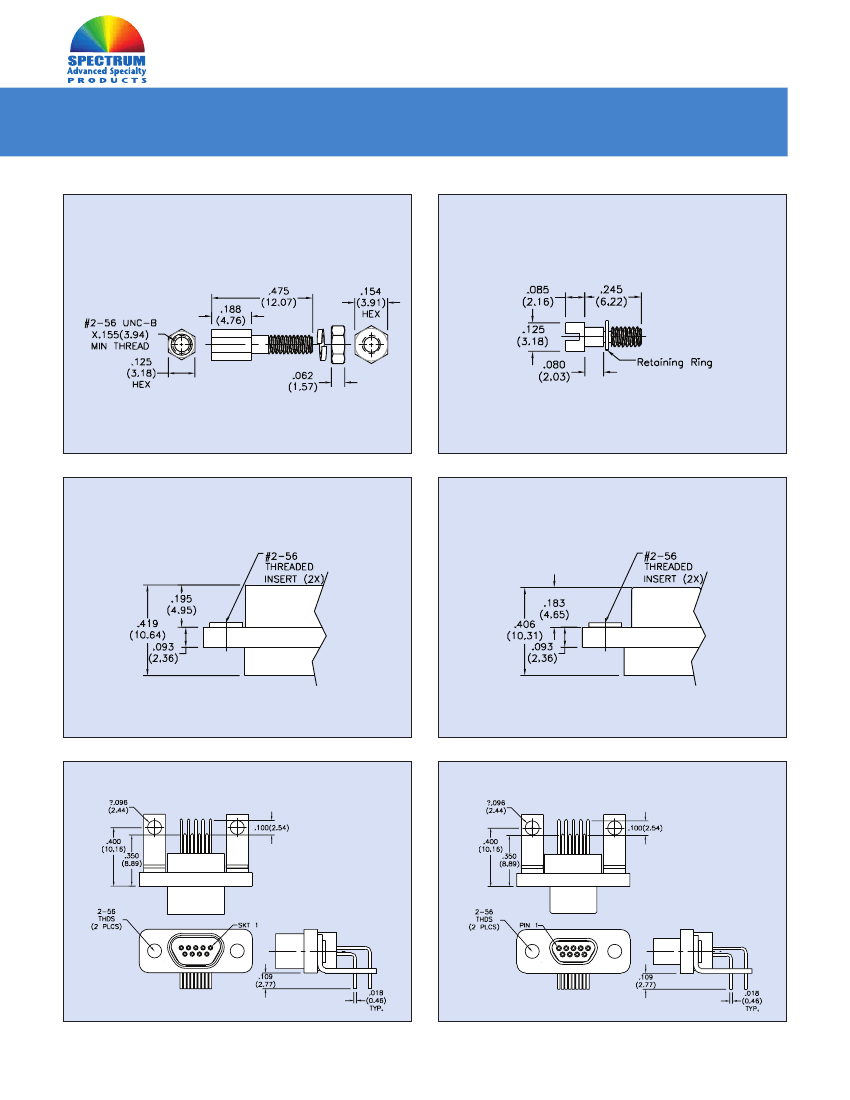

Options

JP -

#2-56 jack post

JS -

#2-56 jackscrew

TI -

Threaded insert

JT -

Jack post and

threaded insert

GB -

Grounding Bracket

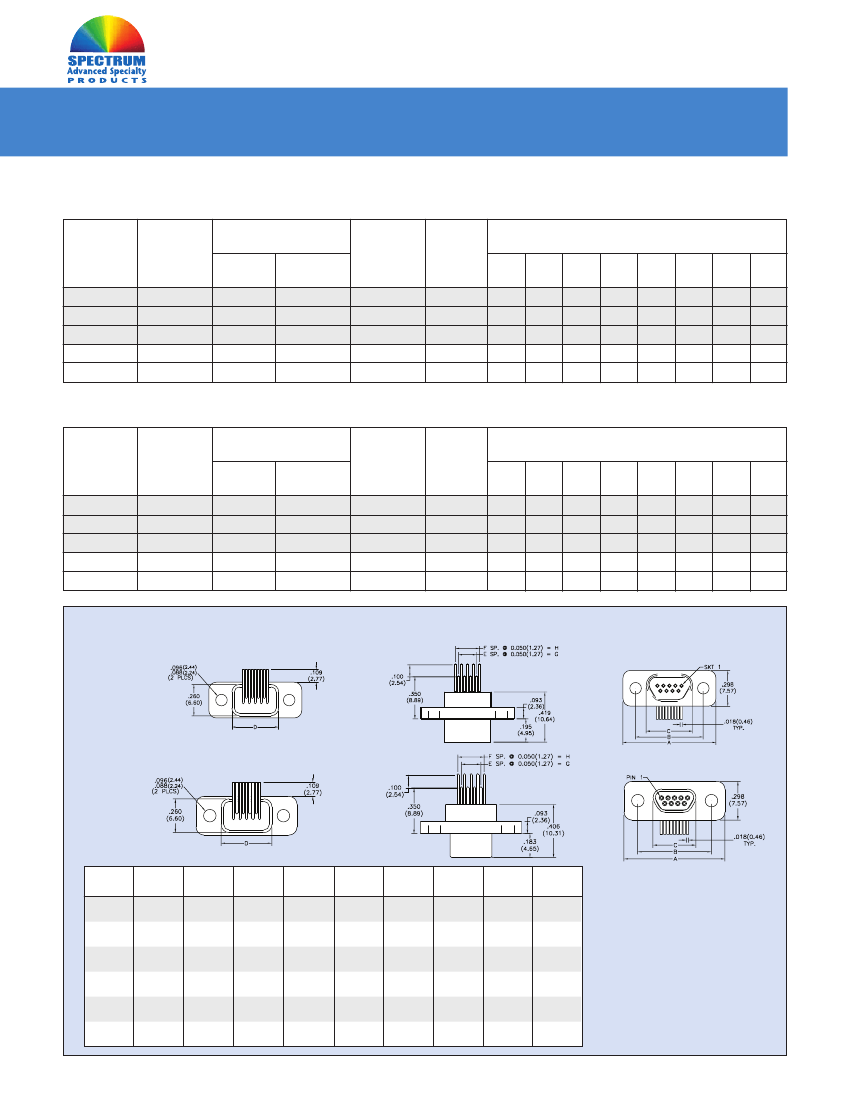

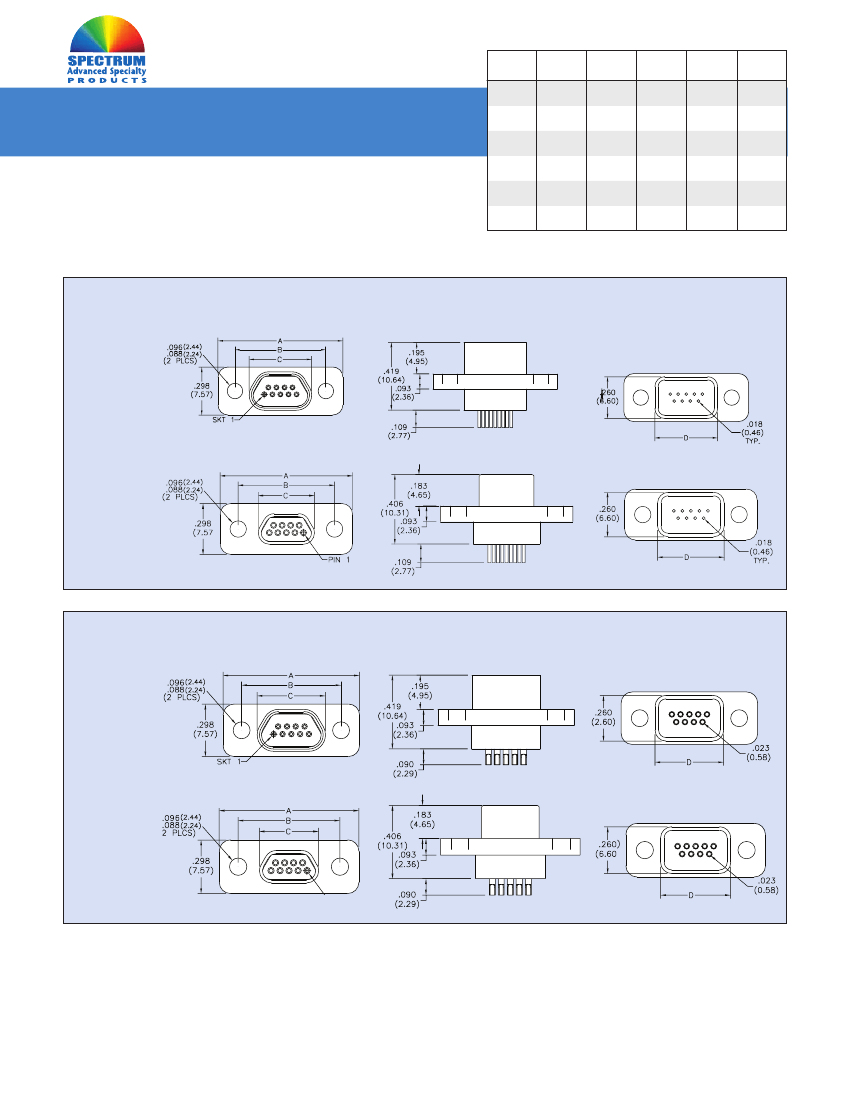

Contact Type/Termination

Filtered

Connectors

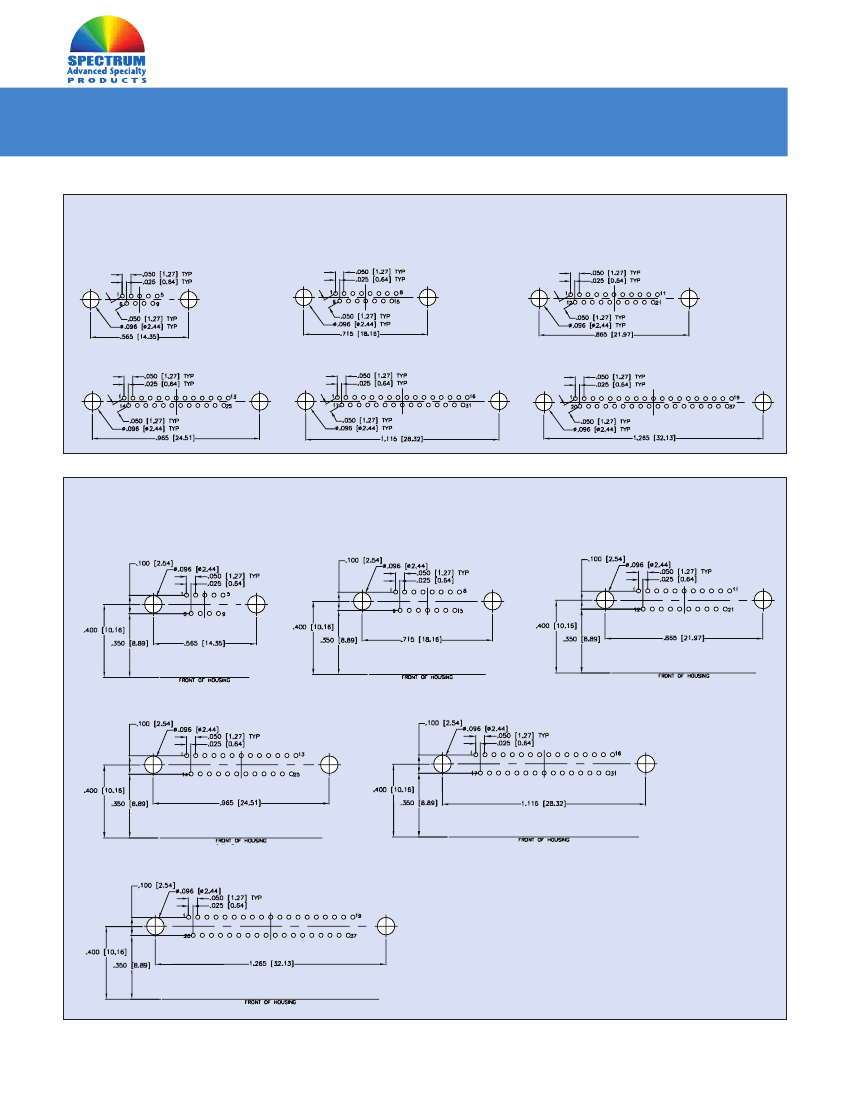

Shell Size/

Number of

Contacts

9 contacts

15 contacts

21 contacts

25 contacts

31 contacts

37 contacts

Pin to solder cup

Pin to right angle*

Socket to PC tail*

Socket to right angle*

Socket to solder cup

Pin to PC tail*

* Right angle and PC tail length is 0.109. Other lengths available, consult factory.

All capacitance values ±20% @ 25°C

SPECTRUM ADVANCED SPECIALTY PRODUCTS

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • www.SpecEMC.com

FC57

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
