UF5402-LF: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size51KB，4 Pages; ManufacturerWon-Top Electronics Co., Ltd.; Websitehttps://www.wontop.com/; Environmental Compliance

Download Datasheet Parametric View All

UF5402-LF Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

UF5402-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Won-Top Electronics Co., Ltd.
Parts packaging code	DO-201AD
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Humidity sensitivity level	2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

WTE

POWER SEMICONDUCTORS

UF5400 – UF5408

3.0A ULTRAFAST DIODE

Features

Diffused Junction

Low Forward Voltage Drop

High Current Capability

High Reliability

High Surge Current Capability

Mechanical Data

Case: DO-201AD, Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 1.2 grams (approx.)

Mounting Position: Any

Marking: Type Number

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 4

DO-201AD

Dim

Min

Max

25.4

—

7.20

9.50

1.20

1.30

4.80

5.30

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

5400

5401

100

=25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

(Note 1)

= 55°C

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave superimposed on

rated load (JEDEC Method)

Forward Voltage

Peak Reverse Current

At Rated DC Blocking Voltage

Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Operating Temperature Range

Storage Temperature Range

= 3.0A

= 25°C

= 100°C

Symbol

RRM

RWM

R(RMS)

5402

200

140

5403

300

210

3.0

5404

400

280

5406

600

420

5407

800

560

5408

1000

700

Unit

FSM

STG

1.0

150

1.3

100

-65 to +125

-65 to +150

1.7

µA

°C

Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case

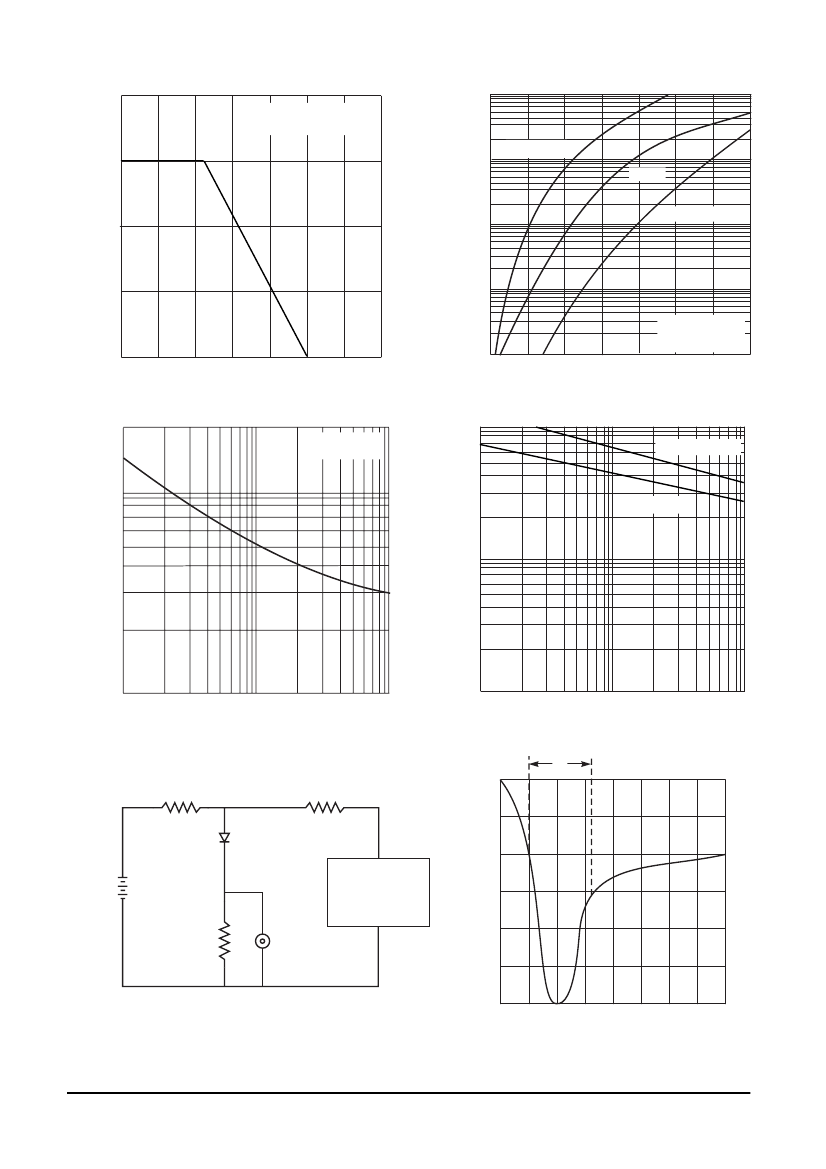

2. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.

3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

UF5400 – UF5408

1 of 4
