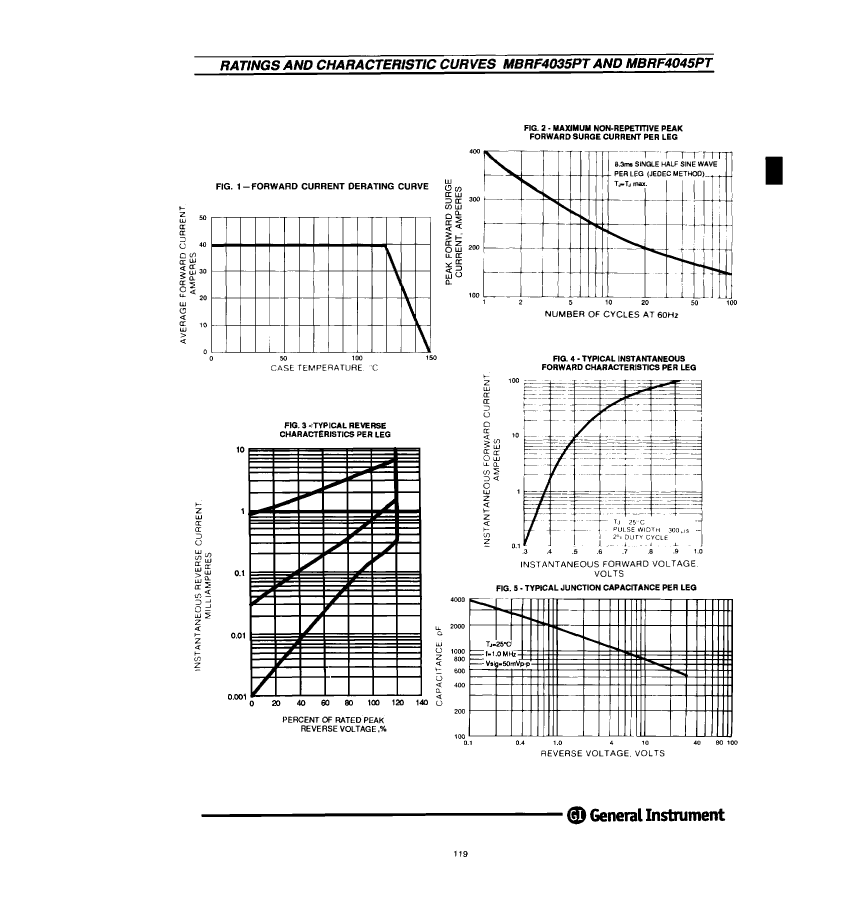

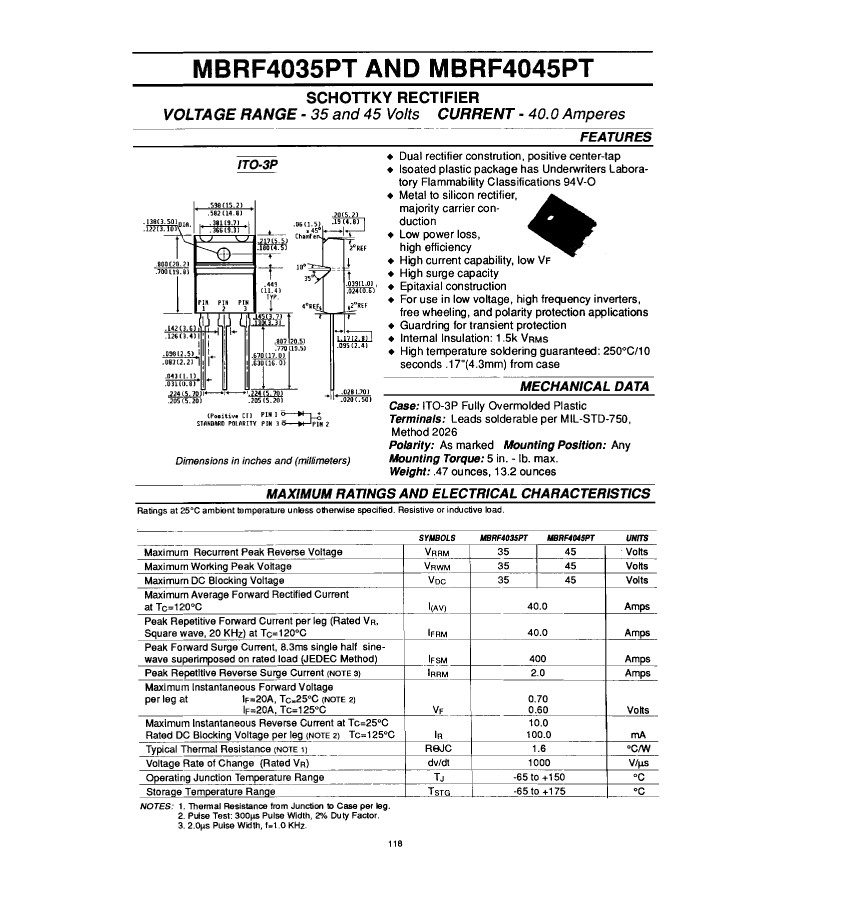

MBRF4035PT datasheet, PDF - EEWORLD Datasheet

MBRF4035PT: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 35V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size77KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

MBRF4035PT Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 35V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	10000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	MBRF4035PT	MBRF4045PT
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 35V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 45V V(RRM), Silicon,
Maker	General Instrument Corp	General Instrument Corp
Reach Compliance Code	unknown	unknown
Other features	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V	0.7 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	400 A	400 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	45 V
Maximum reverse current	10000 µA	10000 µA
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
