Motor control
Accurate and reliable control
of motors
Te
Sys
range provide you more
simplicity
,
compactness
,
openness
and
flexibility
... so man y evolutions and new items to aid your productivity.
TeSys
For a
new
start!
A range
of simple,
compact and
advanced
components
for power control
and protection.
New horizons are opening up to you. Increase your productivity -
adopt our solutions which help to simplify setting-up.
Motor starters
b
Ready-to-use component combinations,
designed to work together in perfect harmony.
b
Saf e operation and level of coordination
guaranteed by a major manufacturer.
Power circuit control
b
A wide range of components.
b
Solutions for a variety of power control
applications: lighting, capacitor switching,
heating, changeover contactor pairs, resistive
loads, upstream protection.
The essential
guide
A simplified
selection guide
enabling you to
quickly select
motor starters.
5/0
Contents
Motor control components
TeSys contactors
.................................................................
5/2 to 5/9
b
Contactors ,
models K, D, F
TeSys protection components
......................................
5/10 to 5/21
b
Manual motor star ters
b
Switch-disconnector-fuses
b
Thermal overload relays
b
Electronic thermal overload relays
b
Multifunction protection relays
b
Switch disconnectors
Mini Vario and Vario
TeSys starters
.................................................................
5/22 to 5/25
b
Self-protected starter,
U-Line
b
Solid state overload relay system,
U-Line
IEC type industrial control relays
..................................
5/26 to 5/29
b
TeSys type CA2K, CA3K and CA4K
b
TeSys type CAD
NEMA type
.......................................................................
5/30 to 5/49
b
Contactors and starters
b
Combination starters
b
Solid state overload relays Motor Logic
®
b
Definite purpose contactors
b
Lighting contactors
b
Manual starters and switches
b
Accessories
b
Industrial control relays
b
Circuit breaker operating mechanisms
b
Disconnect switches
5
TeSys U
-
LU9
Control
increases in power
Simply
Smart
benefits
Introducing the 1
st
intellig ent
starter
capable of integrating motor control,
control and changeo ver functions in a
unit 45 mm wide!
Simple
in its modular
format, it is also
open
to standard buses
and can monitor your applications via the
web.
Applications
b
Industr y: ideal solution when the motor
starter needs to be decentralized in the
machine or the process
5/1
TeSys

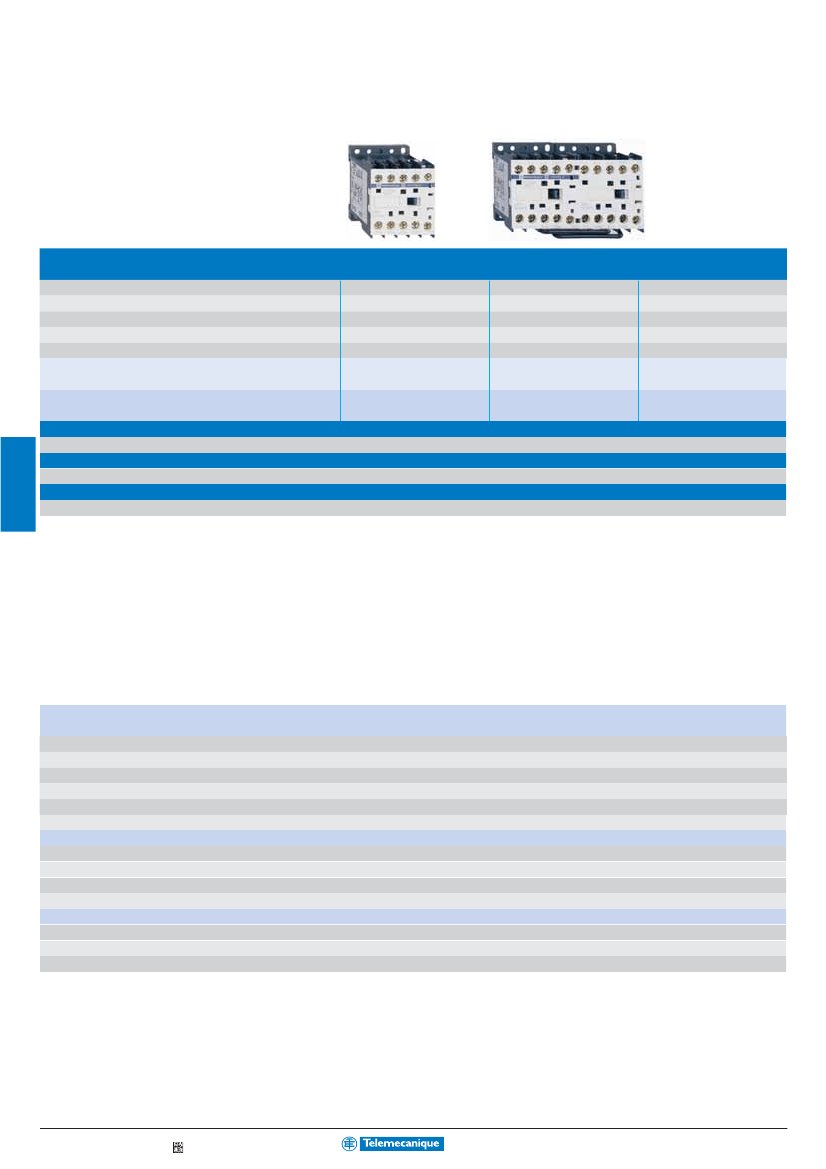

K-line
Contactors
0.5–10 Hp
Connections
■
screw clamp terminals
Rated operational current
Rated operational power
in category AC3
Contactor type
(1)(2)
Reversing contactor type
(2)
with mechanical interlock
■
spring terminals
Add the figure
3
before the voltage code. Example
LC1K0610••
becomes
LC1K06103••
■
slip-on connectors, 1 x 6.35 or 2 x 2.8
Ie max AC-3 (Ue - 440V)
Ie AC-1 (θ - 40° C)
220/240 V
380/400 V–415/440 V
660/690 V–500 V
AC
DC
AC
DC
6A
-
2 Hp
3 Hp
4 Hp
LC1K06••
LP1K06••
or
LP4K06••
LC2K06
LP2K06
or
LP5K06
9A
20 A
3 Hp
5 Hp
5 Hp
LC1K09••
LP1K09
or
LP4K09••
LC2K09
LP2K09
or
LP5K09
12 A
-
4 Hp
7.5 Hp
5 Hp
LC1K12••
LP1K12
or
LP4K12••
LC2K12
LP2K12
or
LP5K12
5
Add the figure
7
before the voltage code. Example
LC1K0610••
becomes
LC1K06107••
■
solder pins for printed circuit boards
Add the figure
5
before the voltage code. Example
LC1K0610••
becomes
LC1K06105••
(1) Basic catalog number, to be completed by adding 01 for N.C. auxiliary contact, or 10 for N.O. auxiliary contact.
(2) Basic catalog number to be completed by adding the coil voltage. Example (including auxiliary contact) LC1RO601G7.
Standard control circuit voltages
AC supply
Contactors LC1K
(0.8–1.15 Uc)
(0.85–1.1UC)
Volts
50/60 Hz
Volts
50/60 Hz
DC supply
Contactors LP1K
(0.8–1.15 Uc)
Volts
Code
12
JD
20
ZD
24
BD
36
CD
48
ED
60
ND
72
SD
100
KD
110
FD
125
GD
155
PD
174
QD
200
LD
220
MD
230
MPD
240
MUD
250
UD
12
J7
256
W7
20
Z7
277
UE7
24
B7
36
C7
42
D7
400
V7
48
E7
110
F7
115
FE7
440
R7
120
G7
480
T7
127
FC7
500
S7
200/208
L7
575
SC7
600
X7
220/230
M7
660/690
Y7
230
P7
230/240
U7
380/400
Q7
400/415
N7
Example of complete catalog number
LC1K0910P7.
Coil with integral suppression device available, add
3
to the code required. Example
JD3
Low consumption
Contactors LP4K
(0.7–1.30 Uc), coil suppression as standard
Volts
Code
12
JW3
20
ZW3
24
BW3
48
EW3
72
SW3
110
FW3
120
GW3
Example of complete catalog number
LC1K0910BD.
For other versions, please consult with your localSchneider Electric /
5/2
Square D sales office: visit
www.us.telemanique.com.
TeSys
K-line

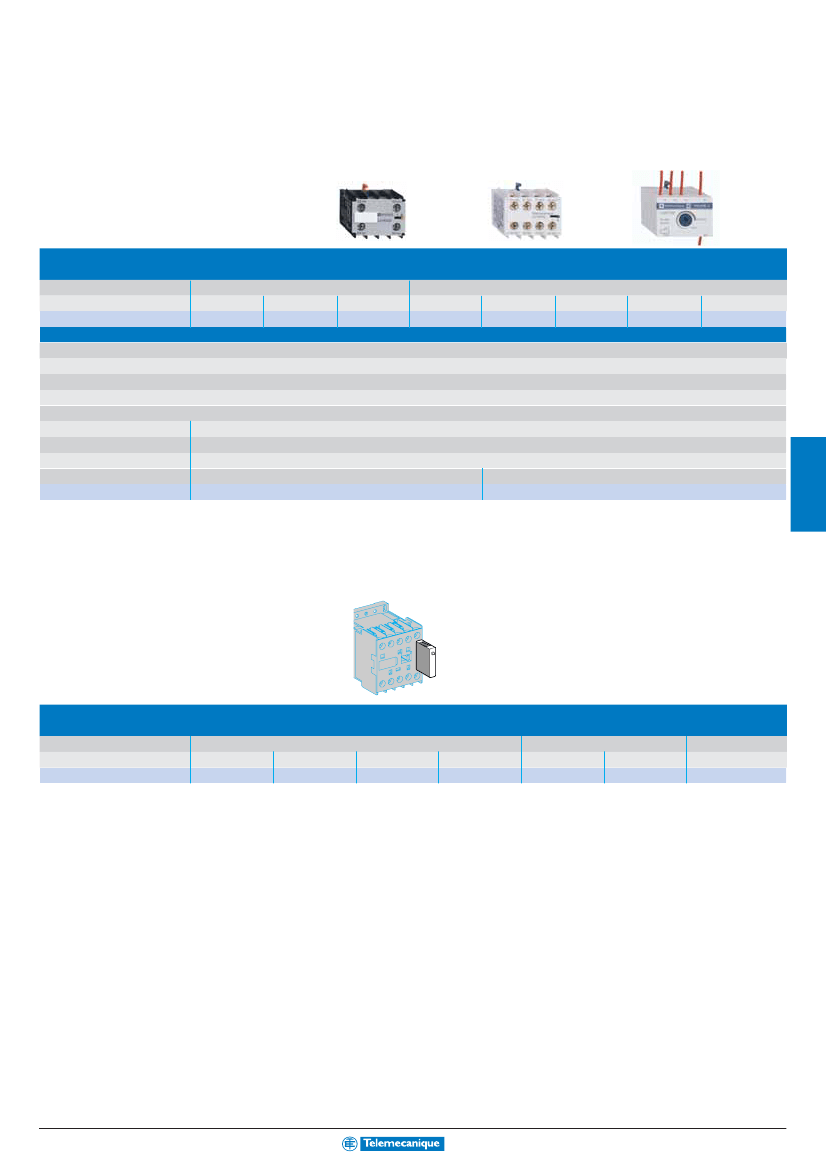

Auxiliary contact blocks
■
instantaneous, screw clamp connections
■
for LC1, LP1K, LP4
■
for LC1, LP1K
Composition
Catalog number
■
electronic time delay
2 N.O.
LA1KN20
-
2 N.C.
1 N.O. 1 N.C.
LA1KN11
4 N.O.
LA1KN40
3 N.O. 1 N.C.
LA1KN31
2 N.C. 2 N.C.
LA1KN22
1 N.O. 3 N.C.
LA1KN13
-
4 N.C.
LA1KN02
LA1KN04
Relay outputs, with common point changeover contact, AC or DC 24–48, 2 A maximum
Control voltage 0.85–1.1Uc
Maximum switching capacity 250 VA or 150 W
Operating temperature -10 to + 60°C
Reset time: 1.5 s for 0.5 s after the time delay period
Type
Timing range
Composition
Voltage
Reference
On-delay
1–30 s
1
AC or DC 24–48 V
LA2KT2E
AC 110–240
LA2KT2U
5
Suppressor modules
For LC1, LP1K
Type
Voltage
Catalog number
Varistor (AC and DC)
12–24 V
LA4KE1B
32–48 V
LA4KE1E
50–129 V
LA4KE1FC
130–250 V
LA4KE1UG
Diode (DC) + zener
12–24 V
LA4KC1B
32–48 V
LA4KC1E
RC (AC)
110–250 V
LA4KA1U
For other versions, please consult with your local Schneider Electric/
Square D sales office: visit
www.us.telemanique.com.
5/3
TeSys

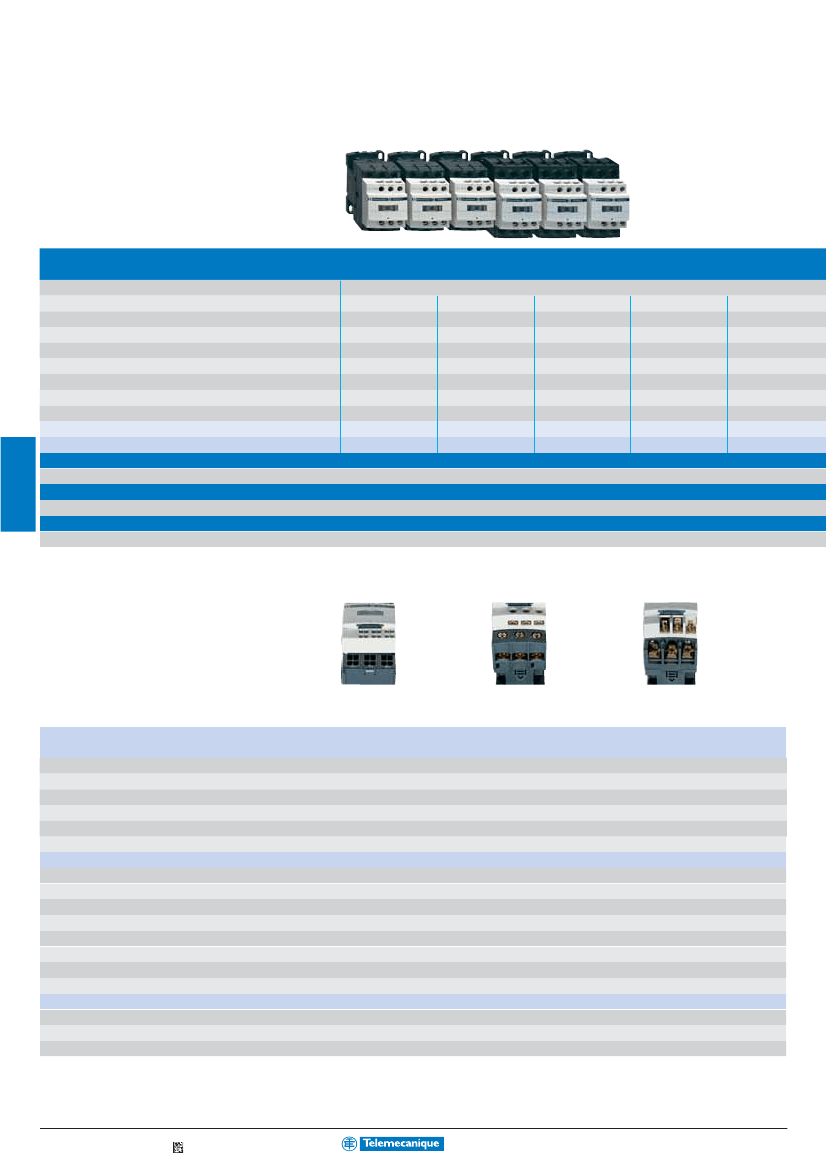

D-line
Contactors
0.5–125 Hp
Connections
■
screw clamp terminals or connectors
Rated operational voltage
Rated operational current
Rated operational power
in category AC3
Ie max AC-3 (Ue - 440V)
Ie AC-1 (θ - 60° C)
220/240 V
380/400 V
415/440 V
500 V
660/690 V
1000 V
Contactor type
(1)
Reversing contactor type
*
with mechanical interlock
■
spring terminals
(1)
690 V
9A
25 A
3 Hp
5 Hp
5 Hp
7.5 Hp
7.5 Hp
-
LC1D09
LC2D09
4 Hp
7.5 Hp
7.5 Hp
10 Hp
10 Hp
-
LC1D12
LC2D12
12 A
18 A
32 A
5 Hp
10 Hp
12 Hp
13 Hp
13 Hp
-
LC1D18
LC2D18
25 A
40 A
7.5 Hp
15 Hp
15 Hp
20 Hp
20 Hp
-
LC1D25
LC2D25
32 A
50 A
10 Hp
20 Hp
20 Hp
25 Hp
25 Hp
-
LC1D32
LC2D32
5
Add the figure
3
before the voltage code. Example
LC1D09P7
becomes
LC1093P7
■
ring tongue terminals
(2)
Add the figure
6
before the voltage code. Example
LC1D09P7
becomes
LC1096P7
■
slip-on connectors
(3)
2 x 6.35
(power)
and 1 x 6.35
(control)
up to D12 only
Add the figure
9
before the voltage code. Example
LC1D09P7
becomes
LC1099P7
(1) Basic catalog number to be completed by adding the coil voltage. Example:
LC1D09P7.
(1)
LC1D093P7
(2)
LC1D096P7
(3)
LC1D099P7
Standard control circuit voltages
AC supply
Volts
50/60 Hz
Contactors LC1D40–D115
50 Hz
60 Hz
DCsupply
Volts
U 0.7–1.25 Uc
Contactors LC1D40–D95
U 0.85–1.1 Uc
U 0.75–1.2 Uc
U 0.75–1.2 Uc
Low consumption
Contactors LC1D09–D38
(coils with integral suppression device fitted as standard)
Volts DC
U 0.7–1.25 Uc
5
AL
12
JL
20
ZL
24
BL
48
EL
110
FL
120
ML
250
UL
JD
JW
-
BD
BW
BD
CD
CW
-
ED
EW
ED
ND
-
ND
SD
SW
SD
FD
FW
FD
GD
-
GD
MD
MW
MD
UD
-
UD
RD
-
RD
12
JD
24
BD
36
CD
48
ED
60
ND
72
SD
110
FD
125
GD
220
MD
250
UD
440
RD
Contactors LC1D09–D38
(coils with integral suppression device fitted as standard)
B5
B6
D5
-
E5
E6
F5
F6
FE5
-
M5
M6
P5
-
U5
U6
Q5
Q6
V5
-
N5
-
R5
R6
S5
-
24
B7
42
D7
48
E7
110
F7
115
FE7
220
M7
230
P7
240
U7
380
Q7
400
V7
415
N7
440
R7
500
-
Contactors LC1D09–D50
(coils D115 and D150 with integral suppression device fitted as standard)
Contactors LC1D115 and D150
(coils with integral suppression device fitted as standard)
Example of complete catalog number
LC1D09P7.
For enclosed version of d-Line starters up to 80A, reference catalog 8502CT9901.
For other versions, please consult with your localSchneider Electric /
5/4
Square D sales office: visit
www.us.telemanique.com.
