ECS-TXO-5032MV-147.4-TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-TXO-5032MV-147.4-TR

ECS-TXO-5032MV-147.4-TR: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size326KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ECS-TXO-5032MV-147.4-TR Overview

HCMOS Output Clock Oscillator,

ECS-TXO-5032MV-147.4-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMD, 6 PIN
Reach Compliance Code	compli
Factory Lead Time	12 weeks
Other features	ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH 1.8V, 2.5V AND 3.3V
Ageing	1 PPM/YEAR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	5 ns
Maximum slew rate	5 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.7 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

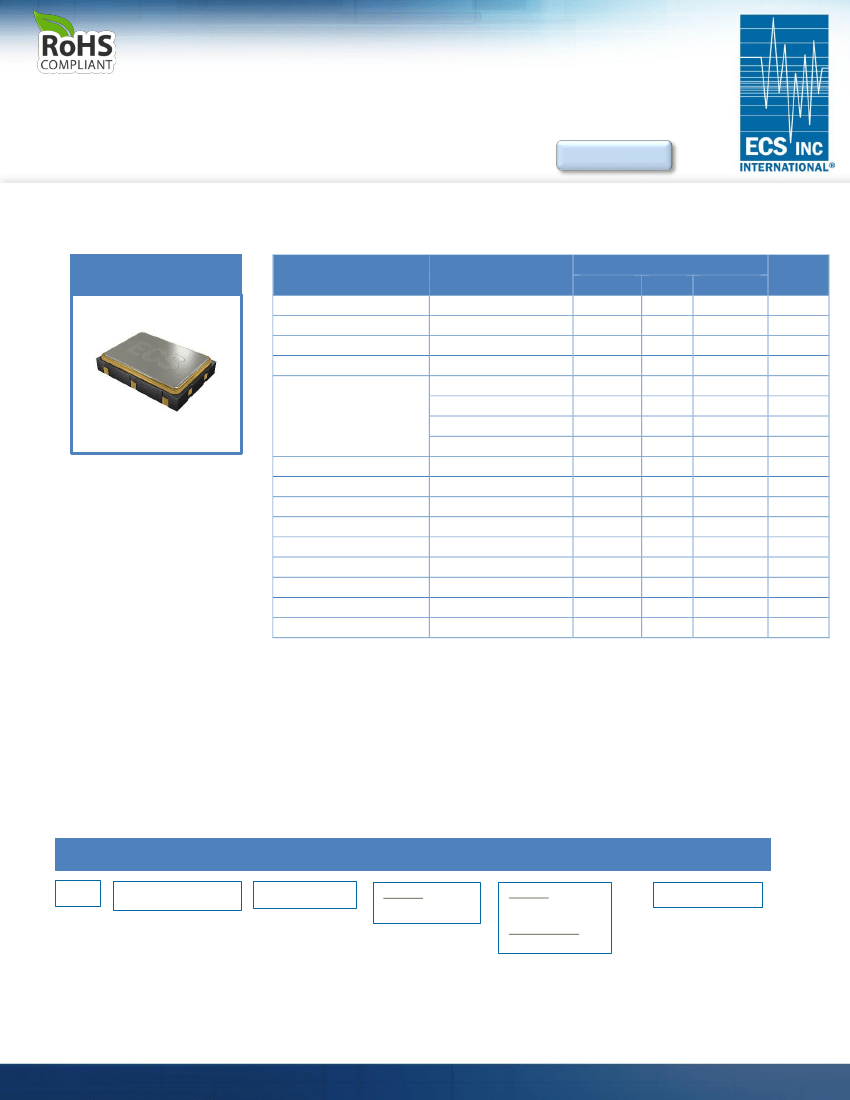

ECS-TXO-5032MV

ECS-TXO-5032MV HCMOS SMD MultiVolt™ TCXO offers a wide

supply voltage or +1.7 ~ +3.6V. The 5.0 x 3.2 x 1.3 mm ceramic

package is ideal for industrial and wireless applications where stability

is critical.

MulitVolt™ HCMOS TCXO

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-TXO-5032MV

Parameters

Frequency Range

Operating Temperature

Storage Temperature

Input Voltage

VDD

Vs. Temp (-30 ~ +85°C)

Frequency Stability

Vs. Supply Change (±5%)

Vs. Load Change (±5%)

Vs. Aging/Year

•

HCMOS TCXO

5.0 x 3.2 mm Footprint

Compatible with +1.8, +2.5,

or +3.3V supply voltage

PbFree/RoHS Compliant

Peak solder temp +260°C

(10 sec)

MSL 1

Lead Finish Au

Frequency Tolerance

Current Consumption

“0” Level

“1” Level

Output Symmetry

Rise and Fall Times

Output Load

Start-up Time

Phase Noise

@ 1 KHz Offset

VOL

VOH

@50% VDD Level

10% VDD to 90% Level

CMOS

90% VDD

45/55

5.0

-135

@ +25°C ±2°C

* Standard

Conditions

ECS-TXO-5032MV

MIN

9.500

-30

-40

+1.7

TYP

MAX

60.400

+85

+125

+3.6

±2.5

±0.3

±1.0

±1.5

5.0

0.5

Units

MHz

°C

VDC

PPM

VDC

DBc/Hz

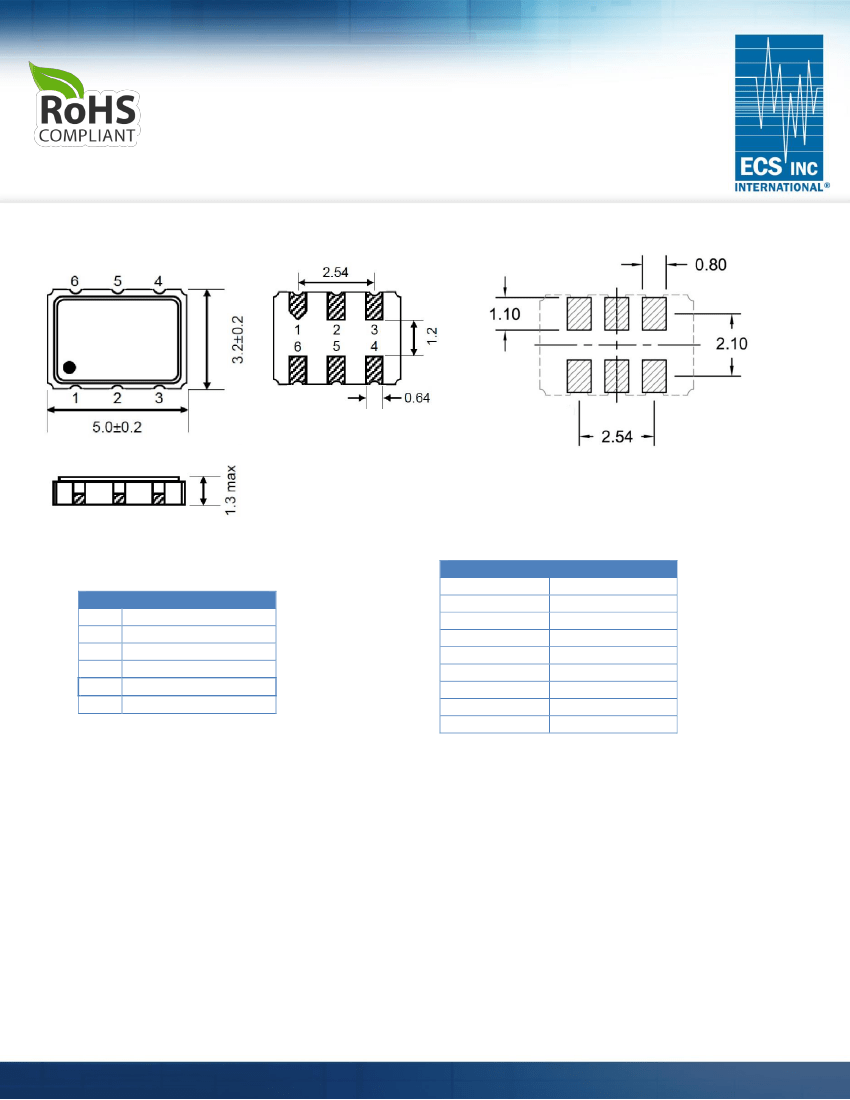

Part Numbering Guide: Example ECS-TXO-5032MV-250-TR

ECS

Series

Frequency Abbreviations - Stability Tolerance

Temperature

Packaging

ECS

TXO-5032MV = TCXO

250 = 25.000 MHz

Standard

Blank = ±2.5 ppm

Standard

Blank = -30 ~ +85°C

Custom Options

* N = -40 ~ +85°C

TR = Tape & Reel

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com

ECS-TXO-5032MV-147.4-TR Related Products

	ECS-TXO-5032MV-147.4-TR	ECS-TXO-5032MV-200-TR	ECS-TXO-5032MV-200-N-TR	ECS-TXO-5032MV-147.4-N-TR	ECS-TXO-5032MV-120-N-TR	ECS-TXO-5032MV-120-TR	ECS-TXO-5032MV-122.8-N-TR	ECS-TXO-5032MV-122.8-TR	ECS-TXO-5032MV-160-N-TR	ECS-TXO-5032MV-160-TR
