HCTS14HMSR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HCTS14HMSR

HCTS14HMSR: DescriptionInverter, HCT Series, 6-Func, 1-Input, CMOS; Categorylogic logic; File Size211KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS14HMSR Overview

Inverter, HCT Series, 6-Func, 1-Input, CMOS

HCTS14HMSR Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIE,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	X-XUUC-N14
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	21 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER

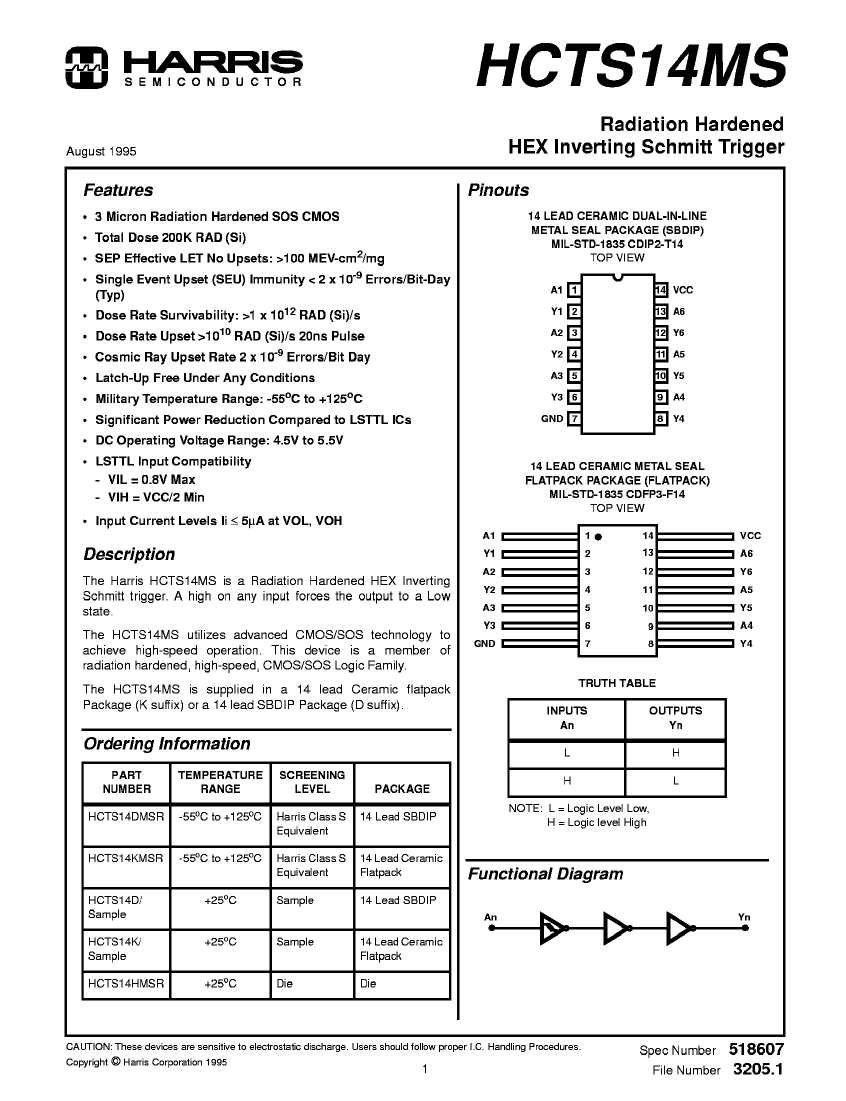

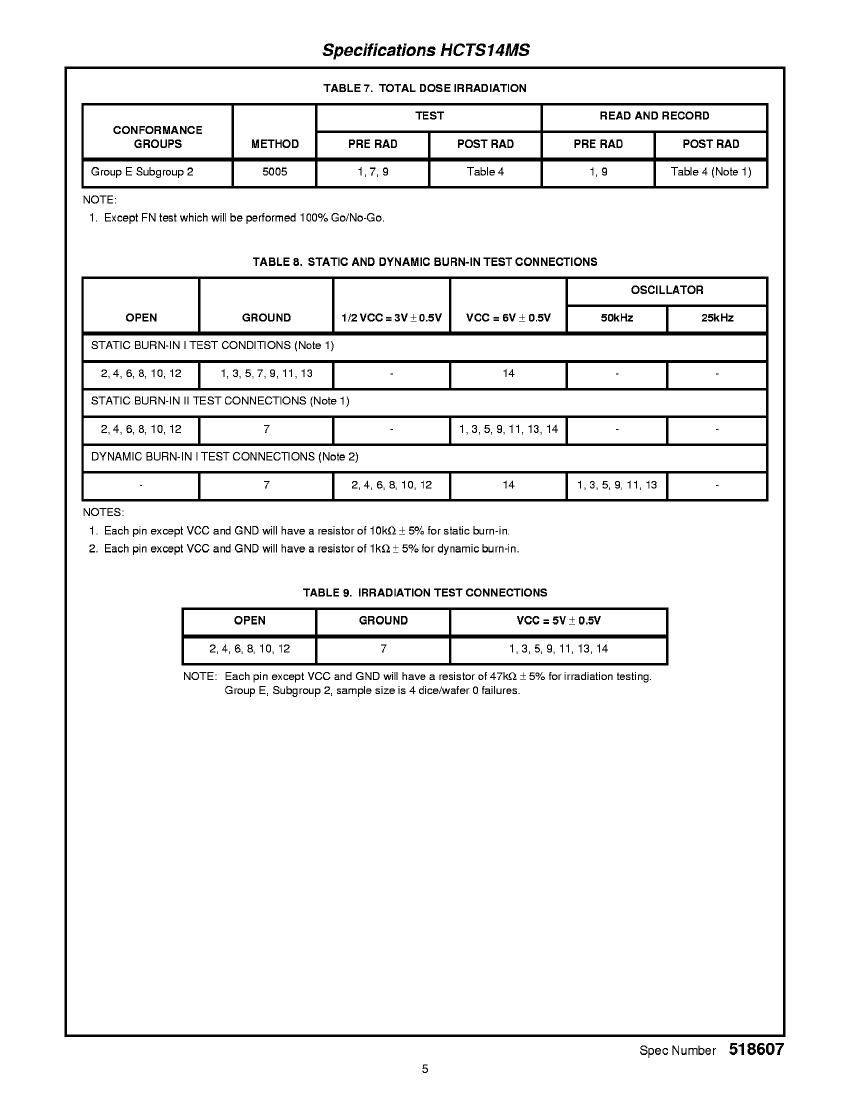

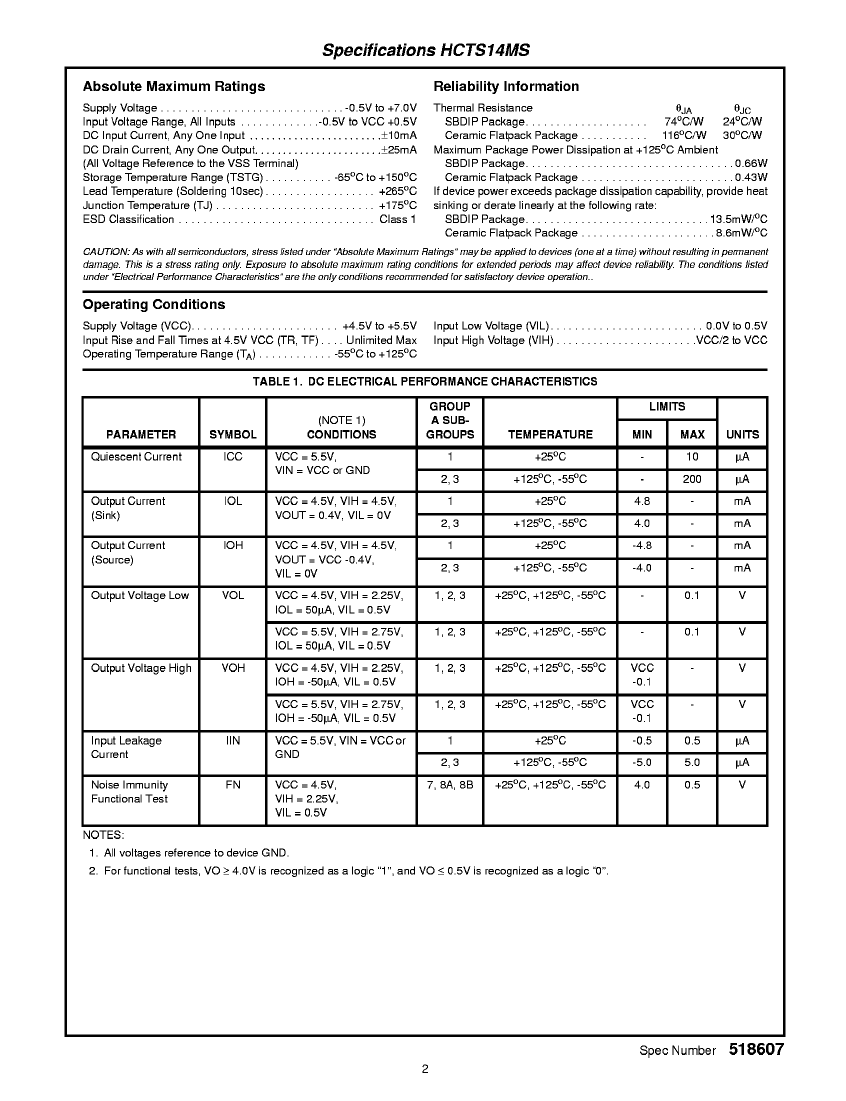

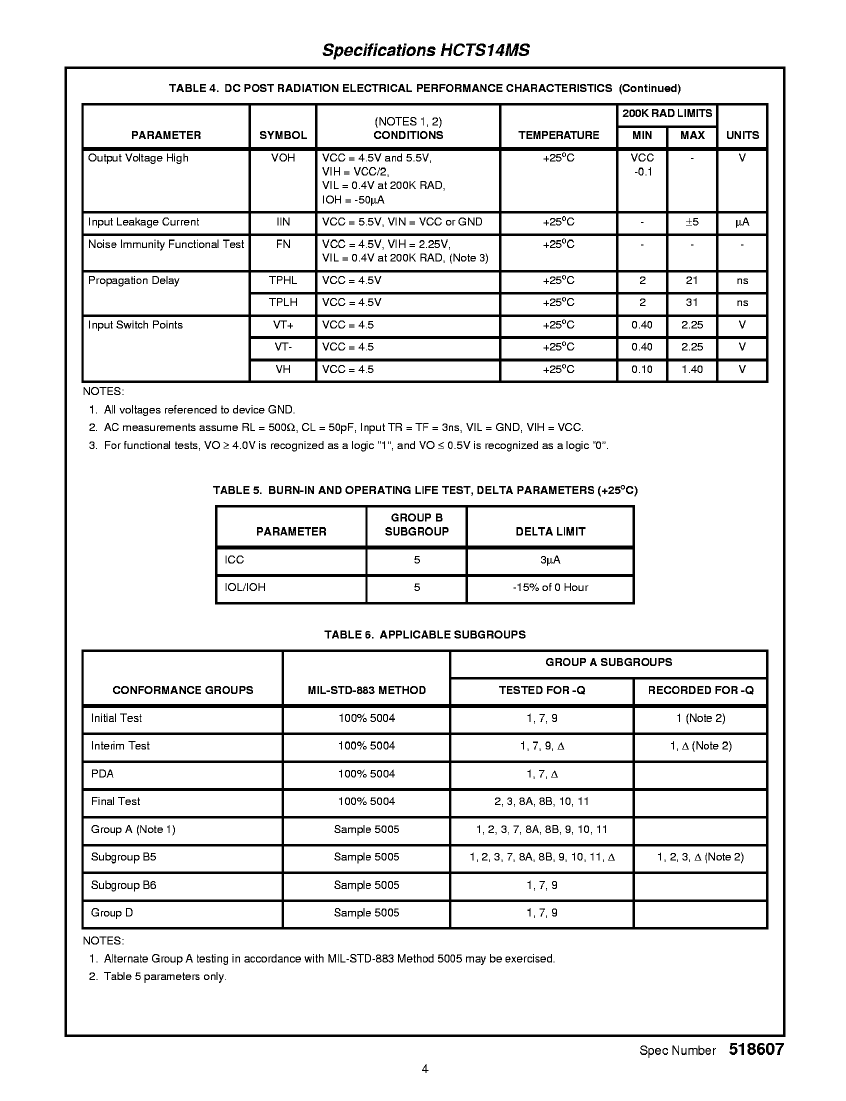

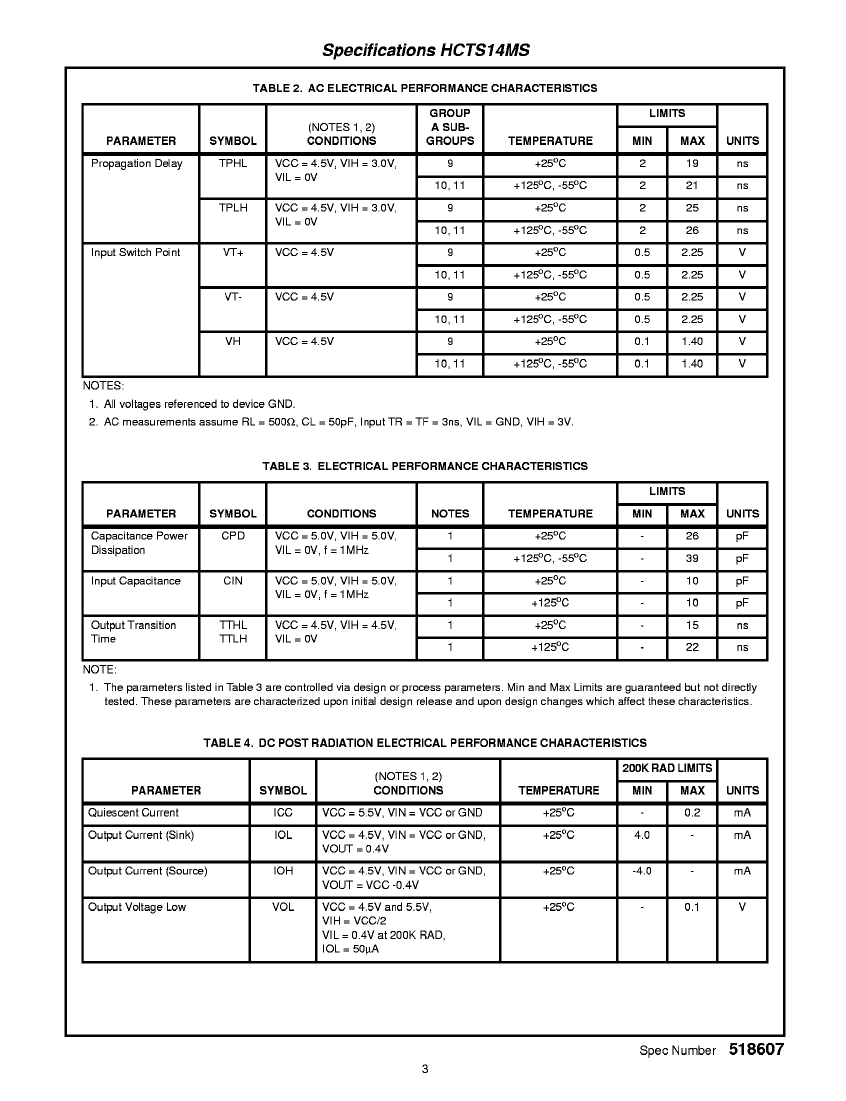

Preview

Download Datasheet

View All

HCTS14HMSR Related Products

	HCTS14HMSR	5962R9571901V9A	HCTS14DMSR	HCTS14KMSR	HCTS14K/SAMPLE	HCTS14D/SAMPLE
Description	Inverter, HCT Series, 6-Func, 1-Input, CMOS	Inverter, HCT Series, 6-Func, 1-Input, CMOS	Inverter, HCT Series, 6-Func, 1-Input, CMOS, CDIP14	Inverter, HCT Series, 6-Func, 1-Input, CMOS, CDFP14	Inverter, HCT Series, 6-Func, 1-Input, CMOS, CDFP14	Inverter, HCT Series, 6-Func, 1-Input, CMOS, CDIP14
package instruction	DIE,	DIE,	DIP, DIP14,.3	DFP, FL14,.3	,	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	X-XUUC-N14	X-XUUC-N14	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	R-CDIP-T14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	IN-LINE	FLATPACK	FLATPACK	IN-LINE
propagation delay (tpd)	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal location	UPPER	UPPER	DUAL	DUAL	DUAL	DUAL
Maker	Harris	-	Harris	Harris	Harris	Harris
encapsulated code	DIE	DIE	DIP	DFP	-	-
