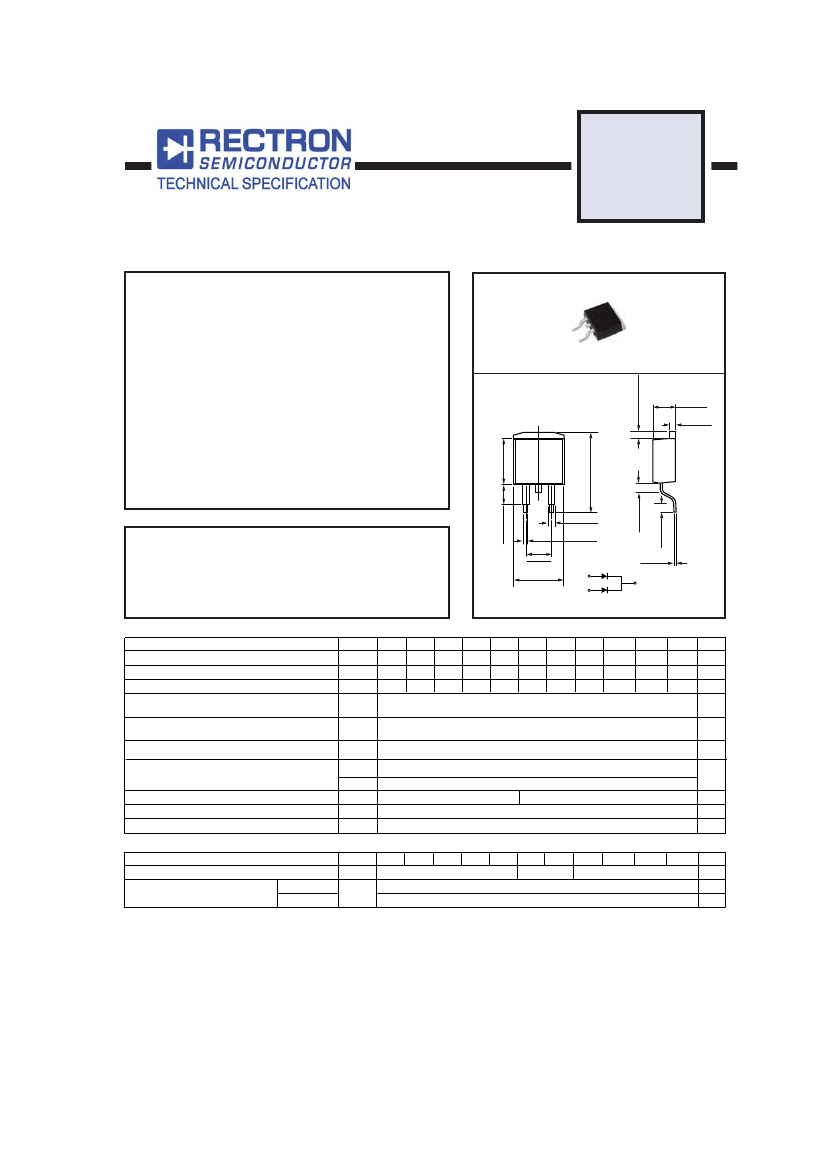

SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 20 to 200 Volts CURRENT 10.0 Ampere
FEATURES
*
*
*
*
*
*
*
Low swit ching noise
Low forward volt age drop
Low t hermal resist ance
High current capabilit y
High swit ching capabilit y
High surge capabit it y
High reliabilit y
SR1020CS
THRU
SR10200CS
D2-PAK
ref. .049 (1.25 )
.189 (4.80)
.173 (4.40)
.053 (1.35)
.049 (1.25)
MECHANICAL DATA
*
*
*
*
*
Case: D2-PAK molded plast ic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E met hod 208C guarant eed
Mount ing posit ion: Any
Weight : 2 .24 grams
.346 (8.8)
.323 (8.2)
PIN 1 PIN 2 PIN 3
.624 (15.84)
.576 (14.64)
.126 (3.20)
.110 (2.80)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.202 (5.13)
.198 (5.03)
.020 (0.50)
.012 (0.30)
PIN 1
PIN 3
PIN 2
HEATSINK
.412 (10.46)
.388 (9.86)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Derating Case Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Current Squarad Time
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
t
.098 (2.50)
.083 (2.10)
.055 (1.40)
.047 (1.20)
.036 (0.91)
.028 (0.71)
.069 (1.75)
.053 (1.35)
SR1020CS SR1030CS SR1035CS
SR1040CS
SR1045CS SR1050CS SR1060CS SR1080CS SR10100CS SR10150CS SR10200CS
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
/Sec
0
20
14
20
30
21
30
35
25
35
40
28
40
45
32
45
50
35
50
10.0
150
93.37
60
42
60
80
56
80
100
70
100
150
105
150
200
140
200
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 3)
Operating Temperature Range
Storage Temperature Range
R
θ
JC
R
θ
JA
C
J
T
J
T
STG
700
3.0
60
450
150
-55 to + 150
C/W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 5.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
NOTES : 1.
2.
3.
4.
@T
A
= 25 C
@T
A
= 100
o
C
o
SYMBOL
V
F
I
R
SR1020CS SR1030CS SR1035CS
SR1040CS
SR1045CS SR1050CS SR1060CS SR1080CS SR10100CS SR10150CS SR10200CS
UNITS
.65
.75
0.2
2
.85
Volts
mA
mA
2016-10
REV:A
Thermal Resistance : Heat-sink mounted.
Suffix “A” = Common Anode.
Measured at 1 MHz and applied reverse voltage of 4.0 volts.
"Fully ROHS compliant", "100% Sn plating (Pb-free)".

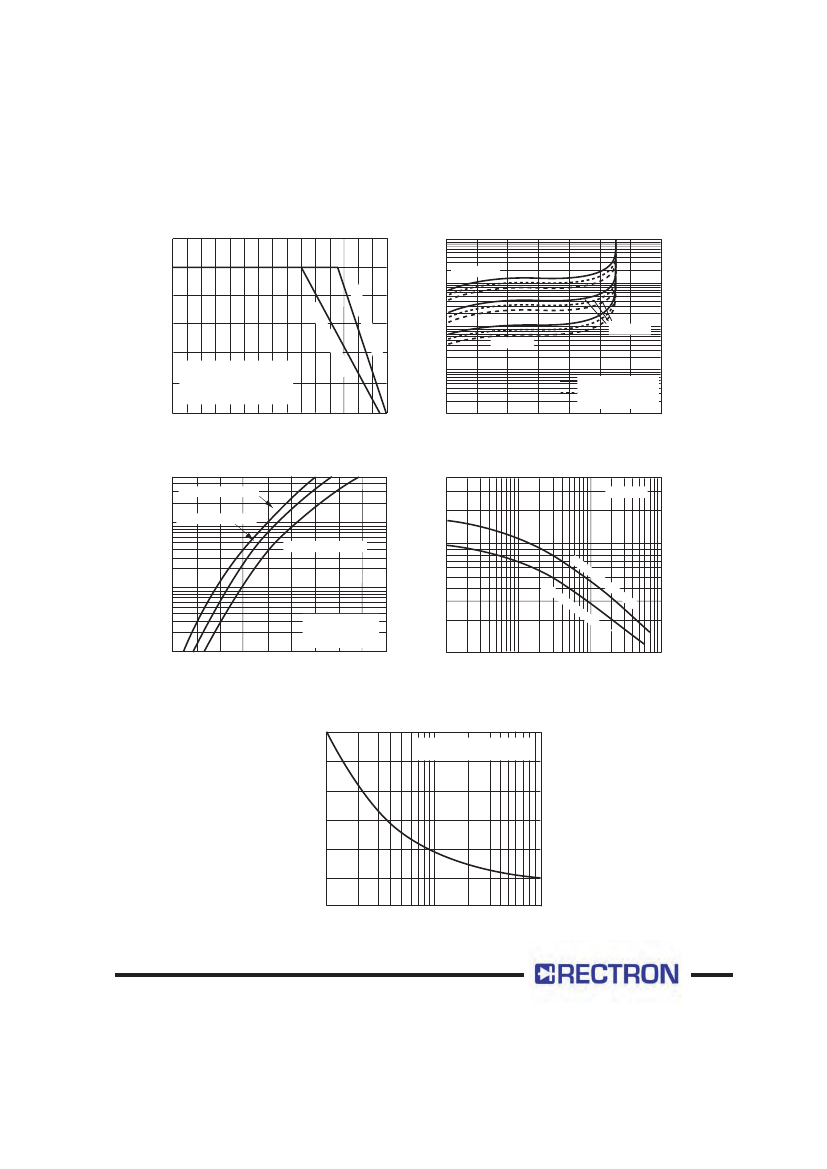

RATING AND CHARACTERISTICS CURVES ( SR1020CS THRU SR10200CS )
INSTANTANEOUS REVERSE CURRENT, (mA)
12
AVERAGE FORWARD CURRENT, (A)
10
SR1
10
T
A
= 125
O
C
1.0
8
SR
102
050
C
~
S
6
4
2
0
0
Single Phase Half Wave
60Hz Inductive or
Resistive Load
0.375" (9.5mm) Lead Length
0.1
T
A
= 25
O
C
T
A
= 75
O
C
0C
~
S
R10
200
R1
045
C
C
0.01
SR1020C
~
SR1045C
SR1050C~SR1060C
SR1080C~SR10200C
0.001
50
100
O
150
0
20
40
60
80
100
120
140
LEAD TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
INSTANTANEOUS FORWARD CURRENT, (A)
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
C
J
, JUNCTION CAPACITANCE, (pF)
4000
T
J
= 25
O
C
50
SR1020C
~
SR1045C
10
SR1050C
~
SR1060C
SR1080C
~
SR10200C
2000
1000
800
600
400
200
100
SR
10
50
SR
10
20
1.0
T
J
= 25 C
Pulse width=300μS
1% Duty Cycle
O
C
~
SR
10
C
~
SR
45
C
10
20
0C
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.1
0.4
1.0
4
10
40
80100
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
150
125
100
75
50
25
0
1
8.3mS Single Half Sine-Wave
JEDEC Method
2
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
RECTRON
Attachment information about SR10XXC
1. Internal Circuit
2. Marking on the bod
Plant - code
Rectron Logo
Part No.
V X
X
X
Year – code
(Y: Last digit of year &
A:2010,B:2011……)
Week – code
WW:01~52
Voltage-code
20-----20V
30-----30V
35-----35V
40-----40V
45-----45V
50-----50V
60-----60V
80-----80V
100-----100V
150-----150V
200-----200V
SR10XXCS
3.
Items marked on the inner box and carton
3.1 On the box (for –C)
CUSTOMER
TYPE
LOT NO.
QUANTITY
Q.A.
DATE
3.2 On the carton
CUSTOMER
TYPE
QUANTITY
LOT NO.
REMARK
PACKAGING OF DIODE AND BRIDGE RECTIFIERS
TUBE PACK
PACKAGE
D2-PAK
PACKING CODE
-C
EA PER BOX
2,000
INNER BOX SIZE
(mm)
550*140*92
CARTON SIZE
(mm)
572*308*120
EA PER CARTON
4,000
WEIGHT(Kg)
10.20
DISCLAIMER NOTICE
Rectron Inc reserves the right to make changes without notice to any product
specification herein, to make corrections, modifications, enhancements or other
changes. Rectron Inc or anyone on its behalf assumes no responsibility or liabi-
lity for any errors or inaccuracies. Data sheet specifications and its information
contained are intended to provide a product description only. "Typical" paramet-
ers which may be included on RECTRON data sheets and/ or specifications ca-
n and do vary in different applications and actual performance may vary over ti-
me. Rectron Inc does not assume any liability arising out of the application or
use of any product or circuit.
Rectron products are not designed, intended or authorized for use in medical,
life-saving implant or other applications intended for life-sustaining or other rela-
ted applications where a failure or malfunction of component or circuitry may di-
rectly or indirectly cause injury or threaten a life without expressed written appr-
oval of Rectron Inc. Customers using or selling Rectron components for use in
such applications do so at their own risk and shall agree to fully indemnify Rect-
ron Inc and its subsidiaries harmless against all claims, damages and expendit-
ures.
