DV74ALS465AD datasheet, PDF - EEWORLD Datasheet

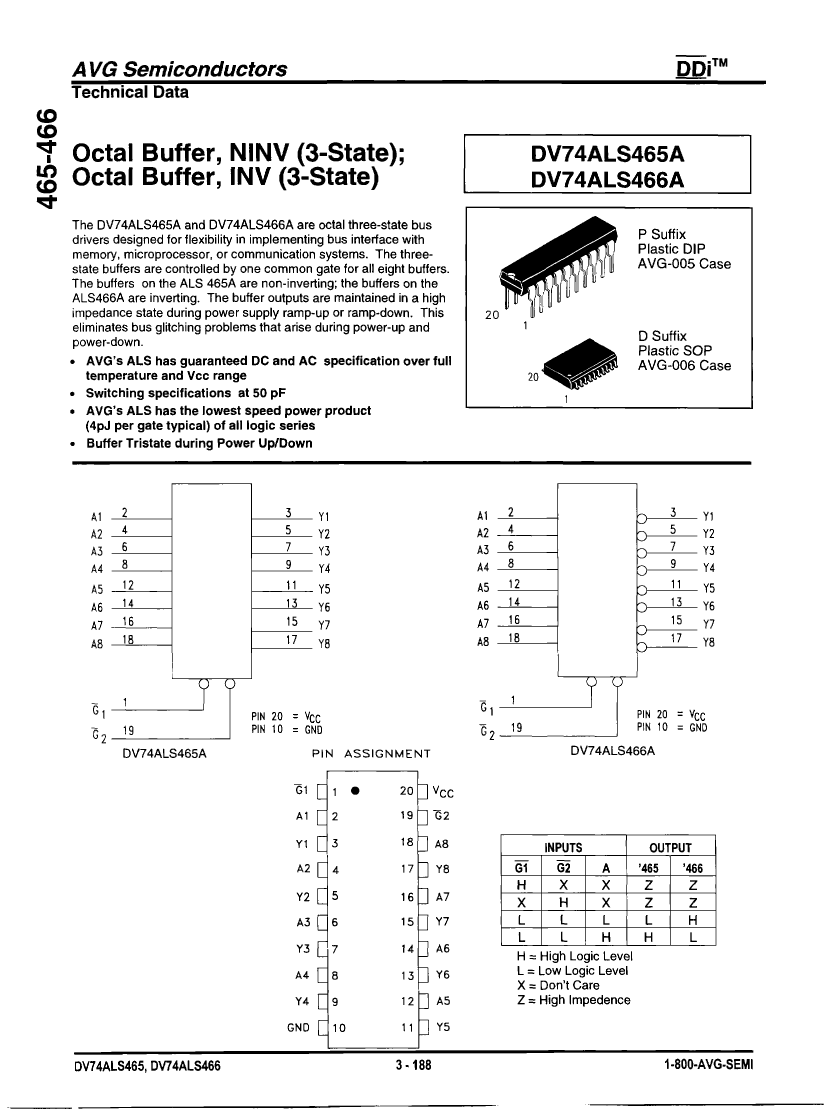

DV74ALS465AD: DescriptionBus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size80KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ALS465AD Overview

Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	ALS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

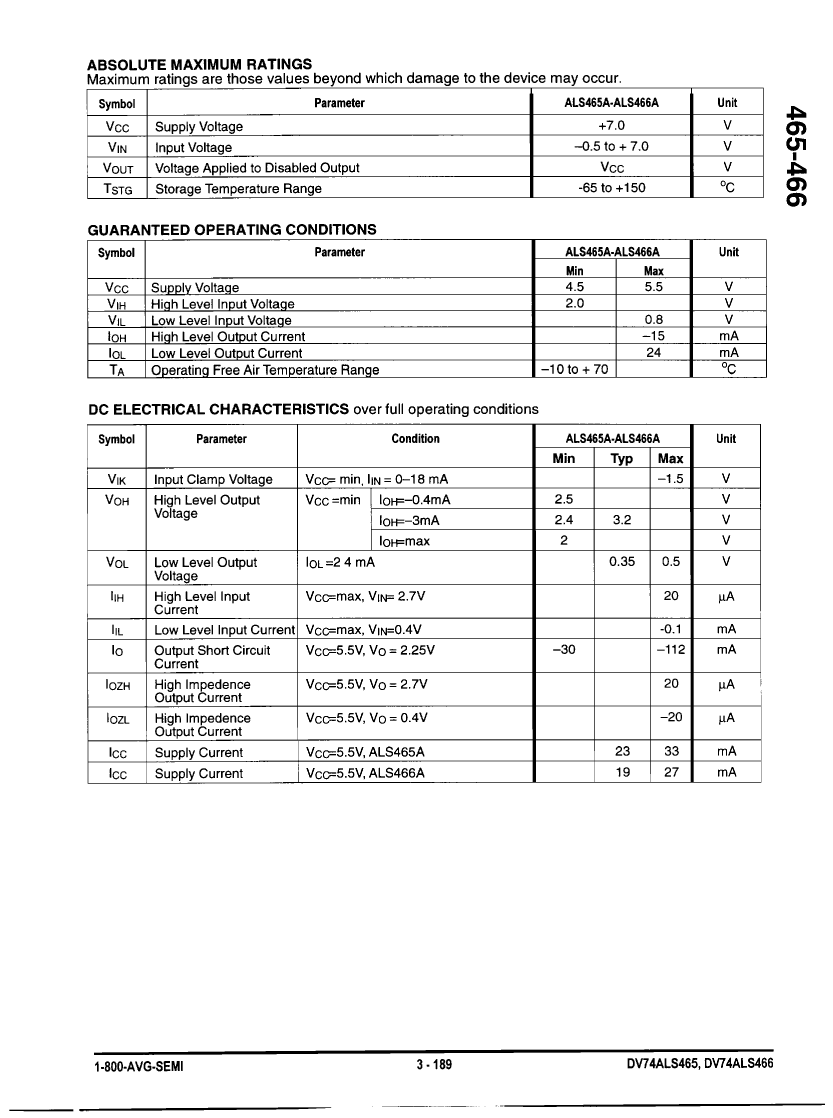

Maximum supply current (ICC)	33 mA

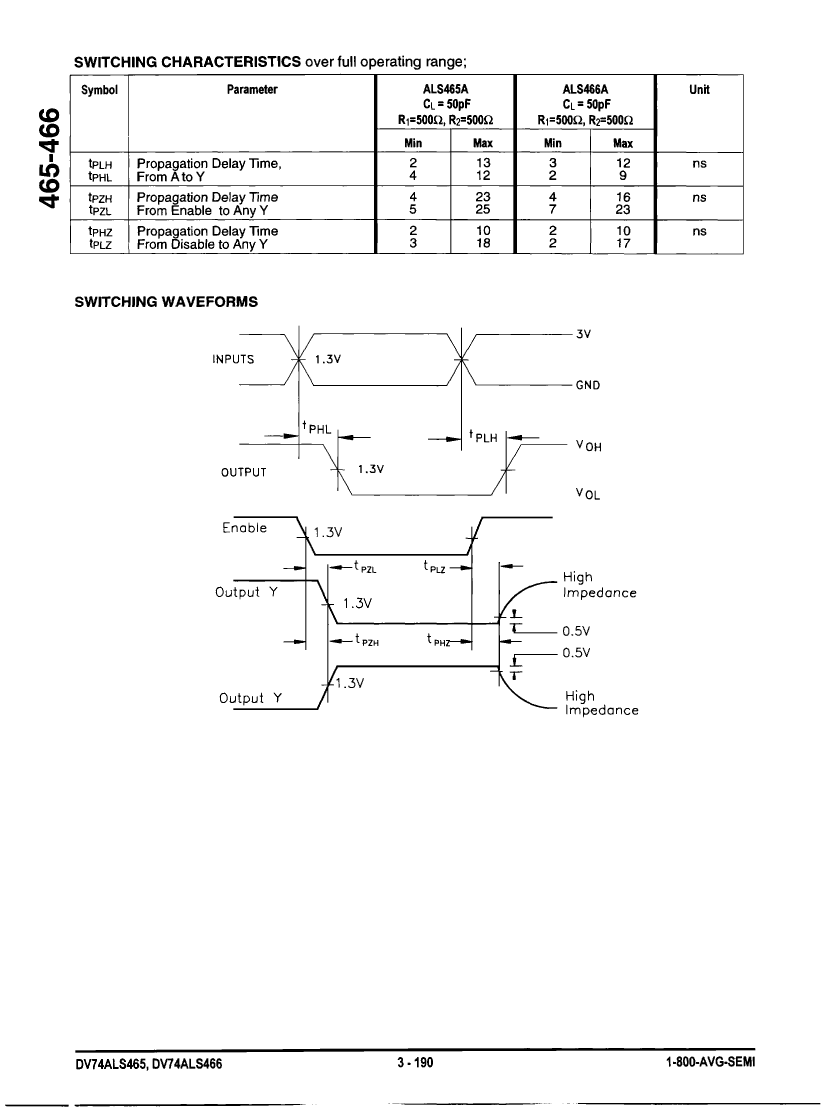

propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	DV74ALS465AD	DV74ALS466AD
Description	Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	Bus Driver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, PLASTIC, SOP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	ALS	ALS
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.8 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	33 mA	27 mA
propagation delay (tpd)	12 ns	12 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
