R-48.000000M-ZTACW/MX-0.5-0.3-H-5/5: DescriptionCeramic Resonator, 48MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size230KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

R-48.000000M-ZTACW/MX-0.5-0.3-H-5/5 Overview

Ceramic Resonator, 48MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN

R-48.000000M-ZTACW/MX-0.5-0.3-H-5/5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Auris
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	unknown
Crystal/Resonator Type	CERAMIC RESONATOR
frequency stability	0.3%
frequency tolerance	5000 ppm
Manufacturer's serial number	ZTACW/MX
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
physical size	L2.5XB2.0XH1.5 (mm)/L0.098XB0.079XH0.059 (inch)
surface mount	YES

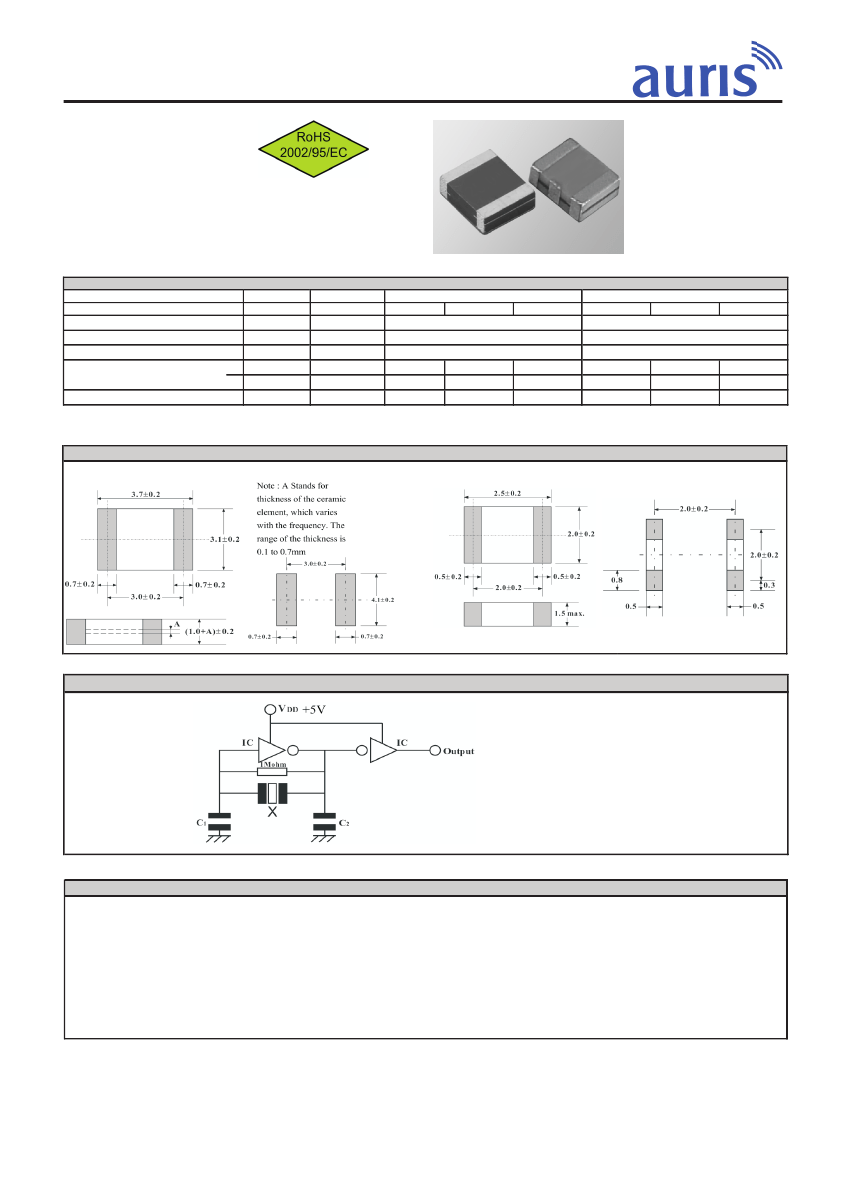

R-48.000000M-ZTACW/MX-0.5-0.3-H-5/5 Preview

Resonator SMD Ceramic, 2 Pin

Features:

- Low cost

- Consumer electronics

- Microprocessor systems

- Excellent for automotive applications

Specifications

Part

Frequency range (MHz)

Frequency accuracy (25°C)

Temp. stability (-20°C ~ +80°C)

Aging (over 10 years)

Load capacitance ( pF )

C1

C2

ZTACR/MG

ZTACV/MT

ZTACV/MX

ZTACW/MX

ZTACR/MG

4.00 ~ 8.00

±0.5%

±0.3%

30

40

ZTACV/MT

8.0 ~ 13.0

±0.5%

±0.4%

±0.3%

30

25

30

40

ZTACV/MX

13.01 ~ 20.0 20.01 ~ 25.99

±0.5%

±0.3%

15

40

5

40

15

60

26.0 ~ 50.0

ZTACW/MX

20.01 ~ 25.99 26.00 ~ 35.00 35.01 ~ 48.00

±0.5%

±0.3%

5

50

5

50

Resonant impedance (Ù) max.

Drawing

ZTACV

ZTACW

Dimensions in mm

Test circuit

C1 C2: as listed

IC: 1/6 4069UBP x 2 (MT,MG)

1/6 74HCU04 x 2 (MX)

X: Ceramic Resonator

Order key

R

Part

- 15.000000M - ZTACV/MX

Frequency

Type/Package

- 0.5

Frequency

tolerance

- 0.3

Temperature

tolerance

+/-%

(Temp. range)

-H

Temperature

range

H=-20°C ~ +80°C

- 30/30

Load

capacitance

pF

C1/C2

R=Resonator

M=MHz

ZTACR/MG

ZTACV/MT

ZTACV/MX

ZTACW/MX

+/-%

(25°C)

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

6.3
