TM3058: DescriptionRF AMPLIFIER MODEL; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

TM3058 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM3058

Features

Low Noise Figure: 3.0 dB Typical

High Gain: +24.5 dBm Typical

Operating Temp. -55 ºC to + 85 ºC

Environmental Screening Available

Available As:

TM3058, 4 Pin TO-8 (T4)

TN3058, 4 Pin Surface Mount (SM3)

BX3058, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....

Second Order Two Tone Intercept Point....

Third Order Two Tone Intercept Point........

+43 dBm (Typ.)

+37 dBm (Typ.)

+23 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

450 - 950 MHz

24.5

+11.5

-13

1.5:1

1.75:1

3.3

MIN/MAX

Ta = -55 ºC to +85 ºC

450 - 950 MHz

23.0 Min.

+10.0 Min.

-12 Max.

2.0:1 Max.

4.5 Max.

48 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

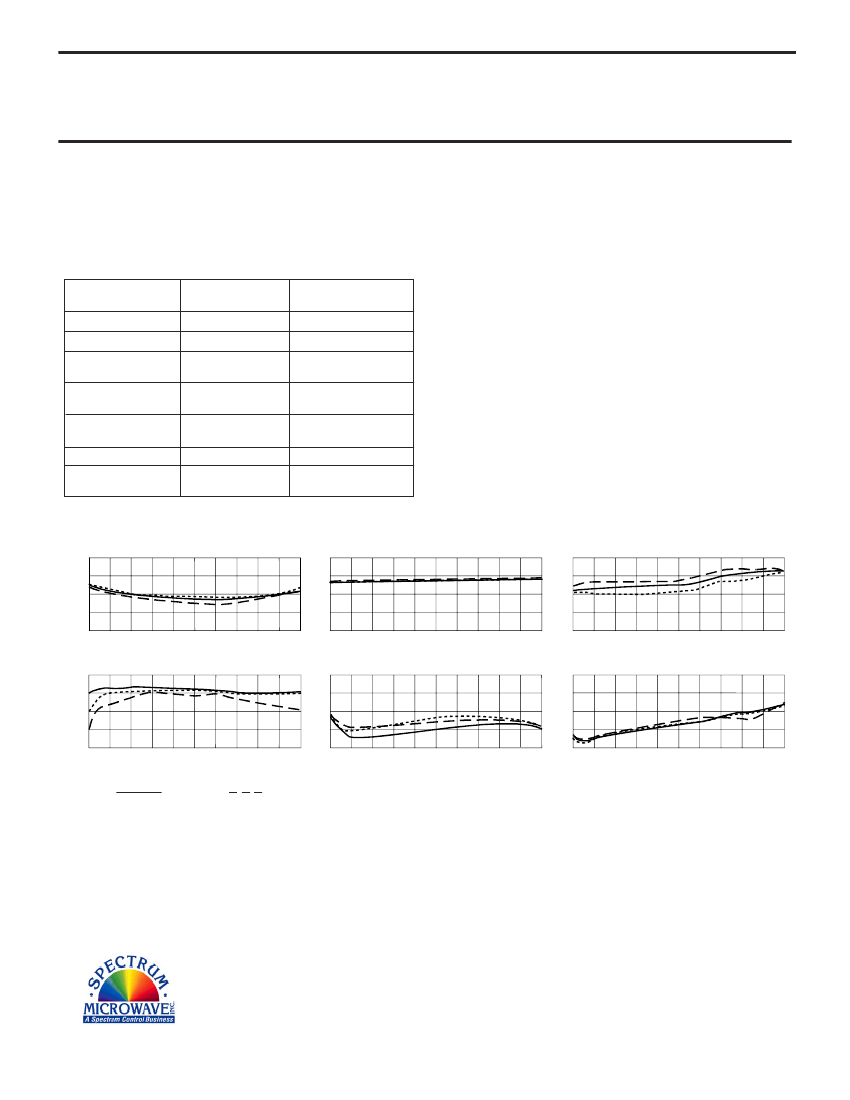

Typical Performance Data

Gain (dB)

Start 450 MHz

Stop 950 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 450 MHz

Stop 950 MHz

Noise Figure (dB)

Star 450 MHz

Stop 950 MHz

1 dB Comp. (dBm)

+13

+12

+11

+10

+ 9

Start 450 MHz

Stop 950 MHz

Input VSWR

2.0

1.5

1.0

Start 450 MHz

Stop 950 MHz

Output VSWR

2.0

1.5

1.0

Start 450 MHz

Stop 950 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

Freq.

MHz

----S11----

Mag Deg

----S21----

Mag Deg

----S12----

Mag Deg

----S22----

Mag Deg

=====================================================================

144

.0227

-105

17.17

140

450

.02

.16

135

.0234

-117

17.22

117

500

.03

.16

127

.0242

-130

17.25

116

.02

550

.16

114

-4

.0253

-154

17.08

.01

650

.15

109

-8

.0256

-179

17.16

-140

.02

750

.13

111

-8

.0293

155

17.25

-144

.08

850

.12

122

-11

.0289

128

17.32

-167

.14

950

.13

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/10/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
