ALS35E333N8L040 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ALS35E333N8L040

ALS35E333N8L040: DescriptionCAP,AL2O3,330MF,40VDC,10% -TOL,30% +TOL; CategoryPassive components capacitor; File Size575KB，8 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ALS35E333N8L040 Overview

CAP,AL2O3,330MF,40VDC,10% -TOL,30% +TOL

ALS35E333N8L040 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	330000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR

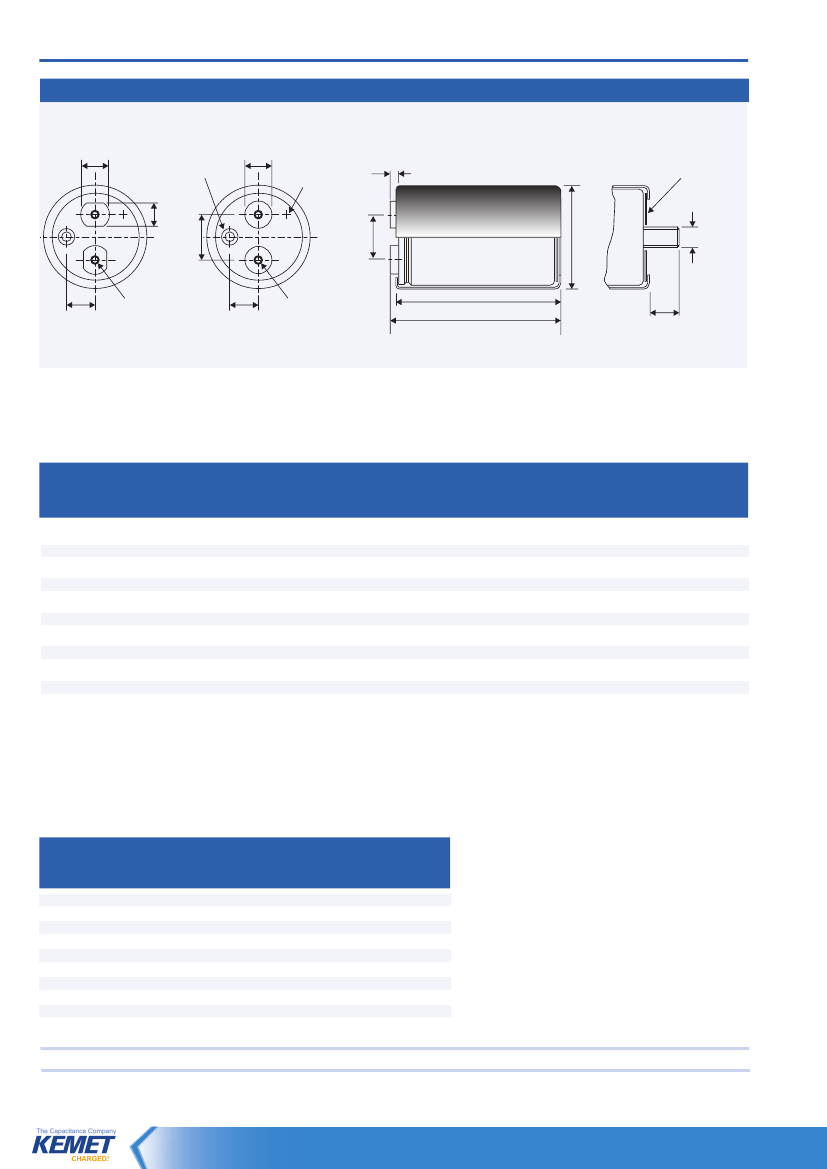

diameter	76.2 mm
dielectric materials	ALUMINUM
ESR	6 mΩ
length	219.1 mm
Manufacturer's serial number	ALS35
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	30%
Rated (DC) voltage (URdc)	40 V
ripple current	45600 mA
series	ALS35

Preview

Download Datasheet

View All

ALS34 Series

•

85°C

RoHS

Compliant

imperial case sizes and terminals for the north american market

long life, 20000 hours at 85°c (ur, ir applied)

high ripple current

Excellent surge voltage capability

optimized designs available on request

aPPlication

basic dEsign

The ALS34/35 series of screw terminal

capacitors meets the

requirements of the North American

market. This range offers high CV per

unit volume coupled with high ripple

currents and long life performance.

• Industrial and commercial

applications.

• Power supplies including switch

mode.

• UPS systems.

• Variable speed drives.

• Frequency Inverters.

• Welding equipment.

• Energy storage in pulse discharge

applications.

sPEcification

standards

capacitance range

capacitance tolerance

rated voltage u

surge voltage u

IEC 60384-4 Long Life Grade 40/85/56,

150 – 470000 µF

–10 to +30%

25–500 VDC

surge voltage u

(short duration)

200

250

350

400

415

450

500

350

400

500

520

530

550

600

Test Condition:

< 500ms surge, 1000 cycles @ 20°C

75 100 160 200 250 350 400 450 500

95 125 200 250 300 400 450 500 550

Test Condition:

< 30s surge, 1000 cycles @ 25°C

leakage current i

operational life time

+85°c, u

, i

= 0.006 x C

x U

(µA) or 6mA whichever

is the smaller. Note, C

is in µF.

Test Condition:

, 5mins., 20°C

Can Diameter (inches)

1.375

11000 hrs

18000 hrs

2.5

19000 hrs

20000 hrs

Can Diameter (inches)

1.375

22000 hrs

36000 hrs

2.5

38000 hrs

40000 hrs

2000 hrs at 0V +85°C, or 30000 hrs at 0V +40°C

–40 to +85°C (Operating) -55°C to +85°C (Storage)

End of Life requirement:

ΔC/C

ESR

< ±10%

< 2 x initial ESR value

< initial specified limit

+85°c, u

shelf life

temperature range

BHC and Evox Rifa

Electrolytic Capacitors
