DG23C1LA: DescriptionSnap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.05A, 30VDC, 2.35mm, 3 PCB Hole Cnt, Solder Terminal, Straight Auxiliary Type Actuator, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size114KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

DG23C1LA Overview

Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.05A, 30VDC, 2.35mm, 3 PCB Hole Cnt, Solder Terminal, Straight Auxiliary Type Actuator, Through Hole-straight,

DG23C1LA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.169 inch
Actuator material	STAINLESS STEEL
Actuator stroke	2.35 mm
Actuator type	STRAIGHT AUXILIARY TYPE
Other features	UL APPROVAL
body width	5.8 mm
Body color	BLACK
body height	6.5 mm
Body length or diameter	12.8 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@30VDC
Contact function	ON-(ON)
contact time	SNAP ACTION
Maximum contact voltage (DC)	30 V
Electrical life	6000 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	GOLD
Shell material	POLYESTER
insulator material	POLYESTER
JESD-609 code	e4
Manufacturer's serial number	DG
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	0.441 N
work location	0.213 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB hole count	3
Maximum pre-travel	1.8 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

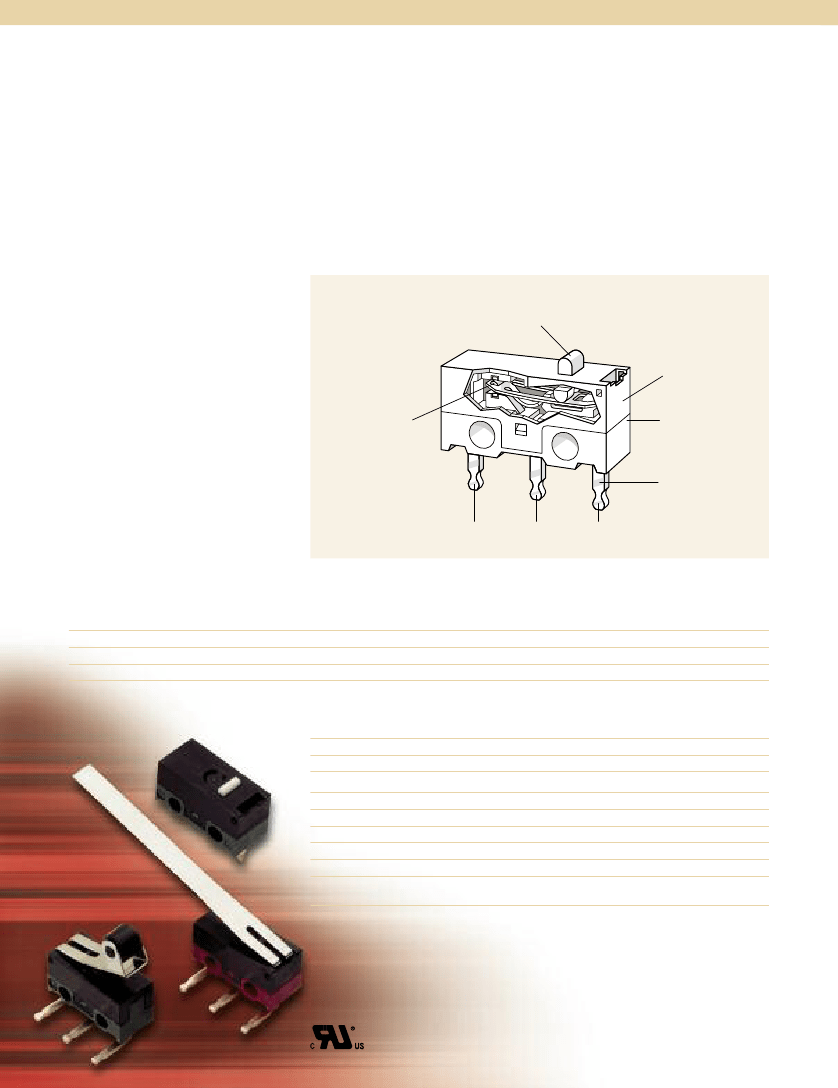

SUBMINIATURE

DG Series

Features

Small dimensions, just

0.504″ x 0.228″ x 0.256″

(12.8mm x 5.8mm x 6.5mm)

Depending on model, contact rating is

suitable for low switched currents and

voltages for light-current applications

with loads of up to 3 amps 125VAC

Available with or without auxiliary actuator

Can be fitted to circuit boards in upright

position or horizontally with terminals on

left or right

Mechanical life: min. 1 x 10

operations

(depending on model)

NC terminal

NO terminal

Common terminal

Silver-plated

copper-zinc

terminals

Silver-nickel

or gold contacts

PBT

actuating button

PBT cover

PPHS base

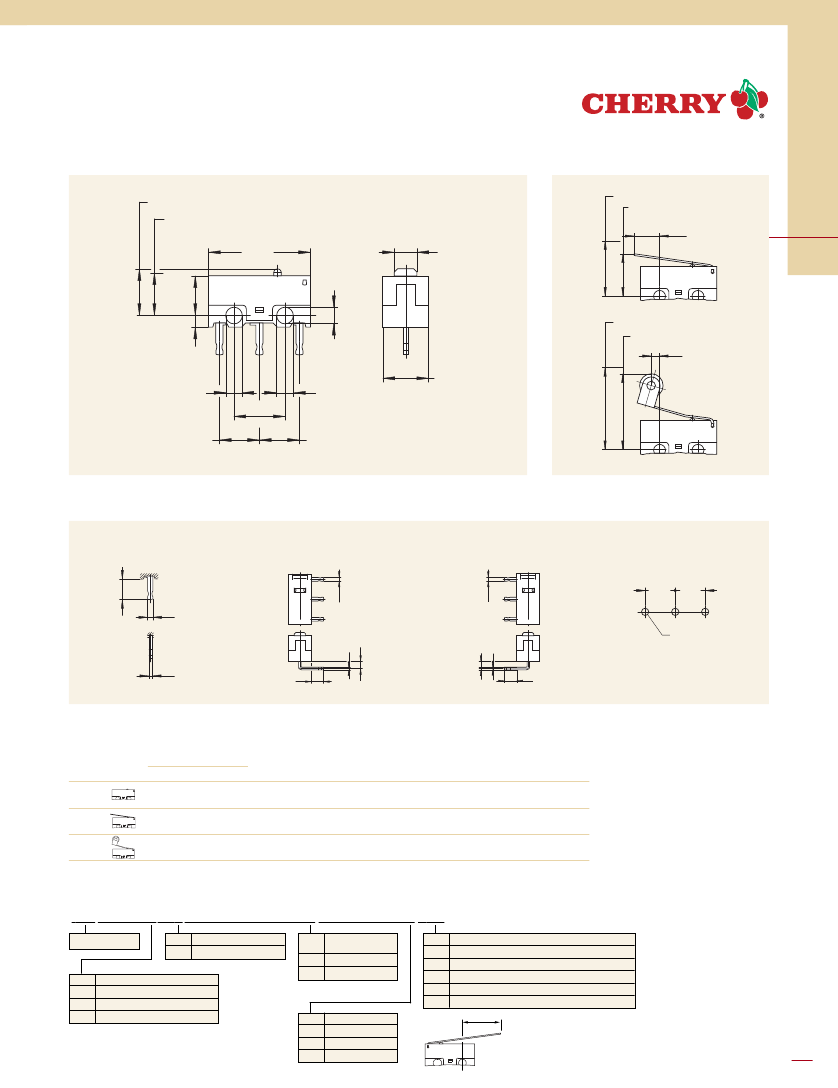

Electrical Ratings

Switch

Series

EN61058 Rating

UL1054 Rating

Electrical Life at Rated Load

According to UL

(Min. Operations)

DG1

DG2

DG4

N/A

3A, 125VAC; 2A, 30VDC

0.05A, 30VDC

1A, 125VAC; 1A, 30VDC

6,000

Specifications

Electrical

Temperature Rating:

Flammability Rating:

Materials

-25°C to +85°C

UL9V-O

PPHS

PBT

Stainless Steel

Silver-Plated Brass

Silver Alloy

(DG1, DG4)

Gold Flash, Gold

(DG2)

Base:

Cover:

Actuator:

Auxiliary Actuator:

Terminals:

Contacts:

PBT = Polybutyleneterephthalate • PPHS = Polyphenylene sulphide
