IDT74ALVCH162832PA datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74ALVCH162832PA

IDT74ALVCH162832PA: DescriptionBus Driver, ALVC/VCX/A Series, 1-Func, 7-Bit, True Output, CMOS, PDSO64, TSSOP-64; Categorylogic logic; File Size101KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

IDT74ALVCH162832PA Overview

Bus Driver, ALVC/VCX/A Series, 1-Func, 7-Bit, True Output, CMOS, PDSO64, TSSOP-64

IDT74ALVCH162832PA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP64,.32,20
Contacts	64
Reach Compliance Code	not_compliant
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G64
JESD-609 code	e0
length	17 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	7
Number of functions	1
Number of ports	2
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP64,.32,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V
propagation delay (tpd)	5.3 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

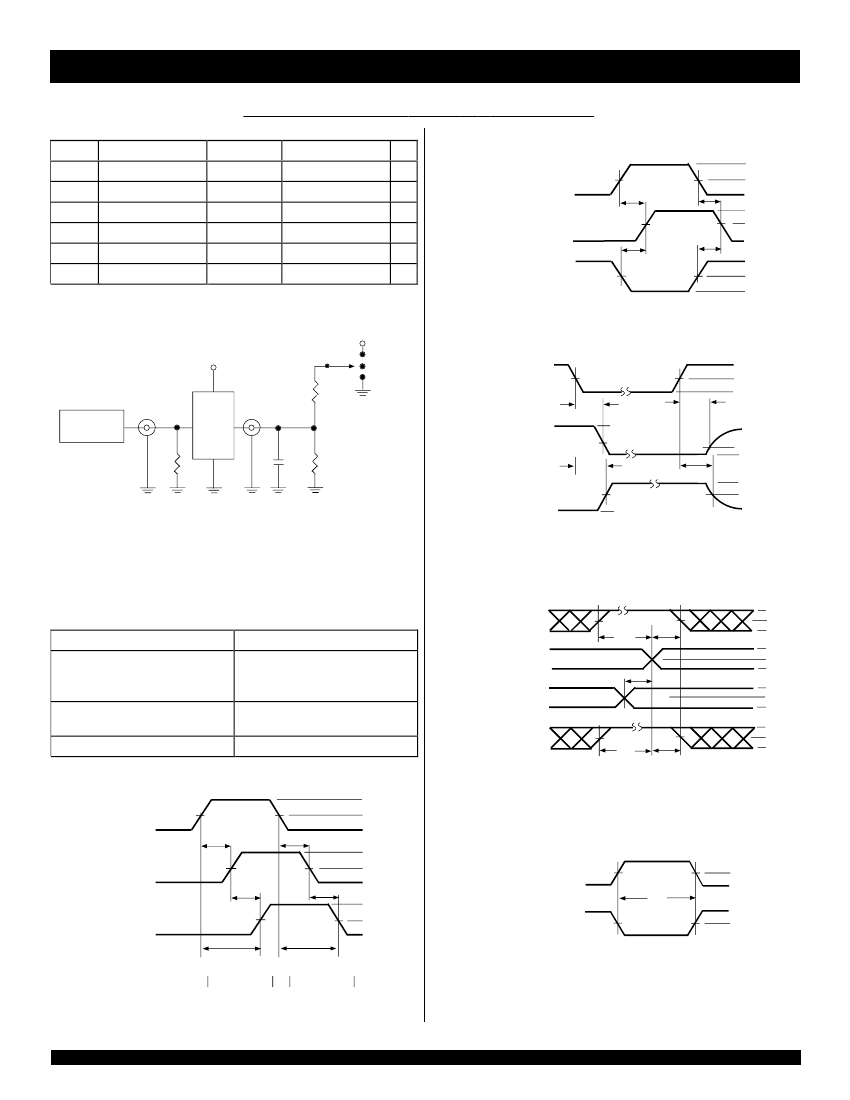

Preview

Download Datasheet

View All

IDT74ALVCH162832

3.3V CMOS 1-BIT TO 2-BIT ADDRESS REGISTER/DRIVER

EXTENDED COMMERCIAL TEMPERATURE RANGE

3.3V CMOS 1-BIT TO 4-BIT

ADDRESS REGISTER/DRIVER

WITH 3-STATE OUTPUTS AND

BUS-HOLD

FEATURES:

0.5 MICRON CMOS Technology

Typical t

SK(0)

(Output Skew) < 250ps

ESD > 2000V per MIL-STD-883, Method 3015;

> 200V using machine model (C = 200pF, R = 0)

– 0.50mm pitch TSSOP package

– Extended commercial range of – 40°C to +85°C

– V

= 3.3V ±0.3V, Normal Range

– V

= 2.7V to 3.6V, Extended Range

– V

= 2.5V ±0.2V

– CMOS power levels (0.4µ W typ. static)

– Rail-to-Rail output swing for increased noise margin

Drive Features for ALVCH162832:

– Balanced Output Drivers: ±12mA

– Low switching noise

–

IDT74ALVCH162832

DESCRIPTION:

This 1-bit to 4-bit address register/driver is built using advanced dual

metal CMOS technology. This device is ideal for use in applications in

which a single address bus is driving four separate memory locations.

The ALVCH162832 can be used as a buffer or a register, depending on

the logic level of the select (SEL) input.

When SEL is a logic high, the device is in the buffer mode. The outputs

follow the inputs and are controlled by the two output-enable (OE)

controls. Each OE controls two groups of seven outputs. When SEL is

logic low, the device is in the register mode. The register is an edge-

triggered D-type flip-flop. On the positive transition of the clock (CLK)

input, data at the A inputs is stored in the internal registers. OE controls

operate the same as in buffer mode.

The ALVCH162832 has series resistors in the device output structure

which will significantly reduce line noise when used with light loads. This

driver has been designed to drive ±12mA at the designated threshold

levels.

The ALVCH162832 has “bus-hold” which retains the inputs’ last state

whenever the input bus goes to a high impedance. This prevents floating

inputs and eliminates the need for pull-up/down resistors.

APPLICATIONS:

•

Memory subsystems

PC motherboards and servers

Workstations

Telecommunication applications

FUNCTIONAL BLOCK DIAGRAM

CLK

SEL

TO 6 OTHER CHANNELS

EXTENDED COMMERCIAL TEMPERATURE RANGE

1999 Integrated Device Technology, Inc.

OCTOBER 1999

DSC-4549/-
