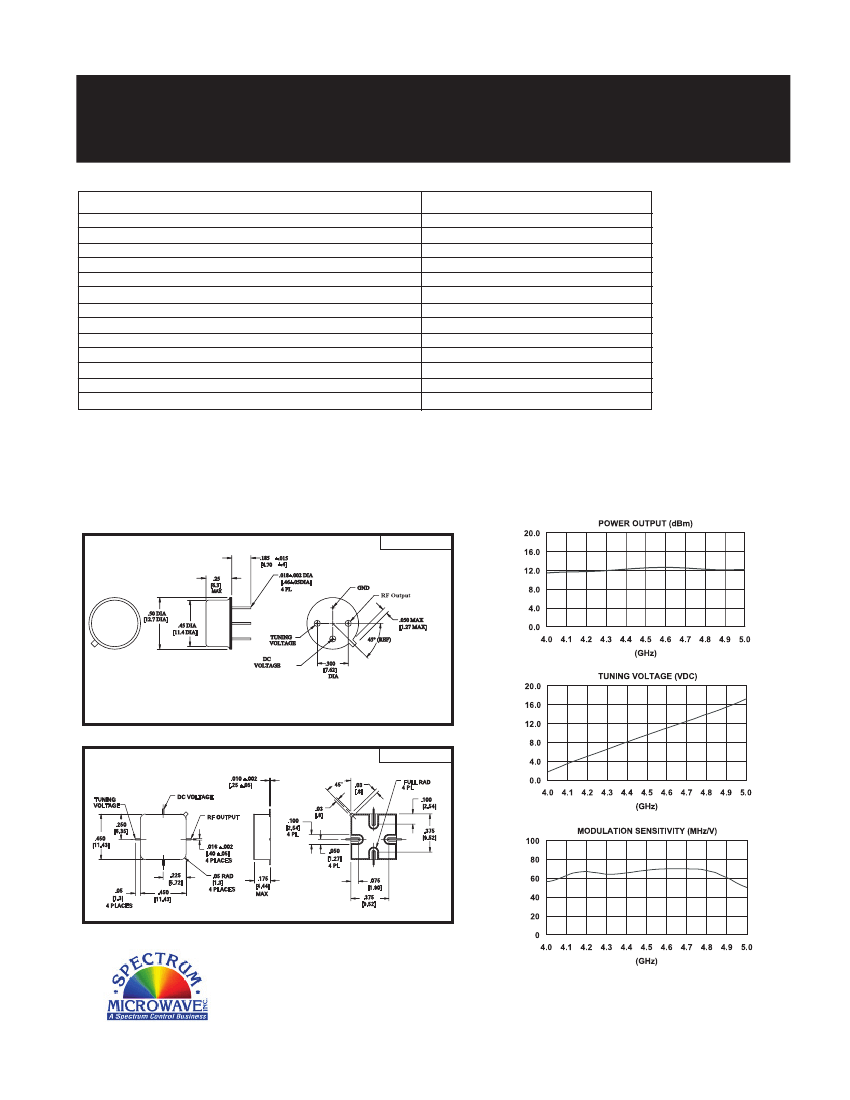

Voltage Controlled Oscillator
Microwave Band
Electrical Specifications :
(1)
Frequency Range
Power Output at 25°C (50 Ohm load)
Power Output Variation vs. Temperature
Frequency Drift vs. Temperature
(2)
Frequency Pulling (12 dB Return Loss)
Frequency Pushing
Tuning Voltage Limits
SSB Phase Noise (50 kHz offset)
Harmonics
(3)
Spurious
Bias Voltage
(4)
Bias Current
(5)
Operating Temperature
Model HV83T-2
Model HV83SM-22
4.0 to 5.0 GHz
Parameter
4.0 to 5.0 GHz
+10 dBm, min.
2.0 dB, typical
110 MHz, typical
40 MHz, typical
10 MHz/V, typical
0 to +20 VDC
-92 dBc/Hz, typical
-14 dBc, typical
-70 dBc, max.
+15 VDC ±1%
50 mA, typical
-55 to +85
°C
Specifications
Notes:
1. Specifications guaranteed over the operating temperature range. Those specifications indicated as typical are not
guaranteed. Plots exemplify typical performance at +25°C
2. Total frequency drift over the full temperature range.
3. Worst case harmonics over the frequency range.
4. Alternate bias voltages available.
5. Lower bias current available.
6. Military screening available.
Typical Performance at 25°C
HV83T-2
Outline: TO-8
SPECTRUM
All dimensions are in inches and [mm].
HV83SM-22
Outline: SMV2
SPECTRUM
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, FL 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.SpectrumMicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, PA 19154 · PH (215) 464-4000 · Fax (215) 464-4001
