74LVC623PW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVC623PW

74LVC623PW: DescriptionIC LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver; Categorylogic logic; File Size131KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74LVC623PW Overview

IC LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver

74LVC623PW Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G20
length	6.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

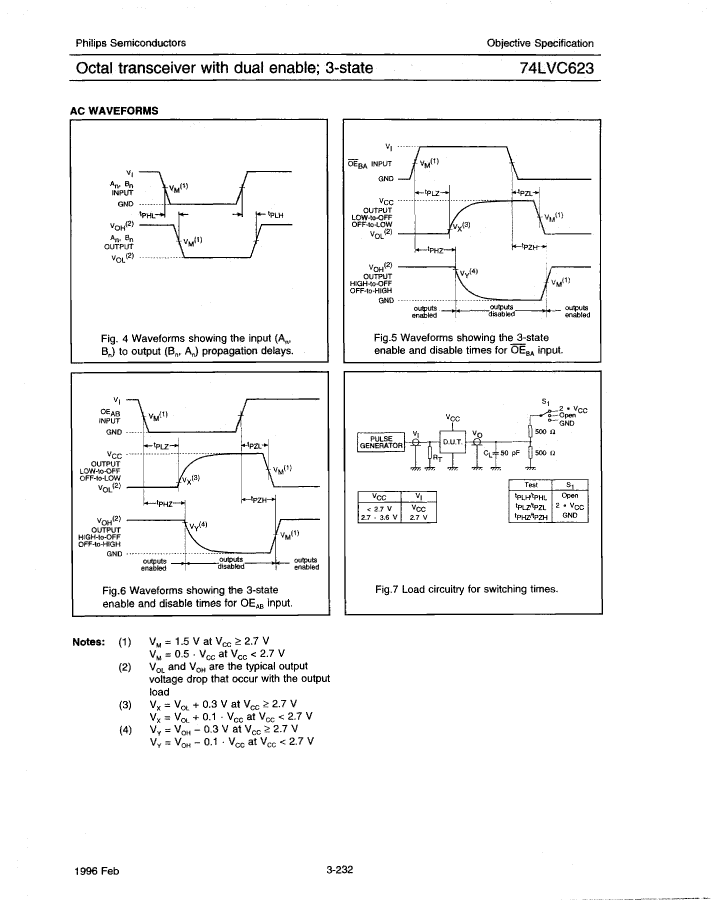

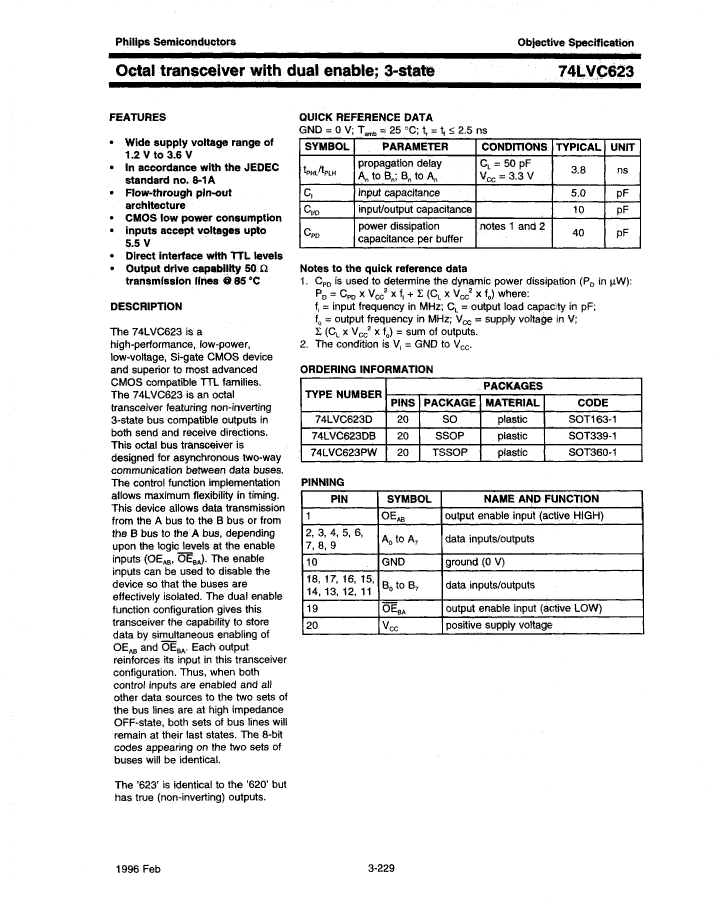

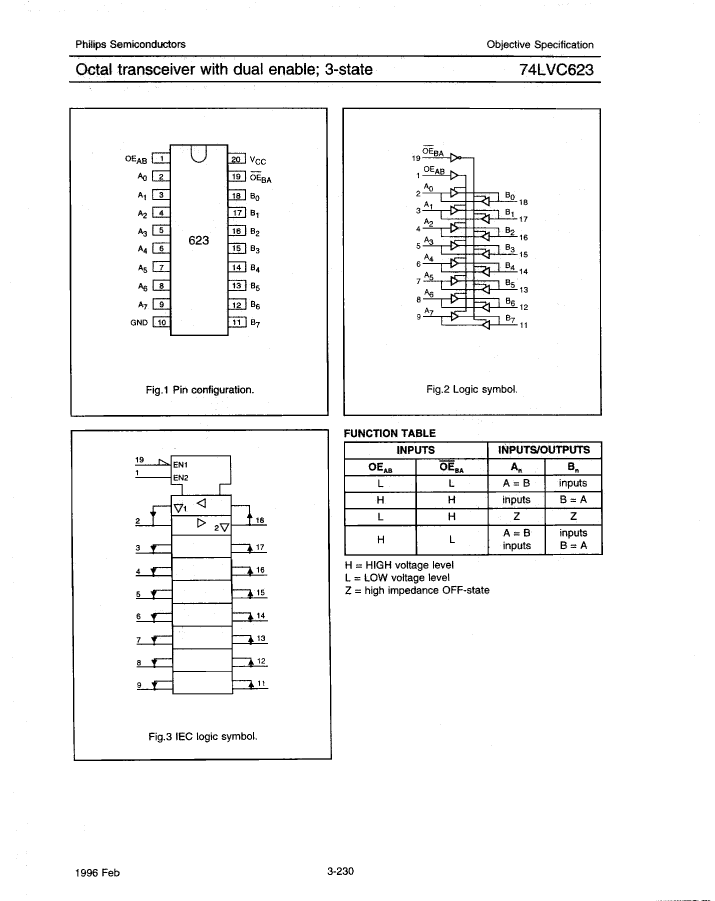

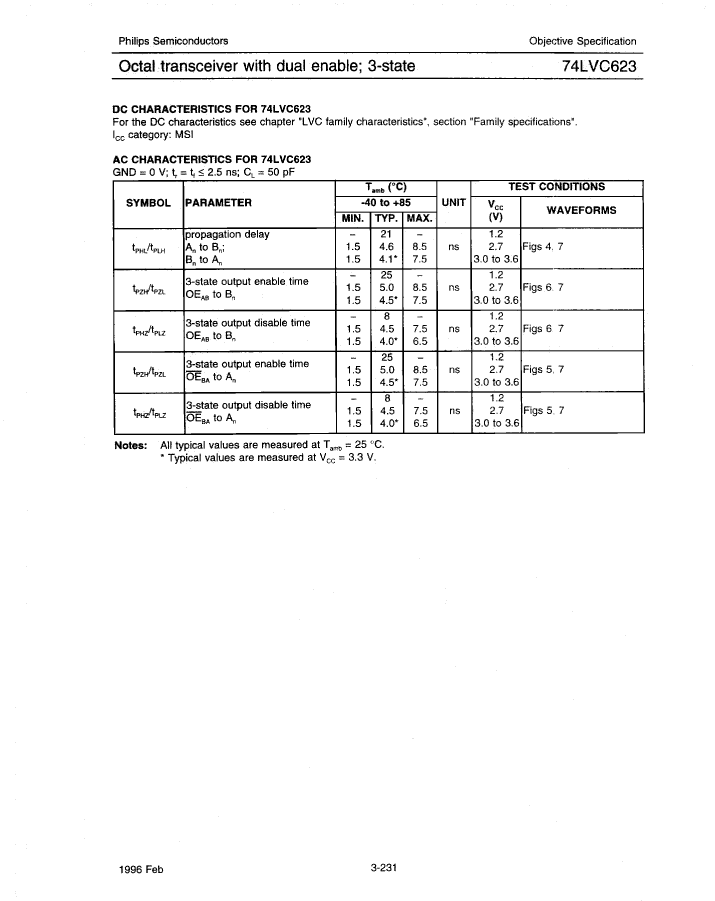

Preview

Download Datasheet

View All

74LVC623PW Related Products

	74LVC623PW	74LVC623DB	74LVC623D
Description	IC LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver	IC LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver
Maker	NXP	NXP	NXP
package instruction	TSSOP,	SSOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	7.2 mm	12.8 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	7.5 ns	7.5 ns	7.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2 mm	2.65 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	4.4 mm	5.3 mm	7.5 mm
