MJ01-192NMP-912 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MJ01-192NMP-912

MJ01-192NMP-912: DescriptionBoard Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking Mech, Ivory Insulator, Receptacle,; CategoryThe connector The connector; File Size264KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

MJ01-192NMP-912 Overview

Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking Mech, Ivory Insulator, Receptacle,

MJ01-192NMP-912 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CONFORMED TO IEC61076-4-104
body width	0.622 inch
subject depth	0.673 inch
body length	3.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH OVER PALLADIUM NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	5000000000 Ω
Insulator color	IVORY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MJ01
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	25u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.169 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	192
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

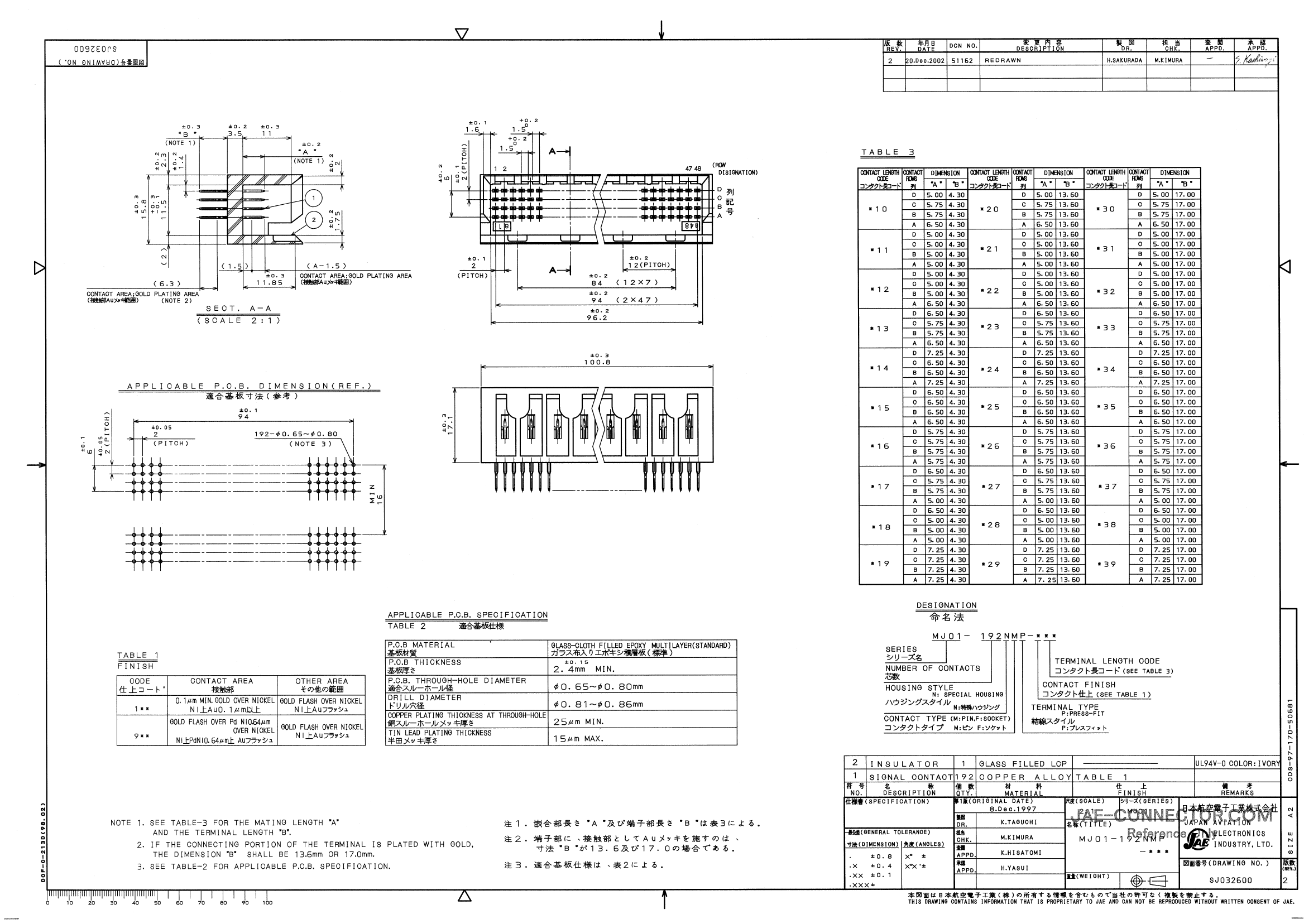

Preview

Download Datasheet

View All
