MC7493AL datasheet, PDF - EEWORLD Datasheet

MC7493AL: DescriptionBinary Counter, Asynchronous, Up Direction, TTL, CDIP14,; Categorylogic logic; File Size131KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

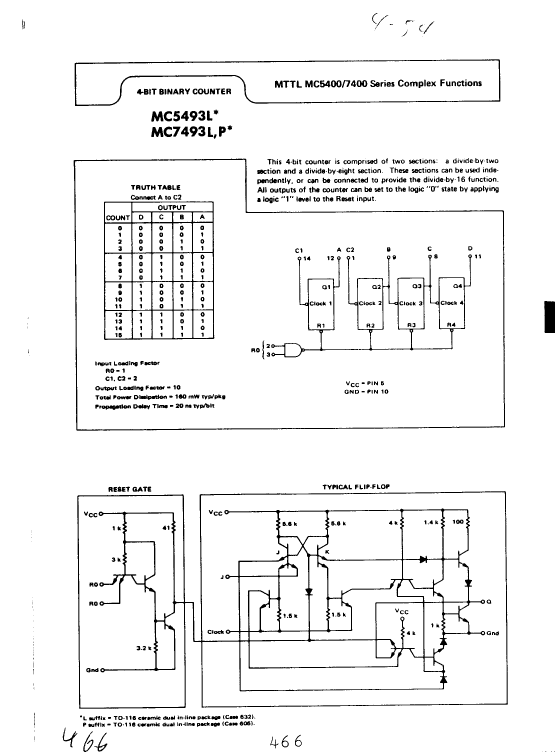

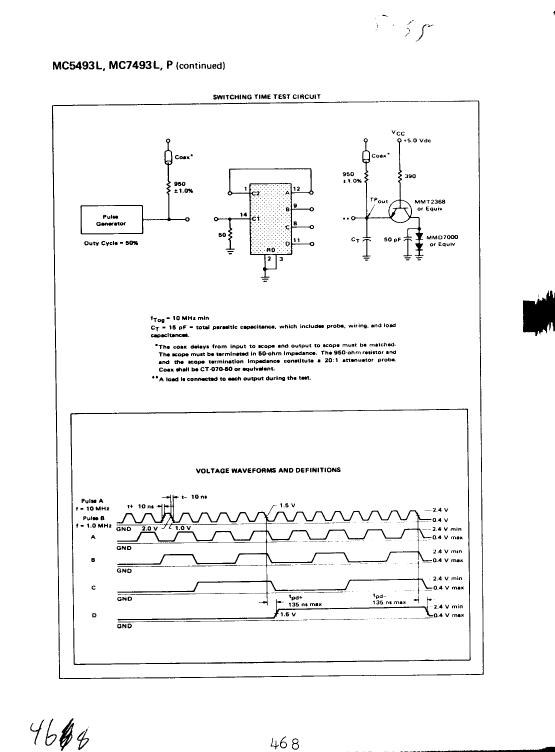

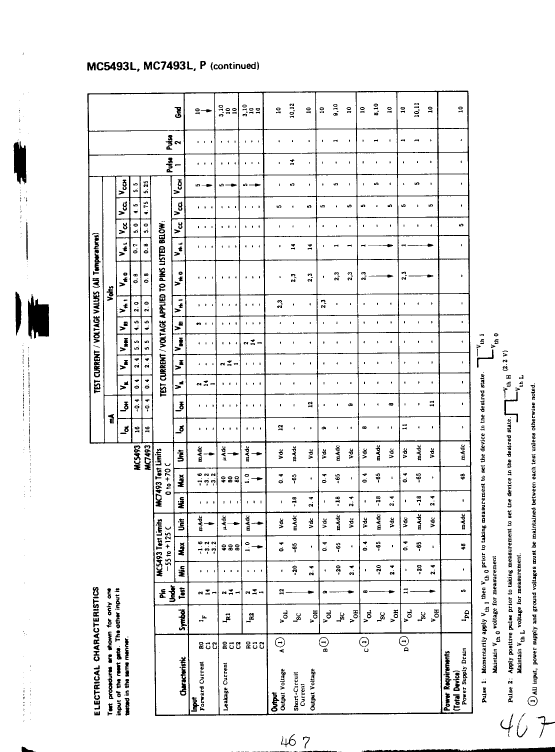

MC7493AL Overview

Binary Counter, Asynchronous, Up Direction, TTL, CDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	MC7493AL	MC5493AF
Description	Binary Counter, Asynchronous, Up Direction, TTL, CDIP14,	Binary Counter, Asynchronous, Up Direction, TTL, CDFP14,
Is it Rohs certified?	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP, DIP14,.3	DFP, FL14,.3
Reach Compliance Code	unknown	unknown
Counting direction	UP	UP
JESD-30 code	R-XDIP-T14	R-XDFP-F14
JESD-609 code	e0	e0
Load/preset input	NO	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	70 °C	125 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
