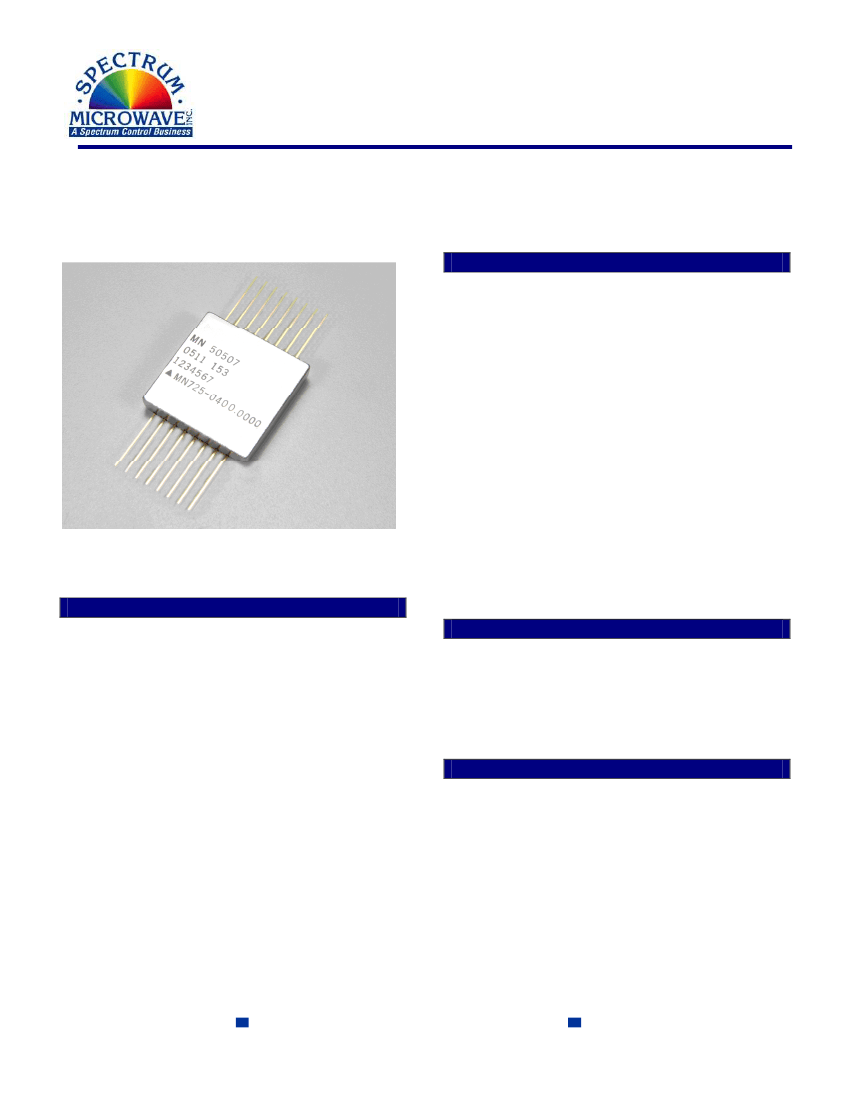

MN725-0400.0000

Product Data Sheet

Revision 022210

MN725-0400.0000

Voltage Controlled SAW Oscillator

DESCRIPTION

The MN725-0400.0000 Voltage Controlled SAW

Oscillator (VCSO) is a member of Spectrum

Microwave MN725 series of high performance low

noise SAW oscillators designed for the military

applications.

The hermetic kovar package and rugged hybrid

construction provide low vibration sensitivity and

performance over a wide operating temperature

range.

The highly repeatable and linear tuning range

makes the MN725 family of VCSOs ideal for phase

locked applications.

The design is based upon a fundamental VCSO in

the 375 MHz to 750 MHz frequency range.

FEATURES

•

APPLICATIONS

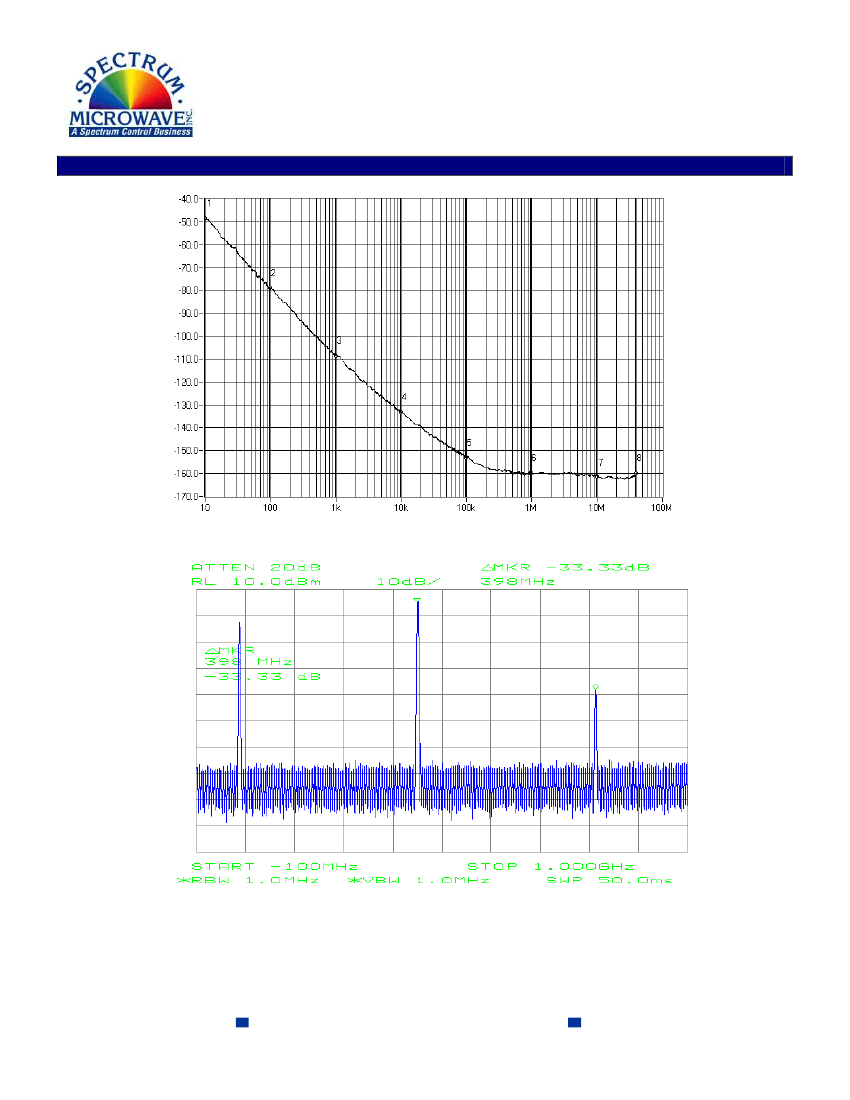

Low phase Noise

-109 dBc/Hz at 1 kHz

Low vibrations sensitivity

2 x10

-9

per g

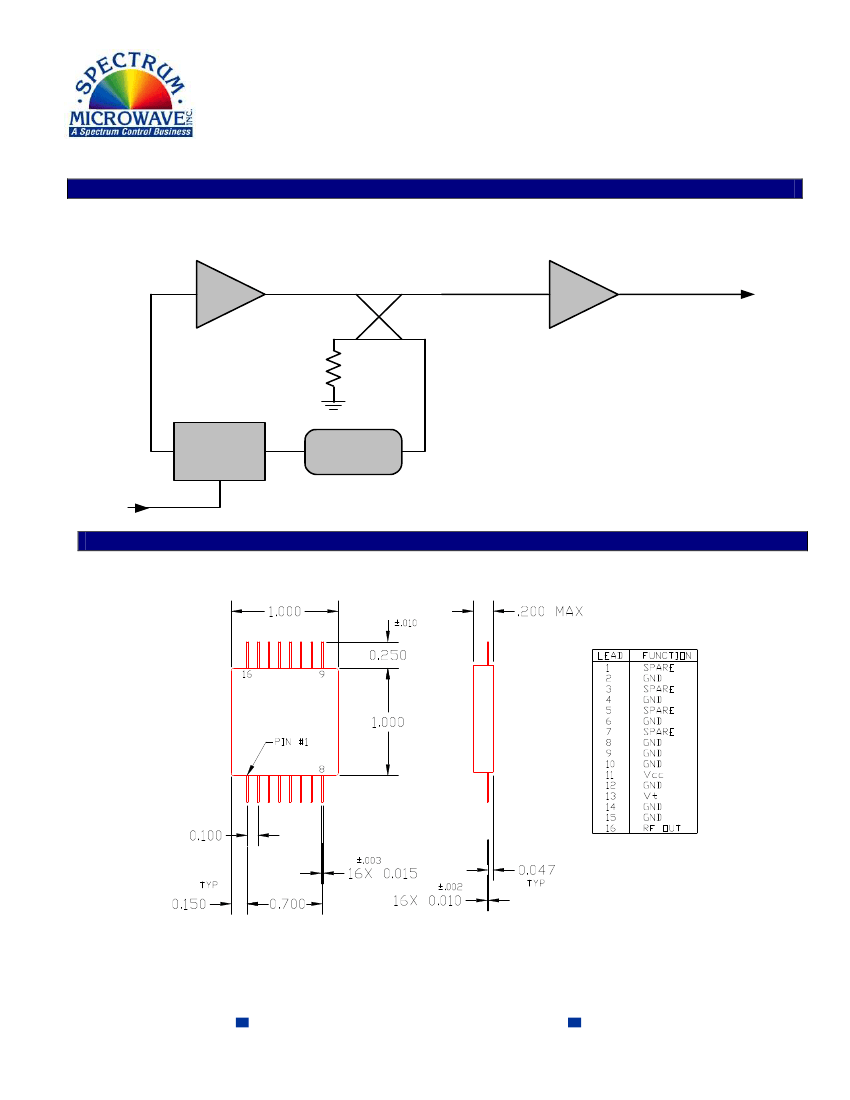

Hermetic Kovar package

1.0” x 1.0” x .2” SMT

-55° to 85° operating range

Rugged design for military applications

•

Phase Lock Loops

Local Oscillators

Low Noise Clocks

Clock recovery

ABSOLUTE MAXIMUM RATINGS

Operating Temperature: -55°C to 100°C

Storage Temperature: -55°C to 125°C

Power Supply Voltage: 13V

Tuning Voltage: -2V to +6 V

Spectrum Microwave

324 Clark Street Worcester, MA 01606

tel: 508-852-5400
