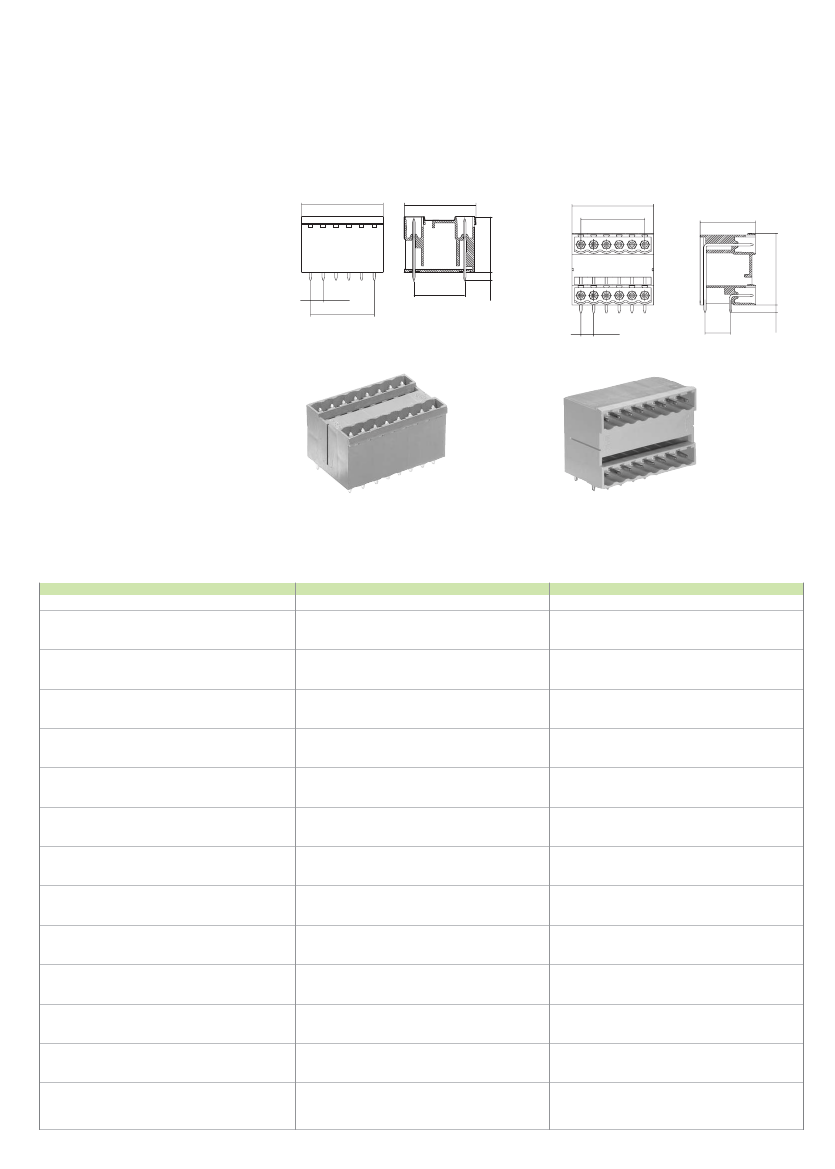

Insulated header
PCB
G
28,5
G
T
22
Rated current: 10 A
22
T
5,00
5,08
10,00
10,16
3,2
250 V/4 kV/3 – Overvoltage category III
400 V/4 kV/2 – Overvoltage category III
400 V/4 kV/2 – Overvoltage category II
8213 SEG
>PBT<
5,00
5,08
20,00
20,32
Solder pin 1 x 1 mm
Bore hole Ø 1.3 mm
Solder pin 1 x 1 mm
Bore hole Ø 1.3 mm
Type 81-8213 SEG .../G
Rated voltages: VDE 0110
UL ratings
CSA ratings
Approvals
Std. pack
G
T
Poles
Type 81-8213 SEG .../W
Horizontal mount
300 V
300 V
10 A
10 A
Part no.
Vertical mount
300 V
300 V
Part no.
qw
Part no.
qw
Part no.
Spacing: 5.00 mm
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
12
17
22
27
32
37
42
47
52
57
62
67
72
77
82
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
unmarked
27.334.0253.0
27.334.0353.0
27.334.0453.0
27.334.0553.0
27.334.0653.0
27.334.0753.0
27.334.0853.0
27.334.0953.0
27.334.1053.0
27.334.1153.0
27.334.1253.0
27.334.1353.0
27.334.1453.0
27.334.1553.0
27.334.1653.0
unmarked
27.336.0253.0
27.336.0353.0
27.336.0453.0
27.336.0553.0
27.336.0653.0
27.336.0753.0
27.336.0853.0
27.336.0953.0
27.336.1053.0
27.336.1153.0
27.336.1253.0
27.336.1353.0
27.336.1453.0
27.336.1553.0
27.336.1653.0
17 to 24pole upon request
Spacing: 5.08 mm
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
12.16
17.24
22.32
27.40
32.48
37.56
42.64
47.72
52.80
57.88
62.96
68,04
73.12
78.20
83.28
5.08
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
unmarked
27.354.0253.0
27.354.0353.0
27.354.0453.0
27.354.0553.0
27.354.0653.0
27.354.0753.0
27.354.0853.0
27.354.0953.0
27.354.1053.0
27.354.1153.0
27.354.1253.0
27.354.1353.0
27.354.1453.0
27.354.1553.0
27.354.1653.0
unmarked
27.356.0253.0
27.356.0353.0
27.356.0453.0
27.356.0553.0
27.356.0653.0
27.356.0753.0
27.356.0853.0
27.356.0953.0
27.356.1053.0
27.356.1153.0
27.356.1253.0
27.356.1353.0
27.356.1453.0
27.356.1553.0
27.356.1653.0
17 to 24pole upon request
Coding available on request
Coding available on request
304
3,2
28,5
10 A
10 A
