FA10975P30DBFBK datasheet, PDF

Datasheet> All Categories > Topical application> Wireless rf/communication> FA10975P30DBFBK

FA10975P30DBFBK: Description0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryTopical application Wireless rf/communication; File Size65KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric Compare View All

FA10975P30DBFBK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FA10975P30DBFBK	-	-	View	Buy Now

FA10975P30DBFBK Overview

0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR

FA10975P30DBFBK Parametric

Parameter Name	Attribute value
Maximum operating temperature	150 Cel
Minimum operating temperature	-55 Cel
Maximum input power	150 W
Maximum operating frequency	3000 MHz
Minimum operating frequency	0.0 MHz
Processing package description	ROHS COMPLIANT PACKAGE-2
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Maximum voltage standing wave ratio	1.25
structure	MODULE
terminal coating	SILVER
Rated attenuation	30 dB
Microwave RF Type	FIXED

Preview

Download Datasheet

View All

ATC

Style FA1

HIGH

POWER

RESISTIVE

PRODUCTS

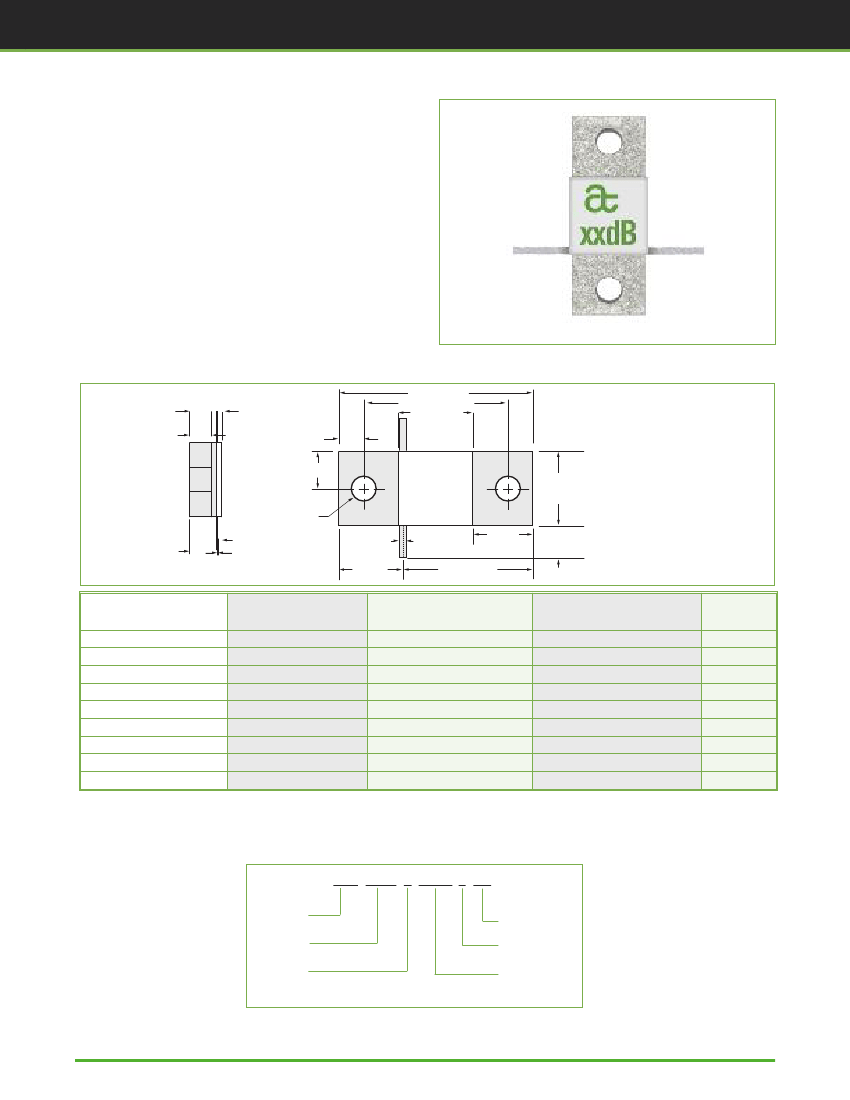

High Power Flange Mount Attenuators

General Specifications

•

Frequency Range:

DC to 3 GHz

•

Input Power*:

150 Watts

•

Operating Temp Range:

-55 to +150˚C

•

Attenuation Stability**:

0.0001 dB/dB/°C, Max.

•

Mounting Flange:

Copper, Pd over Ni;

other platings available

•

Resistive Elements:

Tantalum Nitride

•

Substrate Material:

Aluminum Nitride

•

Tabs:

99.99% Pure Silver, .004 inches thick,

Cover: Alumina

•

RoHS Compliant

•

Reliability:

MIL-PRF-55342

.975 (24.77 mm)

.725 MIN. (18.4 mm)

.400 (10.16 mm)

.125

(3.18 mm)

xx denotes attenuatiion

.225 MAX.

(5.76 mm)

.125

(3.18 mm)

Mechanical Tolerance:

±.010 inch

unless otherwise specified

.188

(4.76 mm)

.375

(9.53 mm)

.125 THRU

(3.18 mm)

.170

(4.32 mm)

.040 TYP.

(1.02 mm)

.290 TYP.

(7.36 mm)

.250 TYP.

(6.35 mm)

.004

(.101 mm)

.305 ± .005

(7.75 mm ±.127 mm)

.670 (17.02 mm)

ATC

Part Number

Nominal

Attenuation (dB)

Frequency

Sensitivity (dB, max.)

Maximum Deviation

from Nominal (dB)

VSWR

(max.)

1.55:1

1.50:1

1.40:1

1.30:1

1.40:1

1.30:1

1.25:1

FA10975P01DBFBK

± 0.25

+0.45 / -0.15

FA10975P02DBFBK

±0.30

+0.50 / -0.30

FA10975P03DBFBK

± 0.30

+0.60 / -0.30

FA10975P06DBFBK

± 0.45

+0.80 / -0.20

FA10975P09DBFBK

± 0.35

+0.70 / -0.20

FA10975P10DBFBK

± 0.20

+0.40 / -0.30

FA10975P17DBFBK

± 1.00

+1.00 / -1.20

± 1.00

+1.00 / -1.20

FA10975P20DBFBK

± 1.05

+1.75 / -1.20

FA10975P30DBFBK

For Attenuator Power Handling vs. Mounting Surface Temperature, see following page.

ATC Flange Mount Attenuators

Part Number Code

FA1 0975 P 01DB F BK

Case Style

Case Size

Termination

Packaging

BK - Plastic Carrier

Tolerance

F ±1%

Value

A M E R I C A N

ATC North America

sales@atceramics.com

T E C H N I C A L

ATC Europe

saleseur@atceramics.com

C E R A M I C S

ATC Asia

sales@atceramics-asia.com

w ww.at c e r a mic s .c om

FA10975P30DBFBK Related Products

	FA10975P30DBFBK	FA1	FA10975P01DBFBK	FA10975P02DBFBK	FA10975P03DBFBK	FA10975P06DBFBK	FA10975P09DBFBK	FA10975P10DBFBK	FA10975P17DBFBK	FA10975P20DBFBK
Description	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR
Maximum operating temperature	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Maximum input power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Minimum operating frequency	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz	0.0 MHz
Processing package description	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Maximum voltage standing wave ratio	1.25	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
terminal coating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Rated attenuation	30 dB	3 dB	3 dB	3 dB	3 dB	3 dB	3 dB	3 dB	3 dB	3 dB
Microwave RF Type	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
