PD2401S datasheet, PDF - EEWORLD Datasheet

PD2401S: DescriptionTrigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN; CategoryLED optoelectronic/LED photoelectric; File Size307KB，3 Pages; ManufacturerIXYS; Environmental Compliance

Download Datasheet Parametric Compare View All

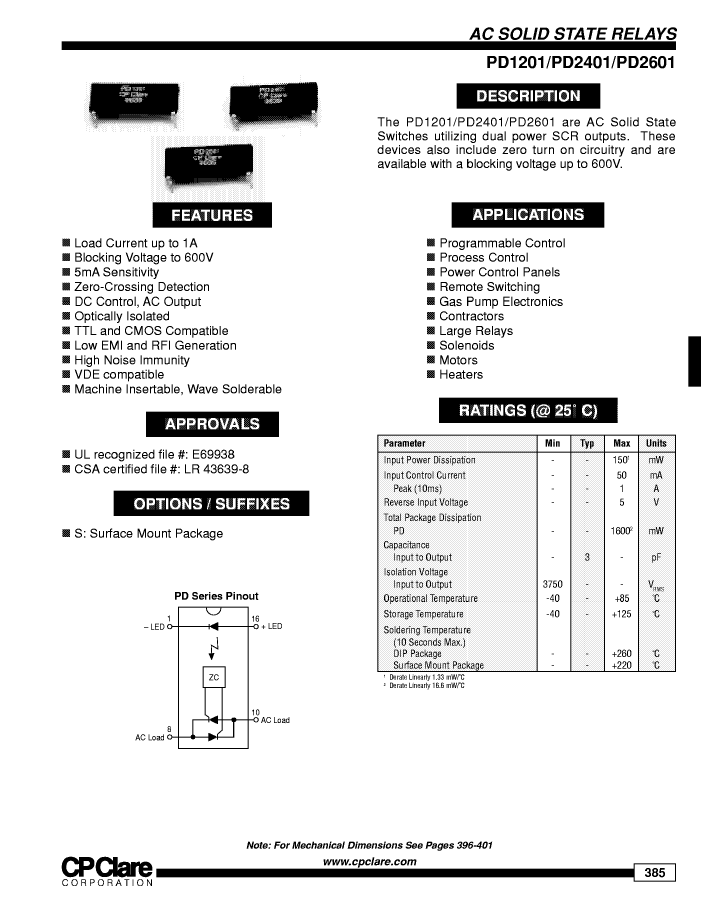

PD2401S Overview

Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN

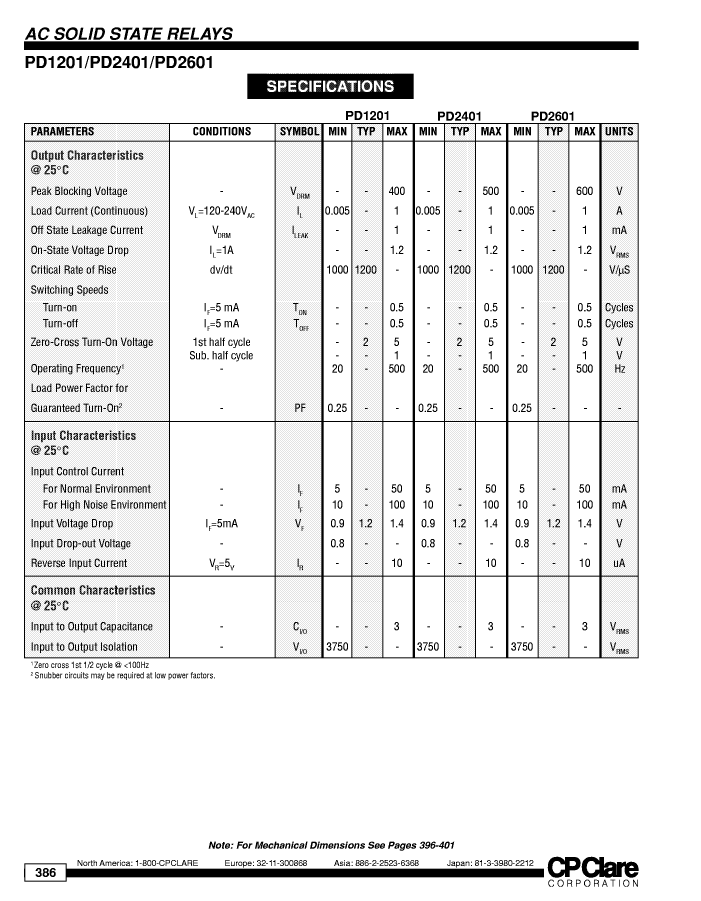

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IXYS
package instruction	SURFACE MOUNT,4PIN
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE
control current	0.002 A
control voltage	0.9 V
Maximum forward current	0.05 A
input type	DC
Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	1 A
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Output circuit type	Back to Back SCR
total length	19 mm

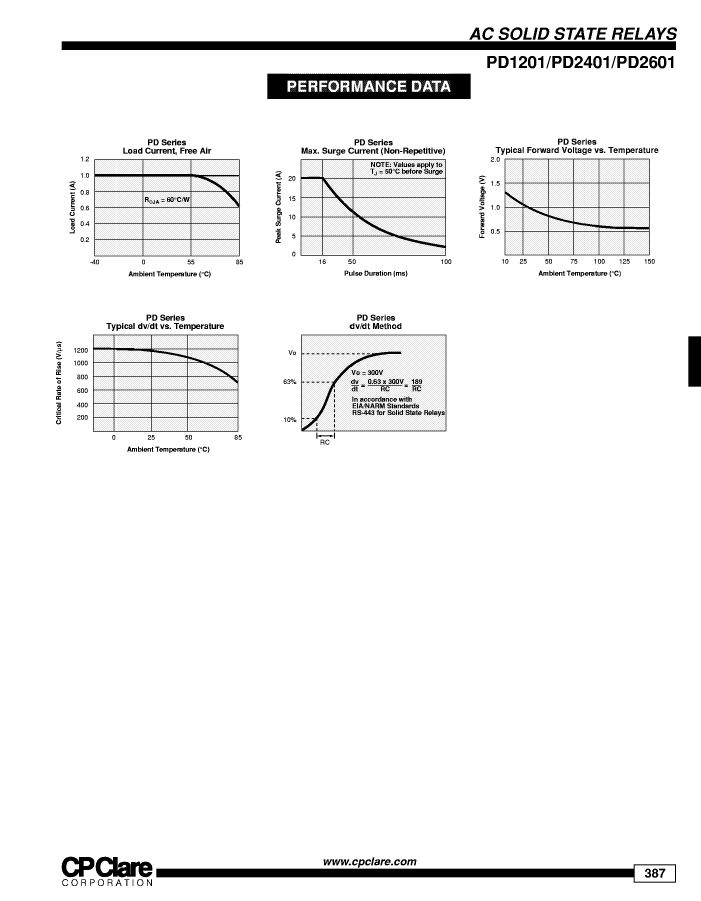

	PD2401S	PD2601S
Description	Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN	Trigger Output SSR, 1-Channel, 3750V Isolation, SURFACE MOUNT,4PIN
Is it Rohs certified?	conform to	conform to
Maker	IXYS	IXYS
package instruction	SURFACE MOUNT,4PIN	SURFACE MOUNT,4PIN
Reach Compliance Code	compliant	compliant
Other features	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT	UL RECOGNIZED, CMOS COMPATIBLE, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE	SINGLE
control current	0.002 A	0.002 A
control voltage	0.9 V	0.9 V
Maximum forward current	0.05 A	0.05 A
input type	DC	DC
Maximum insulation voltage	3750 V	3750 V
Number of components	1	1
Maximum on-state current	1 A	1 A
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Output circuit type	Back to Back SCR	Back to Back SCR
total length	19 mm	19 mm
