CY7B1051-7BC datasheet, PDF - EEWORLD Datasheet

CY7B1051-7BC: DescriptionCache SRAM, 64KX18, 3ns, BICMOS, PPGA100, PLASTIC, PGA-100; Categorystorage storage; File Size65KB，1 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

CY7B1051-7BC Overview

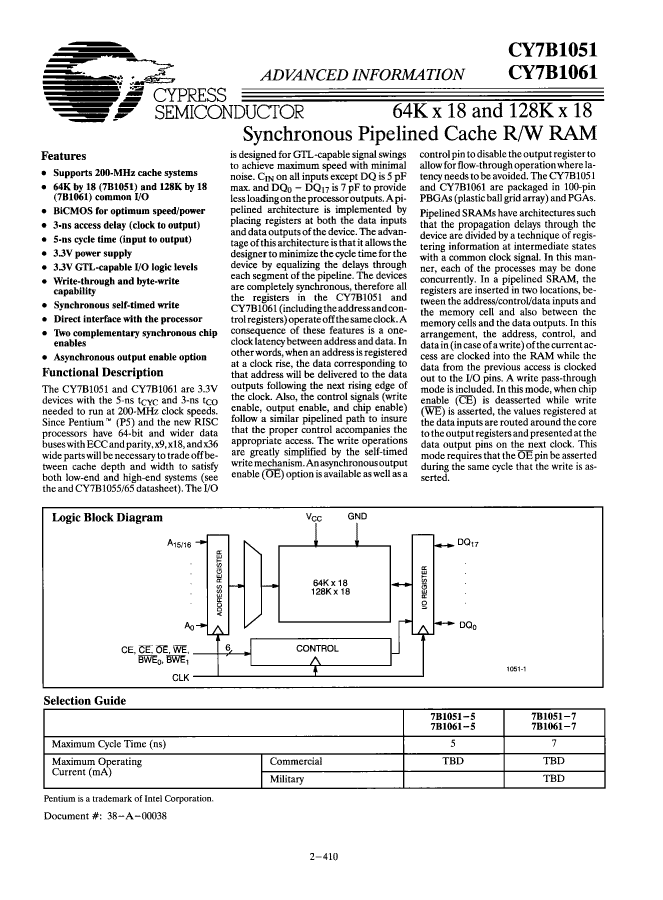

Cache SRAM, 64KX18, 3ns, BICMOS, PPGA100, PLASTIC, PGA-100

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	PGA
package instruction	PGA,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	3 ns
Other features	3.3V GTL COMPATIBLE I/O
JESD-30 code	X-PPGA-P100
memory density	1179648 bit
Memory IC Type	CACHE SRAM
memory width	18
Number of functions	1
Number of ports	1
Number of terminals	100
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX18
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	PGA
Package shape	UNSPECIFIED
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
