Features
• Shields ESD sensitive items from charge and electrostatic
discharges (with lid in place).
• Provides ESD and physical protection for ESD sensitive circuit
boards.
• Impregnated corrugated material; greater durability than coated or
printed material.
• Constructed with double sides, double (boxes under 6" deep) or
triple (boxes over 6" deep) ends, and single (boxes under 6"
deep) or double (boxes over 6" deep) thickness bottom for
greater durability.
• Static dissipative surface of 10E6 - 10E8 ohms - minimizing the
potential of rapid discharge or sparking.
• Buried shielding layer minimizing the potential of sloughing and
rub-off contamination.
• Made from 100% recycled material, and is 100% recyclable
• No tooling costs.
• Easy assembly without the need for tape, glue, or staples.
Adjustable double thick reversible partitions
allow you to fold over for longer use.
Lid is included.
SPECIFICATIONS
Properties
Electrostatic Decay
Surface Resistance
Surface Resistance, Low R.H. Cut-off
High-Voltage Discharge Resistance
Static Shielding
Charged Device Model (CDM) Safety
Corrosivity
Antistat Transfer
Water & Isopropyl Alcohol Extraction
Tests for Antistat Permanence
Sloughing Test
Typical Values
0.01 seconds at 72°F and 11.8% R.H.
10E6 - 10E8 ohms/sq. after 11 days at 68°F and 12% R.H.
for surface. 10E3 - 10E4 ohms/sq. for buried shielding layer
4% R.H.
Failure rate 0/5 (no oxide damage in five consecutive tests)
99.9% attenuation at 10kV; 99.6% attenuation at 30kV
RTG >10E7 ohms at 86% R.H. or less
Contains 1-3 ppm reducible sulfur
No transfer
Surface resistance 10E8 - 10E9 ohms/square at 74°F
and 36% R.H.
Negligible surface damage at 10 cycles and <5% of surface
damage at 200 cycles in Taber Abrasion Test.
No conductive particles abrased from surface
Complete recyclability of package
Biodegradation in or on moist soil
Conductivity from wall to wall as well as across surface
to assure permanence of the antistatic property
Indefinite
Test Procedures/Method
FED-STD-101, Method 4046
See reverse side
for available sizes.
ASTM D257
Rockwell International Test Report of December 20, 1991
Rockwell International Test Report of December 20, 1991
EIA 541, appendix E, capacitive probe test
Rockwell International Test Report of December 20, 1991
FED-STD-101, Method 3005 for reducible sulfur
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
ASTM D4060 at 70 rpm with CS-17 abrasive-coated
wheels and 1000 grams load
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
Made in America
Recyclability
Biodegradability
Volume Conductivity
Shelf Life

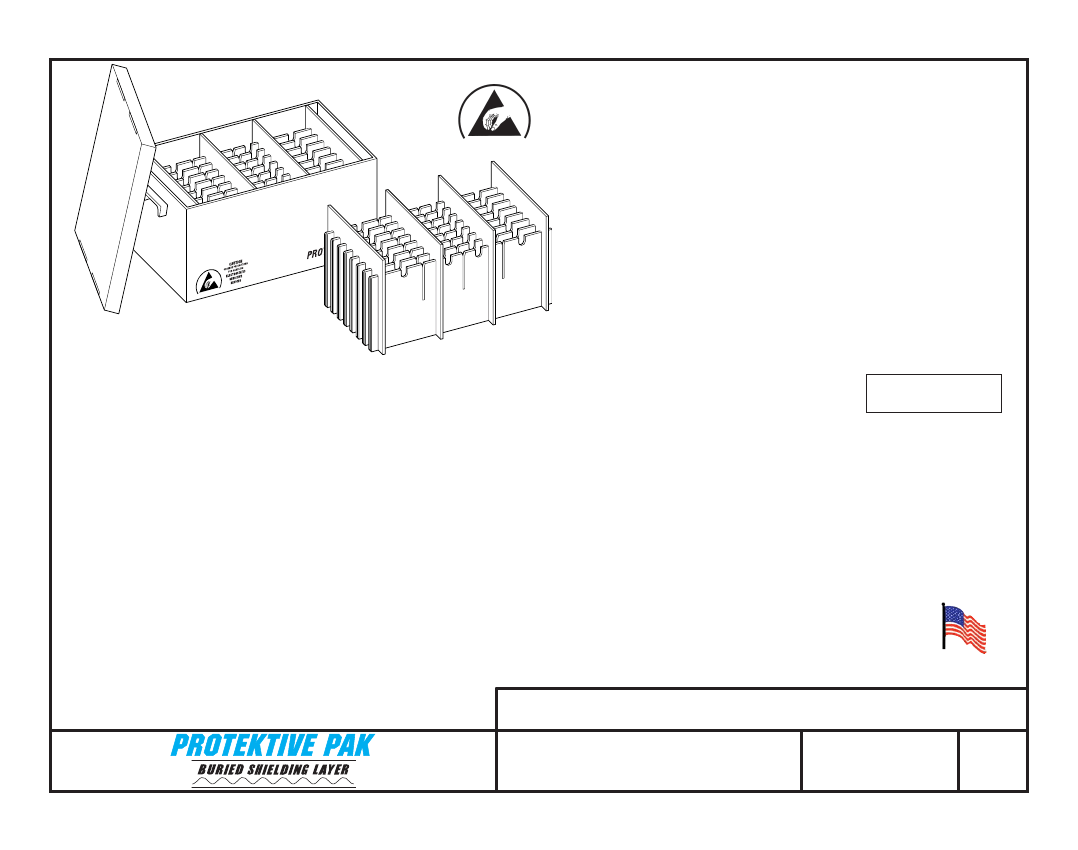

CORRUGATED IN-PLANT HANDLERS
PROTEKTIVE PAK
13520 MONTE VISTA AVENUE, CHINO, CA 91710
PHONE (909) 627-2578, FAX (909) 363-7331
ProtektivePak.com
© 2009 DESCO INDUSTRIES INC.
Employee Owned
DRAWING NUMBER
37150
DATE:
April
2009
