P87CE560EFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P87CE560EFB

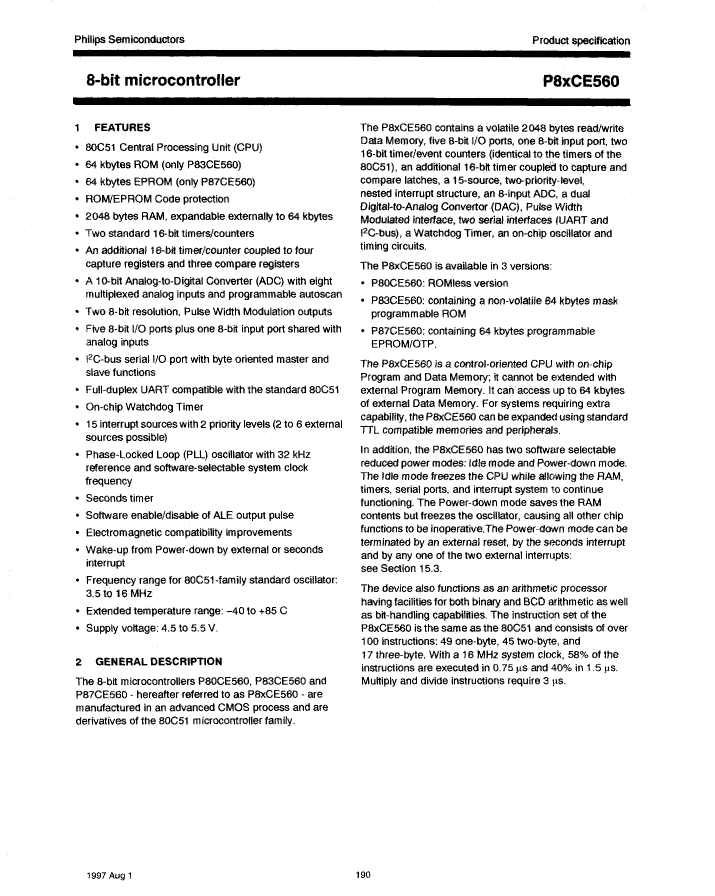

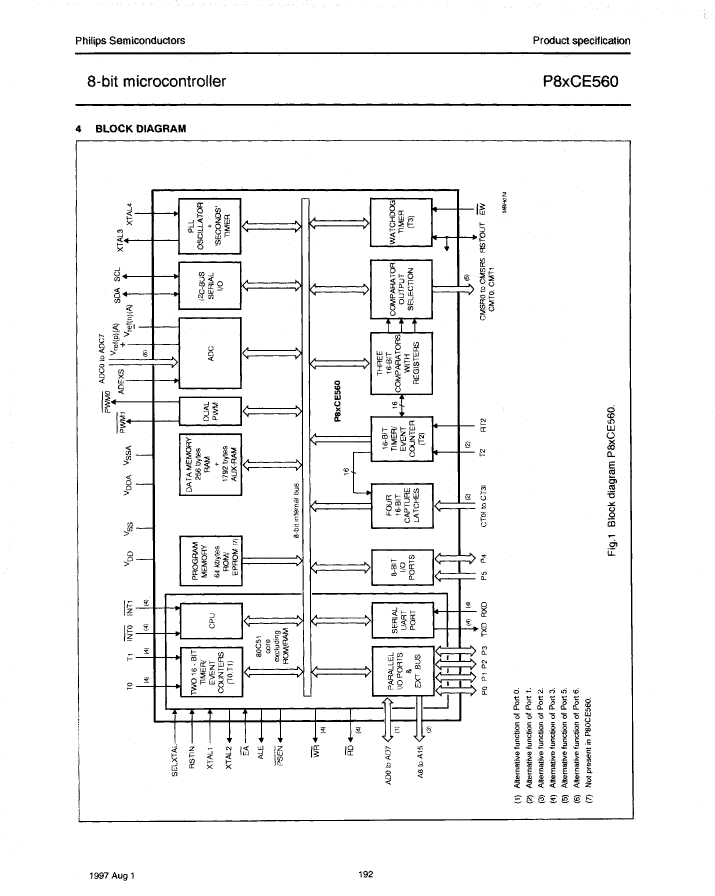

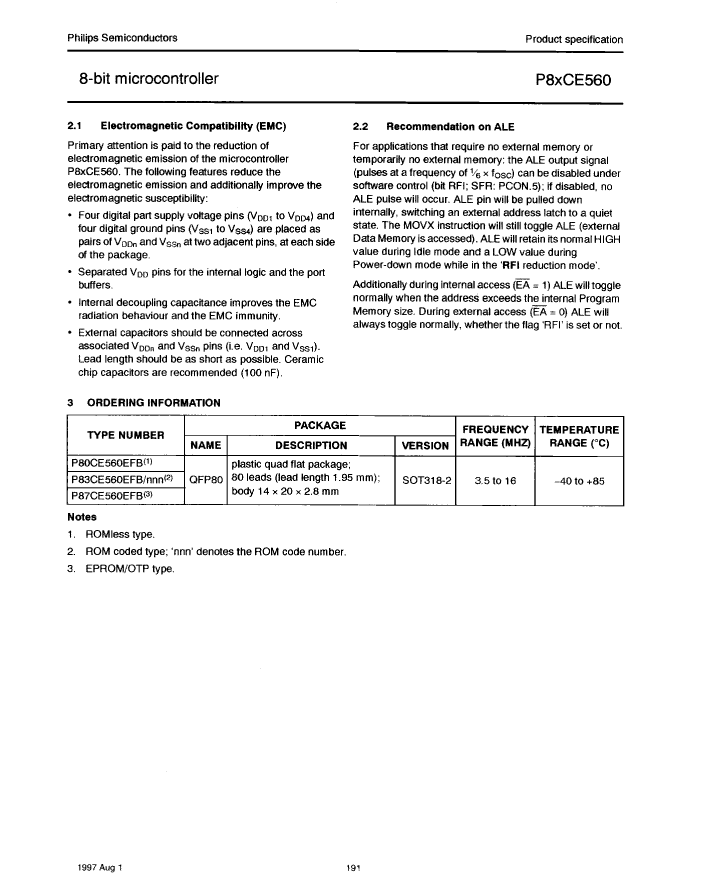

P87CE560EFB: DescriptionIC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, SOT-318-1, QFP-80, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size136KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P87CE560EFB Overview

IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, SOT-318-1, QFP-80, Microcontroller

P87CE560EFB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
Parts packaging code	QFP
package instruction	QFP, QFP80,.7X.9,32
Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G80
length	20 mm
Number of I/O lines	48
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	2048
rom(word)	65536
ROM programmability	OTPROM
Maximum seat height	3.2 mm
speed	16 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

P87CE560EFB Related Products

	P87CE560EFB	P87CE560EFB-S	P80CE560EFB-T	P87CE560EFB-T	P83CE560EFB/NNN-T
Description	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP80, 14 X 20 X 2.70 MM, PLASTIC, SOT-318-1, QFP-80, Microcontroller	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller
package instruction	QFP, QFP80,.7X.9,32	QFP,	QFP,	QFP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16
bit size	8	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8
JESD-30 code	S-PQFP-G80	S-PQFP-G80	R-PQFP-G80	S-PQFP-G80	R-PQFP-G80
length	20 mm	20 mm	20 mm	20 mm	20 mm
Number of I/O lines	48	48	48	48	48
Number of terminals	80	80	80	80	80
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum slew rate	40 mA	40 mA	40 mA	40 mA	40 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NXP	-	NXP	NXP	NXP
Parts packaging code	QFP	-	QFP	-	QFP
Contacts	80	-	80	-	80
ROM programmability	OTPROM	OTPROM	-	OTPROM	MROM
