8T09/BDA datasheet, PDF - EEWORLD Datasheet

8T09/BDA: DescriptionBus Driver, 8T Series, 4-Func, 1-Bit, Inverted Output, TTL, CDFP14,; Categorylogic logic; File Size129KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

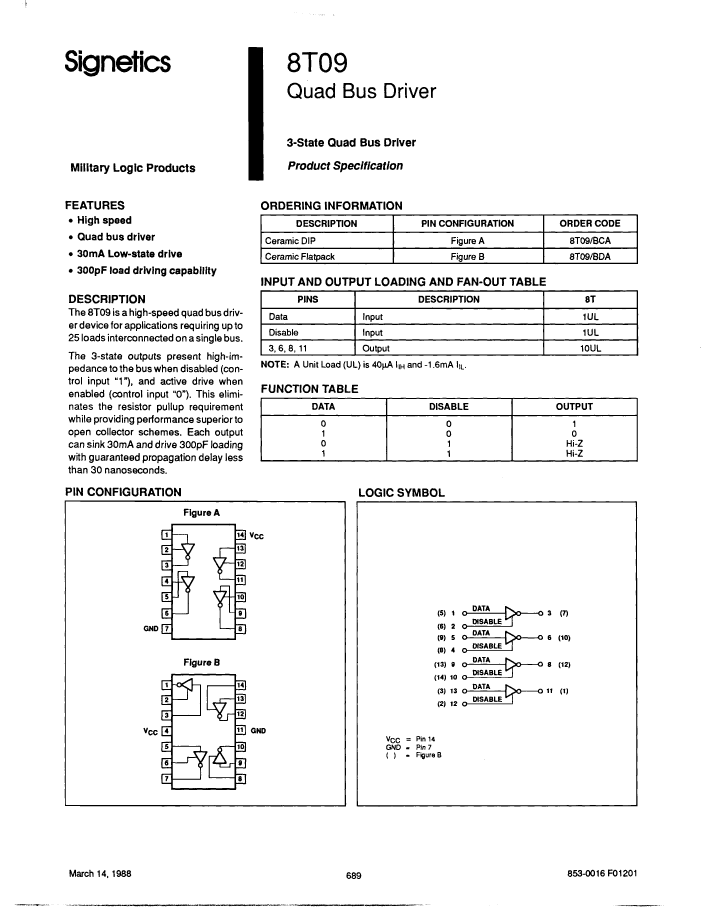

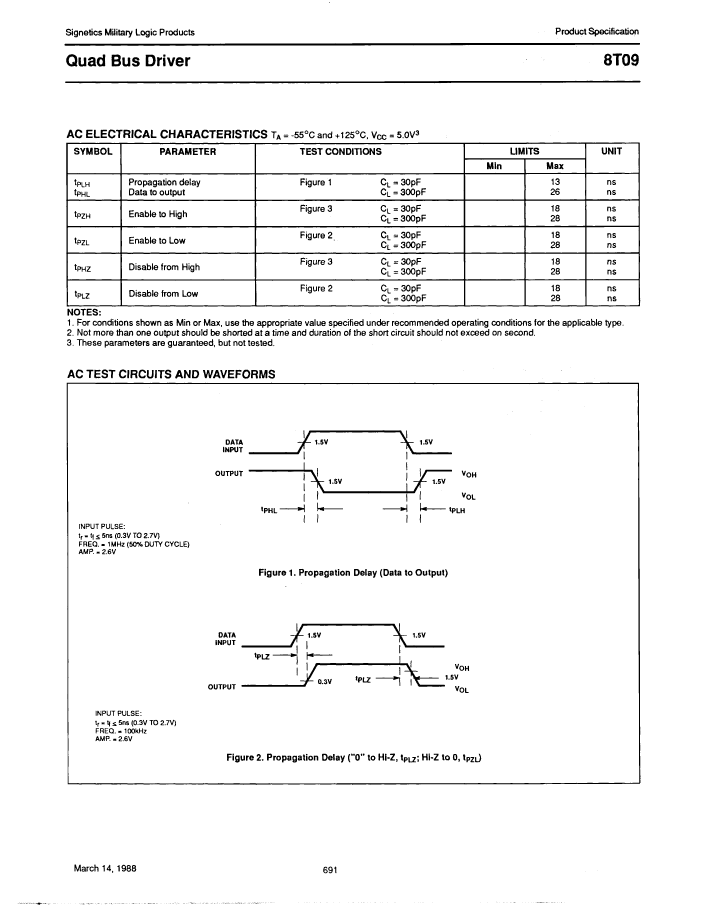

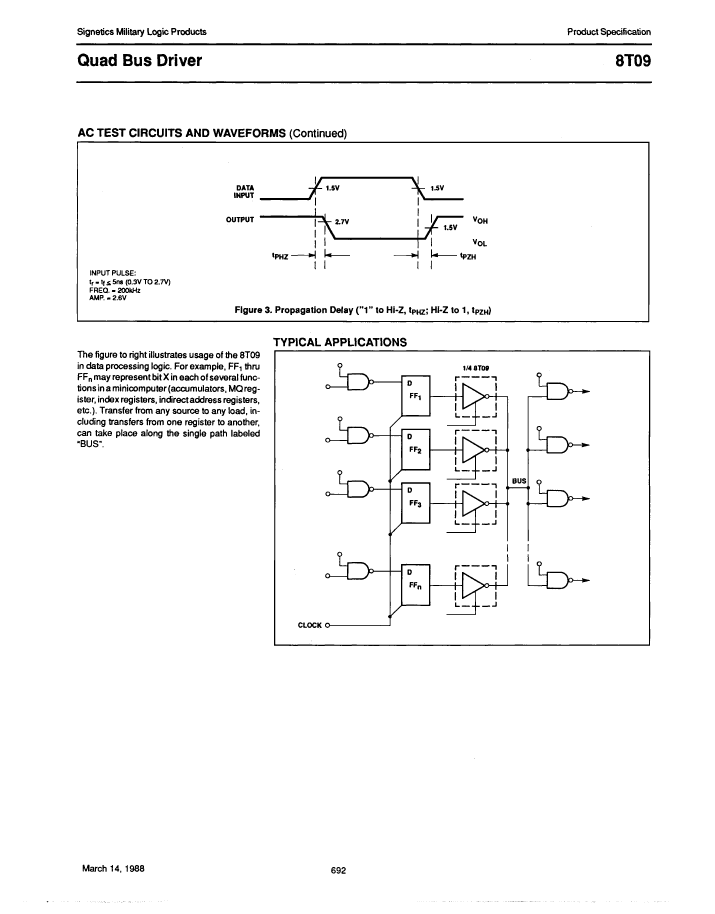

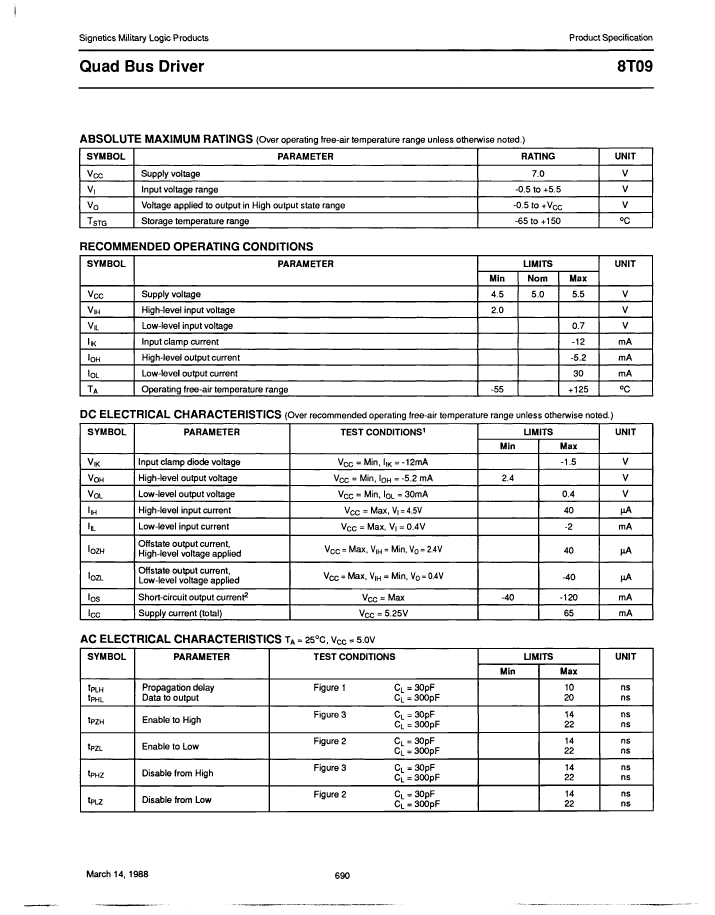

8T09/BDA Overview

Bus Driver, 8T Series, 4-Func, 1-Bit, Inverted Output, TTL, CDFP14,

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
series	8T
JESD-30 code	R-CDFP-F14
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	65 mA
propagation delay (tpd)	26 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

	8T09/BDA	8T09/BCA
Description	Bus Driver, 8T Series, 4-Func, 1-Bit, Inverted Output, TTL, CDFP14,	Bus Driver, 8T Series, 4-Func, 1-Bit, Inverted Output, TTL, CDIP14,
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
series	8T	8T
JESD-30 code	R-CDFP-F14	R-CDIP-T14
Load capacitance (CL)	300 pF	300 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	1	1
Number of functions	4	4
Number of ports	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Maximum supply current (ICC)	65 mA	65 mA
propagation delay (tpd)	26 ns	26 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL
