QL3040-3PQ208M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL3040-3PQ208M

QL3040-3PQ208M: DescriptionField Programmable Gate Array, 1008 CLBs, 40000 Gates, 1008-Cell, CMOS, PQFP208, 28 X 28 MM, 3.35 MM HEIGHT, PLASTIC, MS-029, QFP-208; CategoryProgrammable logic devices Programmable logic; File Size208KB，19 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric View All

QL3040-3PQ208M Overview

Field Programmable Gate Array, 1008 CLBs, 40000 Gates, 1008-Cell, CMOS, PQFP208, 28 X 28 MM, 3.35 MM HEIGHT, PLASTIC, MS-029, QFP-208

QL3040-3PQ208M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Parts packaging code	QFP
package instruction	28 X 28 MM, 3.35 MM HEIGHT, PLASTIC, MS-029, QFP-208
Contacts	208
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
JESD-30 code	S-PQFP-G208
JESD-609 code	e0
length	28 mm
Humidity sensitivity level	3
Configurable number of logic blocks	1008
Equivalent number of gates	40000
Number of entries	252
Number of logical units	1008
Output times	244
Number of terminals	208
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1008 CLBS, 40000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Encapsulate equivalent code	QFP208,1.2SQ,20
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3,3.3/5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	4.1 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	28 mm

Preview

Download Datasheet

View All

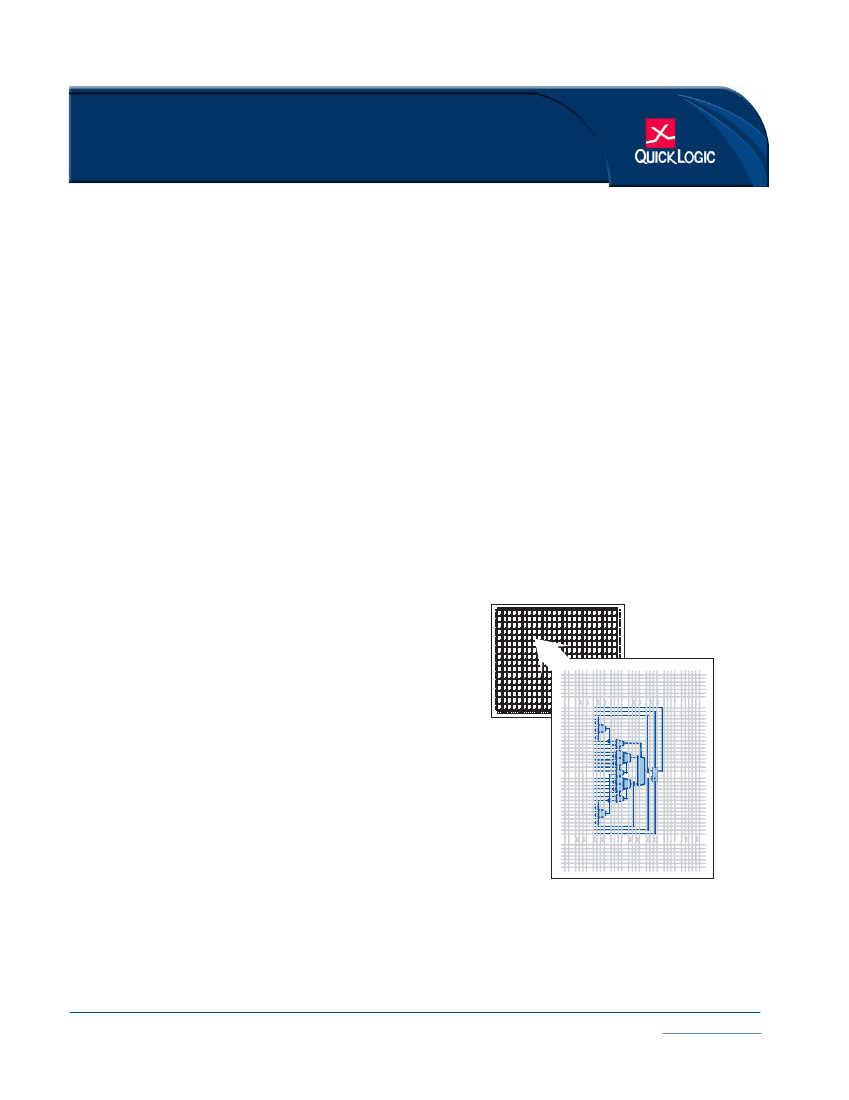

QL3040 pASIC 3 FPGA Data Sheet

••••••

40,000 Usable PLD Gate pASIC 3 FPGA Combining High Performance

and High Density

Device Highlights

High Performance & High Density

•

40,000 Usable PLD Gates with 252 I/Os

•

300 MHz 16-bit Counters,

Eight Low-Skew Distributed

Networks

•

Two array clock/control networks available

400 MHz Datapaths

•

0.35

µm

four-layer metal non-volatile

CMOS process for smallest die sizes

Easy to Use / Fast Development

Cycles

•

100% routable with 100% utilization and

to the logic cell flip-flop clock, set and reset

inputs — each driven by an input-only pin

•

Six global clock/control networks available

to the logic cell; F1, clock set, reset inputs

and the input, I/O register clock, reset, and

enable inputs as well as the output enable

control — each driven by an input-only or

I/O pin, or any logic cell output or I/O cell

feedback

complete pin-out stability

•

Variable-grain logic cells provide high

performance and 100% utilization

•

Comprehensive design tools include high

quality Verilog/VHDL synthesis

High Performance

•

Input + logic cell + output total delays

under 6 ns

•

Data path speeds over 400 MHz

•

Counter speeds over 300 MHz

Advanced I/O Capabilities

•

Interfaces with both 3.3 V and 5.0 V devices

•

PCI compliant with 3.3 V and 5.0 V buses

for -1/-2/-3/-4 speed grades

•

Full JTAG boundary scan

•

I/O Cells with individually controlled

Registered Input Path and Output Enables

Total of 252 I/O Pins

•

244 bidirectional input/output pins,

PCI-compliant for 5.0 V and 3.3 V buses for

-1/-2/-3/-4 speed grades

•

Eight high-drive input/distributed

network pins

Figure 1: 1,008 pASIC 3 Logic Cells

www.quicklogic.com

•

Recommended Resources

M50197 application circuit

SFH694T type low current input small optical coupling circuit

MC3367 receiving circuit

5V-10A regulated power supply circuit diagram composed of 5G14

Pulse automatic charger circuit(2)

555 automobile multi-purpose alarm circuit

Frequency meter: Haha~~~ The rookie has come up with something new... Frequency meter: I won't cheat you, but it can only measure 400KHZ, the limit of the crystal oscillator. [[i] This post was last edited by 57493724...; 574937246 Microcontroller MCU

LM3S8962 temperature measurement signal input: Hello everyone, I have just started designing with LM3S8962. Now I have a temperature sensor part that generates a voltage signal to LM3S8962. How can I receive it?...; 过佳刚 Microcontroller MCU

Oh, almighty altar, the deadline is approaching, please give me some advice!: I am from Shanghai Qualcomm Semiconductor, the only company in China that makes standard font chips. I will attend the IC-China exhibition held in Shanghai on October 26. I originally wanted to rent a...; frankuly PCB Design

EVC database development routine: [indent][indent][float=left]EVC database development routine[/float] [/indent][/indent]...; jiki119 Talking

[Live broadcast has ended] TI's new generation of high-performance, low-power Zigbee solutions: [size=3][font=微软雅黑][b][color=#ff0000]Live Details:[/color][/b] [url=https://www.eeworld.com.cn/huodong/TI_Zigbee_webinar_20181218/]TI Zigbee 3.0 and Multi-protocol Solutions[/url][/font][font=微软雅黑] [/...; EEWORLD社区 Wireless Connectivity

The laptop with copycat WINCE system cannot enter the system: My relative bought a small computer with a fake WINCE system through TV shopping. Now I can't enter the system. There is a boot screen. Please help me. How can I fix it? Can I flash the system? How to...; xw99 Embedded System
