2R5TPD680M8: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 2.5V, 680uF, SURFACE MOUNT, 2917, CHIP; CategoryPassive components capacitor; File Size46KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2R5TPD680M8 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 2.5V, 680uF, SURFACE MOUNT, 2917, CHIP

2R5TPD680M8 Parametric

Parameter Name	Attribute value
Objectid	1990400674
package instruction	, 2917
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ
capacitance	680 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
Manufacturer's serial number	TPD
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
ripple current	4900 mA
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal shape	WRAPAROUND

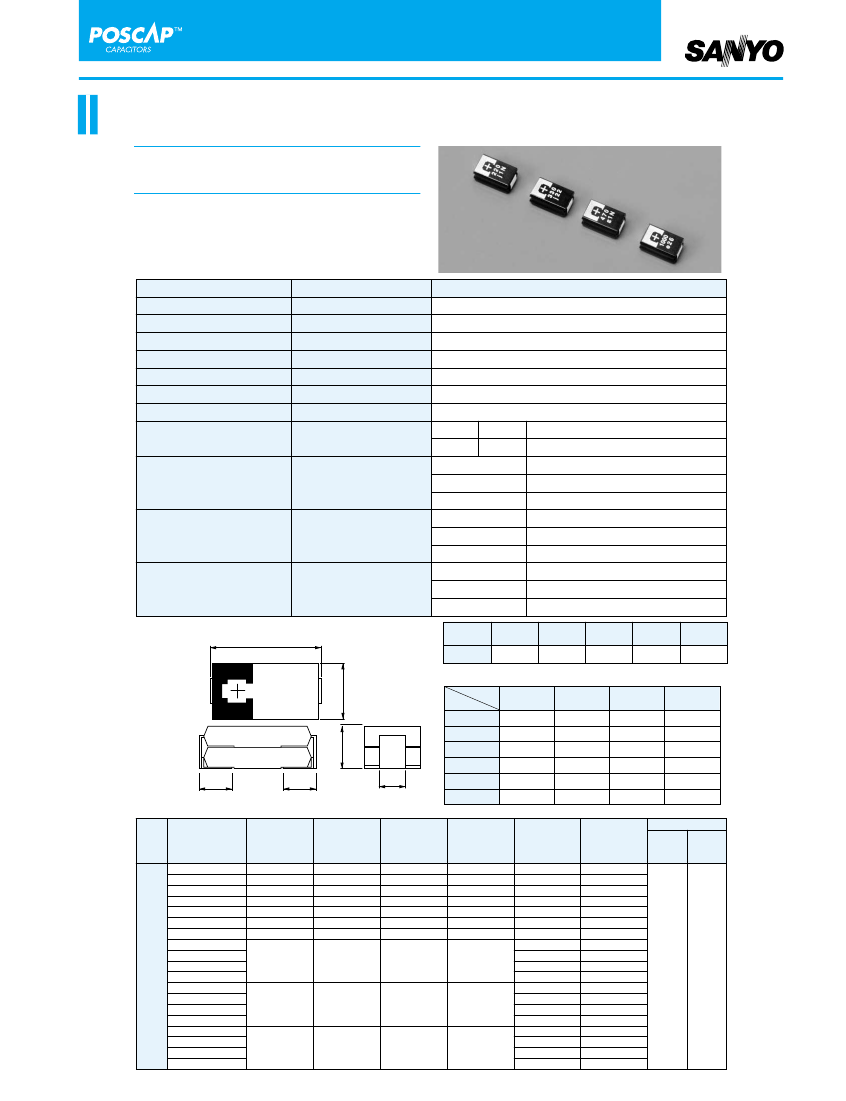

2R5TPD680M8 Preview

TPD Series

Low ESR

High Capacitance Products

TPD series has low ESR and high capacitance.

It is the most suitable for the high frequency and

high current switching power supply applications.

■

Specifications

Items

Operating Temperature range

Rated capacitance range

Capacitance tolerance

Rated voltage

Dissipation Factor

（D.F.）

Leakage current

Equivalent series resistance ESR

（mΩmax.）

Temperature characteristics of

Impedance ratio

Condition

−

120Hz/20℃

−

120Hz/20℃

Rated voltage applied, after 5 minutes

100kHz/20℃

100kHz/＋20℃

−55℃

＋105℃

105℃,2000h,

rated voltage applied

Characteristics

−55

to

＋105

（℃）

150 to 1000

（μF）

M:±20％

2.5 to 10

（V.DC）

≦10.0

（％）

≦

0.1CV

（μA）

Please see the attached characteristics list

Z/Z

20℃

Z/Z

20℃

1.0 to 2.0

0.6 to 1.0

Within±20％ of the initial value

≦1.5

times the initial limit

≦The

initial limit

Within＋40％,

−20％

of the initial value

≦1.5

times the initial limit

≦3

times the initial limit

Within±5％ of the initial value

≦The

initial limit

≦3

times the initial limit

L

W

H

S

W1

（±0.3）（±0.2）（±0.2）（±0.2）（±0.1）

7.3

4.3

3.6

1.3

2.4

△C/C

Endurance

D.F.

L.C.

△C/C

Damp heat (Steady state)

60℃,90 to 95%RH,500h,

No voltage applied

D.F.

L.C.

105℃,1000 cycles,

1kΩdischarge resistance,

surge voltage applied

△C/C

D.F.

L.C.

Size

code

D4D

Surge

■

Dimensions (unit: mm)

L

(D4D size)

470

e30D

W

■

Size List

μF

（SV）

RV

2.5

（3.2）

4.0

（5.0）

6.3

（8.0）

D4D

10.0

（13.0）

D4D

150

220

H

330

470

D4D

S

W1

680

1000

■

Characteristics List

Size

code

SANYO

Part number

Rated Voltage

（V）

Rated

Capacitance

（μF）

D.F.

（%max.）

L.C.

（μA）

max./5min.

E.S.R.

（mΩmax）

100kHz/20℃

Maximum

allowable

ripple current

（mArms）

100kHz

※

1

MSL

Reflow

Temp.

≦260℃

Reflow

Temp.

≦250℃

D4D

10TPD150M

6TPD220M

6TPD330M

6TPD470M

4TPD330M

4TPD470M

4TPD680M

2R5TPD470M

2R5TPD470M8

2R5TPD470M6

2R5TPD470M5

2R5TPD680M

2R5TPD680M8

2R5TPD680M6

2R5TPD680M5

2R5TPD1000M

2R5TPD1000M8

2R5TPD1000M6

2R5TPD1000M5

10.0

6.3

4.0

2.5

150

220

330

470

330

470

680

470

10.0

150.0

138.6

207.9

296.1

132.0

188.0

272.0

117.5

2.5

680

10.0

170.0

2.5

1000

10.0

250.0

15

12

10

12

10

8

6

5

10

8

6

5

10

8

6

5

3600

4000

4400

4000

4400

4900

5600

6100

4400

4900

5600

6100

4400

4900

5600

6100

3

2a

※1:100k

to 500kHz, 45℃

21

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

2R5TPD680M8 Related Products

	2R5TPD680M8	4TPD330M	6TPD330M	2R5TPD680M	6TPD220M
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 2.5V, 680uF, SURFACE MOUNT, 2917, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 4V, 330uF, SURFACE MOUNT, 2917, CHIP	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 2.5V, 680uF, SURFACE MOUNT, 2917, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3V, 220uF, SURFACE MOUNT, 2917, CHIP
package instruction	, 2917	CHIP	, 2917	CHIP	, 2917
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ	RIPPLE CURRENT IS MEASURED AT 100KHZ-500KHZ
capacitance	680 µF	330 µF	330 µF	680 µF	220 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
Manufacturer's serial number	TPD	TPD	TPD	TPD	TPD
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	2.5 V	4 V	6.3 V	2.5 V	6.3 V
ripple current	4900 mA	4000 mA	4400 mA	4400 mA	4000 mA
size code	2917	2917	2917	2917	2917
surface mount	YES	YES	YES	YES	YES
Delta tangent	0.1	0.1	0.1	0.1	0.1
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Objectid	1990400674	1933565049	-	1933565048	-
leakage current	-	0.132 mA	0.2079 mA	-	0.1386 mA
Is it Rohs certified?	-	-	conform to	conform to	conform to
JESD-609 code	-	-	e4	e4	e4
Terminal surface	-	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
