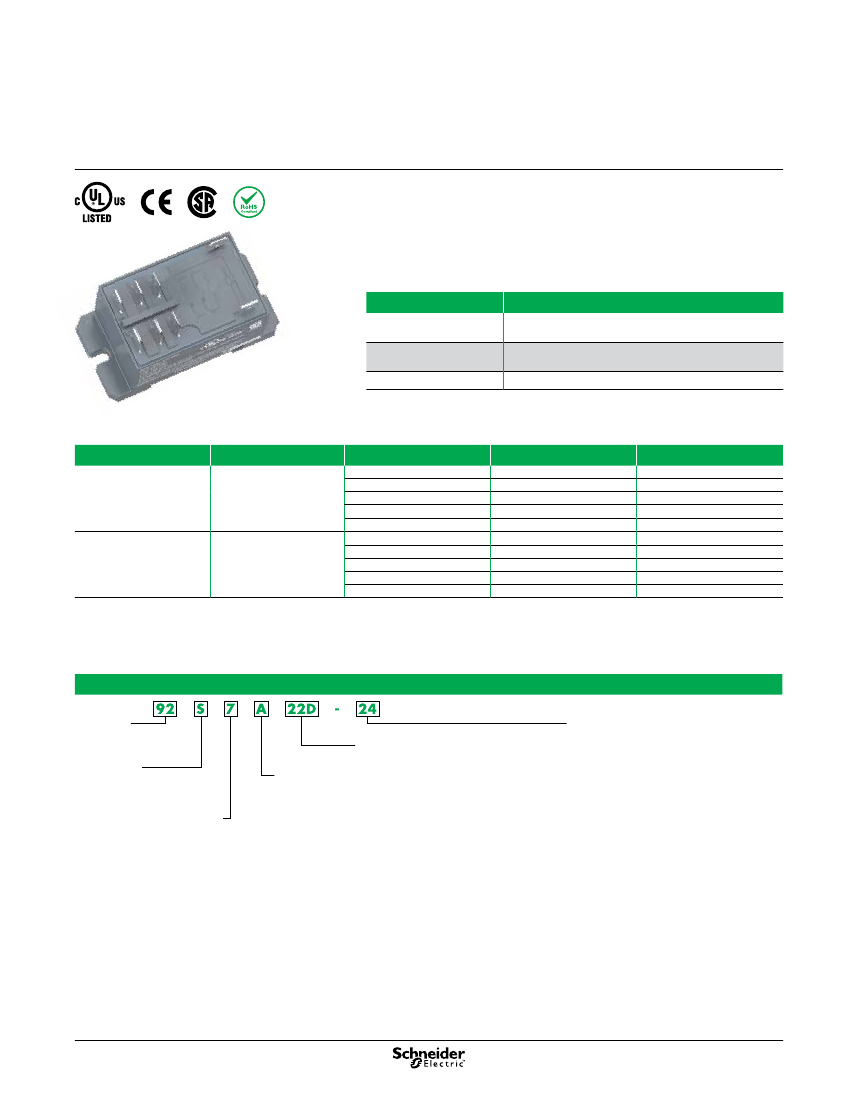

Description
Magnecraft
™
Power Relays
92
DPST-NO, 30 A;
DPDT, 30 A (NO) / 3 A (NC)
Description
The 92 series power relays offer a small package size and features Class F
insulation for a maximum coil temperature of 155 °C (311 °F)½ These power relays
meet UL508 spacing and are directly DIN or panel mountable½
Feature
Standard Class F insulation
DIN and panel mount cover
Sealed construction
Benefit
Allows for maximum coil temperature of 155 ˚C (311 °F)
which is ideal for elevated temperature applications
Mounts directly onto DIN rail or panel and provides flexibility
to accommodate last minute design changes
Suitable for washing to remove flux residues
92S11A22D
Rated Contact Current
Contact Configuration
Coil Voltage
24 Vac
120 Vac
240 Vac
12 Vdc
24 Vdc
24 Vac
120 Vac
240 Vac
12 Vdc
24 Vdc
Coil Resistance (Ω)
170
1
4250
1
15600
1
86
350
170
1
4250
1
16500
1
86
350
Standard Part Number
92S7A22D-24
92S7A22D-120
92S7A22D-240
92S7D22D-12
92S7D22D-24
92S11A22D-24
92S11A22D-120
92S11A22D-240
92S11D22D-12
92S11D22D-24
30 A
DPST-NO
30 A (NO) / 3 A (NC)
DPDT
1
All AC coils are rectified.
Part Number Explanation
Series:
92
Cover:
S =
Dust cover
Contact Configuration:
7 =
DPST-NO
11 =
DPDT
Coil Type:
A =
AC
D =
DC
Coil Voltage:
12 =
12 V
24 =
24 V
Mounting Style:
22D =
DIN rail and panel mount cover
120 =
120 V
240 =
240 V
Note:
Available coil voltages include
12 Vdc, 24 Vac, 24 Vdc, 120 Vac,
and 240 Vac.
23
Specifications
Magnecraft
™
Power Relays
92
DPST-NO, 30 A;
DPDT, 30 A (NO) / 3 A (NC)
Specifications
Part Number
Contact Characteristics
Contact Configuration
Contact Material
DPST-NO
Silver Alloy
30 A (NO); 3 A (NC)
DPDT
92S7
92S11
Thermal (Carrying) Current 30 A
Maximum Switching Voltage 250 Vac / 28 Vdc
(Conforming to IEC)
Maximum Switching Voltage 300 Vac / 28 Vdc
(Conforming to UL)
Current Ratings at Voltage (NO) 30 A at 250 Vac; 30 A at 28 Vdc
(Conforming to IEC)
(NO) 30 A at 250 Vac; 30 A at 28 Vdc
(NC) 3 A at 250 Vac; 3 A at 28 Vdc
(NO) General Use: 30 A at 277 Vac
Current Ratings at Voltage (NO) General Use: 30 A at 277 Vac
Resistive: 20 A at 28 Vdc
(Conforming to UL)
Resistive: 20 A at 28 Vdc
Motor: 1½0 hp at 120 Vac; 3½0 hp at 240 Vac
Motor: 1½0 hp at 120 Vac; 3½0 hp at 240 Vac
LRA/FLA : 96 A / 22 A @ 240 Vac (AC coil), 30,000 cycles
LRA/FLA : 96 A / 22 A @ 240 Vac (AC coil), 30,000 cycles
110 A / 25½3 A @ 240 Vac (DC coil), 30,000 cycles
110 A / 25½3 A @ 240 Vac (DC coil), 30,000 cycles
Pilot Duty: 720 VA / A 300, 6000 cycles
Pilot Duty: 720 VA / A 300, 6000 cycles
Short Circuit: 5000 A rms @ 240 Vac
Short Circuit: 5000 A rms @ 240 Vac
Tungsten: 10 A at 120 Vac 50/60 Hz, 25,000 cycles
Tungsten: 10 A at 120 Vac 50/60 Hz, 25,000 cycles
6 A at 250 Vac 50/60 Hz, 25000 cycles
6 A at 250 Vac 50/60 Hz, 25000 cycles
(NC) Resistive: 3 A at 277 Vac (6000 cycles); 3 A at 28 Vdc
Switching capacity
Minimum Switching
Requirements½
Coil Characteristics
Coil Voltage Range
1
Operating Range (% of
Nominal)
Average Consumption
24–240 Vac
2
50/60 Hz; 12–110 Vdc
80%–120% (AC); 75%–120% (DC)
4 VA (AC); 1½7 W (DC)
Maximum: 7500 VA / 840 W (when mounted with 13 mm gap between 2 relays); 6250 VA / 700 W (when mounted side by side without a gap)
Minimum: 170 mW
10 mA at 17 V
Drop-out Voltage Threshold 15% minimum (AC); 10% minimum (DC)
General Characteristics
Electrical Life at Rated Load Resistive load: 100,000 cycles, unless otherwise specified under rated operational current
Inductive load: See load curves on page 25½
Mechanical Life at No
Load (Unpowered)
Operate Time (Response
Time) at Nominal Coil
Voltage
Rated Impulse Withstand
Dielectric Strength
50,000,000 operations
25 ms maximum
4000 V (1½2
ms
/ 50
ms)
Between coil and contact: 4000 Vac (reinforced insulation)
Between poles: 2000 Vac (basic insulation)
Between contacts: 1500 Vac (micro-disconnection)
-40 – +55 °C ( -40 – +131 °F)
Operating Temperature
Range
Vibration Resistance
Shock Resistance
Weight (Average)
Conformity to Standards
Product Certifications and
Standards
Storage Temperature Range -40 – +85 °C (-40 – +185 °F)
3 g-n, 10–55 Hz
10 g-n (in operation) / 30 g-n (not in operation)
0½082 kg (0½181 oz)
IEC/EN 61810-1, UL 508, CSA C22-2 n°14
UL Listed (E48539), CSA (2582574), CE, RoHS
Note: Actual product performance may vary depending on application and environmental conditions.
1
For available standard coil voltages, please refer to the standard part number table on page 23.
2
All AC coils are rectified.
24
Specifications
(continued)
,

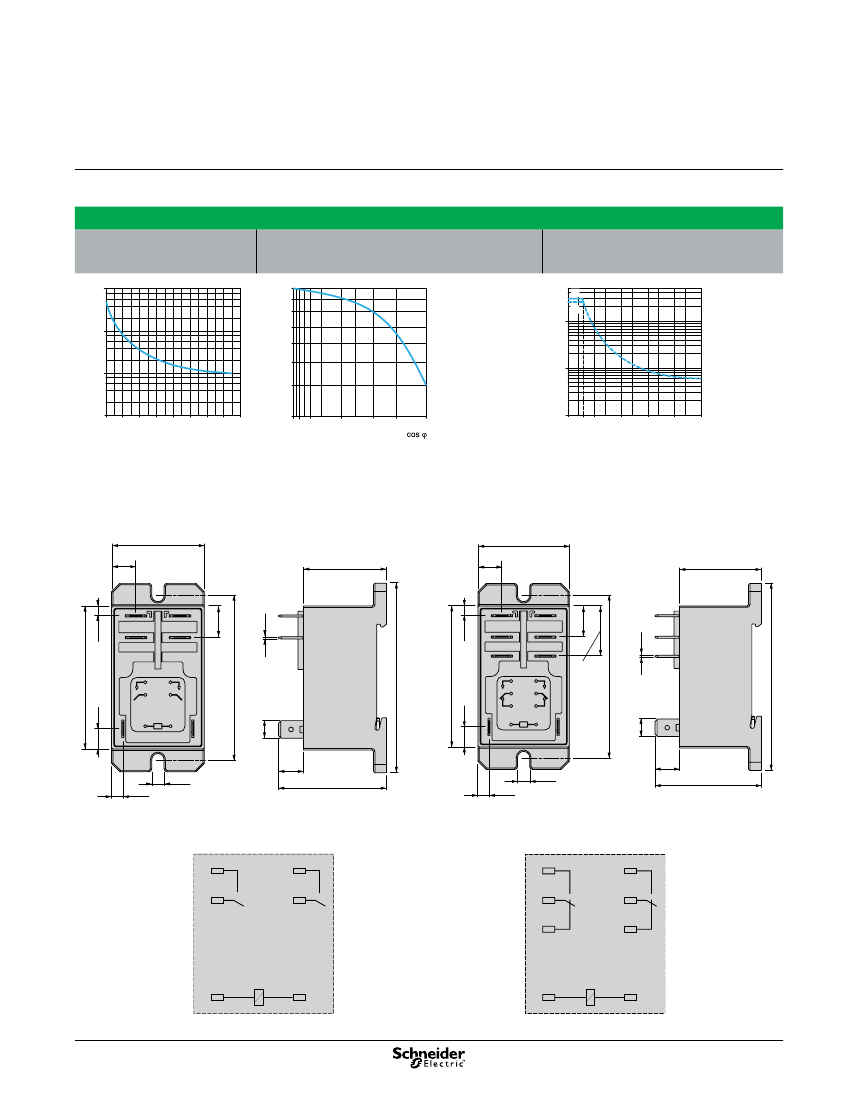

Dimensions,
Wiring Diagrams
Specifications
(continued)
Electrical durability of contacts
Resistive load
Magnecraft
™
Power Relays
92
DPST-NO, 30 A;
DPDT, 30 A (NO) / 3 A (NC)
AC reduction coefficient for inductive load
(depending on power factor cos
j)
Maximum switching capacity on DC resistive load
Durability (inductive load) = durability (resistive load) x
reduction coefficient.
Reduction coefficient
Reduction coefficient
Reduction coefficient
Current
c
Current
c
Current
c
Durability (Number of operating cycles)
Durability (Number of operating cycles)
Durability (Number of operating cycles)
107
107 107
1
0,8
0,6
0,5
1
0,8
0,6
0,5
1
0,8
0,6
0,5
A
10
A
10
A
B
B
106
106 106
10
B
5 55
A
RPF 2ppp:
A
RPF 2ppp:
30 A
A
RPF 2ppp:
30 A
30 A
B
RPF 2ppp:
B
RPF 2ppp:
25 A
B
RPF 2ppp:
25 A
25 A
105
105 105
0,4
0,4
0,4
1
1
1
104
0
104 104
1 2
0 3 0 4 1 5 2 6 3 7 4 85
1 2
3 4 5
6
76
87
8
0,3
SwitchingSwitching(kVA) capacity (kVA)
capacity capacity (kVA)
Switching
1
0,3 0,3
0,6 1 0,01
4,6
0,1
0,6 ,4
0
0,4
0,2
0,2
0,2
0
0,1 0,1
28 500 28 0 02815100 20050 2500 200
10 5
0
50
0
100
1
15
200
250 250
Voltage
c
Voltage
c
Voltage
c
6 66
Note: These curves are for reference only and are typical values only. Actual performance is dependant upon the actual load, environment, duty cycle, and other
conditions specific to the application.
Dimensions — inches (millimeters)
DPST-NO (2 NO):
0.35
(8.85)
1.33
(33.7)
1.18
(30)
DPDT (2 CO):
0.35
(8.85)
1.33
(33.7)
1.18
(30)
0.45
(11.48)
0.14
(3.6)
0.14
(3.6)
0.45
(11.48)
0.03
(0.8)
0.73
(18.48)
2.70
(68.5)
2.35
(59.8)
0.03
(0.8)
2.35
(59.8)
0.25 (6.3)
0.25 (6.3)
0.29
(7.4)
0.29
(7.4)
0.16
(4.15)
0.18
(4.5)
0.36
(9.05)
1.54
(39.05)
0.16
(4.15)
0.18
(4.5)
0.36
(9.05)
1.54
(39.05)
Wiring Diagrams
DPST-NO (2 NO):
6
14
8
11
6
14
8
11
2
24
4
21
2
24
4
21
DPDT (2 CO):
6
14
8
7
11
12
6
14
8
7
11
12
2
24
4
3
21
22
2
24
4
3
21
22
1
A1
1
A1
0
A2
0
A2
1
A1
1
A1
0
A2
0
A2
2.70
(68.5)
2.05
(52)
2.05
(52)
25
Talking
