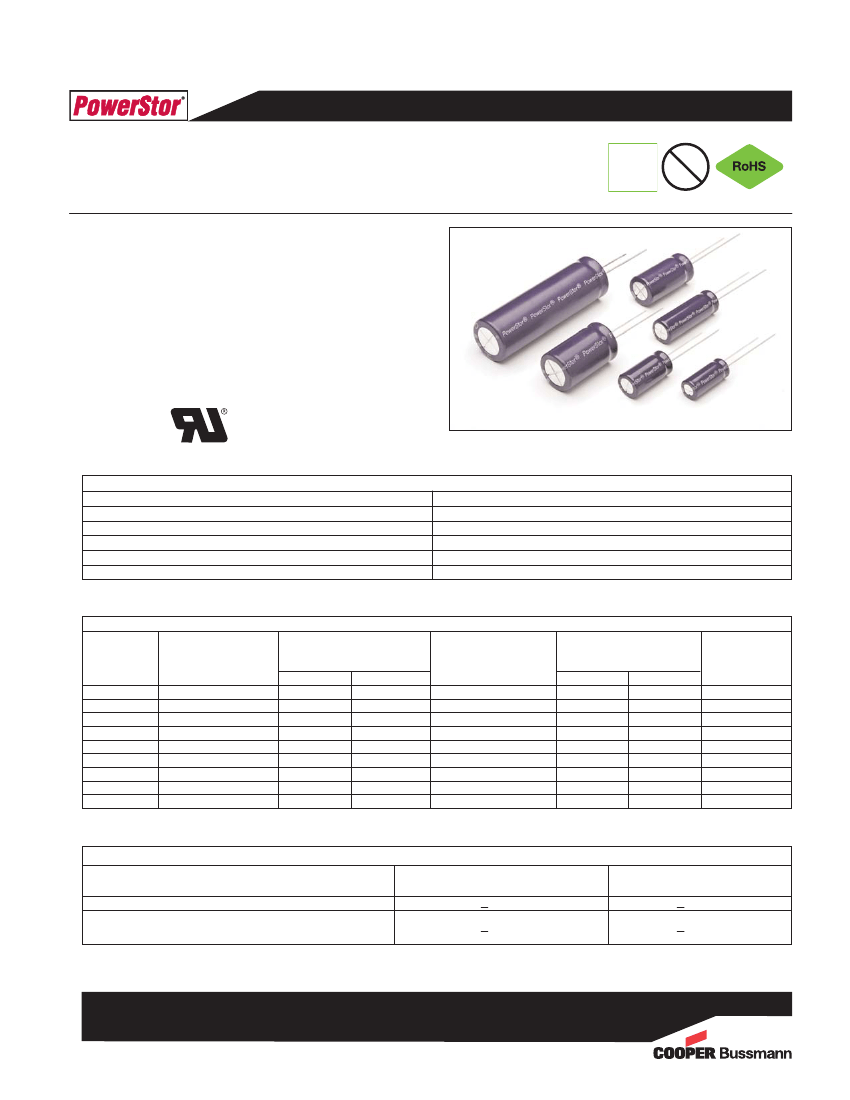

Supercapacitors

HB Series

Description

Cooper Bussmann PowerStor supercapacitors are unique, ultra-high

capacitance devices utilizing electrochemical double layer capacitor (EDLC)

construction combined with new, high performance materials. This

combination of advanced technologies allows Cooper Bussmann to offer a

wide variety of capacitor solutions tailored to specific applications that range

from a few micro-amps for several days to several amps for milliseconds.

FREE

HALOGEN

Features & Benefits

• Ultra low ESR for high power density

• Large capacitance for high energy density

• UL Recognized

Cylindrical Device

Specifications

Working Voltage

Surge Voltage

Capacitance

Capacitance Tolerance

Operating Temperature Range

Extended Operating Temperature Range

2.5V

3.0V

3.0F to 110F

-10% to +30% (20°C)

-25°C to 70°C

-25°C to 85°C (with linear voltage derating to 2.1V @ 85°C)

Standard Product

Capacitance

(F)

110

Maximum ESR (Ω)

(Equivalent Series Resistance)

Measured @

1kHz

100Hz

0.155

0.160

0.095

0.100

0.095

0.100

0.060

0.045

0.050

0.036

0.040

0.028

0.030

0.023

0.025

0.018

0.020

Nominal

Leakage Current (μA)

After 72 Hrs.

@ 20°C

180

Nominal

Dimensions (mm)

Diameter

Length

20.5

Typical Mass

(grams/piece)

1.5

2.4

3.5

4.8

8.2

9.8

13.8

Part Number

HB0820-2R5305-R

HB1020-2R5505-R

HB0830-2R5605-R

HB1030-2R5106-R

HB1325-2R5156-R

HB1625-2R5256-R

HB1635-2R5356-R

HB1840-2R5606-R

HB1860-2R5117-R

Performance

Parameter

Life (1000 hrs @ 70°C @ 2.5Vdc)

Storage - Low and High Temperature

(1000 hrs @ -25°C and 85°C)

Capacitance Change

(% of initial Specified value)

30 %

ESR

(% of initial specified value)

200 %

1211

BU-SB111359

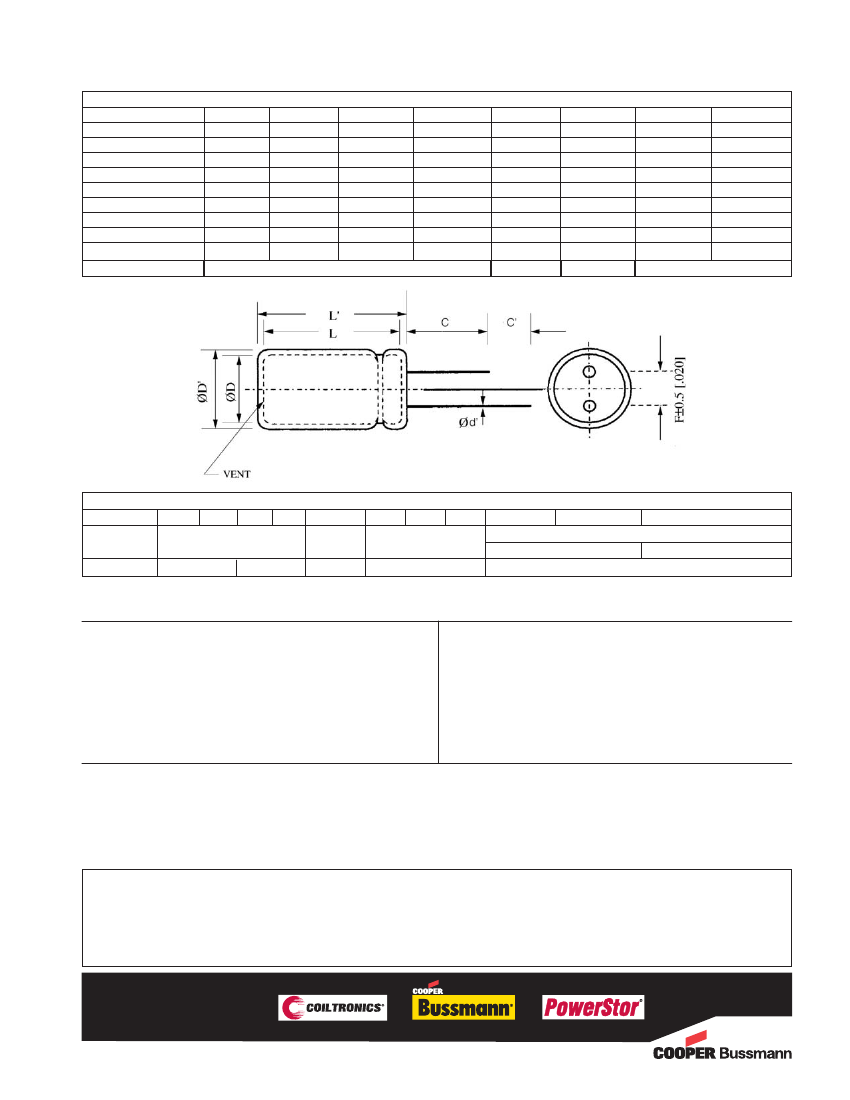

Page 1 of 2

Data Sheet: 4375

HB1030-2R5106-R Related Products

	HB1030-2R5106-R	HB0830-2R5605-R	HB1020-2R5505-R	HB1325-2R5156-R	HB1625-2R5256-R	HB1635-2R5356-R	HB1840-2R5606-R	HB1860-2R5117-R	HB0820-2R5305-R
Description	CAP SUPER 10F 2.5V RADIAL	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 5000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 5000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 25000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 25000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 5000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 60000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 110000000 uF, THROUGH HOLE MOUNT	CAPACITOR, ELECTRIC DOUBLE LAYER, 2.5 V, 5000000 uF, THROUGH HOLE MOUNT
Maximum operating temperature	-	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel
Minimum operating temperature	-	-25 Cel	-25 Cel	-25 Cel	-25 Cel	-25 Cel	-25 Cel	-25 Cel	-25 Cel
negative deviation	-	10 %	10 %	10 %	10 %	10 %	10 %	10 %	10 %
positive deviation	-	30 %	30 %	30 %	30 %	30 %	30 %	30 %	30 %
Rated DC voltage urdc	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Processing package description	-	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT	RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT
state	-	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	Active	ACTIVE
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	Through hole mounting	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Manufacturer Series	-	HB	HB	HB	HB	HB	HB	HB	HB
capacitance	-	5.00E6 uF	5.00E6 uF	2.50E7 uF	2.50E7 uF	5.00E6 uF	6.00E7 uF	1.10E8 µF	5.00E6 uF
packaging shape	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	Cylindrical PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Capacitor type	-	ELECTRIC DOUBLE LAYER	ELECTRIC DOUBLE LAYER	ELECTRIC DOUBLE LAYER	ELECTRIC DOUBLE LAYER	ELECTRIC DOUBLE LAYER	double layer circuit	ELECTRIC DOUBLE LAYER CAPACITOR	ELECTRIC DOUBLE LAYER
Terminal shape	-	WIRE	WIRE	WIRE	WIRE	WIRE	Wire	WIRE	WIRE
