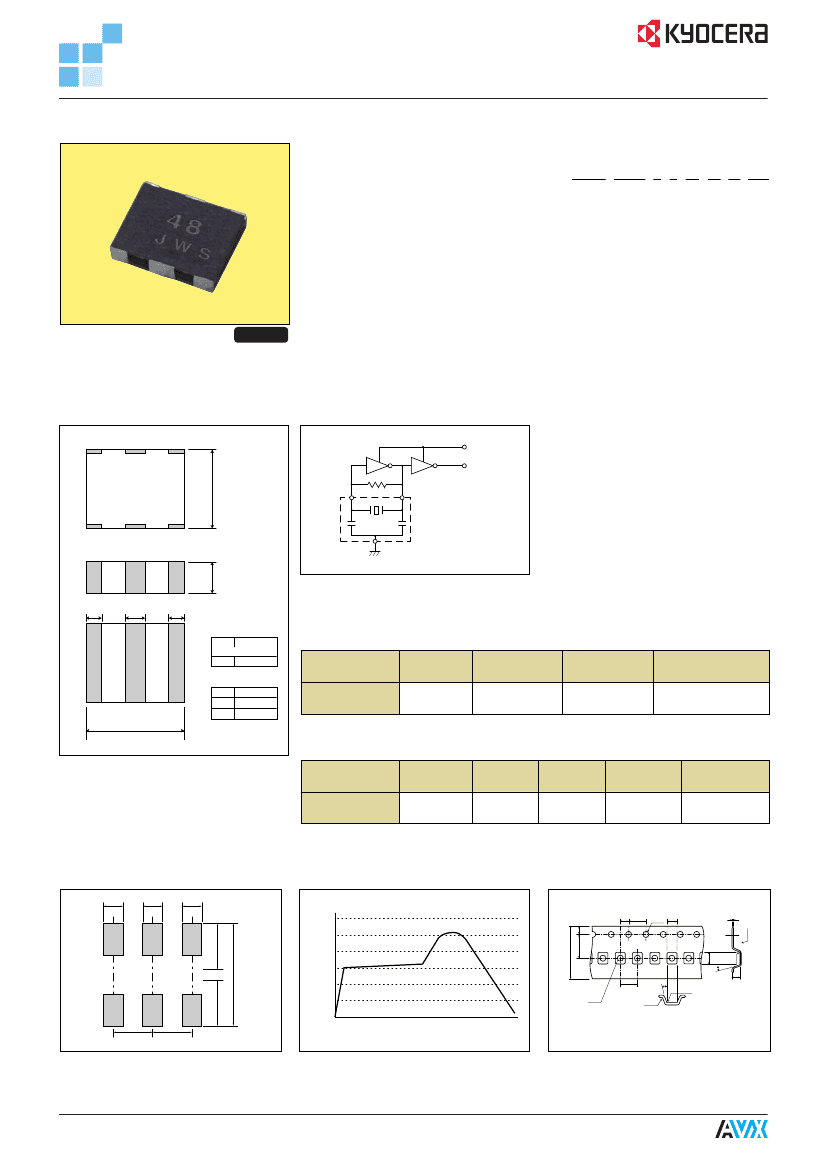

MHz Band Ceramic Resonators (SMD)
PRTC Series
2.5×2.0×0.8mm
Ultra-miniature chip resonator with 0.8mm
maximum height
Best suited for compact and low profile
electronic devices
How to Order
PRTC 25.00 T R 50 10 W 000
①
② ③④ ⑤ ⑥ ⑦ ⑧
①Series
②Oscillating
Frequency (MHz)
③Oscillating
Mode
④Packaging
: Tape & Reel
4000pcs./Reel
⑤Initial
Frequency Tolerance (0.5%)
⑥Load
Capacitance
⑦Operating
Temperature (20°C to 80°C)
⑧Unique
Code
Features
• Ultra-miniature (2.52.00.8mm) SMD type
• High precision type is available for full speed
USB
Applications
RoHS Compliant
• CD-R/W
• HDD
• DVD-ROM
• MD
• Printer
• Cellular (CDMA/PCS)
• Portable Electronic Equipment
• Memory Card
• USB
Notice
• Non Washable
Dimensions
(Unit : mm)
Test Circuit
V
DD
fosc
2.00.20
R
1
3
V
DD
: 5V
R : 1M
IC : MC74HCU04
(Freescale)
2
0.4
0.5
0.4
• Standard Type
① ③
Input/Output
(No polarity)
②
GND
0.8 max.
Specifications
• Standard Type
Frequency Range
25.0 to 60.0MHz
Frequency
Tolerance
(25°C)
Temperature
Stability
(20 to 80°C)
IC
MC74HCU04
(Freescale)
• High Precision Type
①
②
③
2.50.2
Output
GND
Input
Standard Frequency
(MHz)
25.0, 30.0, 33.86, 40.0
0.5%
0.2%
Please contact your local sales office for IC matching.
• High Precision Type
Frequency Range
25.0 to 60.0MHz
Frequency
Tolerance
(25°C)
Temperature
Stability
(20 to 70°C)
Aging
(10 years)
0.01%
IC
MC74HCU04
(Freescale)
Standard Frequency
(MHz)
48.0
0.16%
0.08%
Recommended Land Pattern
0.5
0.5
0.5
(Unit : mm)
Recommended Reflow Profile
300
Temperature (°C)
250
200
150
100
50
0
Time (sec.)
preheat
150 to 180°C
60sec. min.
over 230°C
20sec. max.
and over 200°C
60sec.max.
peak : 260°C max.
Packaging : Taping
2.0 4.0
8.0
3.5 1.75
1.5
2.3
(Unit : mm)
0.3
(0.3)
(5°)
0.8
2.6
1.0
1.0
0.8
1.2
4.0
(5°)
(0.3)
(0.3)
- 24 -
(0.3)
0.9
2.7

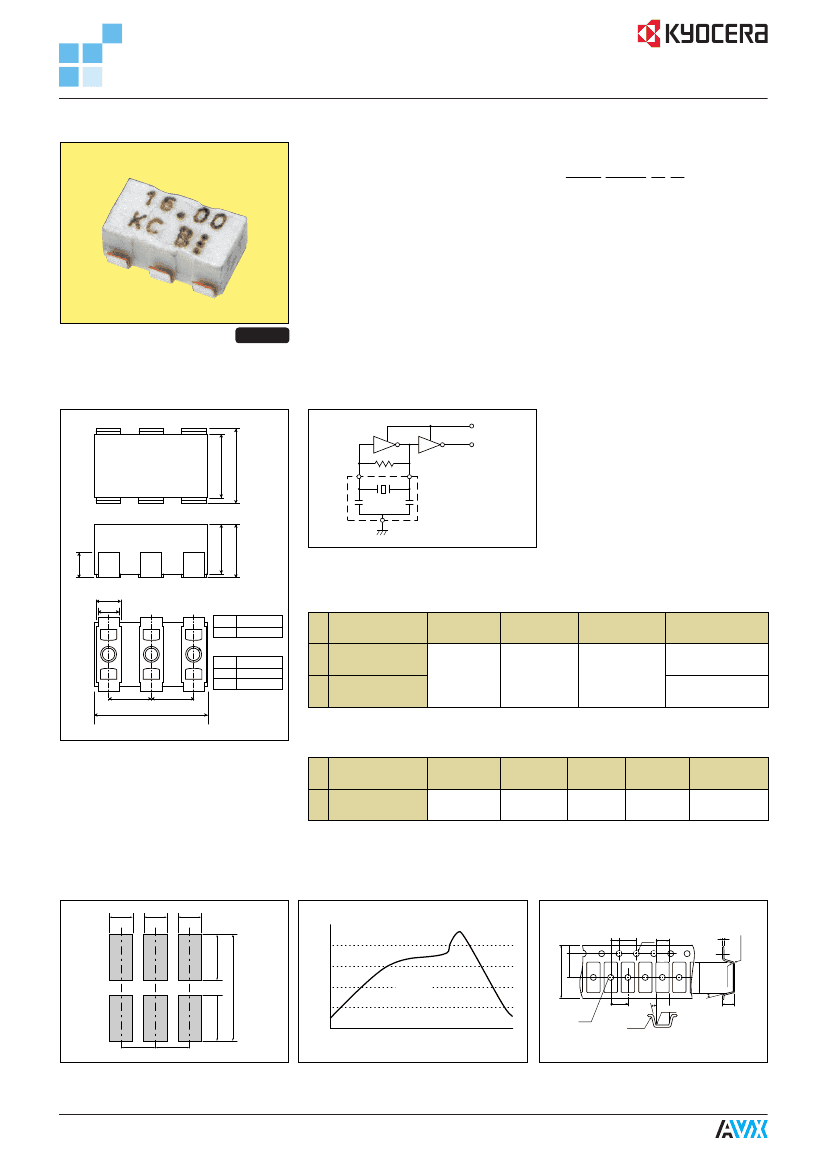

MHz Band Ceramic Resonators (SMD)
SSR-B / SSR-F Series
3.2×2.1×1.5mm
Features
• Miniature size (3.22.11.5 mm)
• Wide frequency range
• High precision type is available for full speed
USB
How to Order
SSR 33.86 B R
①
②
③④
Applications
• CD-ROM
• HDD
• DVD-ROM
• MD
• Printer
• Cellular (CDMA/PCS)
• Portable Electronic Equipment
• USB
①Series
②Oscillating
Frequency (MHz)
③Type
B: 3rd-Overtone Mode Built-in Capacitor
F: Fundamental Mode Built-in Capacitor
④Packaging
: Tape & Reel
2000pcs./Reel
RoHS Compliant
Notice
• Non Washable
• Operating Temperature
20C
to
+80C
Dimensions
(Unit : mm)
Test Circuit
V
DD
fosc
2.10.20
R
1
3
V
DD
: 5V
R : 1M
IC : MC74HCU04
(Freescale)
2
q
w
e
1.8
0.70.10
1.4
1.50.20
0.7
0.6
• Standard Type
①③
②
Input/Output
GND
Specifications
• Standard Type
Frequency Range
B
F
16.0 to 60.0MHz
(3rd-overtone)
16.0 to 20.0MHz
(Fundamental)
Frequency
Tolerance
(25°C)
Temperature
Stability
(20 to 80°C)
IC
MC74HCU04
(Freescale)
Main Frequency
(MHz)
16.93, 20.0, 27.0,
33.86, 50.8
16.93
• High Precision Type
①
②
③
1.2
1.2
Output
GND
Input
0.5%
0.3%
3.20.3/0.2
Please contact your local AVX office for IC matching.
• High Precision Type
Frequency Range
B
Frequency
Tolerance
(25°C)
Temperature
Aging
Stability
(10 years)
(20 to 70°C)
IC
MC74HCU04
(Freescale)
Main Frequency
(MHz)
48.0
16.0 to 60.0MHz
0.18%
(3rd-overtone)
(Option
0.08%)
0.06%
0.01%
Recommended Land Pattern
0.7
0.7
0.7
(Unit : mm)
Recommended Reflow Profile
250
200
Temperature (°C)
peak
2305°C
Packaging : Taping
2.0 4.0
8.0
3.5 1.75
1.5
2.4
(Unit : mm)
0.25
(0.3)
1.2
150
100
50
3.0
pre-heat
150 to 180°C
60sec. min.
1.2
1.1
0
Time (sec.)
4.0
(5°)
(0.3)
(0.3)
(5°)
1.2
1.2
- 25 -
(0.3)
1.8
over 200°C
20sec. max.
3.6

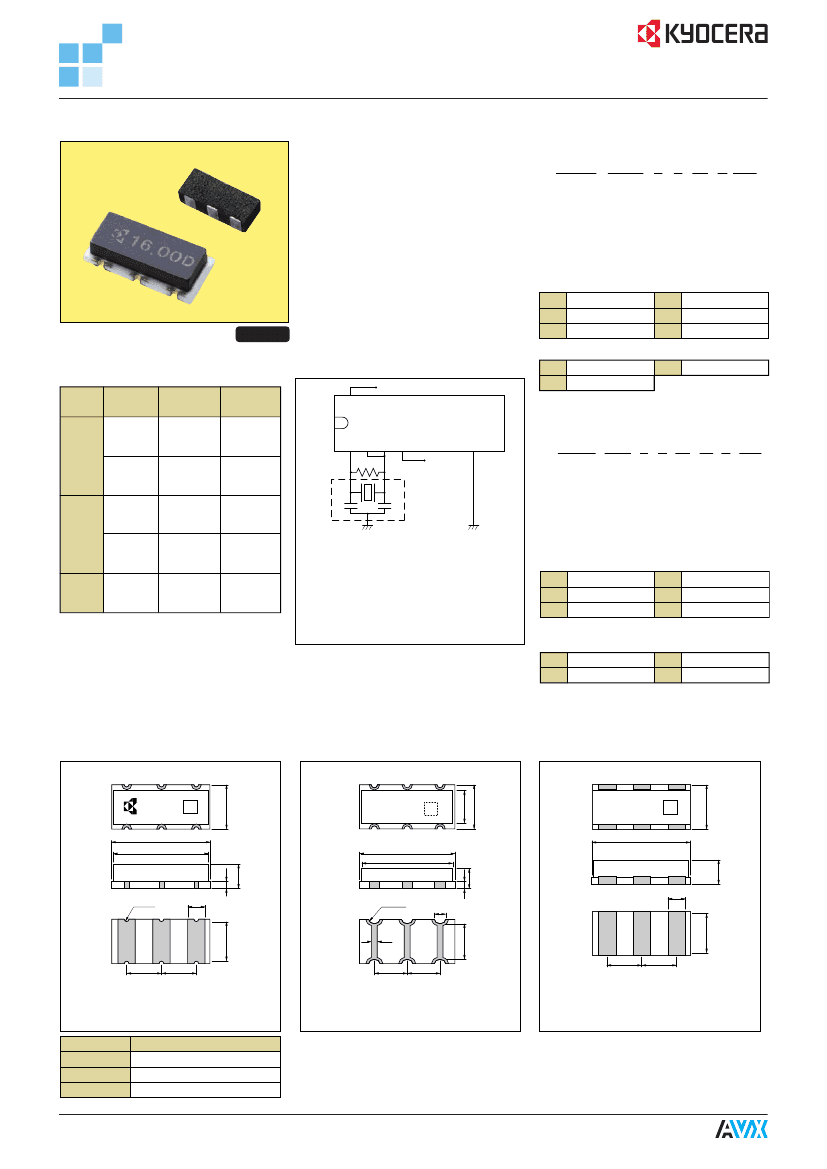

MHz Band Ceramic Chip Resonators (SMD)
PBRC-G / PBRC-L Series
for Consumer Applications
Features
• High reliability, high temperature
withstanding ceramic case
• Rectangular shape allows easy pick and
placement
• Small & low profile
• Reflow solderable
• Excellent solderability
(Nickel barrierAu flash terminations)
How to Order
PBRC 15.00 G R 50 Y 000
①
②
③ ④ ⑤ ⑥ ⑦
①Series
②Frequency
(MHz)
③Type
(G,L)
④Packing
_ Bulk
(Null)
R
Reel (G 2k/reel, L 3k/reel)
⑤Frequency
Tolerance at 25
C
10
30
50
X
Z
0.1%
0.3%
0.5%
40C
to 85C
40C
to 150C
RoHS Compliant
20
40
70
Y
0.2%
0.4%
0.7%
40C
to 125C
⑥Operating
Temperature
⑦Unique
Code
Specifications
Frequency
Frequency
Temperature
Series Range(MHz)
Tolerance(25°C)
Stability
0.5%
0.5%
2.00 to 8.00
(op.
0.3%)
(40 to 85C)
0.7%
0.1%
8.01 to 20.0
(op.
0.5%)
(40 to 85C)
4.00 to 8.00
PBRC-L
8.01 to 20.0
0.5%
0.5%
(op.
0.3%)
(40 to 85C)
0.7%
0.1%
(op.
0.5%)
(40 to 85C)
Test Circuit
V
DD
=5.0V
14
PBRC-G
1
2
R
f
MC14069UB
or
MC74HCU04
3
4
Out
Resonator
7
C
1
C
2
* Aging for 10 years is within
0.3%
from the initial frequency at 25C.
PBRC-G Type
R
f
½1M
C
1
½C
2
½30pF
(2.00 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
PBRC-G Type
R
f
½1M
C
1
½C
2
½15pF
(3.68 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
Note)
•
Values of C1, C2 and Rf are evaluated with IC, MC14069UB,
and evaluation of circuit is necessary when using other IC’s.
•
IC circuit matching may be referenced with
1) IC data books
2) List of Recommended circuits in Kyocera website.
•
Please contact IC manufacturer or Kyocera when there are
difficulties in finding recommended circuits.
Dimensions
PBRC-G Type
(Unit : mm)
(Unit : mm)
PBRC-L Type
XXXX
7.4
6.7
X XX
3.4
4.5
4.1
2.0max.
1.2max.
0.6
0.4
6-R0.45
3
3.0
1
0.4
6-0.3
3
1.7
1.5
1.5
R0.2
1
1.2
2.5
2.5
Standard Tol. :
0.3
Termination : Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol. :
0.2
- 26 -
1.6
2.0

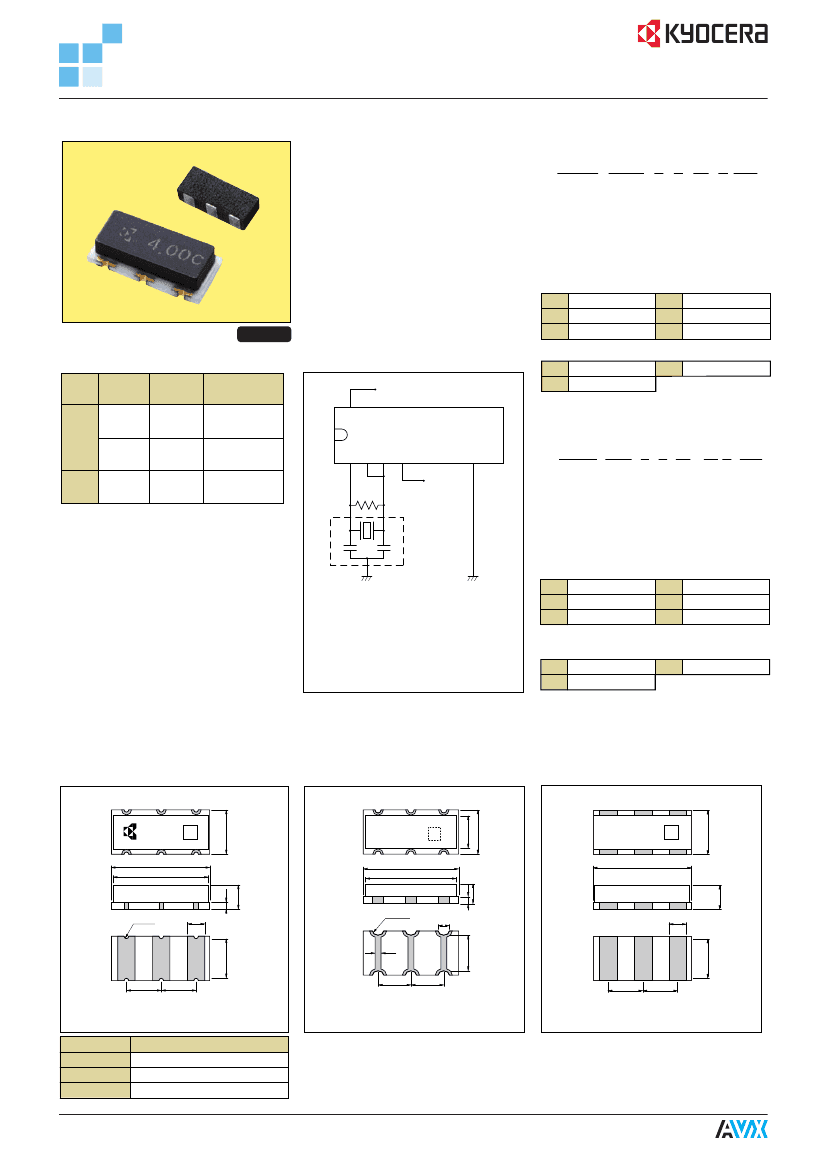

MHz Band Ceramic Chip Resonators (SMD)
PBRC-H / PBRC-M / PRQC Series
for Consumer Applications
Features
• High reliability, high temperature
withstanding ceramic case
• Rectangular shape allows easy pick and
placement
• Small & low profile
• Reflow solderable
• Excellent solderability
(Nickel barrierAu flash terminations)
How to Order (PBRC-H,PBRC-M)
PBRC 15.00 H R 50 Y 000
①
②
③ ④ ⑤ ⑥ ⑦
①Series
②Frequency
(MHz)
③Type
(H,M)
④Packing
_ Bulk
(Null)
R
Reel (H 2k/reel, M 3k/reel)
⑤Frequency
Tolerance at 25
C
10
0.1%
20
0.2%
30
0.3%
40
0.4%
50
0.5%
70
0.7%
⑥Operating
Temperature
X
40C
to 85C
Y
Z
40C
to 150C
⑦Unique
Code
40C
to 125C
RoHS Compliant
Specifications
Frequency
Frequency
Temperature
Series Range(MHz) Tolerance(25°C)
Stability
2.00 to 8.00
PBRC-H
8.01 to 20.0
4.00 to 8.00
PBRC-M
8.01 to 20.0
PRQC
0.5%
0.5%
(op.
0.3%)
(40 to 85C)
0.7%
0.1%
(op.
0.5%)
(40 to 85C)
0.5%
0.5%
(op.
0.3%)
(40 to 85C)
0.7%
0.1%
(op.
0.5%)
(40 to 85C)
Test Circuit
V
DD
＝5.0V
14
MC14069UB or MC74HCU04
1
2
R
f
3
4
Out
Resonator
7
How to Order (PRQC)
PRQC 8.00 S R 50 10 X 000
①
② ③④ ⑤ ⑥ ⑦ ⑧
①Series
②Frequency
(MHz)
③Type
(S)
④Packing
_ Bulk
(Null)
R
Reel (3k/reel)
⑤Frequency
Tolerance at 25
C
10
0.1%
20
0.2%
30
0.3%
40
0.4%
50
0.5%
70
0.7%
⑥Built-in
Capacitance 10pF : 10
⑦Operating
Temperature
W
20C
to 80C
Y
40C
to 125C
X
40C
to 85C
Z
40C
to 150C
⑧Unique
Code
C
1
C
2
PBRC-H Type
R
f
＝1M
C
1
½C
2
½30pF
(2.00 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
PBRC-M Type
R
f
＝1M
C
1
½C
2
½15pF
(3.68 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
PRQC Type
R
f
＝1M
C
1
½C
2
½10pF
(8.00 to 20.0MHz) IC: MC74HCU04
* C1, C2 are for Reference.
0.5%
0.5%
8.00 to 20.0
(op.
0.3%)
(40 to 85C)
* Aging for 10 years is within
0.3%
from the initial frequency at 25C.
Dimensions
PBRC-H Type
Note)
•
This product includes built-in capacitors, but values may not
be the most appropriate depending on IC’s.
•
Evaluation of circuit with IC is necessary. IC circuit matching
may be referenced with
1) IC data books
2) List of Recommended circuits in Kyocera website.
•
Please contact IC manufacturer or Kyocera when there are
difficulties in finding recommended circuits.
(Unit : mm)
(Unit : mm)
(Unit : mm)
PBRC-M Type
PRQC Type
XXXX
7.4
6.7
X XX
3.4
1.6
2.0
XXX
3.2
4.5
4.1
2.0max.
1.2max.
0.6
0.4
1.3
0.40.1
1
2
3
1.20.1
1.20.1
6-R0.2
1
2
3-1.2
3
3.0
1
6-R0.45
2
0.4
6-0.3
3
1.7
2.5
2.5
1.5
1.5
Standard Tol. :
0.3
Termination : Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol. :
0.2
Termination : Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol. :
0.15
Termination : Sn Plating
#
1
2
3
Pin #
Input
Ground
Output
- 27 -
1.3
1.3
MHz Band Ceramic Chip Resonators (SMD)
PBRV-H / PBRV-M / PRQV Series
for Automotive Applications
Features
• Miniature & low profile
• Rectangular shape allows easy pick
and placement
• Component cost and space saving
• High density mounting possible
• Reflow solderable & washable
• High reliability, high temperature
operating with ceramic case
How to Order (PBRV-H,PBRV-M)
PBRV 15.00 H R 50 Y 000
①
②
③④ ⑤ ⑥ ⑦
①Series
(PBRV: Automotive)
②Frequency
(MHz)
③Type
(H,M)
④Packing
_ Bulk
(Null)
R
Reel (H 2k/reel, M 3k/reel)
⑤Frequency
Tolerance at 25
C
10
30
50
X
Z
0.1%
0.3%
0.5%
40C
to 85C
40C
to 150C
Applications
• Automotive
• ABS
• ECU
• Air-Bag System
RoHS Compliant
20
40
70
Y
0.2%
0.4%
0.7%
40C
to 125C
Specifications
Frequency Frequency Temperature
Series Range(MHz) Tolerance(25°C)
Stability
0.5%
Y
：
0.5%(40
to
125C)
4.00 to 8.00
(op.
0.3%)
Z
：
0.5%(40
to
150C)
PBRV-H
PBRV-M
0.7%
Y
：
0.1%(40
to
125C)
8.01 to 20.00
(op.
0.5%)
Z
：
0.2%(40
to
150C)
0.5%
Y
：
0.5%(40
to
125C)
PRQV
8.00 to 20.00
(op.
0.3%)
Z
：
0.5%(40
to
150C)
* Aging for 10 years is within
0.3%
from the initial frequency at 25C.
* Please contact us for products without built-in capacitors.
Test Circuit
V
DD
＝5.0V
14
⑥Operating
Temperature
⑦Unique
Code
MC14069UB or MC74HCU04
1
2
3
4
Out
R
f
Resonator
7
How to Order (PRQV)
PRQV 8.00 S R 50 10 Y 000
①
② ③④ ⑤ ⑥ ⑦ ⑧
①Series
(PRQV: Automotive)
②Frequency
(MHz)
③Type
(S)
④Packing
_ Bulk
(Null)
R
Reel (3k/reel)
⑤Frequency
Tolerance at 25
C
10
30
50
0.1%
0.3%
0.5%
20
40
70
0.2%
0.4%
0.7%
C
1
C
2
Note)
•
This product includes built-in capacitors, but values may not
be the most appropriate depending on IC’s.
•
Evaluation of circuit with IC is necessary. IC circuit matching
may be referenced with
1) IC data books
2) List of Recommended circuits in Kyocera website.
•
Please contact IC manufacturer or Kyocera when there are
difficulties in finding recommended circuits.
PBRV-H Type
R
f
＝1M
C
1
½C
2
½30pF
(4.00 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
PBRV-M Type
R
f
＝1M
C
1
½C
2
½15pF
(4.00 to 8.00MHz) IC: MC14069UB
C
1
½C
2
½10pF
(8.01 to 20.0MHz) IC: MC74HCU04
PRQV Type
R
f
＝1M
C
1
½C
2
½10pF
(8.00 to 20.0MHz) IC: MC74HCU04
* C1, C2 are for Reference.
⑥Built-in
Capacitance 10pF : 10
⑦Operating
Temperature
X
40C
to 85C
Y
40C
to 125C
Z
40C
to 150C
⑧Unique
Code
Dimensions
PBRV-H Type
(Unit : mm)
(Unit : mm)
(Unit : mm)
PBRV-M Type
PRQV Type
XXXX
7.4
6.7
X XX
4.5
4.1
2.0max.
3.4
1.6
2.0
XXX
3.2
1.2max.
0.6
0.4
1.3
0.40.1
3
1.3
1.3
6-R0.2
1
2
3-1.2
3
3.0
6-R0.45
1
0.4
2
6-0.3
3
1.7
1
2
2.5
2.5
1.5
1.5
1.20.1
1.20.1
Standard Tol. :
0.3
Termination : Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol. :
0.2
Termination : Ni+Au Flash Plating
1. 3 Input, Output (No polarity)
Standard Tol. :
0.15
Termination : Sn Plating
#
1
2
3
Pin #
Input
Ground
Output
- 28 -
京公网安备 11010802033920号
EEWORLD
