DRAWING NO.
PART NUMBER
ITEM 1
CONTACT
ITEM 2
INSULATOR
25-7560
BRASS
DELRIN
NICKEL PLATED
ITEM 3
BODY
BRASS
NICKEL PLATED
CONTROLLED DOCUMENT
P/N
25-7560
25-7560
REVISIONS
RELEASE FOR QUTATION
05-20-06
WW T
Rev
0B
Rel'd Date
Mar 24,08
A
B
ADD TOL. ON OVERALL LENGTH
ADD NOTES 4 & 5
12-20-06
Z L T
Thomas Chow
2007.01.12
14:03:56 +08'00'
D
D
40 ±0.5
14
6
C
O
3.5
O
3.0
O
10
O
3.3
O
5.5
O
8.3
C
1
2
3
B
B
NOTES:
1. ELECTRICAL SPECIFICATIONS
F IMPEDANCE:
75 OHM
WORKING VOLTAGE:500 VOLTS RMS AT SEA LEVEL
DIELECTRIC WITHSTANDING VOLTAGE:1500 VOLTS RMS AT SEA LEVEL
INSULATION RESISTANCE: 5000 MEGOHMS MIN
2. ENVIRONMENTAL SPECIFICATIONS
TEMPERATURE RANGE: -55
TO +85
A
THIS DRAWING TO BE INTERPRETED
PER ANSI Y 14.5M - 1994
3. MECHANICAL CHARACTERISTICS:
DURABILITY: 500 CYCLES
4. PRODUCT SHOULD BE RoHS COMPLIANCE.
5. PACKAGING REQUIREMENT FOLLOWS ENGINEERING DOCUMENT P/N 836-40200001XX
COMPANY CONFIDENTIAL
TOLERANCE UNLESS DRAWN BY
OTHERWISE SPECIFIED
GARY.ZHG
DECIMALS
X
X.X
X.XX
ANGLES
mm
CHECKED BY
DATE
12-20-06
DATE
TITLE
Connectivity
Solutions

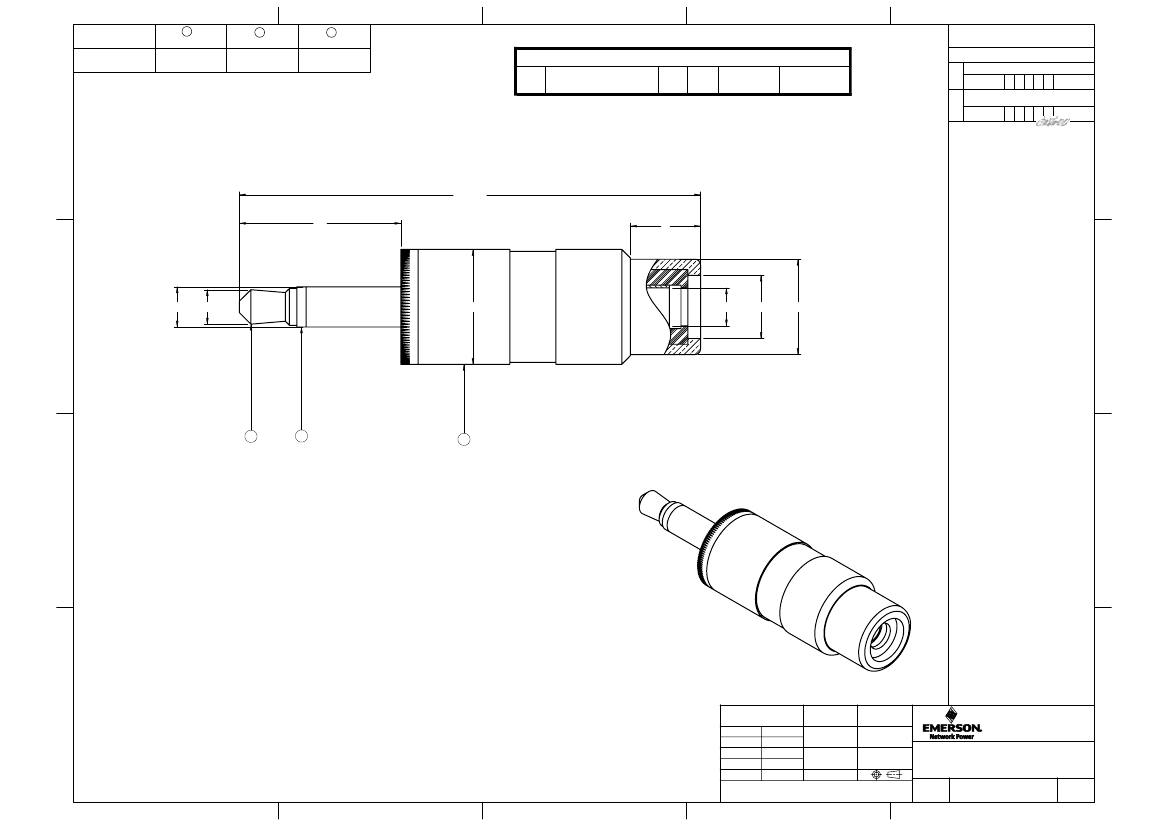

RCA FEMALE TO 3.5MM MALE
SHEET
1 OF 1
DRAWING NO.
SIZE
A
+
0.5
-
+
0.2
-
+
0.1
-
+
0.5
v
-
12-20-06
APPROVED BY DATE
LINDA.WU
THOMAS
mm
12-20-06
U/M
THIS DRAWING WAS PRODUCED BY COMPUTER,
DO NOT SCALE DRAWING OR UPDATE MANUALLY.
25-7560
1
C
5
4
3
2
