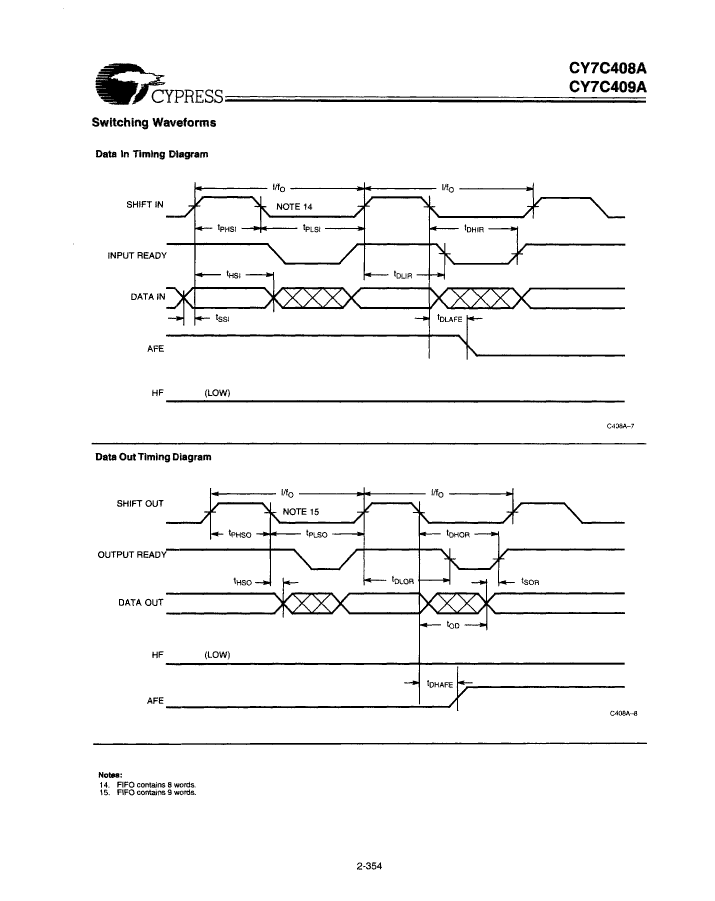

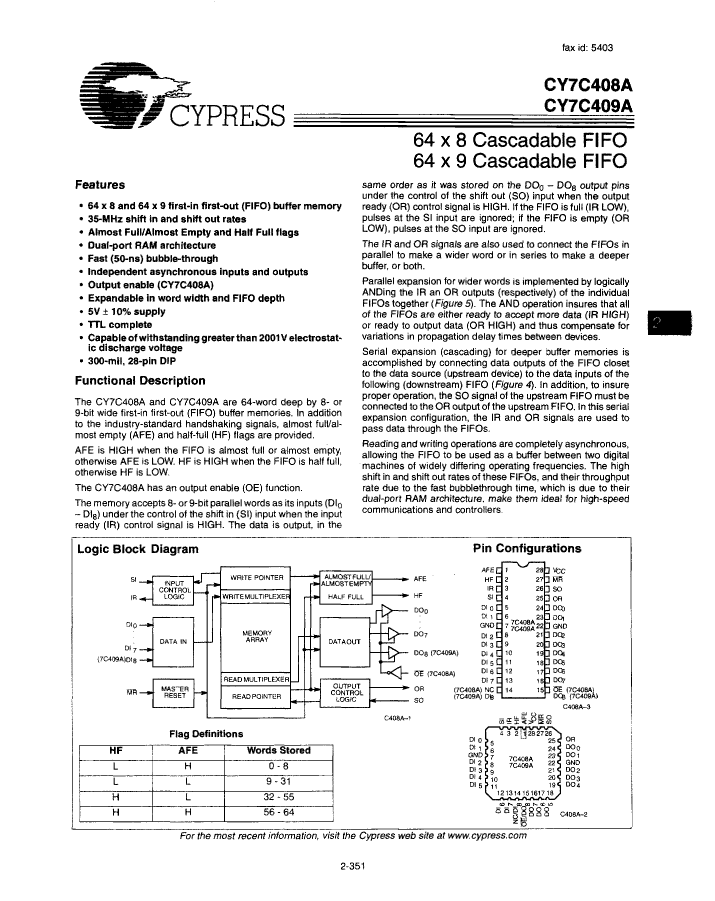

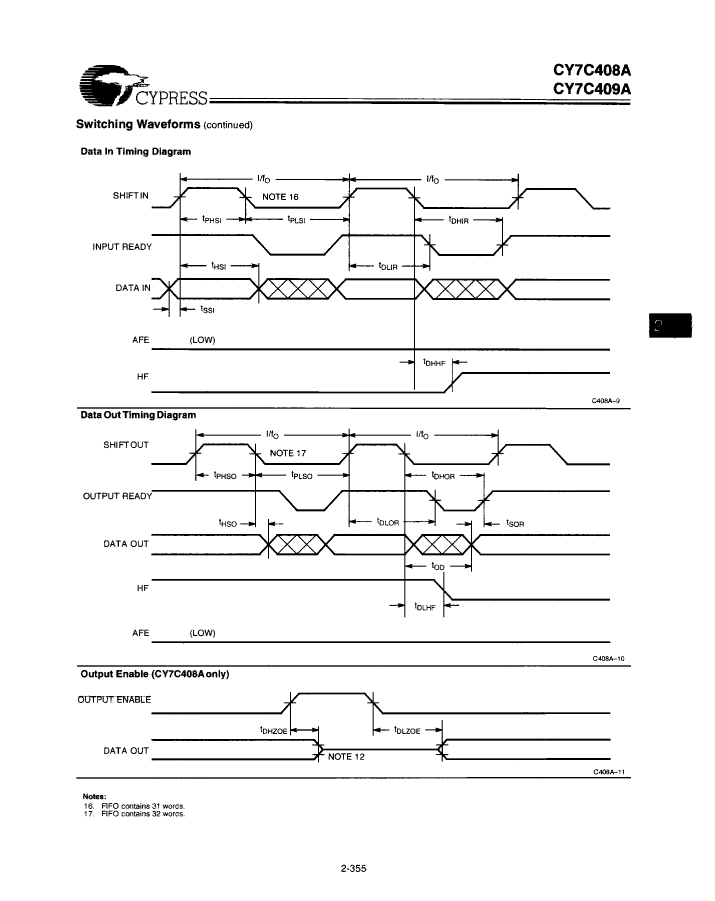

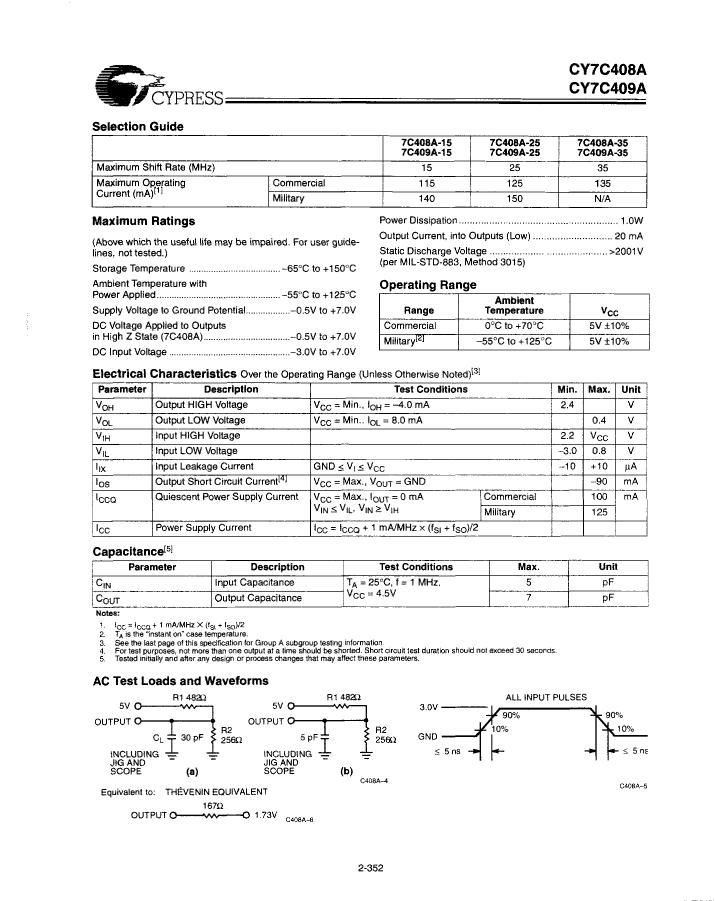

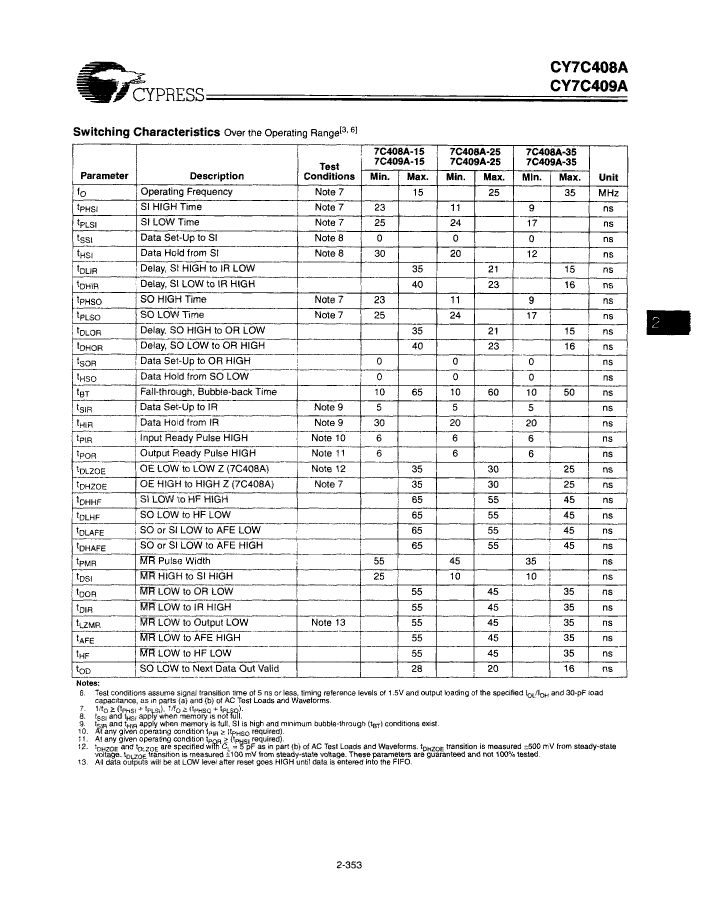

Preview

5962-8966401XX: DescriptionFIFO, 64X8, 40ns, Asynchronous, CMOS, CDIP28, 0.300 INCH, CERDIP-28; Categorystorage storage; File Size525KB，14 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8966401XX Overview

FIFO, 64X8, 40ns, Asynchronous, CMOS, CDIP28, 0.300 INCH, CERDIP-28

5962-8966401XX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP28,.3
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	40 ns
Maximum clock frequency (fCLK)	15 MHz
period time	66.67 ns
JESD-30 code	R-GDIP-T28
length	37.0205 mm
memory density	512 bi
Memory IC Type	OTHER FIFO
memory width	8
Number of functions	1
Number of terminals	28
word count	64 words
character code	64
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64X8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum standby current	0.125 A
Maximum slew rate	0.173 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8966401XX Related Products

	5962-8966401XX	5962-8966402XX	CY7C408A-25LMBR	CY7C409A-25LMBR	CY7C408A-25VCR	CY7C408A-15VCR	CY7C408A-15LMBR	CY7C409A-35VCR	CY7C409A-25VCR
Description	FIFO, 64X8, 40ns, Asynchronous, CMOS, CDIP28, 0.300 INCH, CERDIP-28	FIFO, 64X8, 23ns, Asynchronous, CMOS, CDIP28, 0.300 INCH, CERDIP-28	FIFO, 64X8, 23ns, Asynchronous, CMOS, CQCC28, CERAMIC, LCC-28	FIFO, 64X9, 23ns, Asynchronous, CMOS, CQCC28, CERAMIC, LCC-28	FIFO, 64X8, 23ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	FIFO, 64X8, 40ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	FIFO, 64X8, 40ns, Asynchronous, CMOS, CQCC28, CERAMIC, LCC-28	FIFO, 64X9, 16ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	FIFO, 64X9, 23ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Parts packaging code	DIP	DIP	QLCC	QLCC	SOJ	SOJ	QLCC	SOJ	SOJ
package instruction	DIP, DIP28,.3	DIP,	QCCN,	QCCN,	SOJ,	SOJ,	QCCN,	SOJ,	SOJ,
Contacts	28	28	28	28	28	28	28	28	28
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	40 ns	23 ns	23 ns	23 ns	23 ns	40 ns	40 ns	16 ns	23 ns
period time	66.67 ns	40 ns	40 ns	40 ns	40 ns	66.67 ns	66.67 ns	28.57 ns	40 ns
JESD-30 code	R-GDIP-T28	R-GDIP-T28	S-CQCC-N28	S-CQCC-N28	R-PDSO-J28	R-PDSO-J28	S-CQCC-N28	R-PDSO-J28	R-PDSO-J28
length	37.0205 mm	37.0205 mm	11.43 mm	11.43 mm	17.91 mm	17.91 mm	11.43 mm	17.91 mm	17.91 mm
memory density	512 bi	512 bit	512 bit	576 bit	512 bit	512 bit	512 bit	576 bit	576 bit
memory width	8	8	8	9	8	8	8	9	9
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28	28
word count	64 words	64 words	64 words	64 words	64 words	64 words	64 words	64 words	64 words
character code	64	64	64	64	64	64	64	64	64
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-	-
organize	64X8	64X8	64X8	64X9	64X8	64X8	64X8	64X9	64X9
Output characteristics	3-STATE	3-STATE	3-STATE	TOTEM POLE	3-STATE	3-STATE	3-STATE	TOTEM POLE	TOTEM POLE
Exportable	YES	YES	YES	NO	YES	YES	YES	NO	NO
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCN	QCCN	SOJ	SOJ	QCCN	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	1.9812 mm	1.9812 mm	3.56 mm	3.56 mm	1.9812 mm	3.56 mm	3.56 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	J BEND	J BEND	NO LEAD	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
width	7.62 mm	7.62 mm	11.43 mm	11.43 mm	7.5 mm	7.5 mm	11.43 mm	7.5 mm	7.5 mm
Maker	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
