M2201WM6TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M2201WM6TR

M2201WM6TR: Description128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8; Categorystorage storage; File Size337KB，13 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M2201WM6TR Overview

128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8

M2201WM6TR Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	100000 ERASE/WRITE CYCLES; 100 YEARS DATA RETENTION; PAGE WRITE
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	100
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	10 ms

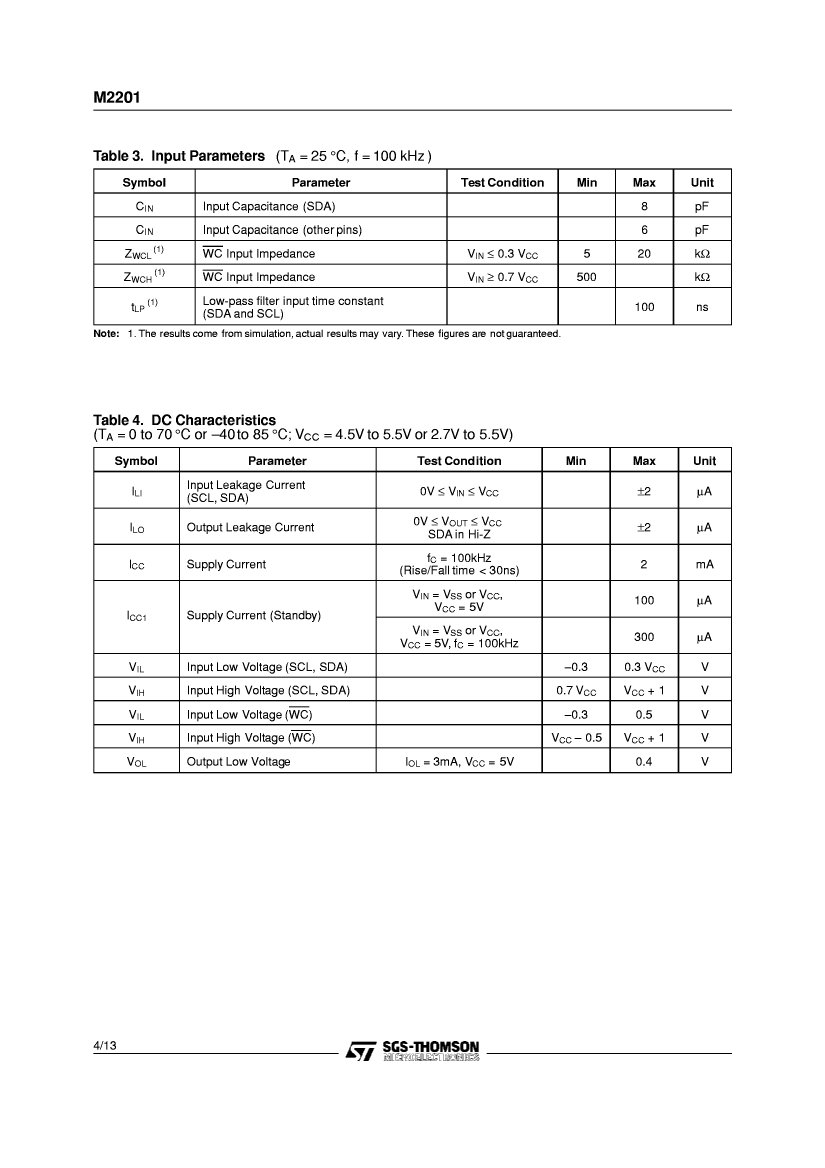

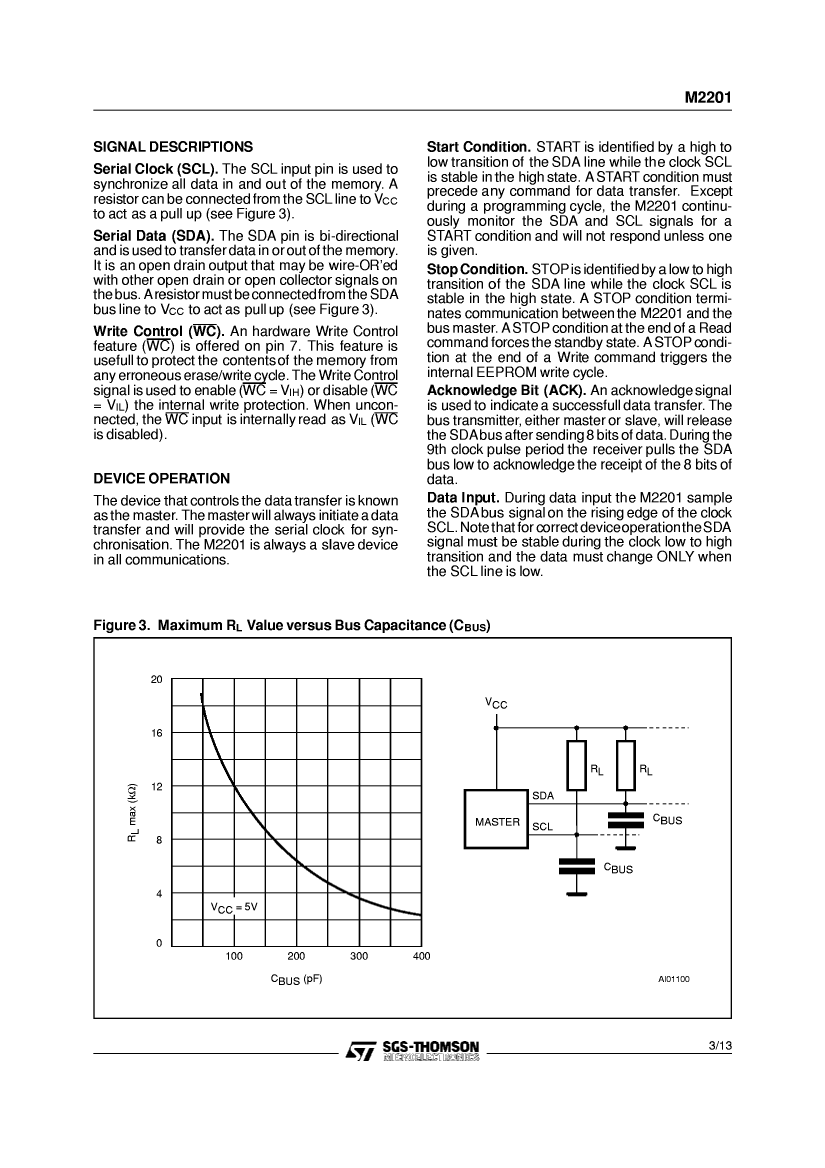

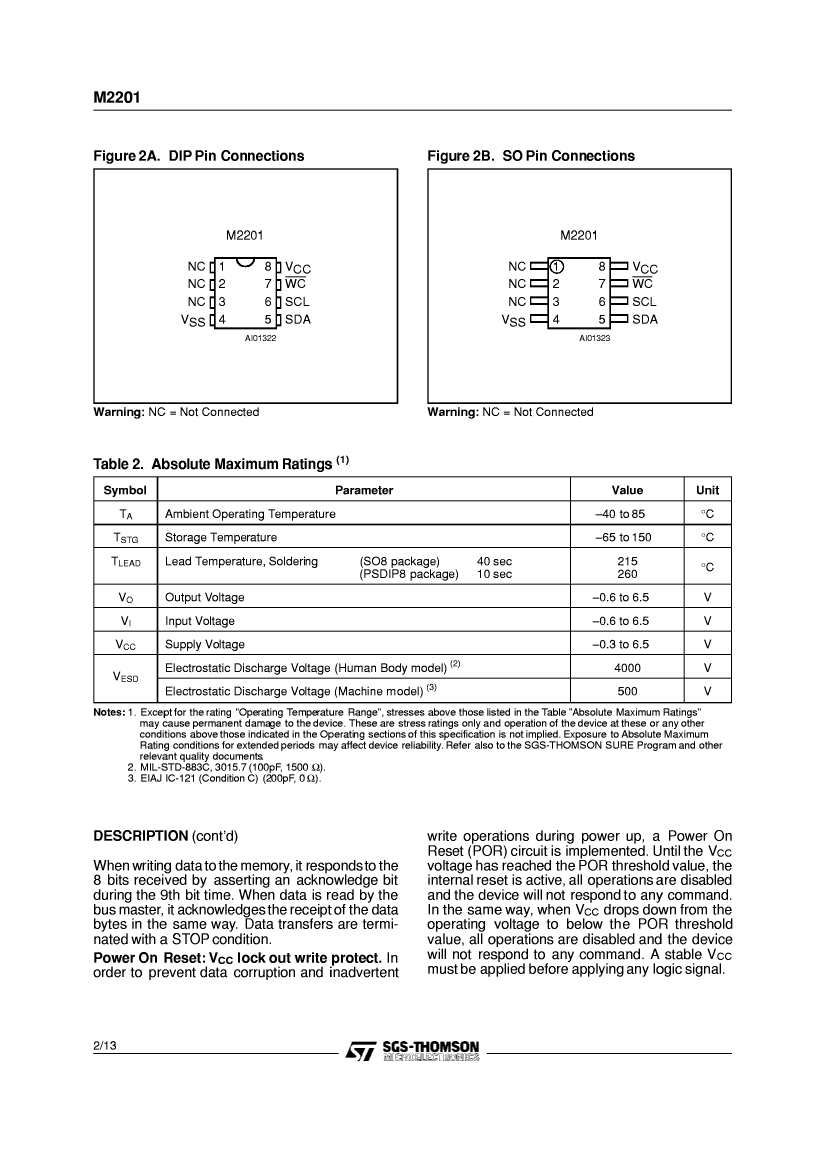

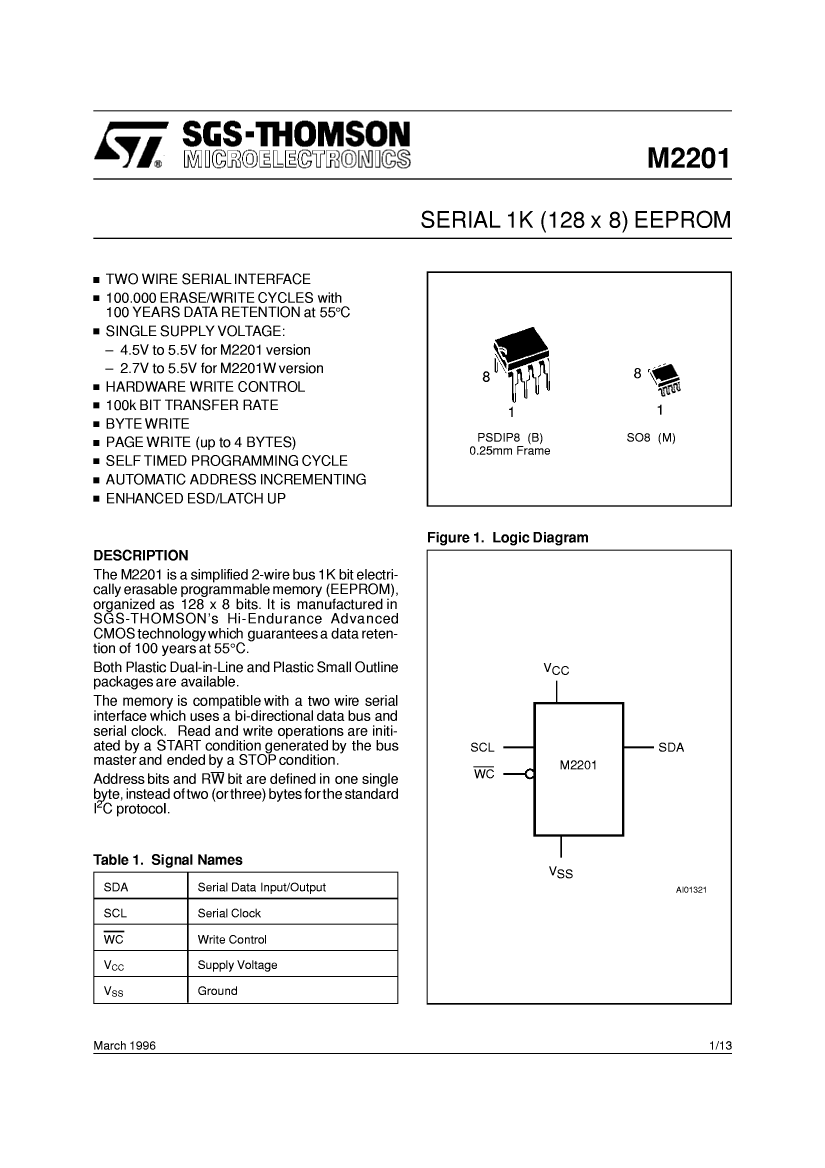

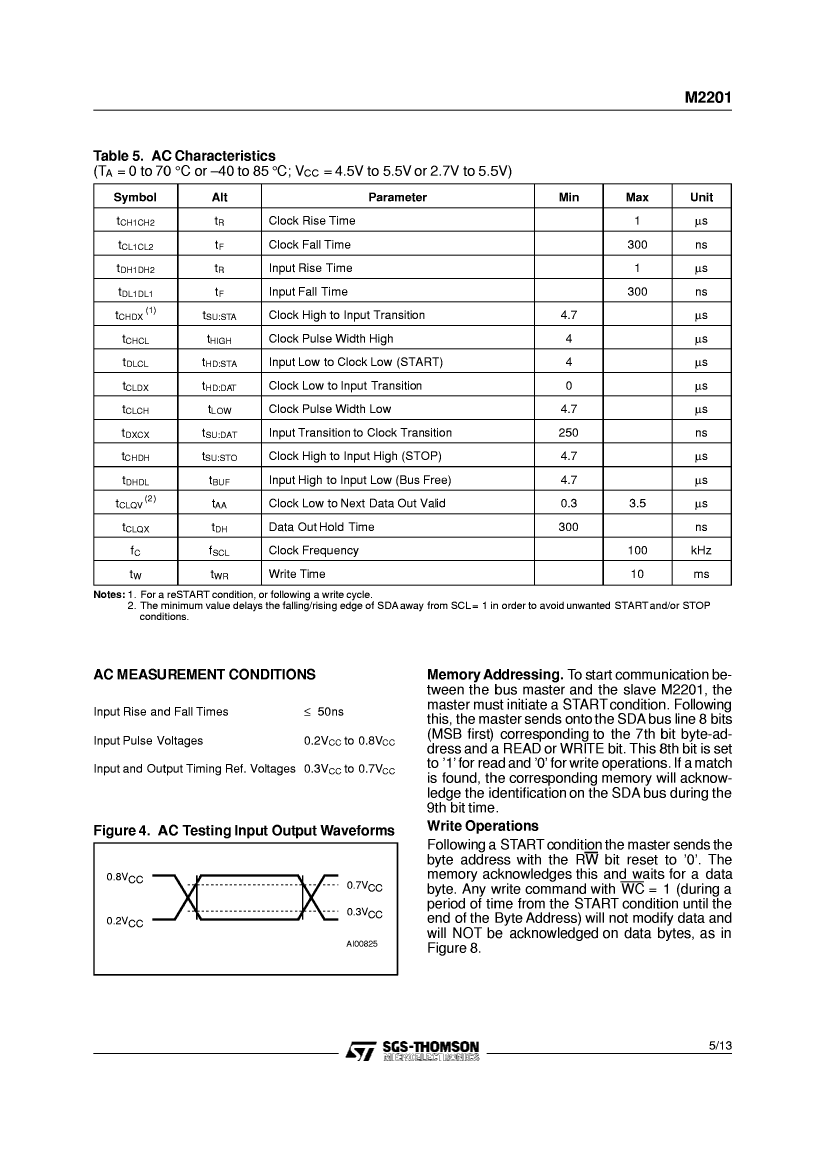

Preview

Download Datasheet

View All

M2201WM6TR Related Products

	M2201WM6TR	M2201WB6	M2201WM1TR	M2201WB1
Description	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.25 MM LEAD FRAME, SKINNY, PLASTIC, DIP-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.25 MM LEAD FRAME, SKINNY, PLASTIC, DIP-8
Parts packaging code	SOIC	DIP	SOIC	DIP
package instruction	SOP,	0.25 MM LEAD FRAME, SKINNY, PLASTIC, DIP-8	SOP,	0.25 MM LEAD FRAME, SKINNY, PLASTIC, DIP-8
Contacts	8	8	8	8
Reach Compliance Code	unknown	not_compliant	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	100000 ERASE/WRITE CYCLES; 100 YEARS DATA RETENTION; PAGE WRITE	100000 ERASE/WRITE CYCLES; 100 YEARS DATA RETENTION; PAGE WRITE	100000 ERASE/WRITE CYCLES; 100 YEARS DATA RETENTION; PAGE WRITE	100000 ERASE/WRITE CYCLES; 100 YEARS DATA RETENTION; PAGE WRITE
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Data retention time - minimum	100	100	100	100
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8
length	4.9 mm	9.55 mm	4.9 mm	9.55 mm
memory density	1024 bit	1024 bit	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
word count	128 words	128 words	128 words	128 words
character code	128	128	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C
organize	128X8	128X8	128X8	128X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	5.9 mm	1.75 mm	5.9 mm
Serial bus type	I2C	I2C	I2C	I2C
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	3.9 mm	7.62 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
