TA24-11CGKWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> TA24-11CGKWA

TA24-11CGKWA: Description5X8 DOT MATRIX DISPLAY, GREEN, 58.34mm, ROHS COMPLIANT PACKAGE-14; CategoryLED optoelectronic/LED photoelectric; File Size243KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

TA24-11CGKWA Overview

5X8 DOT MATRIX DISPLAY, GREEN, 58.34mm, ROHS COMPLIANT PACKAGE-14

TA24-11CGKWA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-14
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	COMMON CATHODE, 1 DIGIT
Display height	58.34 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	5 X 8 DOT MATRIX LED DISPLAY

Preview

Download Datasheet

View All

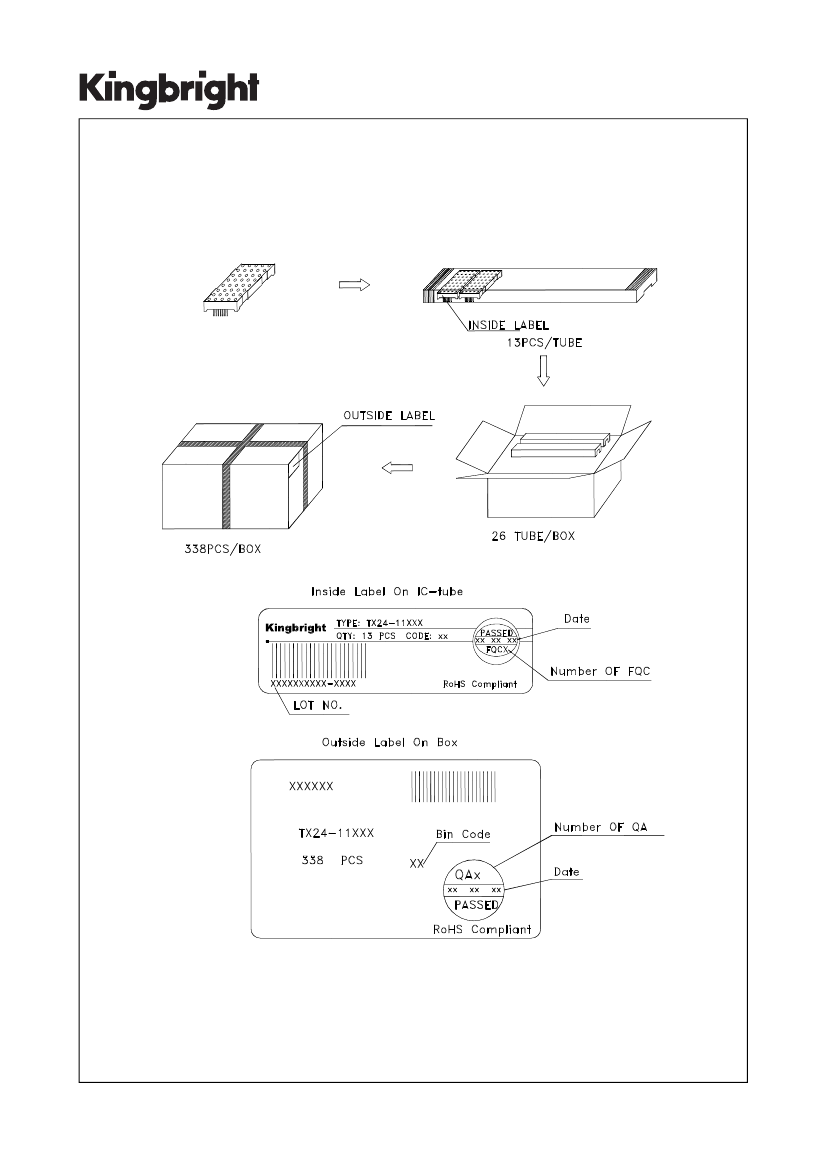

60.8mm (2.4 INCH) 5x8 DOT MATRIX DISPLAY

Part Number: TA24-11CGKWA

Green

Features

2.4 inch matrix height.

Dot size 5mm.

Low current operation.

High contrast and light output.

Stackable horizontally.

Easy mounting on P.C. boards or sockets.

Multicolor available.

Mechanically rugged.

Standard : gray face, white dot.

RoHS compliant.

Description

The Green source color devices are made with AlGaInP on

GaAs substrate Light Emitting Diode.

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAE2702

APPROVED: WYNEC

REV NO: V.5A

CHECKED: Joe Lee

DATE: MAY/14/2013

DRAWN: F.Cui

PAGE: 1 OF 6

ERP: 1332000864
